Knuth LabTurn 2028 SKU : 181625 CNC turning with maximum precision and minimum space requirement
Knuth LabTurn 2028
SKU : 181625
CNC turning with maximum precision and minimum space requirementEx Stock Availability, 4 Weeks to site.Subject to no prior sales
Highlights
Knuth LabTurn 2028

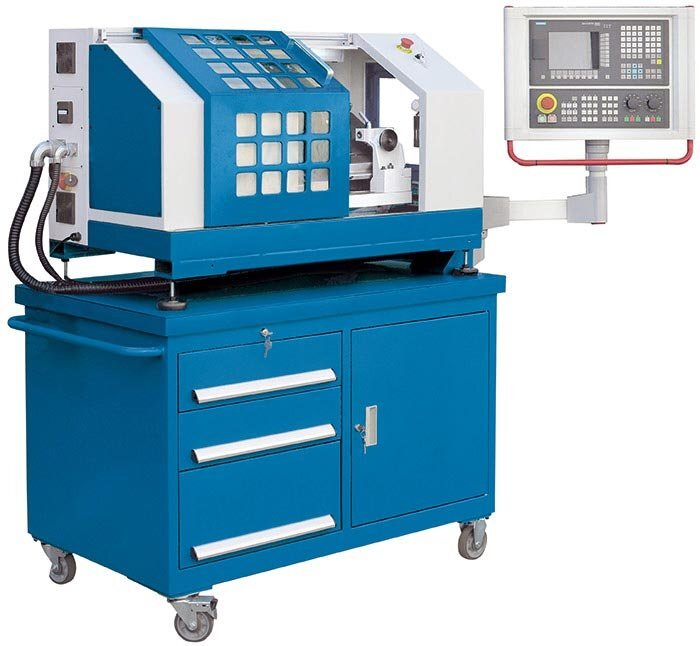

The LabTurn is suitable for CNC training as well as for the production of small workpieces. The compact and mobile CNC lathe represents the full range of functions of a large production machine. The 8-station tool turret has four tools each for internal and external machining and long workpieces can be machined with a tailstock. The main spindle rotates continuously up to 3000 revolutions and the 3-jaw chuck has a diameter of 100 mm (3.9 in). With its simple, intuitive operator guidance, the Siemens 808 controller is the ideal introduction to CNC applications.
- Siemens 808 Advance
- ideal for entry-level
- Tool turret for inside and outside machining
- Linear guides and preloaded ball screws
- Enclosed machine housing

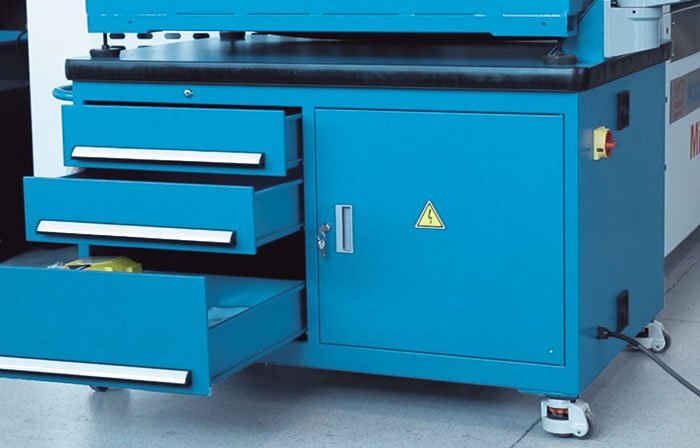

- Mobile base with large storage base
Detail of the machine
Highlights
-
- The LabTurn is an ideal lathe for CNC training and small batch production of high precision workpieces
- Rigid cast-iron inclined bed design ensures good stability and efficient chip removal
- Precision linear guides ensure high stability and accuracy
- Central lubrication for reduced maintenance

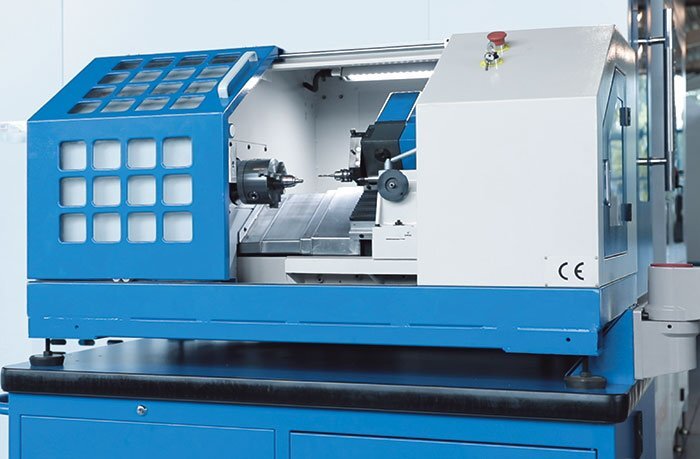

- Enclosed workspace protects and a large sliding door provides easy access

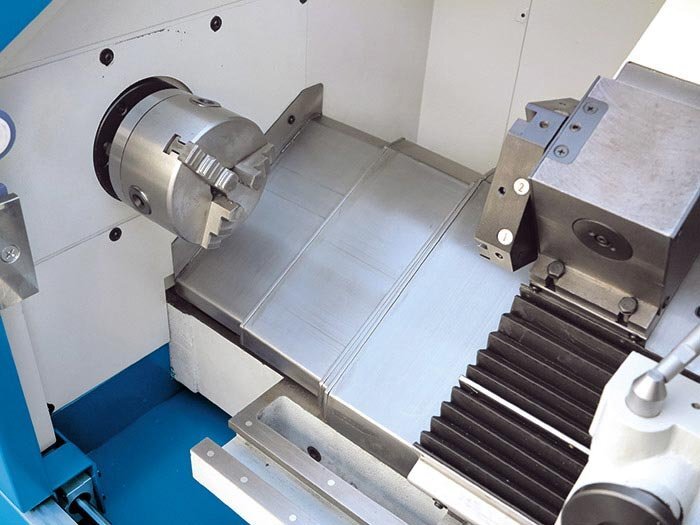

- Hydraulic 100 mm 3-jaw chuck and rigid tailstock are included in standard equipment
- Max. spindle speed 3.000 rpm
- Spindle bore 20 mm

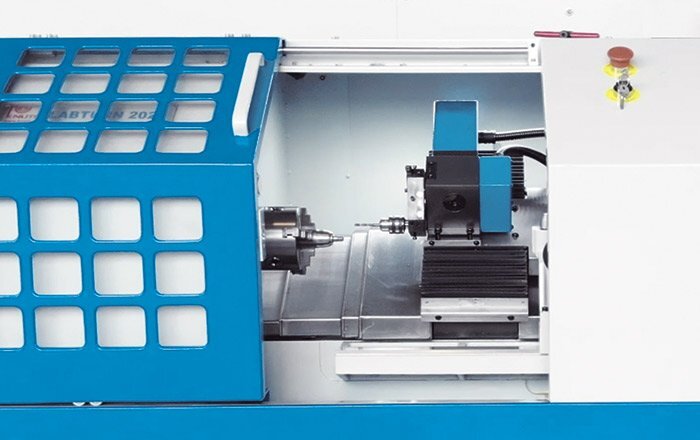

- 8-station tool turret with 4 tools per station for inside and outside turning
Technical Details
| WORKING AREA | |
|---|---|
| Workpiece length (max.) | 280 mm |
| Turning diameter over bed | 200 mm |
| Turning-Ø over support | 90 mm |
| TRAVELS | |
|---|---|
| Travel X-axis | 86 mm |
| Travel Z-axis | 155 mm |
| HEADSTOCK | |
|---|---|
| Speed range | 100 1/min - 3000 1/min |
| Spindle mount | MK 3 |
| Spindle bore | 20 mm |
| Lathe chuck diameter | 100 mm |
| RAPID FEED | |
|---|---|
| Rapid feed X-axis | 2000 mm/min |
| Rapid feed Z-axis | 2000 mm/min |
| FEED | |
|---|---|
| Feed speed X-axis | 1000 mm/min |
| Feed speed Z-axis | 1000 mm/min |
| Max. torque feed motor X-axis | 2,2 Nm |
| Max. torque feed motor Z-axis | 2,2 Nm |
| TOOLING | |
|---|---|
| Number of tool stations | 4 positions |
| Tool shank dimensions | 8 mm x 8 mm |
| Boring bar mount diameter | 12 mm |
| ACCURACIES | |
|---|---|
| Positioning accuracy X-axis | 0,022 mm |
| Positioning accuracy Z-axis | 0,022 mm |
| Repeatability X-axis | 0,01 mm |
| Repeatability Z-axis | 0,01 mm |
| TAILSTOCK | |
|---|---|
| Tailstock quill diameter | 20 mm |
| Tailstock quill stroke | 30 mm |
| Tailstock taper | MK 2 |
| DRIVE CAPACITY | |
|---|---|
| Motor rating main drive | 1 kW |
| MEASURES AND WEIGHTS | |
|---|---|
| Overall dimensions (length x width x height) | 1,4 m x 0,9 m x 1,85 m |
| Weight | 360 kg |
Steering / Control
Siemens 808D Advance Control
- SINUMERIK 808D ADVANCE -- the perfect solution for modern standard machines
- CNC and drive communicate via a high-speed bus to ensure efficient positioning control plus high precision and optimum cutting performance
- This is topped by a guaranteed superior price/performance ratio
- This globally leading CNC technology provides high performance and power for the control of standard lathes
- In combination with a new generation of spindle and axis drives, the SINUMERIK 808D ADVANCE with 8.4" LCD provides an innovative ready-to-use digital CNC solution for modern standard machines
Advantages - Digital solution provides higher precision:
- Increased overload capacity supports a faster acceleration and deceleration of machine tools
- Constant cutting speeds result in an increased surface quality of the workpiece
Increased ruggedness:
- During heavy machining operations, an automatic spindle torque adjustment will help protect machining tools and spindle systems.
- The SINAMICS features a wide voltage range to prevent machine shut-downs during poor voltage supply conditions. This will significantly reduce machine down-times.
Increased operator comfort:
- A fast Ethernet connection facilitates easy start-up and diagnostics of machine tools and simplifies NC program use
Standard Equipment
siemens 808D Advance control
electronic hand-wheel
8-station turret
mobile base
tailstock
3-jaw chuck Ø 100 mm
central lubrication
work lamp
operating tools
operating manual and programming instructions
Optional Equipment
Operator Training
Operator training available in showroom subject to quotation
prior to delivery. Email us to outline your needs.
Shipping
Fully inclusive shipping rates covering transportation, import customs documentation, duties
quoted for inclusion at time of order for UK mainland sites. Northern Ireland destinations, Islands
and other remote sites should seek advice prior to order via email. Clients will be responsible for
their own site offload and siting at point of use.
