Baileigh PL-1236E-DRO Economical Precision Lathe

+12

+11

+10

Baileigh PL-1236E-DRO Economical Precision Lathe

Name: Baileigh PL-1236E-DRO Economical Precision Lathe
SKU: 2000911
Price: 7412.0 GBP
Availability: InStock

Store / Precision Machine Tools & Equipment

£7,412.00

In stock

Product Details

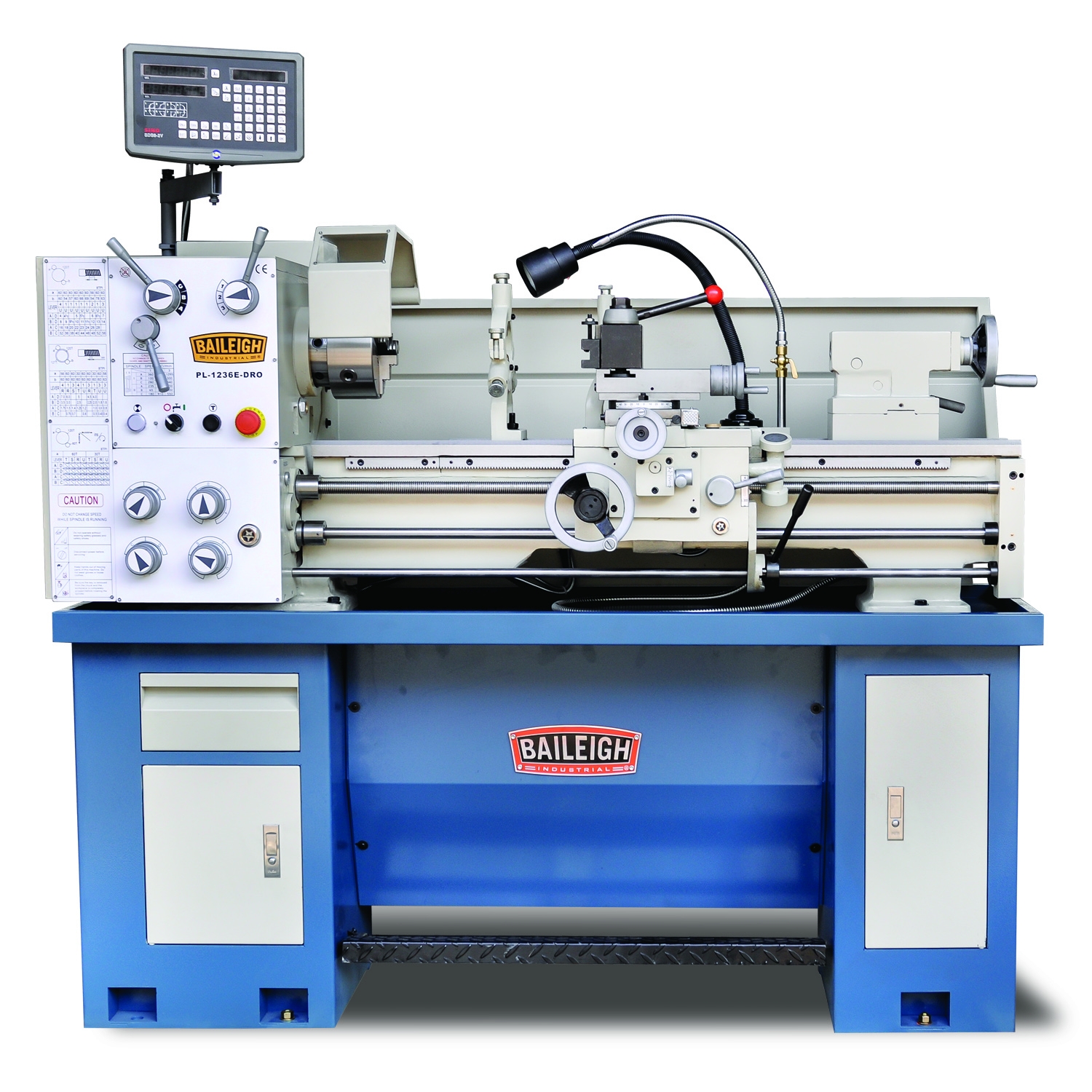

Baileigh PL-1236E-DRO Economical Precision Lathe

Highlights

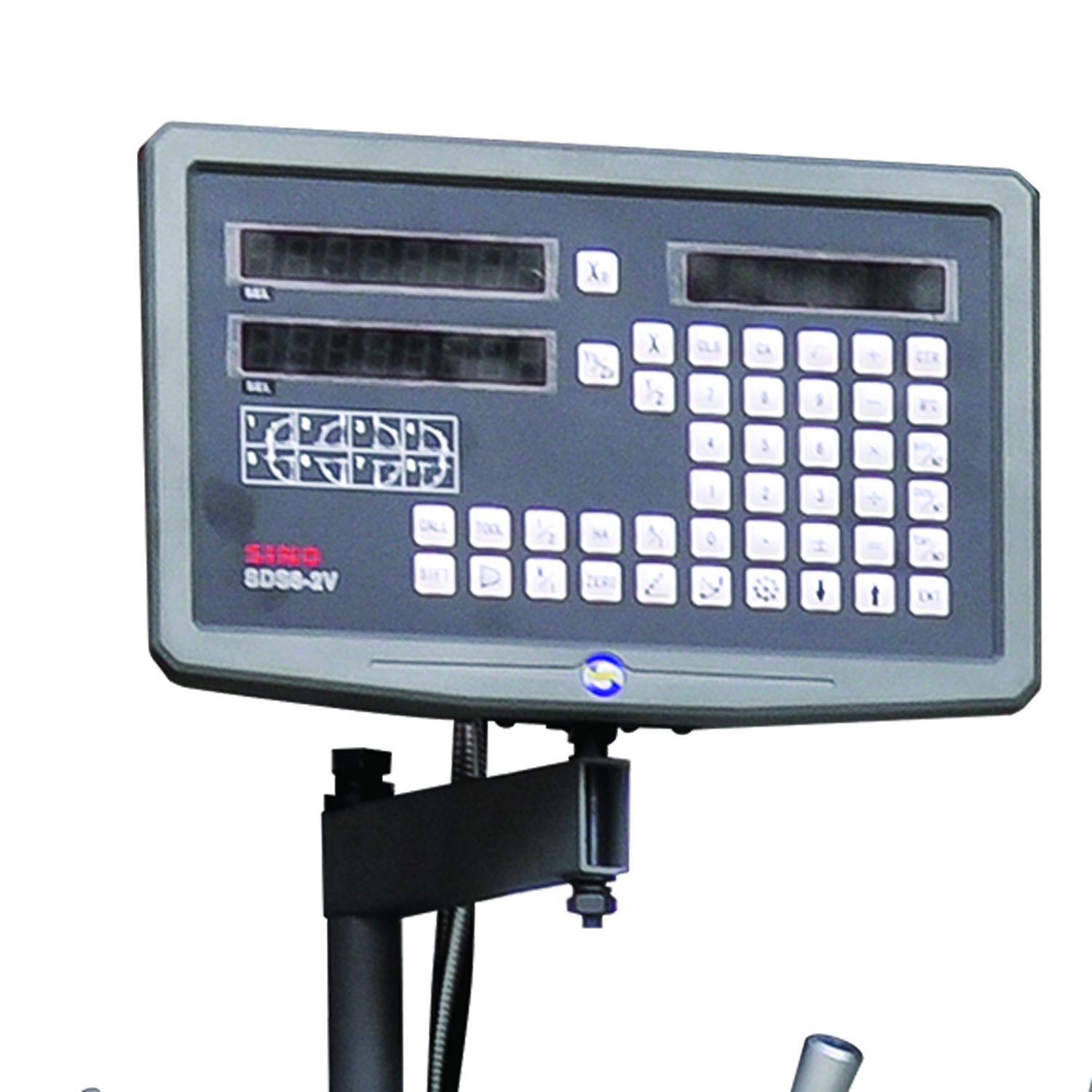

With the same working base as the versatile PL-1236E lathe, the PL-1236E-DRO take the platform one step further by adding an industrial grade digital readout system for improved accuracy and efficiency. But the PL-1236E-DRO is still a great metal lathe for anyone that is looking an economical lathe that is high in quality and easy to use.

Powered by 220v single phase the Baileigh Industrial PL-1236E-DRO allows the operator to choose what voltage will suit their needs the best. Because of its versatile voltage options as well as the integrated digital readout, the PL-1236E-DRO is the perfect choice for small fabricators, schools, or garages.

The PL-1236E-DRO has an easy to use gear system that allows for taping, turning, and polishing with a range of 9 speeds from 70 to 1400 RPM. To ensure that all cuts are precise, all ways are ground and hardened to ensure long life. They also have adjustable gibs to make sure they slide as free as possible with no binding.

The PL-1236E-DRO lathe is packed with feature that make this a winning lathe, these features include, digital read out, three and four jaw chucks, steady rest, follow rest, face plate, foot brake, coolant system, and halogen work light

Technical Details

Item Number PL-1236E-DRO
Sleeve Travel 101 mm
Spindle Bore 38 mm
Spindle Bore Taper Morse #6
Sleeve Taper Morse #4
Sleeve Diameter 32 mm
Metric Thread Range 0.4 7 mm
Spindle Nose D1 – 102 mm
Travel Of Cross Slide 135 mm
Travel Of Top Slide 83 mm
Wire Grooves 181 mm
Spindle Speed 10 (70 1400 rpm)
Swing In Gap 431 mm
Swing Over Bed 305 mm
Swing Over Cross Slide 194 mm
Longitudinal Feed Range .05 1.4 mm/rev
Lead Screw Thread Pitch 9 T.P.I.
Length Of Gap 152 mm
Max. Tool Selection 16 mm x 16 mm
Cross Feed Range .178 .475 mm/rev
Distance Between Centers 914 mm
Power 220 volt single phase
Shipping Weight 560 kgs.
Shipping Dimensions (Inches) 1701 x 787 x 1524 mm

* specifications subject to change without notice.
