Sealey SM2503 Mini Lathe & Drilling Machine
Sealey SM2503 Mini Lathe & Drilling Machine
Bench mounting multifunction mini drill, mill and lathe with variable speed giving flexibility to handle most materials.
Highlights
• Bench mounting multifunction mini drill, mill and lathe with variable speed giving flexibility to handle most materials. • Features two 150W motors, one to operate the drill/mill and the other to power the lathe. • The lathe cutting feed can be power driven or advanced manually. • Thread cutting may also be undertaken with the optional thread cutting kit. • Supplied with Metric graduated scales and all necessary tools required for setting and adjusting. • An optional stand is available, order Model No. SM3002ST.
Technical Details
| Nett Weight: | 39.2kg |
| Specification - Cutting: | |
| Swing Over Bed: | 140mm |
| Distance Between Centres: | 250mm |
| Spindle Hole Taper: | MT2 |
| Cross Slide Travel: | 61mm |
| Tailstock Taper: | MT1 |
| Spindle Speed (Variable): | 100-2000rpm |
| Range of Metric Threads: | 5 Pitches (0.5-1.25mm) |
| Specification - Drilling: | |
| Maximum Drilling/Milling Capacity: | 10mm |
| Drilling/Milling Spindle Travel: | 30mm |
| Drilling/Milling Spindle Speed: | 100-1300rpm |
| T-Slot: | 8mm |
| Distance from Spindle to Table: | 180mm |
| Distance from Spindle Centre to Column: | 100mm |
| Motor Power: | 2 x 150W - 230V |
| Weight: | 39.2kg |
Optional
The mini lathe and drilling machine are also available as separates as follows.

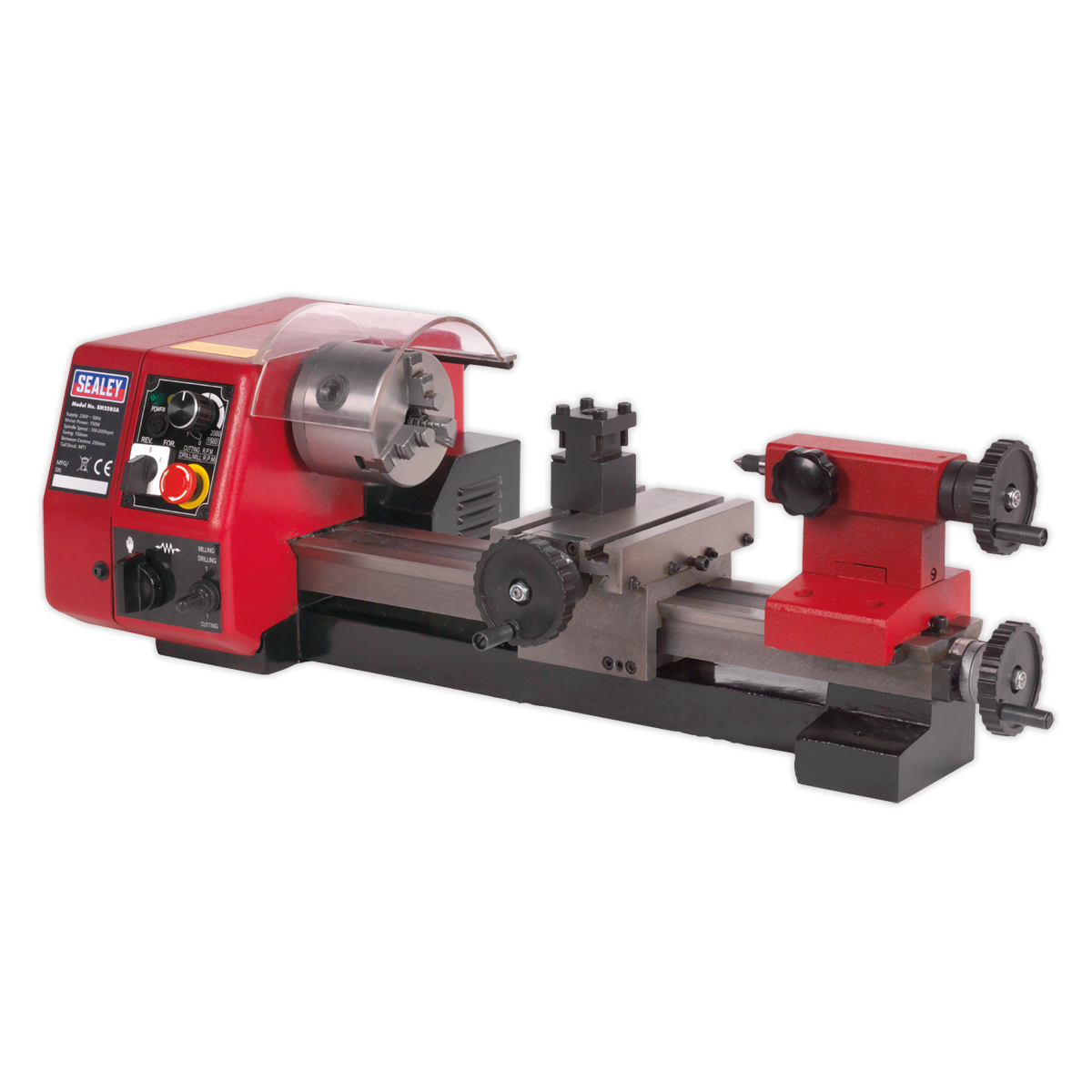

Sealey Metalworking Mini Lathe 250mm SM2503A
Bench mounting miniature lathe, small enough to fit into the corner of a workshop. • Light enough to be truly portable. • Construction is predominately cast iron and steel. • Fitted with 150W high torque motor. • Capacities: 150mm swing over bed and 250mm between centres. • Features variable speed control, manual or powered lead screw feed, over-load protection. • Extensive range of accessories available. • Supplied with Ø80mm 3-jaw self-centring chuck, tailstock centre and service tools.
| Nett Weight: | 26.2kg |
| Swing Over Bed: | 150mm |
| Distance Between Centres: | 250mm |
| Spindle Hole Taper: | MT2 |
| Cross Slide Travel: | 50mm |
| Tailstock Taper: | MT1 |
| Spindle Speed (Variable): | 100-2000rpm |
| Range of Metric Threads: | 5 Pitches (0.5-1.25mm) |
| Motor Power: | 150W - 230V |
| Weight: | 26.2kg |

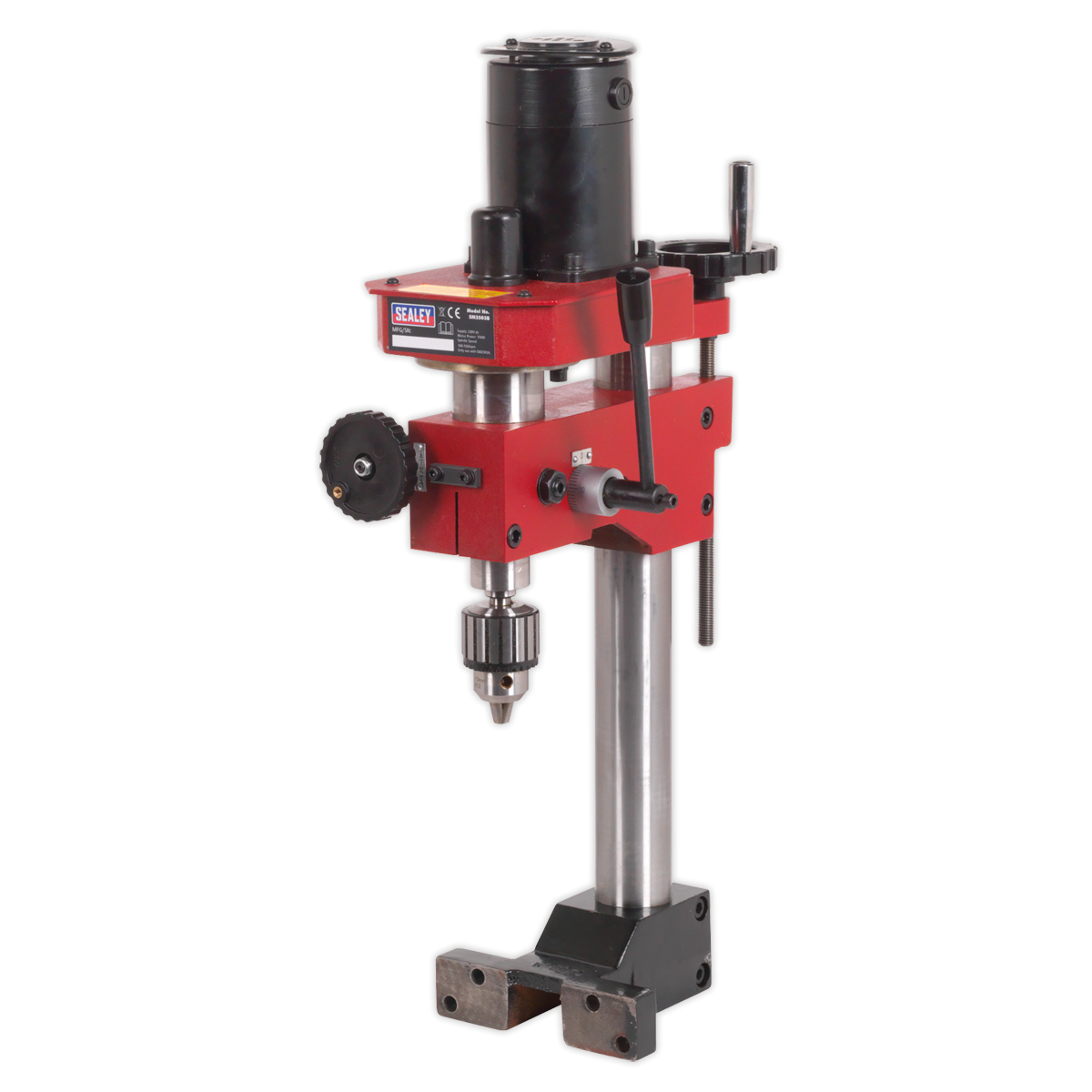

Sealey Drill Head for Mini Lathe SM2503A( SM2503B)
• Transforms Model No. SM2503A Metalworking Mini Lathe into a Lathe/Mill Drill combination. • Easily retrofitted. • Offers the flexibility to handle most materials. • Features 150W motor. • Drilling/Milling Spindle Speed/Travel: 100-1500rpm/30mm. • Maximum Drilling/Milling Capacity: 10mm. • Creates space efficient versatile lathe mill/drill machine.
| Distance from Spindle Centre to Column: | 100mm |
| Distance from Spindle to Table: | 180mm |
| Drilling/Milling Spindle Speed: | 100-1300rpm |
| Drilling/Milling Spindle Travel: | 30mm |
| Maximum Drilling/Milling Capacity: | 10mm |
| Motor Power: | 150W - 230V |
| Nett Weight: | 14kg |
| Spindle Taper: | MT2 |
| T-Slot: | 8mm |

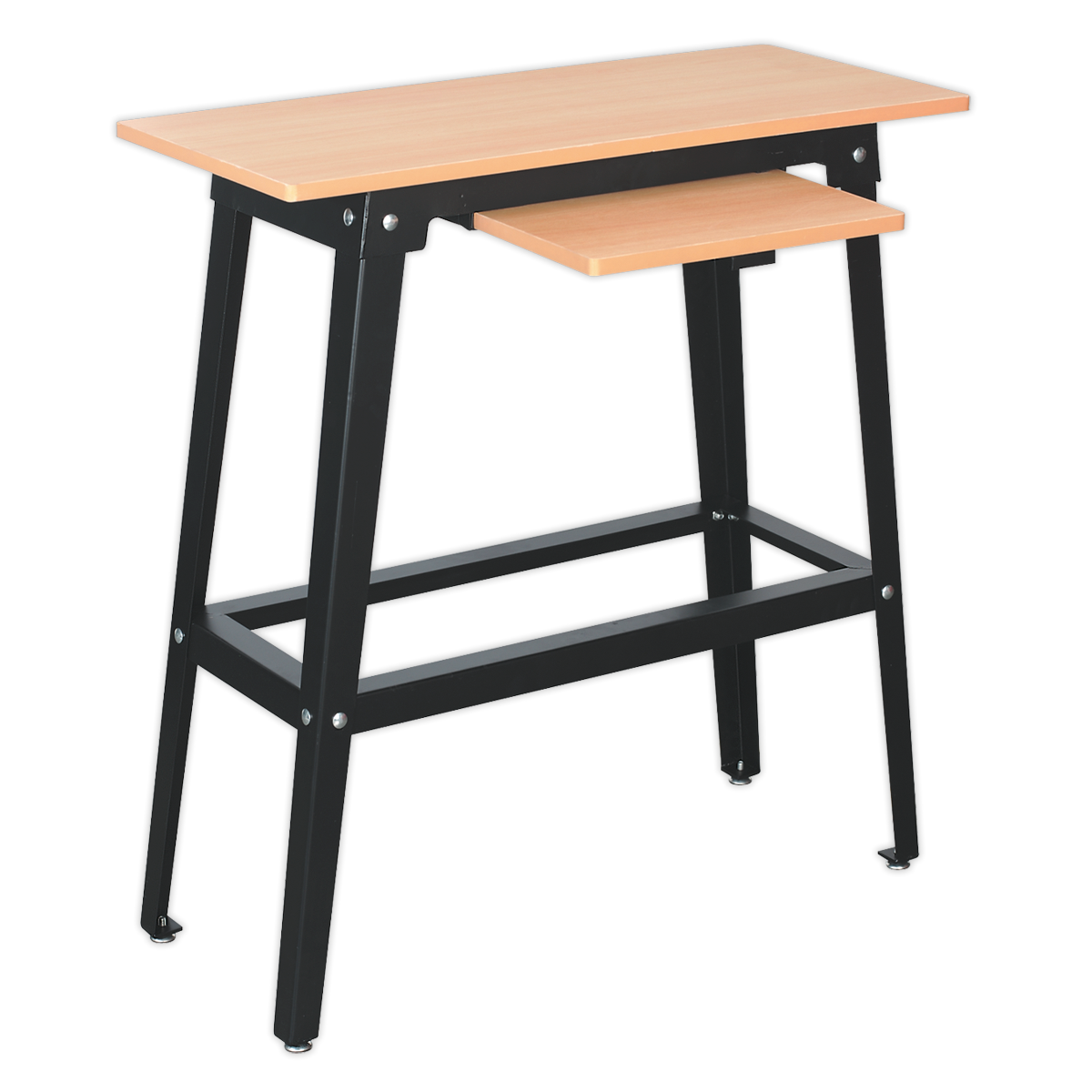

Sealey Stand type SM3002ST for SM3002, SM2502, SM2503
Accessories
Optional Accessories
Sealey SM2503MCSET Mill Chuck Set MT2-M10 Ø3-10mm
One of a comprehensive range of high quality accessories for Model No. SM2503 mini lathe/drilling machine. • Mill Chuck Set MT2-M10 Ø3-10mm.
| Nett Weight: | 1.32kg |
| Description: | Mill Chuck Set MT2-M10 Ø3-10mm |
| Application(s): | |
| Lathe/Mill/Drill SM2503: | Yes |
| Lathe SM3002: | - |
Sealey SM2503EMSET HSS End Mill Set MT2 Ø3-10mm
One of a comprehensive range of high quality accessories for Model No. SM2503 mini lathe/drilling machine. • HSS End Mill Set MT2 Ø3-10mm.
| Nett Weight: | 0.11kg |
| Description: | HSS End Mill Set Ø3-10mm |
| Application(s): | |
| Lathe/Mill/Drill SM2503: | Yes |
| Lathe SM3002: | - |
Sealey SM2503ICEM Indexable Carbide End Mill MT2-M10 Ø16mm
• One of a comprehensive range of high quality accessories for Model No. SM2503 mini lathe/drilling machine. • Indexable Carbide End Mill MT2-M10 Ø16mm.
| Nett Weight: | 0.07kg |
| Description: | Indexable Carbide End Mill MT2-M10 Ø16mm |
| Application(s): | |
| Lathe/Mill/Drill SM2503: | Yes |
| Lathe SM3002: | - |
Sealey SM2503QV Quick Vice 50mm
• One of a comprehensive range of high quality accessories for Model No. SM2503 Mini Lathe/Drilling Machine. • Quick Vice for Model No. SM2503.
| Nett Weight: | 0.81kg |
| Description: | Quick Vice 50mm |
| Application(s): | |
| Lathe/Mill/Drill SM2503: | Yes |
| Lathe SM3002: | - |

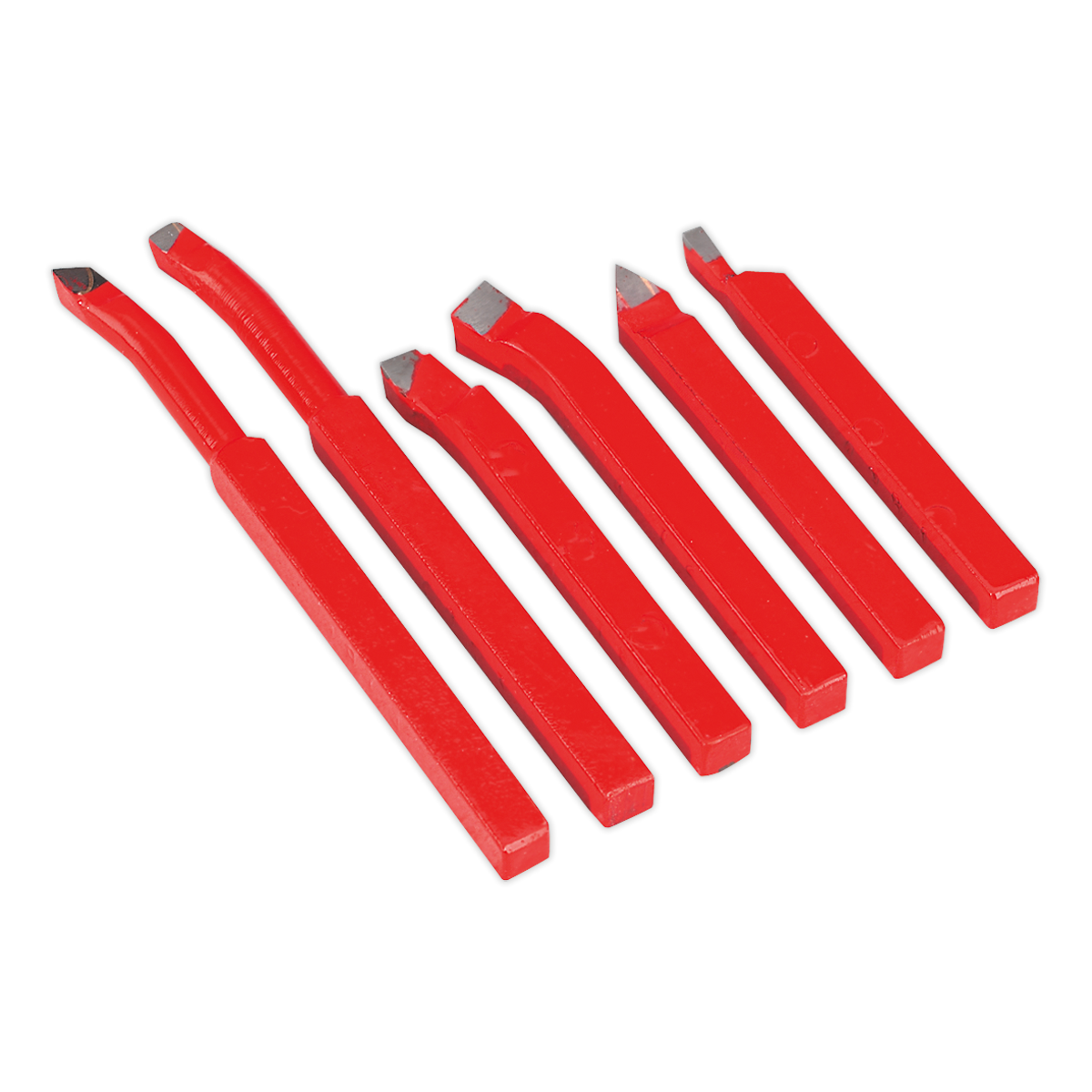

Sealey SM3002CS6 Cutter Set 6pc 8 x 8mm
| Nett Weight: | 0.27kg |
| Description: | Cutter Set 8 x 8mm 6pc |
| Application(s): | |
| Lathe/Mill/Drill SM2503: | Yes |
| Lathe SM3002: | Yes |
| Contents: | DIN4972R, DIN4973R, DIN4974R, DIN4976R, DIN4977R, DIN4978R |
• One of a comprehensive range of high quality accessories for SM3002 metalworking lathe. • HSS Steel lathe tools suitable for machining mild steel, brass, copper and plastics. • 8x8mm Section fits Sealey and other popular makes. • Manufactured to standard DIN profiles.

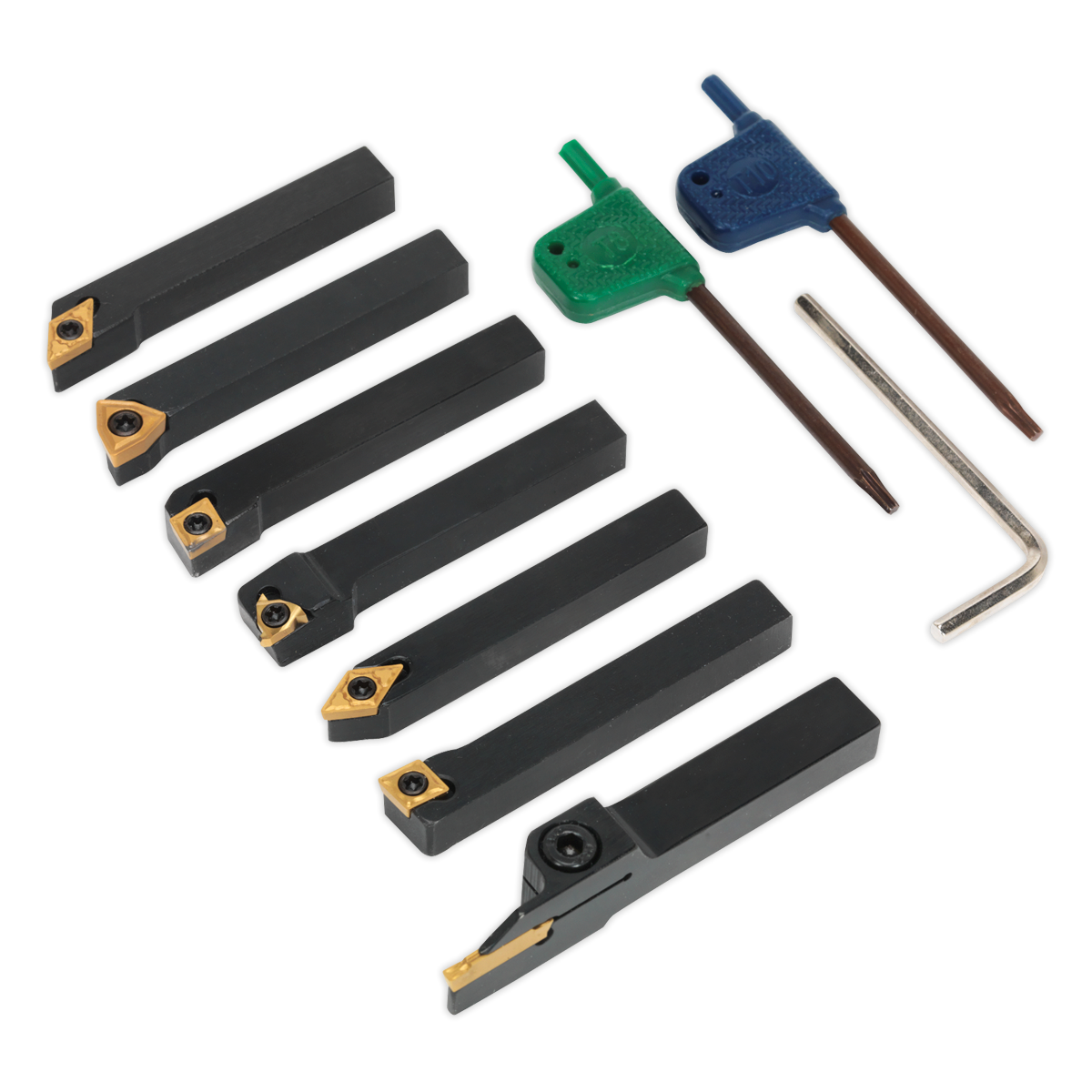

Sealey SM3025CS6 Indexable 10mm Lathe Turning Tool Set 7pc
• 10mm Shank 7-piece indexable turning tool set, ideal for a wide variety of projects. • Includes right and left-hand turning/facing tools and profiling, parting and external threading tools. • Suitable for use when working with steel. • Supplied with tip removal tools and storage box.
| Nett Weight: | 0.58kg |
| Contents: | MGEHR Parting Tool, SER External Threading Tool, SCLCL LH Turning Tool, SCLCR RH Turning Tool, SDNCN Profiling Tool, SDJCR RH Facing Tool, SWGCR RH Facing Tool |
| Shank: | 10mm |
| Replacement Tip Set: | SM3025CS6R |
A wide range of accessories are available for the Sealey lathe drilling machine as shown on page 1185 & 1186 catalogue extract. Clients wanting to purchase any of the accessories with the lathe drilling machine
should contact us by our email for further details with the part no. & description of interest. Download a Sealey catalogue from the Sealey website or request a copy through the post.
Warranty
All Sealey products are covered by a minimum 1-Year parts and labour guarantee as standard.
Founded in 1978, Sealey is now known nationally and internationally as a leading brand of professional hand and power tools.
