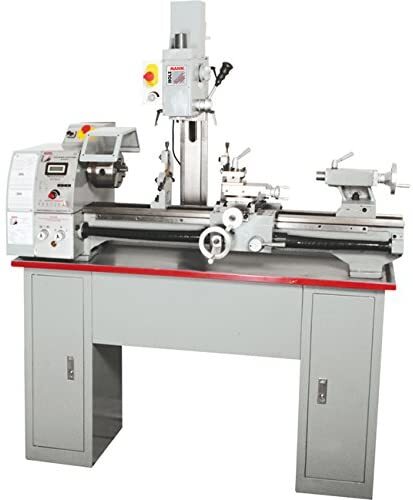

Holzmann ED750FD 230V Metal Lathe + ED750FADQ Milling Head
+3

Holzmann ED750FD 230V Metal Lathe + ED750FADQ Milling Head

ED750FD + ED750FADQ
£3,498.00
In stock
1
Product Details

Holzmann ED750FD 230V Metal Lathe + ED750FADQ Milling Head




Highlights

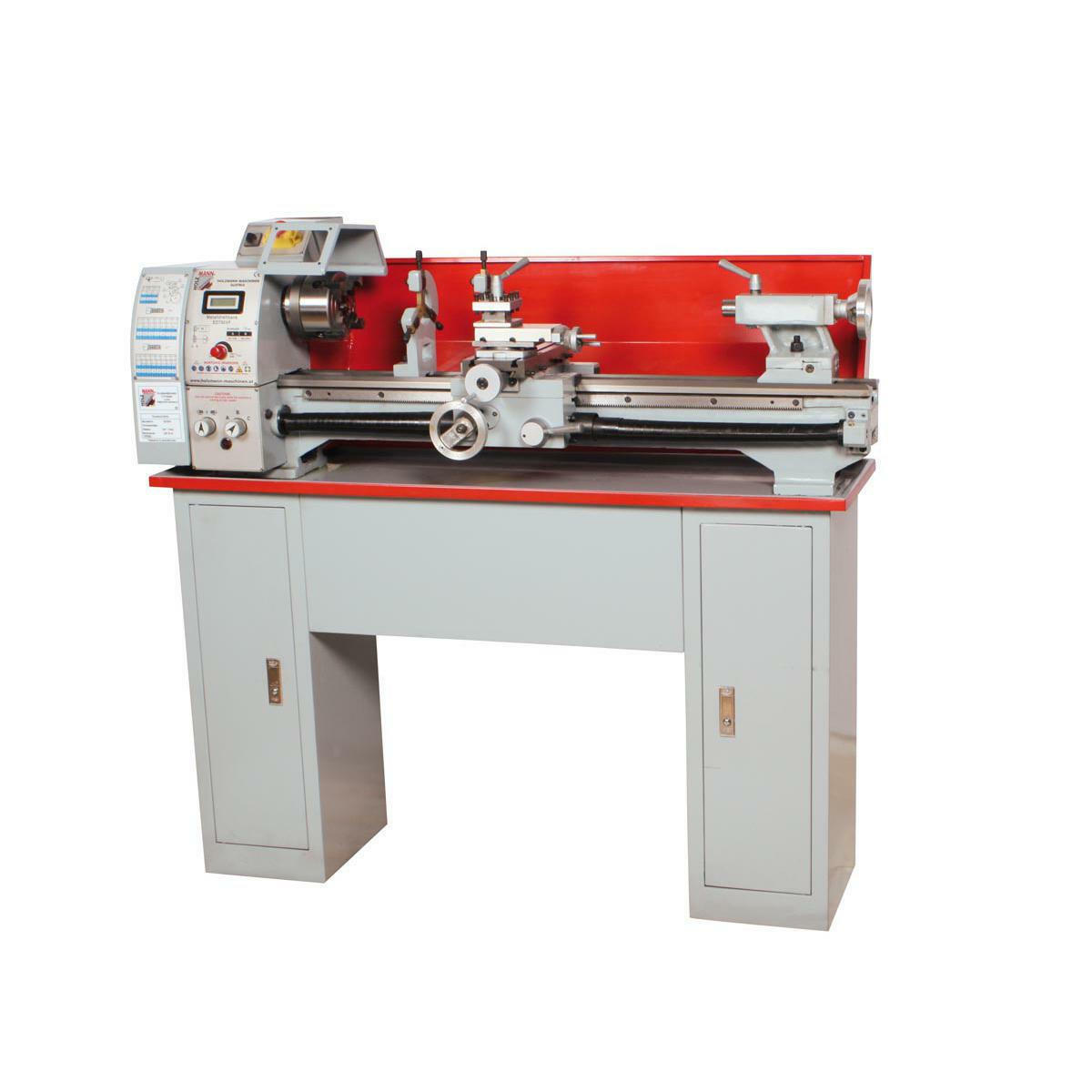

ED750FD 230V Metal Lathe



  • solid and rugged cast iron set up
  • variable speed adjustable via potentiometer
  • speed indication via LCD-display
  • resistant and induction-hardened machine bed
  • stand with two cabinets included in delivery, modern design
  • max. turning diameter 250mm, bed width 135mm
  • lead screw cover ensures a long durability and accuracy over many years
  • spindle bore 25mm, spindle taper MT3, tail stock MT2
  • machine able to cut metric threads

Included in delivery:

Stand, 3-jaw chuck Ø125mm, change gears, 2pcs dead centres, inner and outer jaws, 4-way tool post, lead screw cover, chuck guard with window, 4-jaw chuck, face plate


Technical Details

motor data
motor power s1 in W 750
motor power s6 in W 1000
voltage 230V
measurements
bed width in mm 135
total dimensions in mm 1355x560x1065
turning machines
range of inch threads 8-56
range of metric threads in mm/r 0,4-3,5
lathe spindle speed in min-1 0-2500
tailstock cone MK2/MT2
spindle nose mount MK3/MT3
spindle bore in mm 25
distance between centers in mm 750
max. swing over bed in mm 250
center height in mm 125
weight
gross weight in kg 140
net weight in kg 126
packaging
packaging length in mm 1.385
packaging width in mm 625
packaging height in mm 565

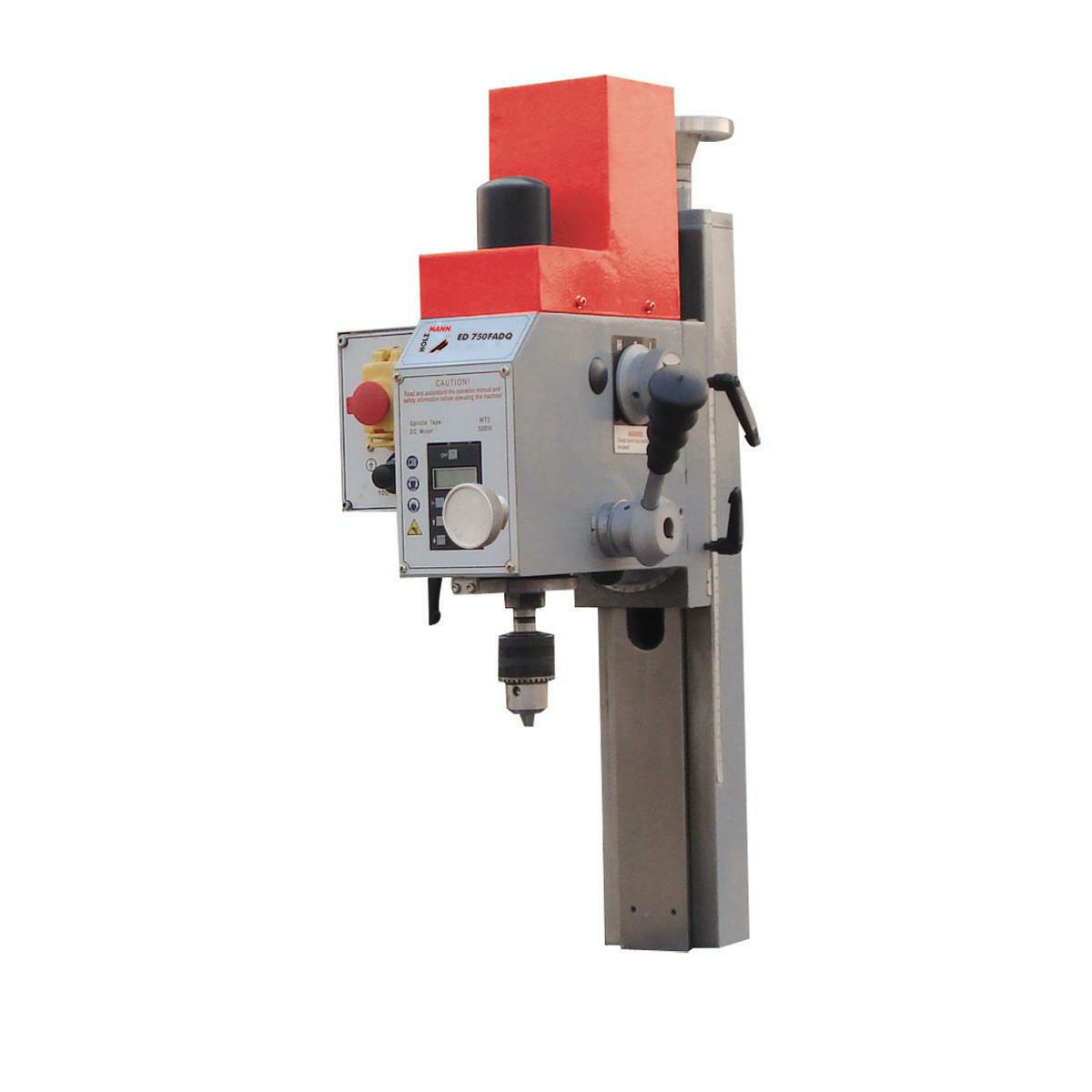

ED750FADQ 230V M illing Head MK2/MT2

highlights

  • fits to ED750FD and ED 750FDQ
  • head pivoting -90°- 0°- +90°,
  • variable speed, prismatic guides
  • drilling capacity approx. 16mm
  • face mill up to 50mm
  • fine adjustement via hand wheel
  • comes with drill depth DRO


Technical Details

motor data
motor power s1 in W 500
motor power s6 in W 750
voltage 230V
technical specification
max. drilling performance in mm 16
milling spindle speed in min-1 50-2250
milling adapter MK2/MT2
spindle stroke in mm 50
weight
gross weight in kg 45
net weight in kg 40
