Availability.Currently 4 /6 months from receipt of order.Subject to no prior sales

Highlights

Overview of Knuth X.Mill T Series Vertical Machining Centres

The X.mill T series is the latest generation of our vertical machining centers. Here the user decides which CNC control fits best into his machine portfolio. With either Heidenhain, Siemens or Fanuc controls, this series offers an outstanding price-performance ratio. A wide range of accessories enables you to adapt them to your specific requirements. By using the latest FEM analysis software, we were also able to achieve an outstanding rigidity of the machine frame in this machine class.

• Optimized frame design using FEM analysis

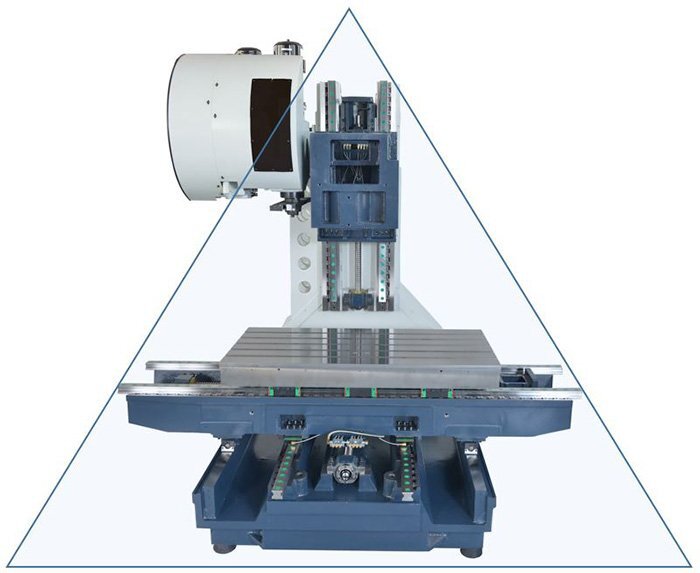

• Extra wide Y-shaped column for increased rigidity
• Ø32 mm C3 preloaded ball screws for high accuracy
• Available with Siemens, Fanuc or Heidenhain control
• High customization and automation possibilities

Knuth X.Mill T 700 SI

• The new X.mill series is ideally suited for streamlined and cost-effective series production
• The entire series is available with either a Siemens, Fanuc or Heidenhain control, so users can select the optimum control for their needs

Machine Design

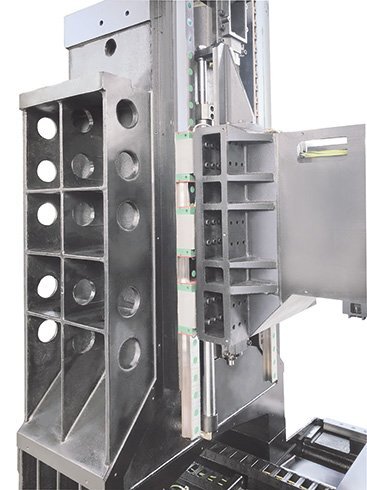

• The X.mill series machine frame was developed using the most advanced FEM analysis software on the market
• The thorough analysis of the entire machine bed construction and wide column base resulted in a design that is optimized for all load conditions

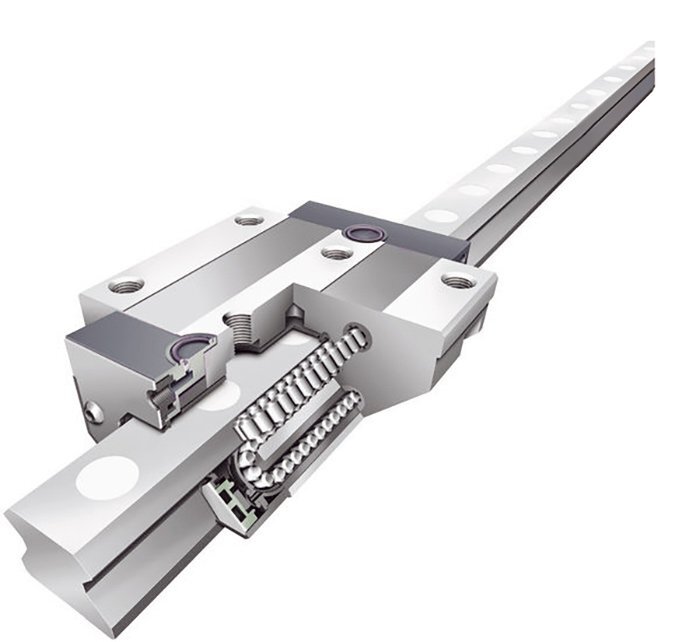

• All axes move on premium, fully enclosed linear guideways and precision ball screws and are driven by dynamic servo-motors

Spindle

• The main spindle is supported by multiple bearings to ensure excellent absorption and dissipation of forces during machining
• The advanced design of our spindles ensure low heat accumulation under load
• Large pre-loaded bearings ensure radial stability during heavy-duty machining operations
• High-temperature lubricants ensure optimum lubrication at any operating temperature and a long tool life

Tool Changer

• The robust armless 20-station tool changer brings flexibility to everyday production operations
• An optional 30-station tool changer with dual-arm gripper is also available

Handling

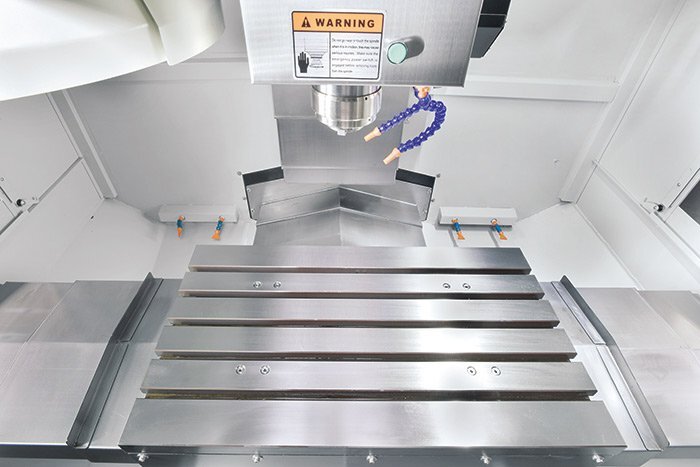

• The totally enclosed workspace features a large door and side doors for easy access, safety and cleanliness
• Electrical equipment is divided into separate control cabinets for high and low voltage systems, which results in a significant reduction of heat accumulation and noise
• An electronic hand-wheel simplifies machine set-up
• The automatic central lubrication system ensures proper lubrication of all lube points

Control

Siemens 828D Control

SINUMERIK 828 D – The workhorse in the compact class of CNCs

Highlights

• Compact, robust, maintenance-free control panel-based CNC
• Comfortable program and parameter input via QWERTY keyboard
• Maximum machining precision
• Intelligent kinematic transformations for machining of cylindrical parts, and for angled workpiece levels
• SINUMERIK MDynamics with the new Advanced Surface feature: for perfect part surfaces and shortest machining times in mold making applications
• ProgramGUIDE: fastest machining time and maximum flexibility for large series productions
• Unique spectrum of technology cycles - from milling contours with residual material recognition to process measurements
• Animated Elements: unique operation and programming assistance with animated sequences
• Modern data transfer options via USB stick, CF card and network (Ethernet)

CNC hardware

• Control-panel based high-performance CNC Control
• Robust front control panel made of magnesium die-casting
• Integreated full-size QWERTY keyboard
• Maintenance-free design (no buffer battery required)

CNC performance data and functions

• Dynamic feed-forward control
• Linear, circular and helical interpolation
• Tapping without compensating chuck, plus thread cutting
• Toggle between inch and metric units
• FRAME concept for individual coordinate transformations, rotations, scaling and mirroring
• 100 adjustable zero offsets
• Synchronous actions and quick help function output

CNC technology cycles

• Large selection of drilling cycles
• Large selection of milling cycles for standard geometry
• Large selection of position patterns for drilling and milling operations
• High-speed settings for mold making applications
• Geometry calculator for free contour input
• Machining cycle for contour pockets / contour spigots with isolated contours

Graphic features

• Graphical online help system, similar to PC system
• Graphical CNC simulation with level display

CNC tool management

• Display of tool and magazine data on one screen
• Tool management with plain-text tool names
• Loading/unloading feature for easy magazine assignment
• Tool management with tool life monitoring
• 10.4“ TFT color monitor

Technical Details

Standard Equipment

Siemens 828D control
shield-type 20-station tool changer ST40
screw-type chip conveyor with bucket
ridgid tapping
autom. power off
manual coolant spray gun
coolant system
spindle air system
heat Exchanger for electric control cabinet
fully enclosed work space (without top cover)
electronic hand-wheel
USB port
automatic central lubrication
work lamp
3-color signal lamp
operating tools
leveling bolts and blocks
preparation for Renishaw TS 27 R

Options

Wide range of tooling options available

Contact us via Email for price details

Operator Training

Operator training available in showroom subject to quotation

prior to delivery. Email us to outline your needs.

Shipping

Fully inclusive shipping rates covering transportation, import customs documentation, duties

quoted for inclusion at time of order for UK mainland sites. Northern Ireland destinations, Islands

and other remote sites should seek advice prior to order via email. Clients will be responsible for

their own site offload and siting at point of use.

Finance Availability

Looking to finance your equipment?

We have access to a variety of funding sources who will look sympathetically

at requests for funding finance.

These include leading merchant banks such as asset finance specialists Close Brothers and Lombard.

On an investment of this nature with a long delivery lead time we can also look at providing a staged payment schedule.

We will confirm this with you at time of order.
