Knuth KHT 3006M NC Hydraulic Guillotine Shear

( Part No. 184210)

Hydraulic swing beam shears with precisely controlled backgauge

Highlights

These hydraulic guillotine shears from the KHT M NC series are designed as a swing-cut construction. With this design, the cutter bar is guided in a pivot bearing anchored in the machine body and thus cuts very straight without the risk of the upper and lower cutters jamming. The robust and precisely working back gauge is precisely positioned via the ESTUN 21 NC control.

Range Available

KHT 3006M NC Hydraulic Guillotine Shear Working Length 3200 mm Shear Thickness 6 mm Mild Steel 4 mm Stainless Steel Plate

KHT 3008M NC Hydraulic Guillotine Shear Working Length 3200 mm Shear Thickness 8 mm Mild Steel 5 mm Stainless Steel Plate

KHT 3010M NC Hydraulic Guillotine Shear Working Length 3200 mm Shear Thickness 10 mm Mild Steel 6 mm Stainless Steel Plate

KHT 3012M NC Hydraulic Guillotine Shear Working Length 3200 mm Shear Thickness 12 mm Mild Steel 8 mm Stainless Steel Plate

KHT 4006M NC Hydraulic Guillotine Shear Working Length 4000 mm Shear Thickness 6 mm Mild Steel 4 mm Stainless Steel Plate

KHT 4008M NC Hydraulic Guillotine Shear Working Length 4000 mm Shear Thickness 8 mm Mild Steel 5 mm Stainless Steel Plate

KHT 4010M NC Hydraulic Guillotine Shear Working Length 4000 mm Shear Thickness 10 mm Mild Steel 6 mm Stainless Steel Plate

KHT 4012M NC Hydraulic Guillotine Shear Working Length 4000 mm Shear Thickness 12 mm Mild Steel 8 mm Stainless Steel Plate

Contact Traxx for price, availability and and other applications information on 0796 3851 455 mroberts892@btinternet.com

These hydraulic guillotine shears from the KHT M NC series are designed as a swing-cut construction. With this design, the cutter bar is guided in a pivot bearing anchored in the machine body and thus cuts very straight without the risk of the upper and lower cutters jamming. The robust and precisely working backgauge is precisely positioned via the ESTUN 21 NC control.

• Estun E21 NC control • Motorized back gauge • Pneum. Sheet support device • Knife also for stainless steel • Adjustable angle stop

• The hydraulic guillotine shears with NC back gauge are characterized by quality, reliability and easy handling

Machine frame

• The machine frame is a heavy-duty, stress-relieved, swing-section welded steel construction
• With this design, the cutter bar moves in a pivoting movement, which increases the distance between the upper and lower cutters again after the cut
• The advantages of this construction are the low-torsion cuts, a more reliable release of the blank, the improved service life of the knives and their simple adjustment of the cutting gap

Material support

• The large work table with ball rollers and the stable, adjustable angle stop enables easy handling and safe alignment of the sheet metal
• Long and robust support arms give large boards a secure hold

Hydraulic system

• The entire hydraulic system is reliable, low-maintenance and easy to service

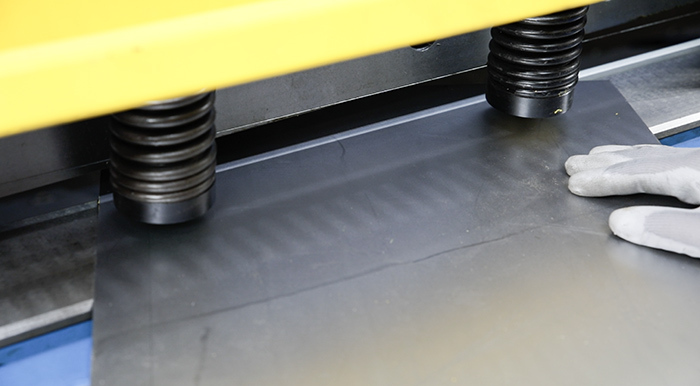

• The hold-down devices, which can be hydraulically controlled in terms of pressure, hold the metal sheet in place during the cut just in front of the cutting line

Back gauge

• The back gauge system is particularly robust and can cope with tough everyday production
• The ball screws are mounted protected

Furnishing

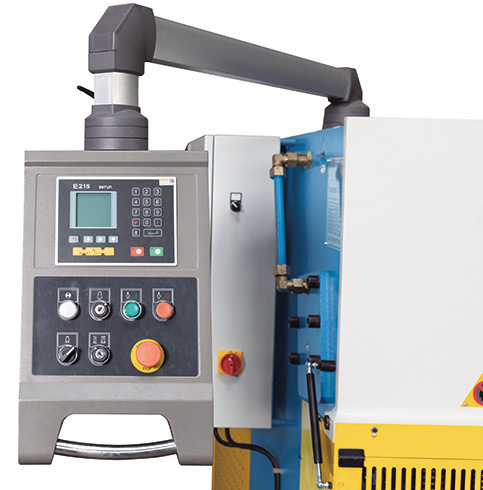

• The easy-to-use ESTUN 21 NC control positions the backgauge precisely in a single cut or in the program sequence
• The machine is operated using the mobile foot pedal unit with an emergency stop switch
• The exact cutting line is visible as a silhouette on the metal sheet
• Upper and lower knives are suitable for processing stainless steel

Security

• The full length finger guard folds down to 1000mm to give a better view of the cutting line
• The safety concept is based on the latest CE regulations
• The light barrier safety system secures the working area on the back of the machine

Steering/Control

• Simple positioning control for back gauges of guillotine shears
• One-sided or optionally two-sided positioning (elimination of spindle play)
• Retraction function during the cutting process
• Automatic referencing
• Easy parameter backup and restore
• Fast approach to the programmed positions
• Up to 40 programs with a maximum of 25 positioning steps can be programmed
• Power off protection

Technical Details

Standard Equipment

Estun E21S NC control

Pneumatic sheet support device

Motorized rear stop adjustment

Silhouette Cutting line display

Support arms
Foot pedal with emergency stop switch
Manual cutting gap adjustment

Finger protection
Safety system for working area

Rear stop

Operating tools
Operating instructions
Knife for stainless steel sheets
Adjustable angle stop

Optional Equipment

Contact us via email for price and delivery details of these options.

Finance Availability

Looking to finance your equipment?

We have access to a variety of funding sources who will look sympathetically

at requests for funding finance.

These include leading merchant banks such as asset finance specialists Close Brothers and Lombard.

The financial services division of Siemens will consider HP on the investment. Subject to Status.

On an investment of this nature with a long delivery lead time we can also look at providing a staged payment schedule.

We will confirm this with you at time of order.
