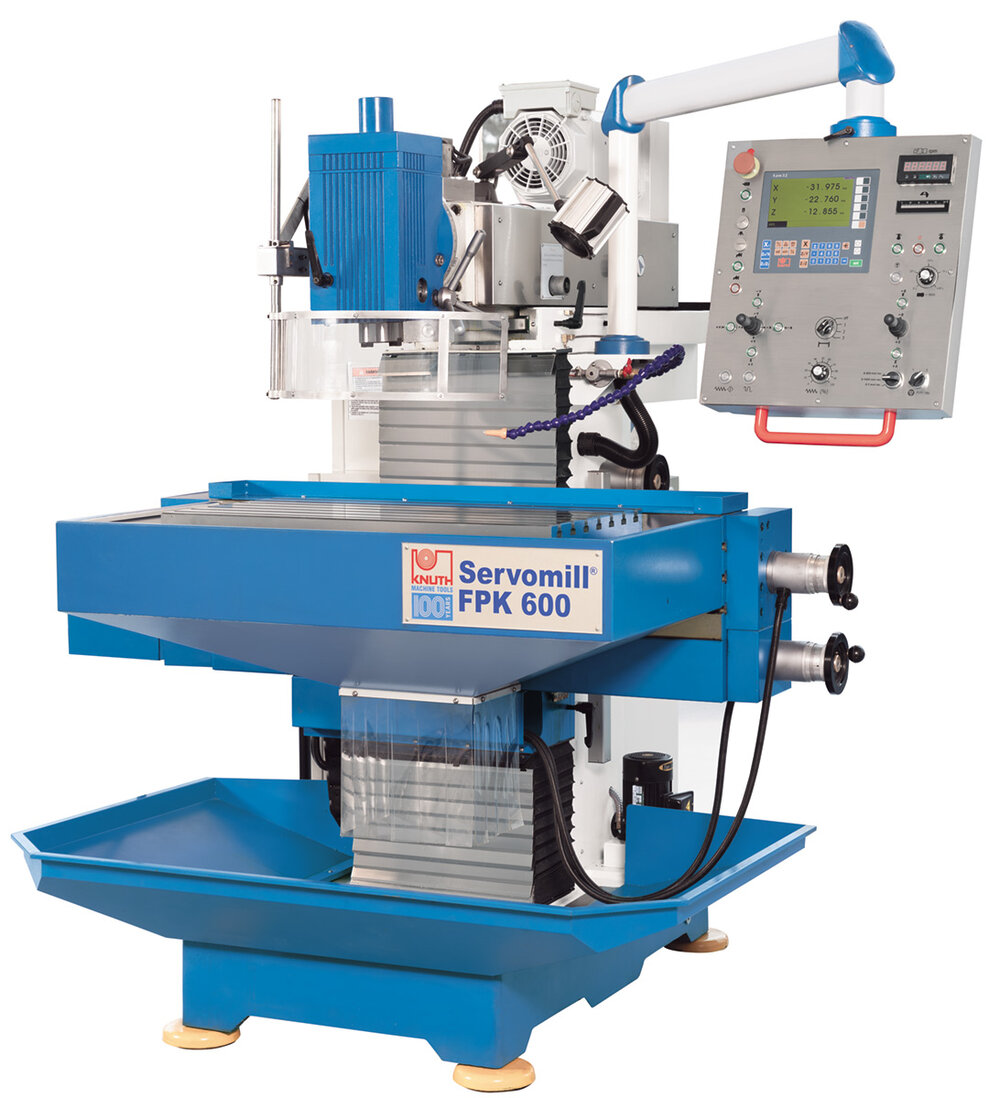

Knuth Servomill® FPK 600 SKU : 302354

Knuth Servomill® FPK 600

( Part No. 302354)

Next generation servo conventional toolroom milling machine

Availability. Currently 4 weeks from receipt of order. Subject to no prior sales.

Highlights

Knuth Servomill® FPK 600

• Integrated electronics allow for easier, more precise and more efficient conventional milling
  • The Servomill machines represent a new generation of conventional milling machines
  • All Servomill series are characterised by ease of operation, significantly increased precision and enhanced cutting performance
  • The high reliability of all components used and their long service life significantly reduce maintenance costs and thus ensure increased availability
  Design and Construction
  • The design of the FPK series is the modern interpretation of the classic universal tool milling machine, which is used in many workshops and production environments
  • The machine stand in console design is a modern construction made of high-quality grey cast iron, designed for precision and durability
  • As a proven design feature, all operating elements are concentrated on the right-hand side of the machine, giving the operator perfect control over the entire machining process
  • The box guides are highly resilient thanks to their large contact surface and guide the console and upper beam with maximum dimensional stability and load-bearing capacity
  Main spindle and drives
  • The main spindle gearbox is integrated in the upper beam for efficient power transmission and quiet, low-vibration operation
  • The robust 2-stage gearbox with hardened and ground gears offers a wide, infinitely variable speed range, high load capacity and smooth running
  • The vertical milling head can be swivelled on both sides and the quill can be moved manually
  • The vertical milling head can be dismantled in a few simple steps to reveal the horizontal spindle holder
  • A counter-holder can be fitted as standard for machining with long milling arbours
  Feed
  • Powerful servomotors enable infinitely variable feed speeds and rapid traverse in all axes
  • Preloaded ball screws in all axes guarantee precise, smooth and low-wear positioning without backlash and a long service life
  Equipment
  • The machines come with an extensive range of accessories as standard, such as a powerful coolant system, LED work lighting and a comprehensive tool package with long arbours and collets
  Servomill - Highlights
  • Electronics developed and built in Germany
  • Positioning control for traveling pre-selected paths on all axes
  • Zero backlash preloaded ball screws
  • Servo-motors on all axes, infinitely variable feed, rapid feed, and speed control
  • Electronic spindle load indicator
  • Electronic hand-wheels on all axes
  • X, Y and Z axis movement via joystick technology
  • Integrated position indicator with precision glass scale
  • Feed can be synchronized with the spindle speed
  • Powerful servo motors allow infinitely variable feed speeds and rapid feeds on all axes

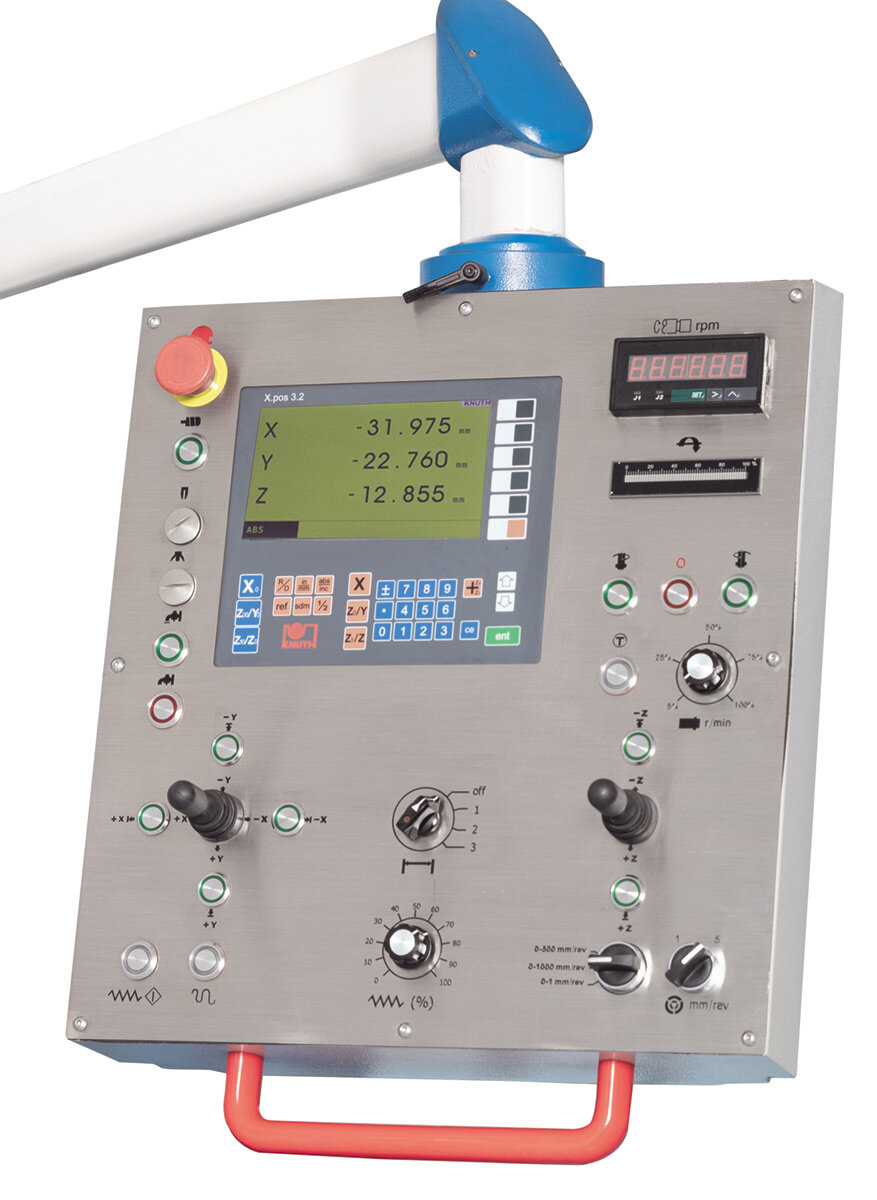

  Position indicator X.pos 3.2
  • The new generation of displays is more powerful, robust, and reliable
  • For additional information, see manuals included with the standard equipment
  Your Advantages
  • Easy to use: intuitive operation - practical layout of control elements and streamlined function
  • Automatic feed on all axes and infinitely variable rapid feed with speeds up to 5000 mm/min
  • Set limit stops on any axis with the push of a button - 3 stop positions per axis can be stored
  • More precise: operated via electronic hand-wheels - axes are powered by high-quality servo drives that translate your hand movements with the precision and dynamics of modern CNC machines
  • More reliable: drives, spindles, and measuring systems are totally enclosed or mounted in protective enclosures and virtually maintenance-free
  • More capacity: this machine only uses premium drive components that are designed for continuous operation
  • Maintenance-free: no regular maintenance needed for the entire feed drive
  Advanced feed drive technologie
  • The axes are moved by high-quality servo drives that implement your handwheel movements with the precision and dynamics of modern CNC machines
  • Reliable, maintenance-free high-volume technology
  • High rapid traverse speed reduces non-productive times
  Ballscrews in all Axis
  • Considerably less errors due to loseness (backlash), resulting in significantly higher precision
  • Significantly reduced friction, no stick-slip effect, reduced heat buildup, minimal wear

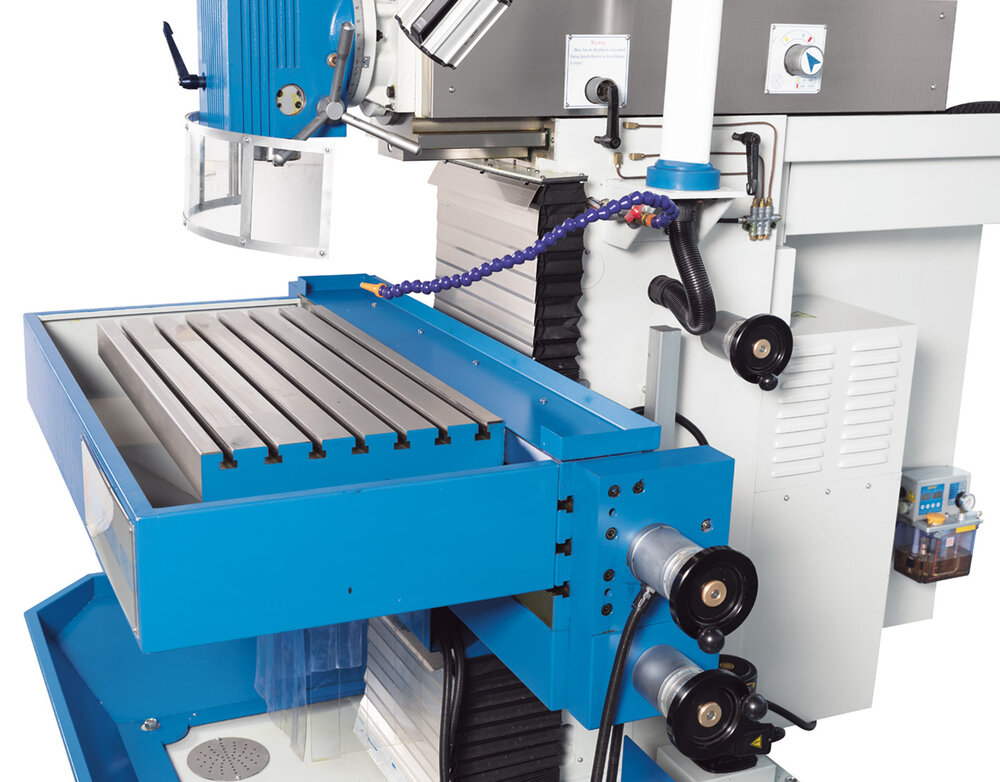

  Electronic hand-wheels
  • Micro-control via electronic hand-wheels offering the same handling and postioning as with a conventional machine, just smoother and more precise
  Joystick Operation
  • Maximum operator comfort for axis movements
  • Easy handling during sequential processing
  Electronic Bedstops
  • Set 2 limit stops at 3 positions on each axis by the push of a button - these buttons are grouped around the feed switch for intuitive control
  • This ensures high repeatability during coordinate drilling or pocket cutting, and siginificantly more positions can be set up than on conventional machines
  Electronic Spindle Load Display
  • Assists the operator in the most efficient utilization of machine and tool capacities
  • Reliable indicator helps avoid damages caused by overloads

Technical Details

Standard Equipment

• Control panel with X.Pos 3.2 and extended functions
  Ball screw drives and servo direct drives in all axes
  Automatic feed with electric limit switches in all axes
  Electronic handwheels
  Milling accessories

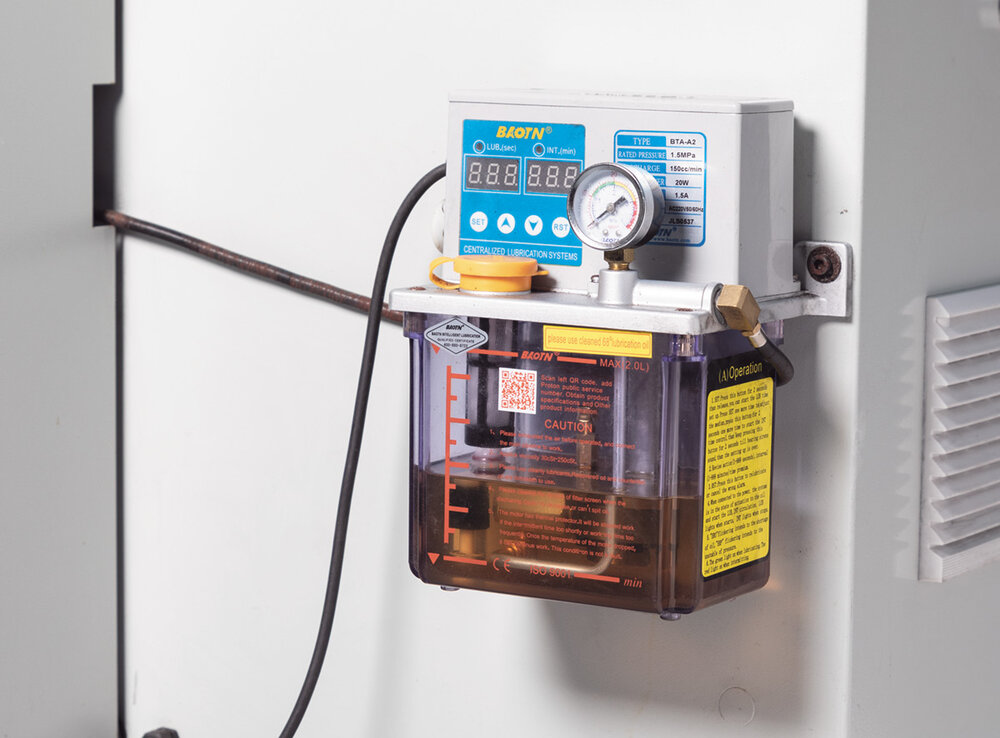

  Automatic central lubrication
  Heat exchanger for electrical control cabinet
  Protection shield
  4 cutter arbors Ø (16, 22, 27, 32 mm)
  Coolant system
  LED worklight
  Operating tool
  Operator instructions

Operator Training

Operator training available in showroom subject to quotation

prior to delivery. Email us to outline your needs.

Shipping

Fully inclusive shipping rates covering transportation, import customs documentation, duties

quoted for inclusion at time of order for UK mainland sites. Northern Ireland destinations, Islands

and other remote sites should seek advice prior to order via email. Clients will be responsible for

their own site offload and siting at point of use.
