Knuth NeoSpark T 500 Wire Cut CNC Electric Discharge Machine ( Part No. 180563 ) High precision and quality plus excellent price performance ratio
Knuth NeoSpark T 500 Wire Cut CNC Electric Discharge Machine
( Part No. 180563 )
High precision and quality plus excellent price performance ratio
Availability , Ex Stock. Delivery currently 2/4 weeks from receipt of order. Subject to no prior sales
Highlights

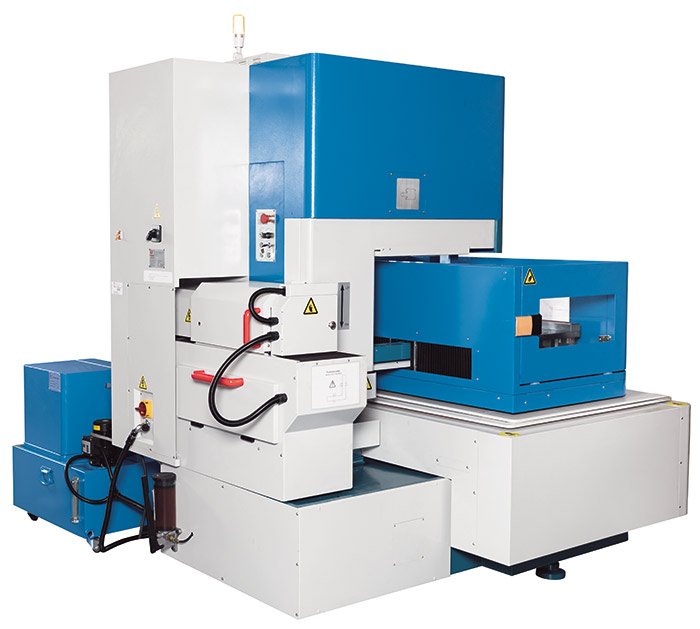

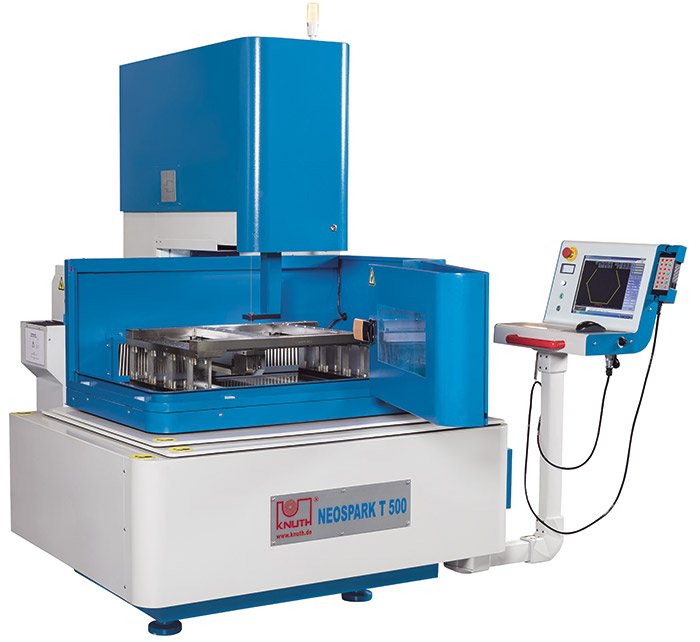

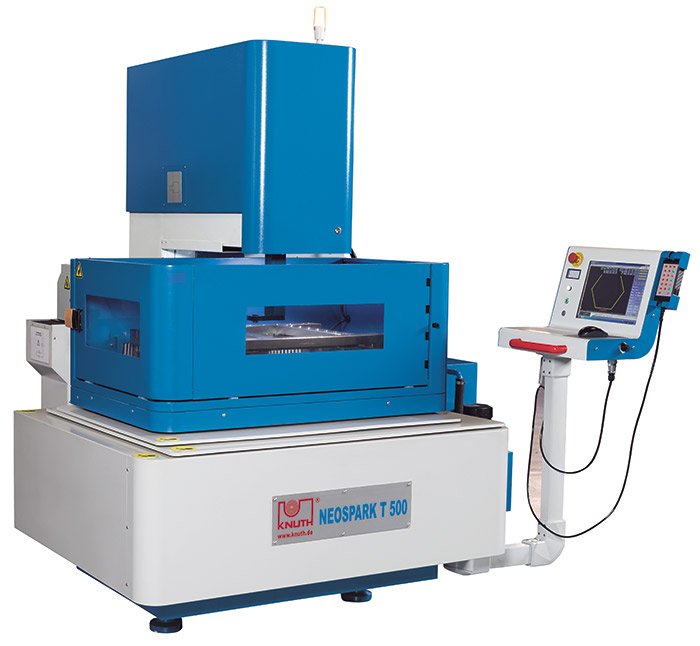

NeoSpark T 500 Wire Cut CNC Electric Discharge Machine
The machines of the NeoSpark CNC series are among the most precise wire EDM machines with reciprocal wire guidance on the market. They offer excellent performance when machining electrically conductive materials in mold and tool making. The NeoSpark series is a popular choice for companies that specialize in additive manufacturing and want to separate the finished part from its base plate with high precision. High speed wire cutting guarantees deformation-free and burr-free cutting of even the most delicate 3-D printed metal structures with the best surface quality
- Electrical discharge machining with highest cost-efficiency
- C3 class ballscrew transmission on XYUV axis
- Easily programmable CNC control with integrated CAD/CAM software
- Real-time system diagnostics, high process reliability
- Time-saving programming during the machining process
Product Details
- The NeoSpark T Electric Discharge Machine delivers excellent cutting performance, is very cost-effective, and operating costs are extremely low
- The cast-iron machine frame features a modern C-frame with T-base, precision-machined surfaces and has undergone multiple thermal stress-relief processes
- Rigid linear guides and precision preloaded ballscrews on all axes ensure permanent mechanical precision
- The IPC-based 4-axis control system is fine-tuned to manufacturing process requirements, plus, it is user-oriented and reliable
- The two-directional wire guide system is the heart of the machine, featuring perfect wire feed even with workpieces with large tapers or heights

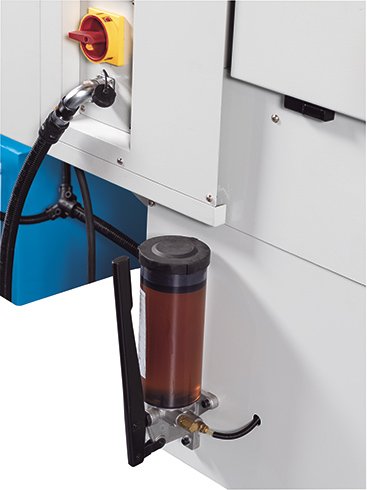

- Easy maintenance due to central lubrication system

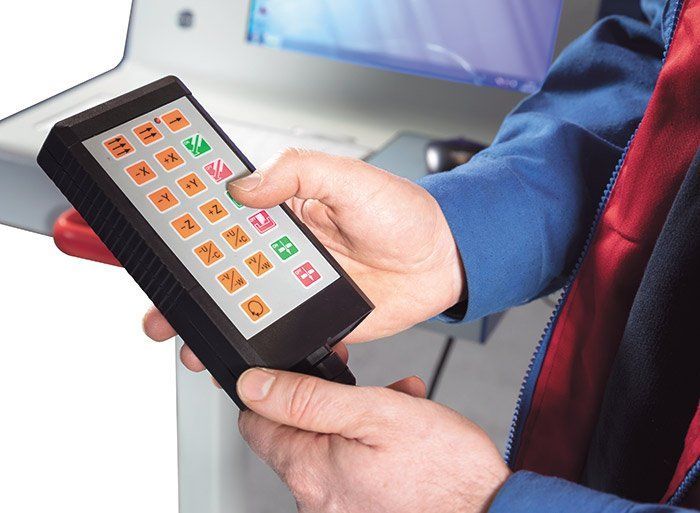

- Handheld control for quick machine setup
NeoSpark T cutting function for aluminum
- Due to its chemical properties, aluminum can generate very hard oxide particles at high temperatures, which may adhere to the molybdenum wire during machining. This results in a contact between wire and workpiece and increases the risk of a wire break. This option improves the aluminum cutting process and results in a significantly longer wire life.
Technical Details
| Working area | |
|---|---|
| Table dimensions | 800 mm x 500 mm |
| Workpiece, length x width x thickness (max.) | 1150 mm x 690 mm x 300 mm |
| Workpiece weight (max.) | 600 kg |
| Travel X-axis | 500 mm |
| Travel Y-axis | 400 mm |
| Travel U / V-axis | ±35 mm |
| Travel Z-axis | 300 mm |
| Rapid feed X-/ Y-axis | 12 m/min |
| Cutting angle (with guide) | ± 12° / 80 mm |
| Cutting capacity (max.) | 300 mm²/min |
| Generator | 10 A |
| CNC control | |
|---|---|
| Display size / type | 15" / LED |
| Controlled axis | 4 |
| Input increment (min.) | 0,001 mm |

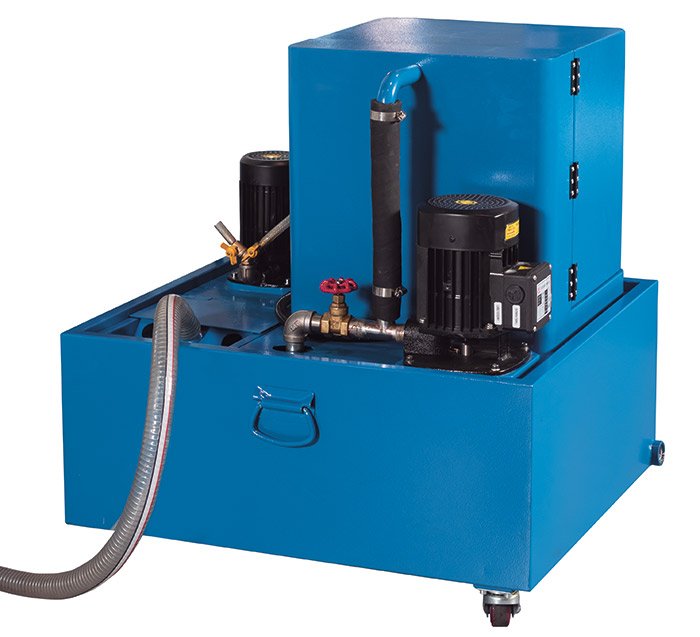

| Dielectric system | |
|---|---|
| Dielectric, tank capacity | 100 l |
| Feed | |
|---|---|
| Rapid feed X / Y axis | 1000 mm/min |
| Accuracies | |
|---|---|
| Positioning accuracy X- / Y-axis | ≤0,01 mm |
| Positioning accuracy U/V axis | ≤0,025 mm |
| Repeatability X- / Y-axis | ≤0,005 mm |
| Repeatability U / V axis | ≤0,01 mm |
| Best surface roughness | 0,8 µm Ra |
| Drive capacity | |
|---|---|
| Motor rating X / Y axis | 0,75 kW |
| Motor rating U / V axis | 0,2 kW |
| Motor rating Z-axis | 0,2 kW |
| Total power consumption | 2,3 kVA |
| Supply voltage | 380 (±10%) / 50 or 60Hz V |
| Measures and weights | |
|---|---|
| Overall dimensions (length x width x height) | 2,2 m x 2,04 m x 2,17 m |
| Weight | 2800 kg |
Standard Equipment
Optional Equipment
Please contact us if any of the optional equipment is of interest for further information
Operator Training
Operator training available in showroom subject to quotation prior to delivery.
Email us to outline your needs.
Shipping
Fully inclusive shipping rates covering transportation , import customs documentation, duties quoted
for inclusion at time of order for UK mainland sites. Northern Ireland destinations, Islands and other remote
sites should seek advice prior to order via email. Clients will be responsible for their own site offload
and siting at point of use.
Installation Assistance
We will be pleased to offer a detailed quotation to cover this aspect of your investment subject to
being forwarded full details of site postcode, access, site conditions and floorspace availability.
Knuth technicians are busy worldwide and have experience in a wide variety of industrial facilities.
We are also likely to request provision of cranes, fork lift assistance etc by our clients as required.
Finance Availability
Looking to finance your equipment?We have access to a variety of funding sources who will look sympathetically
at requests for funding finance.
These include leading merchant banks such as asset finance specialists Close Brothers and Lombard.
The financial services division of Siemens will consider HP on the investment. Subject to Status.
On an investment of this nature with a long delivery lead time we can also look at providing a staged payment schedule.
We will confirm this with you at time of order.
