Knuth KPB 61 Hydraulic Ring & Profile Bender ( Part No. 131194) Powerful Production Machine for complex bending tasks
Knuth KPB 61 Hydraulic Ring & Profile Bending Machine
( Part No. 131194)
Powerful Production Machine for complex bending tasks
Availability . 4 weeks from receipt of order. Subject to no prior sales
Highlights
KPB Series Hydraulic Ring & Profile Benders
KPB 45 Rated 1.5 kw
KPB 61 Rated 4 kw ( Featured Model )
KPB 81 Rated 5.5 kw
KPB 101 Rated 11 kw
The profile bending machines of the KPB series combine high bending performance with modern mechanical engineering and powerful hydraulics. You can bend medium and heavy steel profiles with great precision. A high drive power and the hydraulically adjustable bending rollers make the entire profile bending machine series a powerful solution for metal construction, locksmithing and general mechanical engineering. These machines are also used in the production of canopies, greenhouses, advertising technology and the furniture industry.
- 3X hydraulic drives
- Hardened rollers and shafts
- Hydraulic feed of bottom rollers

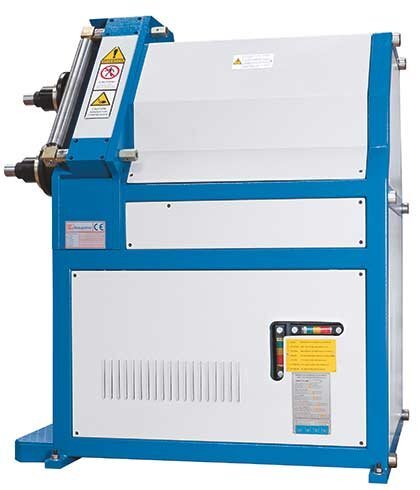

- Allows horizontal or vertical machining

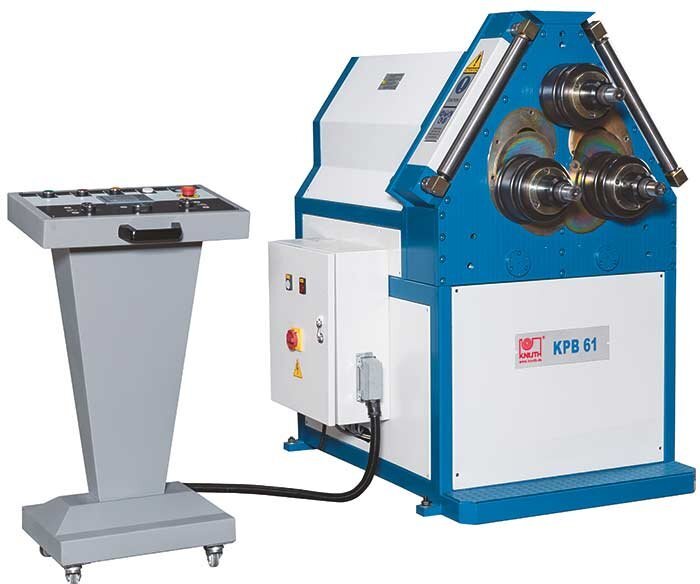

Knuth KPB 61 Hydraulic Ring & Profile Bending Machine
Product Details
- Optimum adaptation to a large variety of profiles using the modular roller system
- 3 motor-driven rollers

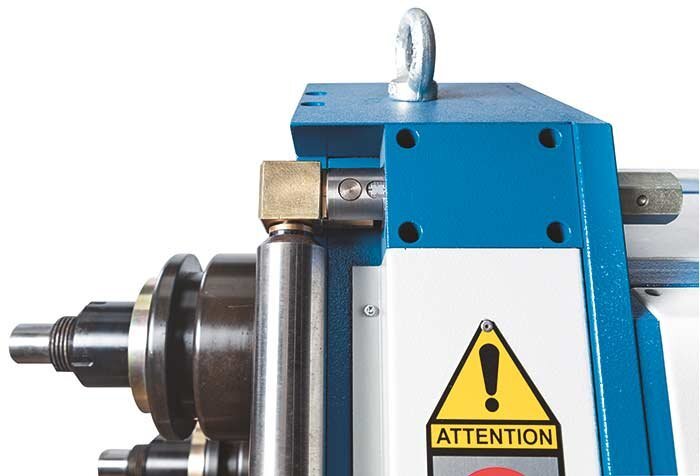

- Hardened and ground shafts
- Overload slip-clutch
- Hydraulic feed of bottom rollers with digital display
- Hydraulically adjustable straightening rollers; optional
- Allows horizontal or vertical machining
- Hydraulic components made by leading manufactures
Technical Details
| WORKING AREA | |
|---|---|
| Shaft Ø | 60 mm |
| Roll Ø | 177 mm |
| Bending speed | 6,4 m/min |
| Driven roll | 3 positions |
| DRIVE CAPACITY | |
|---|---|
| Motor rating hydraulic pump | 4 kW |
| MEASURES AND WEIGHTS | |
|---|---|
| Overall dimensions (length x width x height) | 1,26 m x 0,94 m x 1,39 m |
| Weight | 1080 kg |
Standard Equipment
digital display

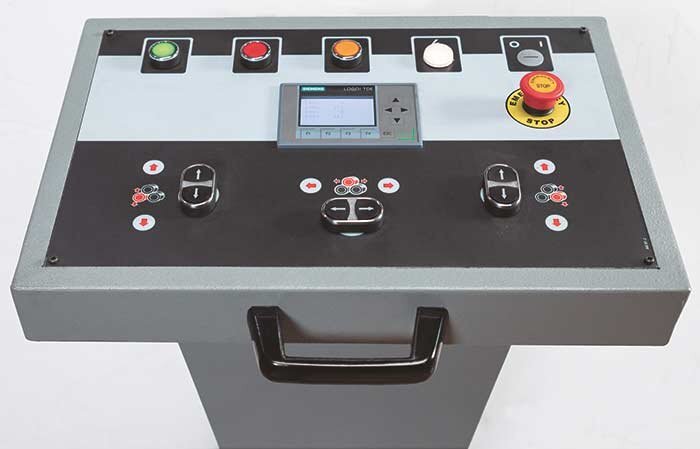

control panel
standard rollers
operating tools
operator manual
Optional Equipment
Type B
Special roll sets available to order.
Contact us directly for price and availability on optional items.
