Baileigh WJT-4747-HD Welding Table
Baileigh WJT-4747-HD Welding Table
Tables / 35 weeks Lead time from receipt of order
Highlights
- 1194mm x 1194mm welding jig table
- 5 fixturing surfaces
- Made from Q345 steel
- 2 ton weight capacity

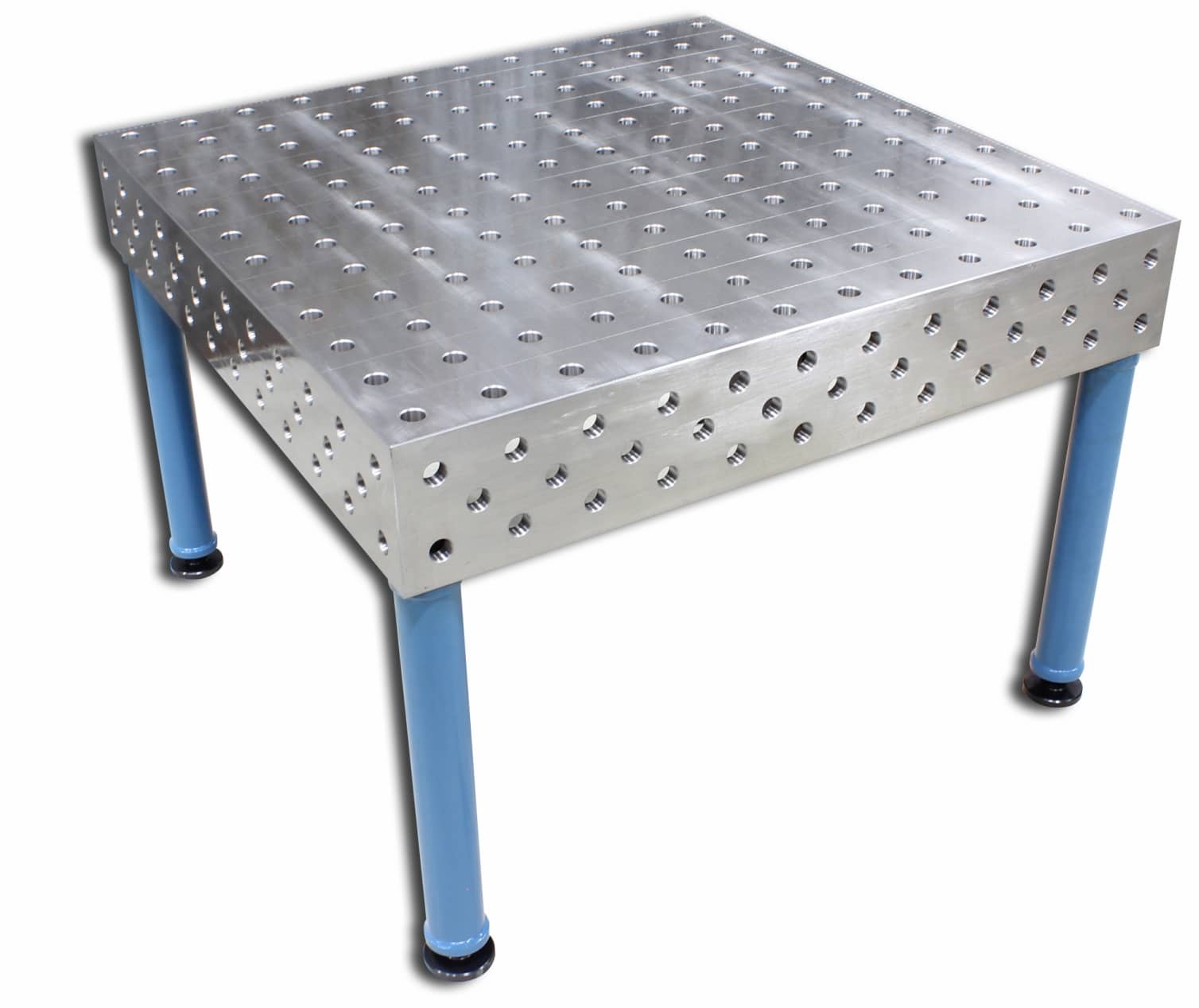

Made from 250 Cast iron the WJT-4747HD welding jig table from Baileigh Industrial is made to withstand the rigors of any shop. All of Baileigh Industrial’s welding tables are made to exact tolerances and maintain flatness of /- .0025″ and have a hardness rating of 140 to 160 Brinell. The WJT-7839-HD Welding Jig Table has a table size of 47″ x 47″ and has a total of 5 mourning surfaces that use Industry standard 28mm holes that are spaced at 100mm to ensure the most options with the strongest holding power. For more information about our welding tables, contact a Toolfrance representative.
47″ x 47” table
Made from 250 Cast Iron with nitride coating
Brinell Hardness 140~160
5 Mounting Surfaces
Expandable
2 ton weight capacity
Industry Standard 28mm Mounting holes
100mm hole spacing
Etched Position Marks
Includes table Oiler, Brush and cleaning stone
The WJT-4747HD Welding Jig Table has a table size of 47″ x 47″ and has a total of 5 mourning surfaces that use Industry standard 28mm holes that are spaced at 100mm to ensure the most options with the strongest holding power. For more information about our welding tables, contact a Baileigh representative.
47” x 47” table
Made from 250 Cast Iron with nitride coating
Brinell Hardness 140~160
5 Mounting Surfaces
Expandable
2 ton weight capacity
Industry Standard 28mm Mounting holes
100mm hole spacing
Etched Position Marks
Includes table Oiler, Brush and cleaning stone
Item Number WJT-4747-HD
Working Table Size 1194mm x 1194mm (47″ x 47″)
Table Load Capacity 2 Tons
Table Height 850mm (33.5″)
Shipping Weight 1045 lbs
Table Flatness /- .0025″
Number of Mounting Surfaces 5
Mounting Hole Size 28mm
Mounting Hole Spacing 100mm
Dimensions L x W x H 50″ x 50″ x 50″
* specifications subject to change without notice.
Technical Details
Item Number WJT-4747-HD
Working Table Size 1194mm x 1194mm (47″ x 47″)
Table Load Capacity 2 Tons
Table Height 850mm (33.5″)
Shipping Weight 1045 lbs
Table Flatness +/- .0025″
Number of Mounting Surfaces 5
Mounting Hole Size 28mm
Mounting Hole Spacing 100mm
Dimensions L x W x H 50″ x 50″ x 50″
* specifications subject to change without notice.
Optional
WJT - AK43 Welding Table Accessory Kit ( sku 1010427 )
Description

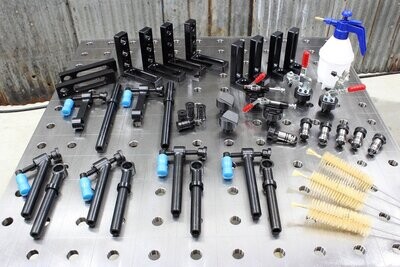

The WJT-AK43 43 Piece Welding Jig Table Accessory Kit is the perfect starter set for the Baileigh Industrial line of welding tables.
Below is a list of the included tooling:
Specifications
| Item Number | WJT-AK43 |
|---|---|
| Shipping Weight | 100lbs |
| Shipping Dimensions (Inches) | 24x24x24 |
* specifications subject to change without notice.
