Knuth Plasma-Jet AirPro Compact 1530 ( 3050 x 1550 Table) SKU : 144047 c/w Hypertherm Powermax 125 Plasma Source SKU: 253715
Knuth Plasma-Jet AirPro Compact 1530 ( 3050 x 1550 Table) SKU : 144047 c/w Hypertherm Powermax 125 Plasma Source SKU : 253715
Availability 2/3 months lead time to site. Subject to no prior orders.
Highlights

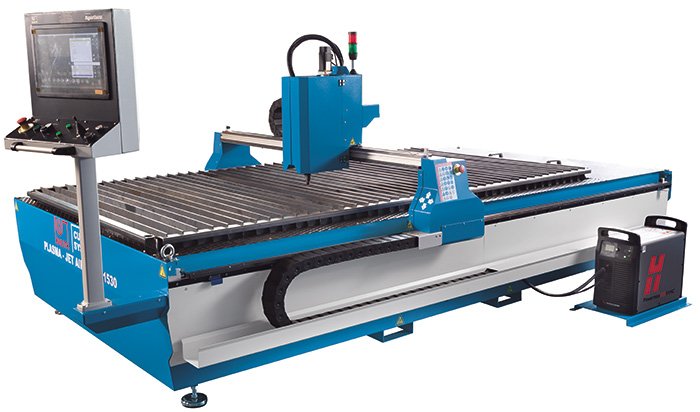

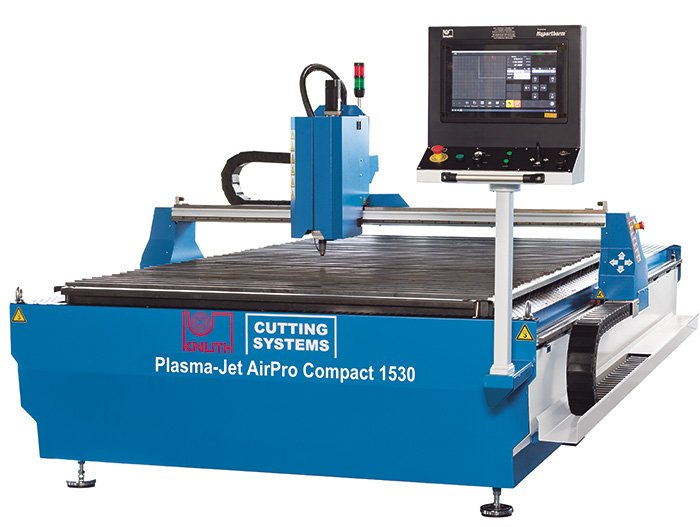

Knuth Plasma-Jet AirPro Compact 1530 ( 3050 x 1550 Table) SKU : 144047 c/w Hypertherm Powermax 125 Plasma Source
The machines in the Plasma-Jet AirPro compact series offer good cutting quality with minimal operating costs. These economical cutting systems for air plasma sources were developed as a cost-effective solution for custom and small-series manufacturing; their compact design and low footprint makes them the perfect choice for workshops. The machines in this series are easy to operate and extremely reliable.
- Compact design, fast setup
- For air plasma sources by Hypertherm or Kjellberg (optional)
- EtherCAT technology for best CNC performance
- Professional Nesting Software solution included
- With vacuum table, also optional water cutting table
Product Details
Construction
- The one-piece design with guides built into the table frame allows the system to be transported while assembled and guarantees fast and easy start-up
- The cutting table is configured initially with a vacuum exhaust, or systems can also optionally be equipped with a water cutting table
- For highest efficiency of the optional vacuum and filter system, the work area is vacuumed in segments, mechanically switched by the moving machine bridge
- The material support grid consists of exchangeable arched flat steel elements
Guideways and Drives
- The selection of components used guarantees high cutting functionality and process safety
- The machine bridge is driven synchronously from both sides and travels with high dynamics and no oscillation torque
- Powerful Panasonic AC servomotors guarantee precision contours, with no-maintenance, no-play planetary gears and precise helical gear drives
- The high-quality linear guides on all axes are robust and accurate, easy to maintain and long-lived
The cutting systems can be equipped with plasma sources from the Hypertherm Powermax or Kjellberg CutFire series. (see Options)
Cutting capacity
- Kjellberg CutFire 100i: cutting up to 40mm, grooving up to 20 mm
- Hypertherm Powermax 105 Sync: Cutting up to 38 mm, grooving up to 22 mm
- Hypertherm Powermax 125: cutting up to 44 mm , grooving up to 25 mm
Cutting head
- The distance between plasma cutting nozzle and plate surface is determined by the Z axis height setting, which is controlled by an electric arc
- A built-in sensor-controlled collision guard prevents damage to machine and workpiece
- A magnetic coupling facilitates plasma burner setup and maintenance work
Controls & Software

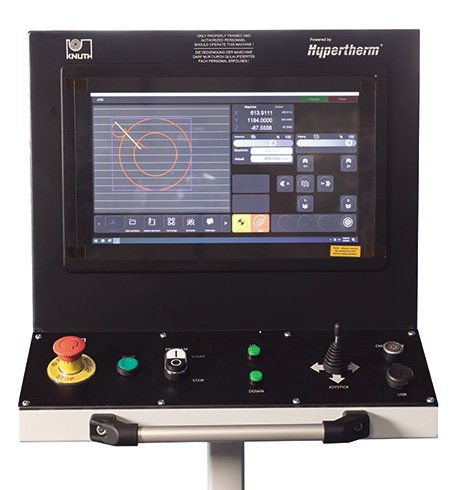

PULSER 3 CNC unit
- The PULSER 3 CNC control with 15” touchscreen is designed for modern cutting applications and easy to operate.
- EtherCAT fieldbus, the modern industrial Ethernet technology, makes cutting systems faster and more reliable. As the central element in the control architecture, it plays a decisive role in the performance and durability of the entire system.
- Depending on the optional plasma source selected, ProNest LT Essentials or the IBE cncCut Nest Software is included as standard equipment.
Technical Details
| Working area | |
|---|---|
| Cutting width | 1550 mm |
| Cutting length | 3050 mm |
| Distance from torch to support table | 200 mm |
| Table height | 500 mm |
| Table load capacity | 800 kg/m2 |
| Rapid feed | 15000 mm/min |
| Positioning accuracy | 0,05 mm |
| Measures and weights | |
|---|---|
| Weight | 1550 kg |
| Overall dimensions (length x width x height) | 2,25 m x 4,15 m |
Plasma Source Technical Details

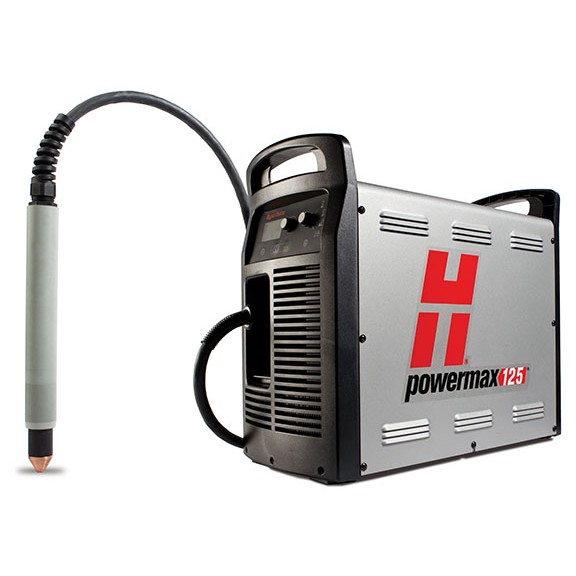

Powermax 125 Plasma source
Maximum productivity
- Considerably faster progress with 5x higher cutting speeds compared to oxy-fuel cutting in 12 mm structural steel
- Grinding and edge preparation take considerably less time due to the excellent cutting and gouging quality
- Maximize your cutting time with 100% uptime
Low operating cost
- Lower your cost due to 4x longer consumable life compared to other systems in this class
- End of electrode life is automatically detected and power is cut off upon electrode overload to protect torch and workpiece from damages
Easy to use for cutting and gouging
- No need to adjust the air pressure. Smart Sense™ technology ensures that the air pressure is always set correctly
- Various easy-to-use torch types for different tasks are available
Developed and tested for use in harsh environments
- Duramax® Hyamp™ torches are designed with high impact strength and high temperature resistance
- SpringStart™ technology ensures consistent starting and a more reliable torch
- Minimal maintenance requirement ensures maximum uptime
Cutting capacity
- Recommended thickness 38 mm Cutting speed 457 mm/min
- Severing cut thickness 44 mm Cutting speed 250 mm/min
- Severing cut (in manual operation) thickness 57 mm Cutting speed 125 mm/min
- Plunge-cut thickness 25 mm
Standard Equipment
Optional Equipment
A wide range of customised solutions is available. Please contact us for further details, price and delivery information.
Operator Training
Operator training available in showroom subject to quotation prior to delivery.
