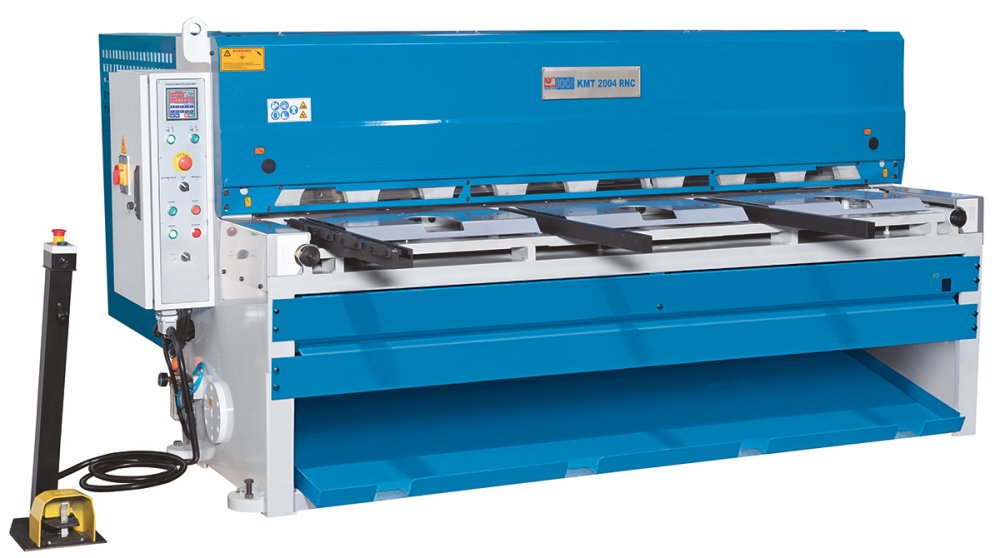

Knuth KMT RNC 3004 Plate Shearing Machine (133628)
Knuth KMT RNC 3004 Plate Shearing Machine (133628)
New Product / 2/3 Months Lead Time Typical
Highlights
This model is part of the KMT RNC series and is an advanced, precision-machined plate shearing machine with premium components. It features a powerful drive for superior cutting performance. The rigid construction with sliding-block guided cutter bar and a straight cutting angle enables cuts with minimal torsion in the workpiece. The kerf can be adjusted manually, and back gauge positioning is NC-controlled. Handling plate sections is simplified enormously by the integrated Return-to-Sender function.
- Solid steel weldment with sliding block guide
- NC-controlled back gauge can be easily programmed
- Automatic, semi-automatic, and manual modes
- Cutter for stainless steel machining included
- Reversible cutters with multiple cutting surfaces
- Adjustable kerf
- Return-to-Sender function
Models Available in this Range
( Enquire for details )
Knuth KMT RNC 1505 Plate Shearing Machine SKU : 133625
Knuth KMT RNC 2004 Plate Shearing Machine SKU : 133626
Knuth KMT RNC 2504 Plate Shearing Machine SKU : 133627
Knuth KMT RNC 3004 Plate Shearing Machine SKU : 133628 ( Quoted Model)
Product Details
Knuth KMT RNC 3004 Plate Shearing Machine (133628)
Machine Frame
- The machine frame is made of a very rigid, solid steel weldment and the cutter bar is sliding-block guided
- The high-precision guide ensures clean cuts and special cutters for machining stainless steel plates are included
- The upper cutters are reversible for use of both sides, and the lower cutters feature 4 cutting edges
- A rigid, continuous hold-down fixes the sheet metal plate right in front of the cut line
- The optimum kerf for machining can be adjusted manually
Ergonomic Design
- The “Return-to-Sender” function is an innovative plate shears feature that returns the cut off metal sheet automatically back to the operator position. This function provides increased process efficiency and operator safety

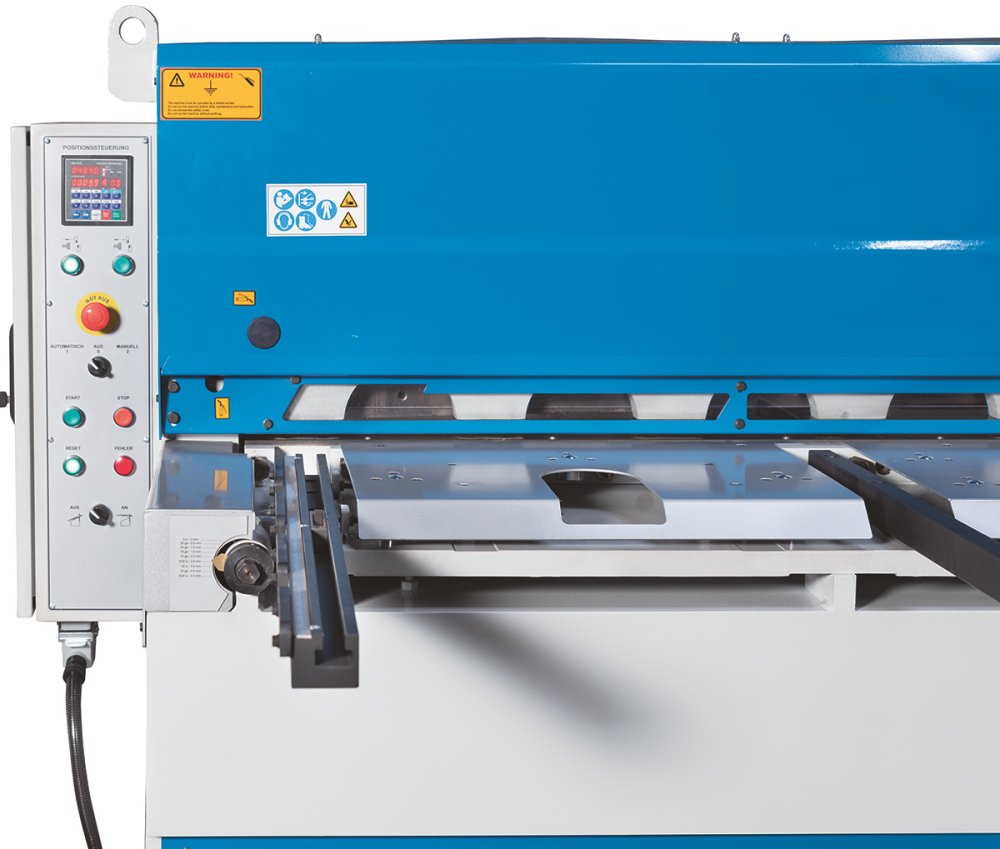

- The rigid side angle stop simplifies precise alignment of the plate perpendicular to the cut line
- Rugged support arms ensure a strong hold of large plates
- Material support rollers are recessed in the table to simplify workpiece handling and avoid scratches on the workpiece
- The mobile foot switch gives the operator added flexibility and both hands are free for handling the workpiece
- The bright LED illumination of the cut line creates a clearly visible shadow on the marked line
- Additionally, the smart machine enclosure design allows vertical view from the top for exact workpiece alignment
- All lubrication points and adjustment screws are easily accessible to simplify regular maintenance

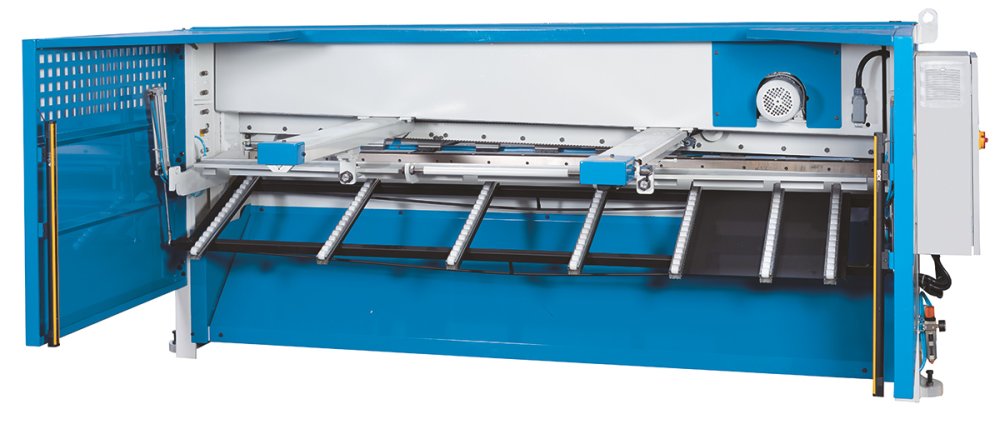

Rear stop:
- The motorized back gauge ensures precise positioning in automatic, semi-automatic and manual mode
- The NC-controlled back gauge can be easily and quickly programmed
- The easy accessible work area at the back gauge is secured by light curtain
Equipment
- High-quality electric components ensure reliable operation and maximum availability
- The full machine enclosure provides maximum safety, features a practical design and is precision machined
Technical Details
| Working area | |
|---|---|
| Working length | 3060 mm |
| Cutting angle | 1,3 deg |
| Work table height | 880 mm |
| Work table depth | 455 mm |
| Number of support arms | 3 positions |
| Support arms | 1000 mm |
| Strokes per minute | 31 H/min |
| Back Gauge | |
|---|---|
| Rear stop | 750 mm |
| Cutting Capacities | |
|---|---|
| Plate thickness (min.) - 450 N/mm² | 0,2 mm |
| Plate thickness (max.) - 450 N/mm² | 4 mm |
| Plate thickness(max.) - 700 N/mm² | 2 mm |
| Drive capacity | |
|---|---|
| Motor rating main drive | 11 kW |
| Measures and weights | |
|---|---|
| Overall dimensions (length x width x height) | 3,7 m x 2,35 m x 1,4 m |
| Weight | 4100 kg |
Standard Equipment

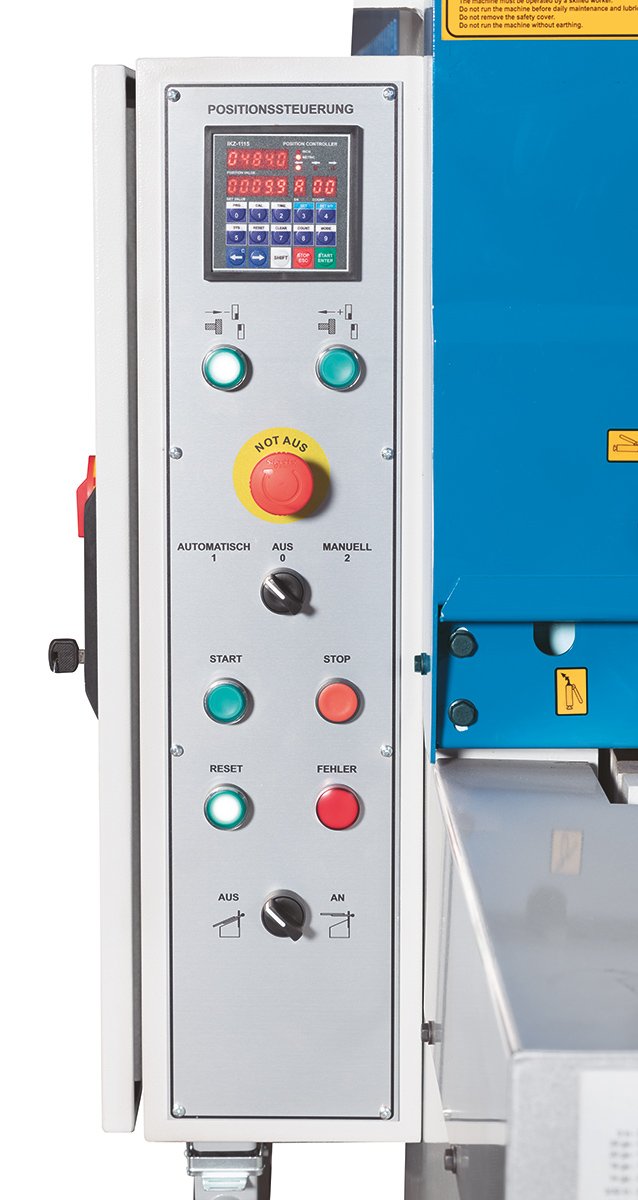

BRL NC controller
Manual return to sender
Optional Equipment
( Enquire for details )
