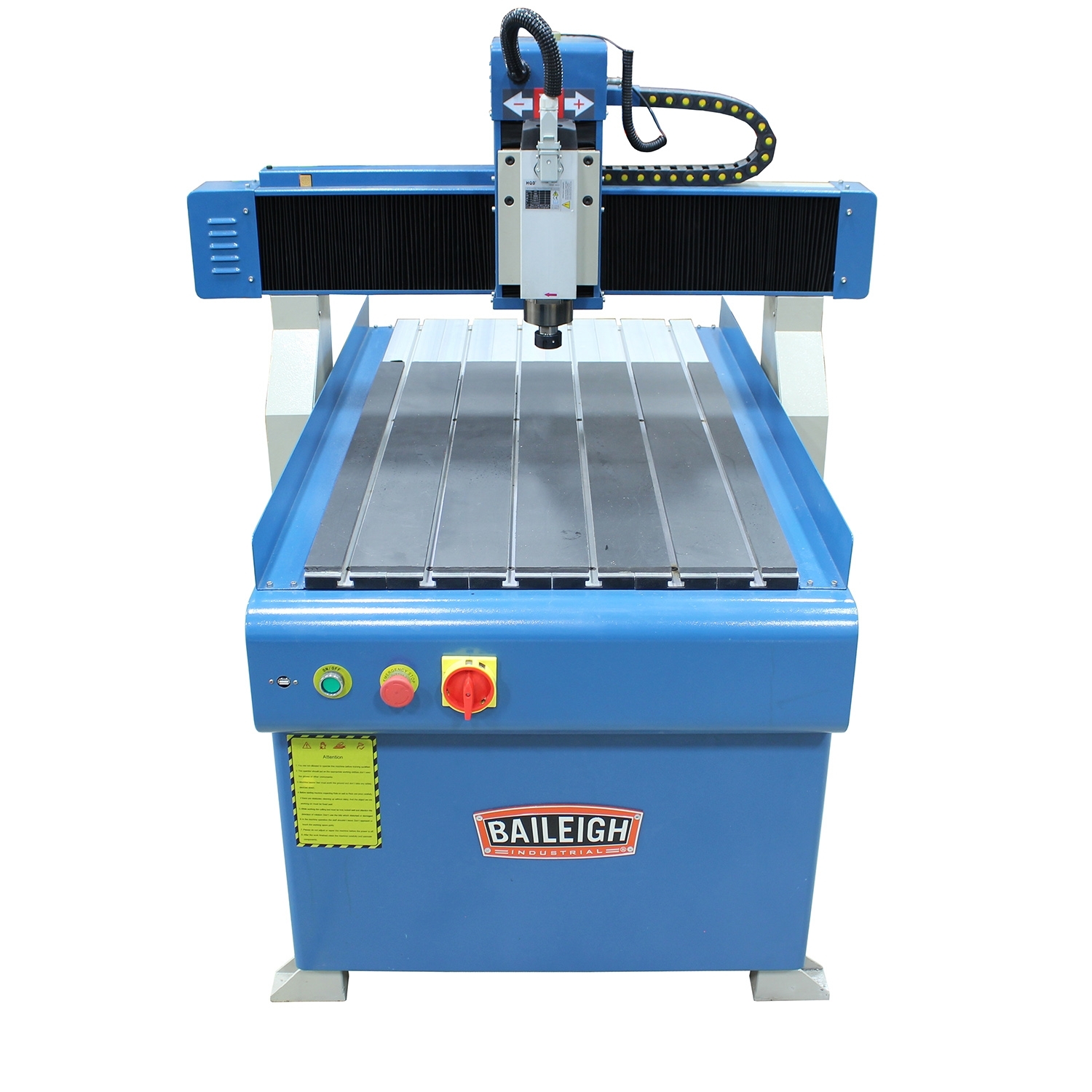

Baileigh WR32 CNC Router Table
Baileigh WR32 CNC Router Table
Highlights
The WR-32 CNC router table comes with software,
tooling, and a dust shroud .
Built to last with a cast iron base, the cnc router
arrives fully assembled.
KEY FEATURES
WR32 CNC ROUTER TABLE
Recommended for sign-makers, hobbyists, moulding companies
(plastic parts), research and development (R&D) shops,and industrial wood shops.
Featuring a 600 x 900 x 130 depth Cutting Table

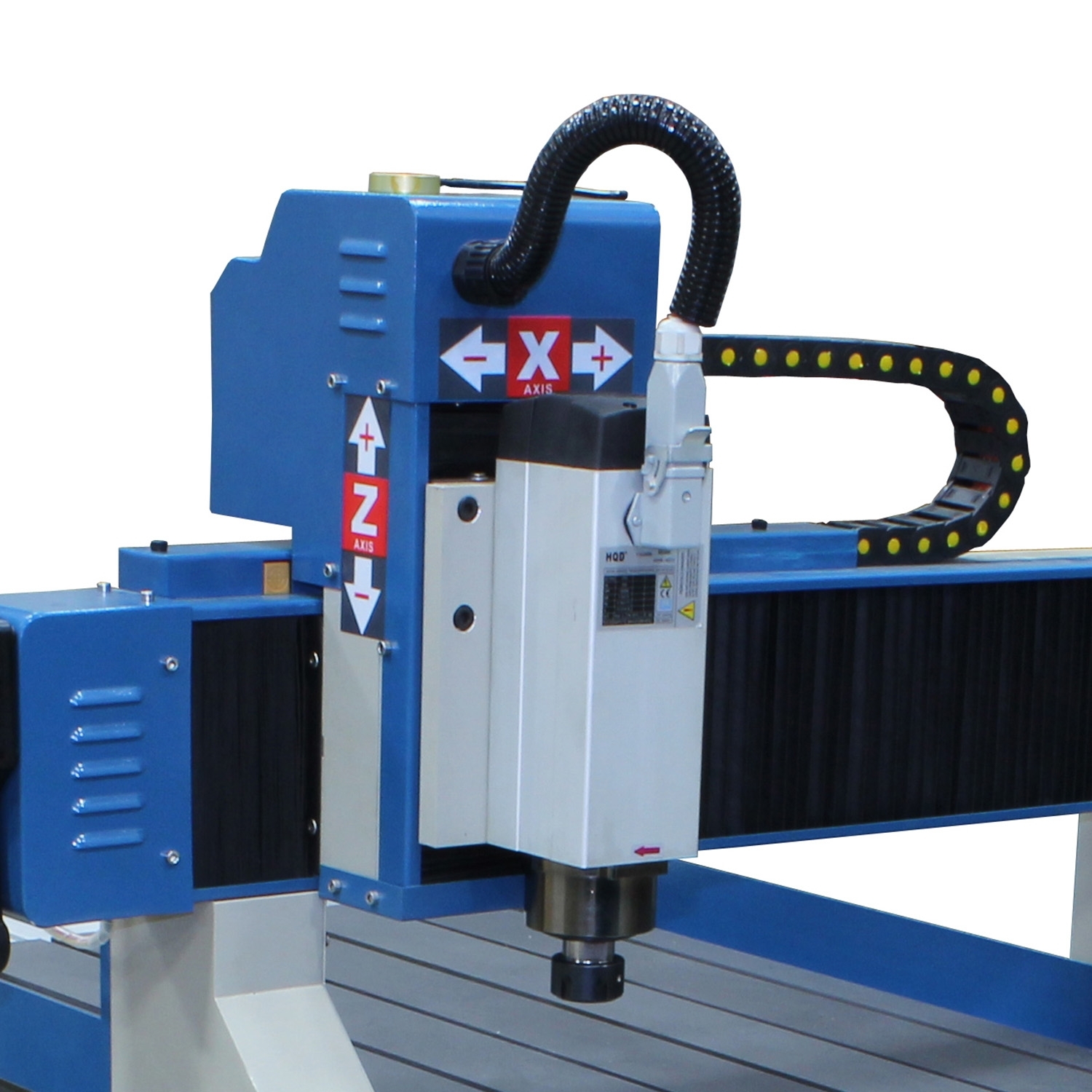

Powerful 4.75 hp spindle.
Up to 18,000 rpm variable spindle speed.
Runs on 220-volt single-phase power.
Easy-to-learn design software; just install it onto your
computer and start creating patterns.
Upload your design file to the table via a USB drive, then use
the convenient handheld controller to move the spindle.
Technical Details
| Item Number | WR-32 |
|---|---|
| Shipping Weight | 1100lbs |
| Actual Working Area | 23.6” x 35.4” x 5.12” |
| Table Size (Length) | 53.5" |
| Table Size (Width) | 43.25" |
| Spindle | Air cooled spindle |
| Z Axis Stroke | 3.1" |
| Maximum Moving Speed (Inches Per Minute) | 590 |
| Maximum Engraving Speed (Inches Per Minute) | 394 |
| Reposition Accuracy | .0019" |
| Tool Diameters | ER25 Style in 1/8”, 4mm, 6mm, and 1/2" (1 each) |
| Power | 220V Single Phase |
| Horse Power | 4.75hp (3.5kw) |
| Weight (lbs) | 728 |
| Table Style | T-Slot |
| Notes | Applicable Material: Acrylic, Copper, Aluminum, Wood, PVC, ABS, Insulation Plate, Bakelite Plate, Honeycomb Plate, Resin, Organic Board, Aluminum Composite Panel |
| Shipping Dimensions (Inches) | 59x48x59 |
* specifications subject to change without notice.
