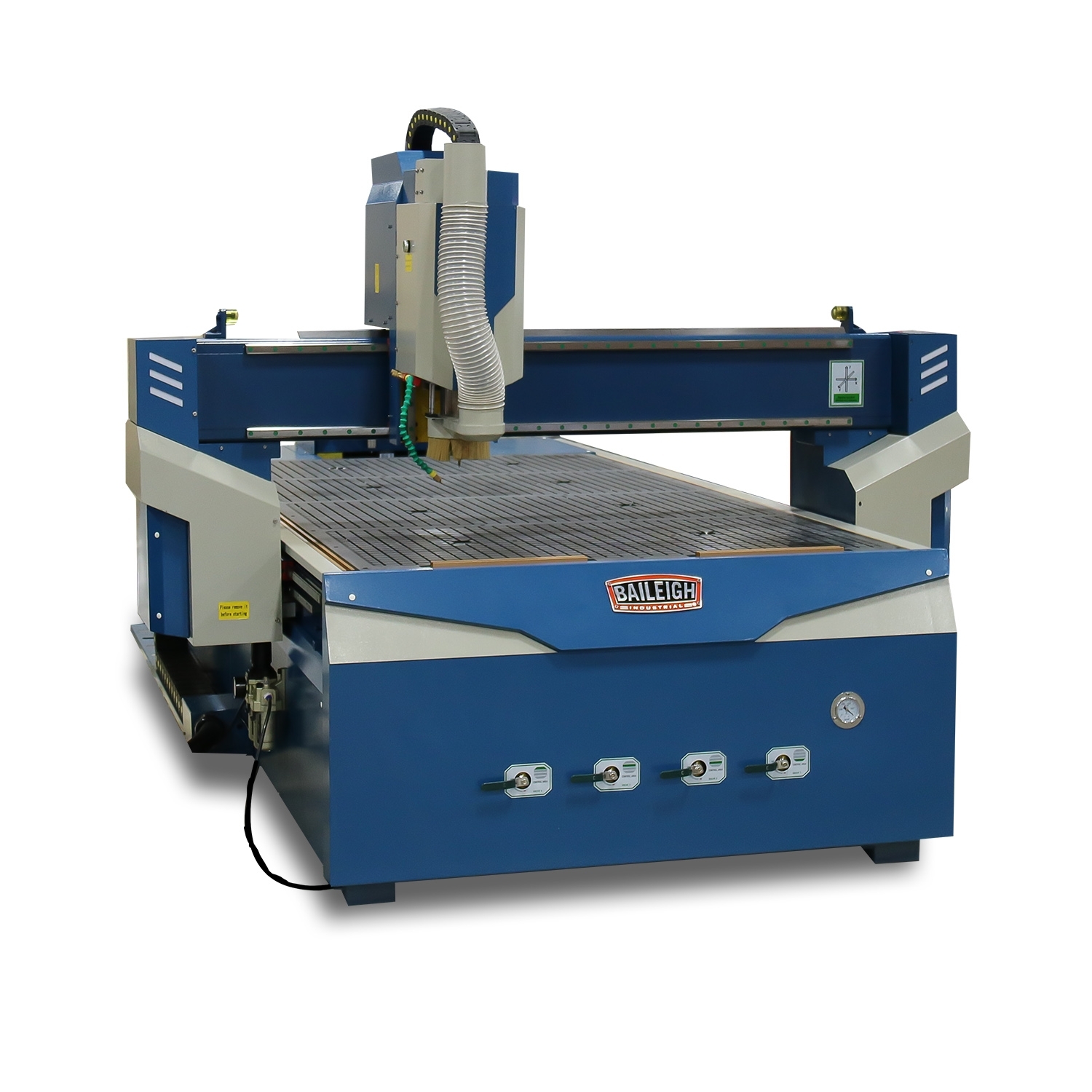

Baileigh WR84V ATC CNC Router Table
Baileigh WR84V ATC CNC Router Table
Availabiity / Subject to a 20 week delivery lead time currently
Highlights
This large CNC router table can automatically change tooling in just 8 seconds. You can program profile switches right into your design to save time and maintain precision during industrial production runs.
- Large 4’ x 8’table.
- Arrives pre-built with correct alignment. No complicated set-up process.
- Comes with software for plotting out designs on your computer, then turning them into cut patterns for the machine.
- Runs on 220-volt 3-phase power.
- Powerful 10hp spindle can tackle hard materials without flinching.
- 7.5 kilowatt air-cooled spindle will stay accurate through years of production.
- Variable spindle speed, from 3000 to 24,000 rpm.
- Servo motors ensure smooth running at both fast and slow speeds.
- High gantry is up and away from material, allowing you to see what it’s doing.
- Y axis moves far enough for the gantry to clear the table. You can take the material directly off; no need slant it awkwardly.
- Upload your design to the table with a USB drive. Automatic tooling changes let you swap out bits with computer-controlled precision. Sensor compensates for the change in tool lengths. That change might seem tiny, but it makes a huge difference to the finished product.
- Pre-load up to 4 collets with your chosen profiles; the router will switch between them as programmed.
- Powerful 7hp vacuum in the bed of the table holds the material in place during the cutting process.
- 4 vacuum zones allow you to turn on the valve only for the area where you’re working.
- Arrange each zone’s vacuum seal into the shape of the material to provide well-distributed suction.
- Dust shroud fits over the spindle; you can vacuum out all the dust and chips while you’re cutting.
- Fully-welded steel frame keeps the machine stable, helping the router last longer and preventing vibrations from taking the cut off-course.
BOBCAD-CAM EXPRESS DESIGN SOFTWARE (INCLUDED)
The WR-84V ATC CNC Router comes standard with BobCAD-CAM Express programming software.
You can design or plot your own project on any computer and load the Router Table via a USB drive.
To learn more or download a free trial, contact Traxx by phone.
Questions? Call us @Traxx Industries on 0796 3851 455 and talk to a Baileigh expert.
Technical Details
| Item Number | WR-84V-ATC |
|---|---|
| Shipping Weight | 4800lbs |
| Actual Working Area | 96.5" x 50.5" |
| Speeds | 7 (3,000 - 6,000 - 9,000 - 12,000 - 15,000 - 18,000 - 24,000 rpm) |
| Spindle | Air Cooled |
| Z Axis Stroke | 8" |
| Maximum Moving Speed (Inches Per Minute) | 394 |
| Maximum Engraving Speed (Inches Per Minute) | 394 |
| Reposition Accuracy | 0.0019 |
| Tool Diameters | 1/8”, 4mm, 6mm, & 12mm |
| Power | 220V Three Phase |
| Length | 132" |
| Width | 83" |
| Height | 70" |
| Horse Power | 10 |
| Weight (lbs) | 4800 |
| Table Style | Vacuum |
| Notes | Applicable Materials - Acrylic, Copper, Aluminum, Wood, PVC, ABS, Insulation Plate, Bakelite Plate, Honeycomb Plate, Resin, Organic Board, Aluminum Composite Panel |
| Shipping Dimensions (Inches) | 144x82x81 |
Please note * specifications subject to change without notice.
Shipping.
Shipping rates quoted included delivery to clients premises only. Client will be responsible for offload and siting at point of use.
Optional items
1 / Install and ½ day training for up to 4 people £ 800 + VAT @ 20%
( UK Mainland site).
Please note delivery cost quoted does not include offload and siting in the desired position in the clients factory
which is the responsibility of the client.
Please phone Traxx Industries Limited to discuss your application.
Phone no. 0796 3851 455
Finance Availability
Looking to finance your equipment?
We have access to a variety of funding sources who will look sympathetically
at requests for funding finance.
These include leading merchant banks such as asset finance specialists Close Brothers and Lombard.
The financial services division of Siemens will consider HP on the investment. Subject to Status.
On an investment of this nature with a long delivery lead time we can also look at providing a staged payment schedule.
We will confirm this with you at time of order.
