Holzmann FS300_400V Spindle Shaper
+3

Holzmann FS300_400V Spindle Shaper

9120058377150
£2,499.00
In stock
1
Product Details

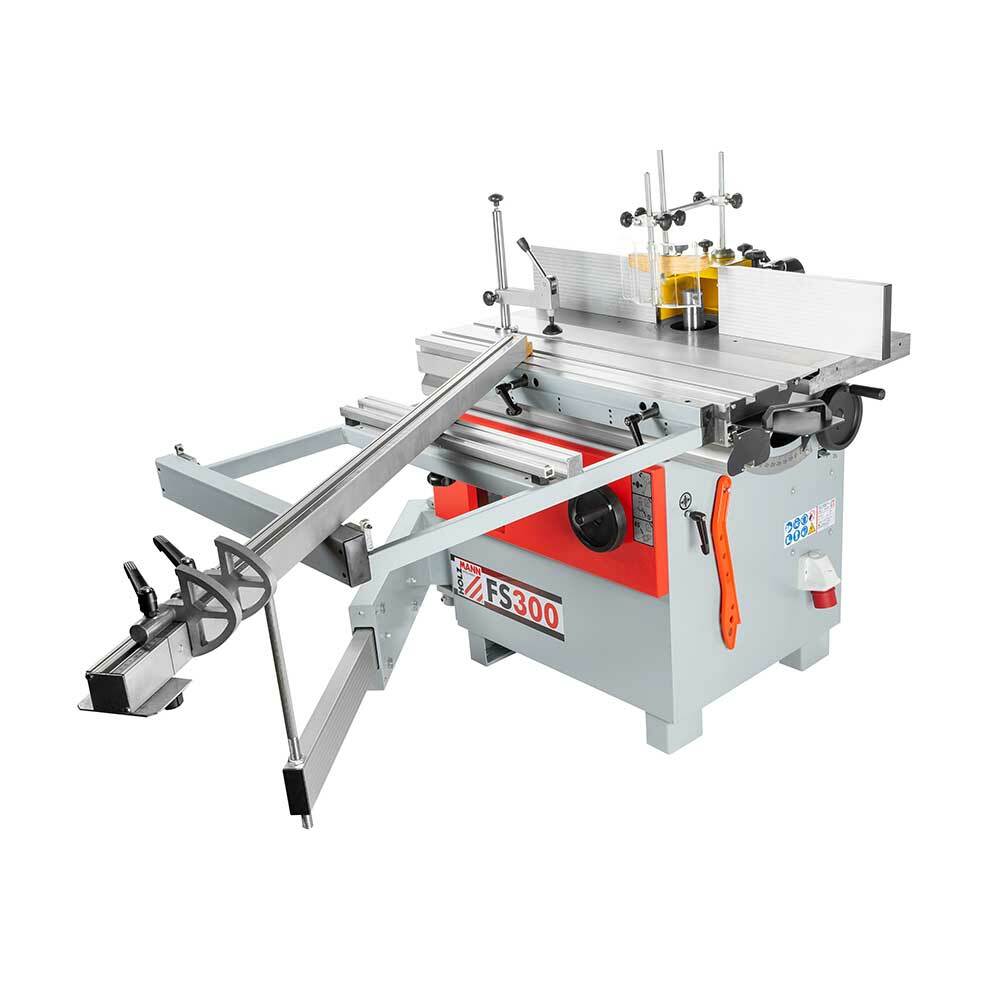

Holzmann FS300_400V Spindle Shaper




Highlights


Spindle shaper with sliding and outrigger-table

  • heavy, very high-quality overall design

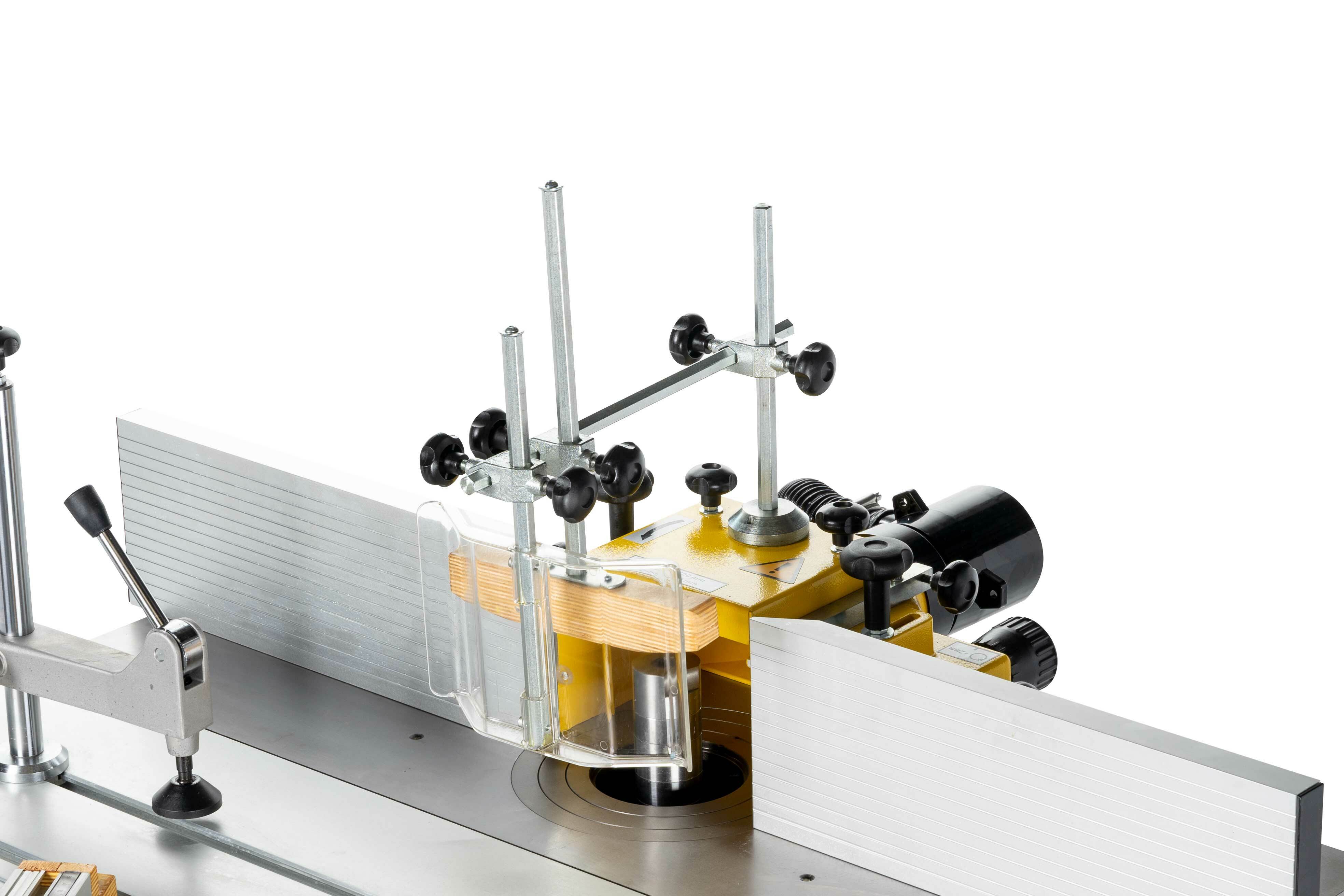

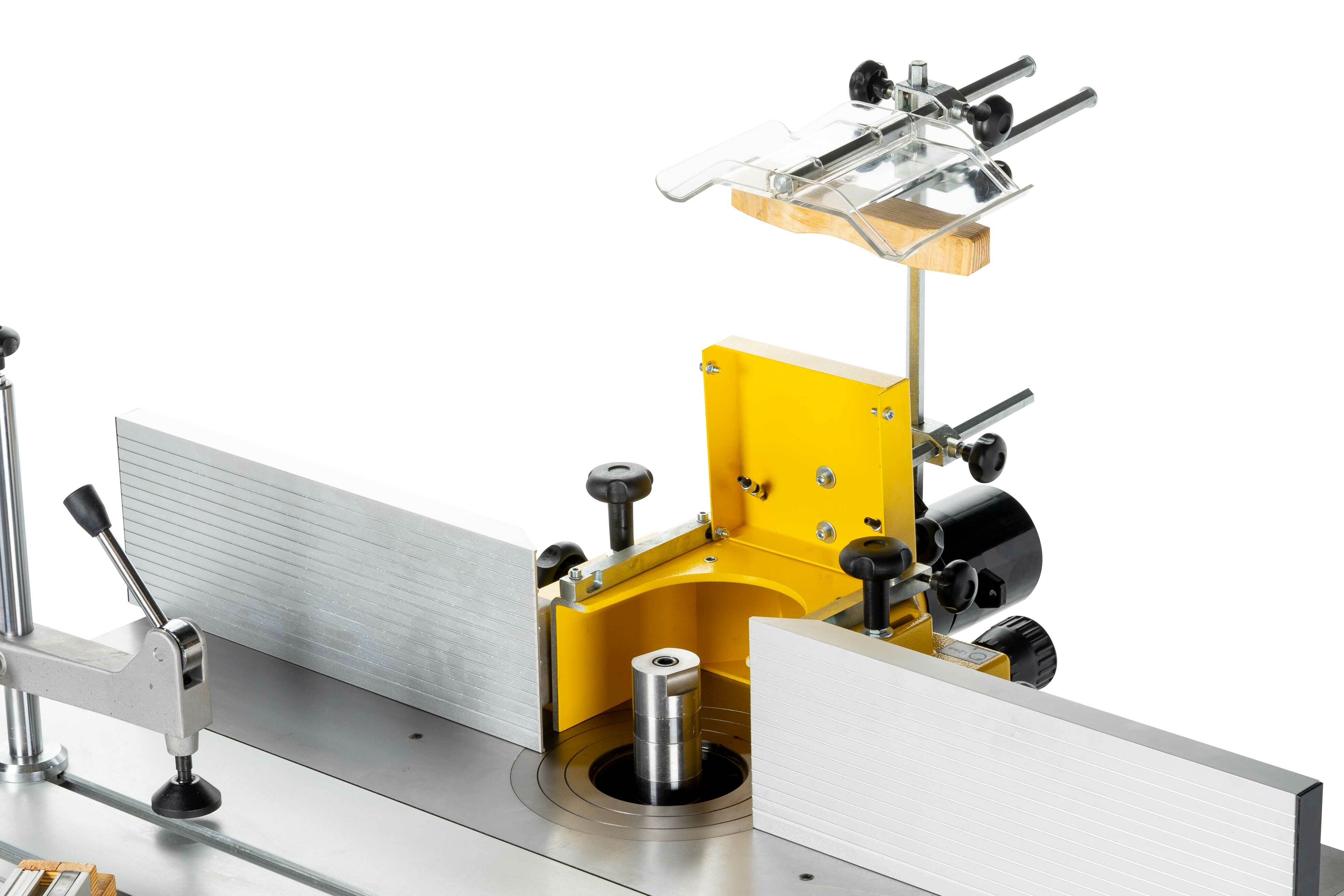

  • high quality hood with down holder and fence fine adjustment
  • 4 spindle speeds
  • tiltable spindle adjustable via handwheel
  • dust collection below the sliding table
  • Dimensions (L x W x H):
    • 2155 x 990 x 1430 without sliding table
    • 2155 x 2400+(1150) x 1430 with sliding table

Included in delivery: Format sliding table incl. outrigger table and cross-cut fence and spindle shaper hood.


Technical Details


motor data

motor power s1 in W 3000
motor power s6 in W 4000
voltage 400V / 3 / 50Hz
measurements
table size in mm 1000 x 350
table height in mm 890
sliding table in mm 1000 x 310
suction port in mm 100
technical specification
milling spindle diameter in mm 30
milling spindle speed in min-1 1400 / 3500 / 6000 / 8000
spindle stroke in mm 130
max. milling diameter in mm 175
milling spindle swivel (-5)0-45°
max. clamping height in mm 140
table opening in mm 178
max. tool diameter below table in mm 170 (90°) , 100 (45°)
max. tool diameter above table 200
mitre fence in mm 450 x 160 (L +R)
volume level and vibration
sound power level in dB(A) 96,8
sound pressure level in dB(A) 80,7
weight
gross weight in kg 343.50
net weight in kg 280
packaging
packaging width in mm 1.150
packaging length in mm 900
packaging height in mm 1.078
general data
EAN code 9120058377150



The roots of Holzmann and Zipper reach back as far as 1886 to the foundation of a smithery in Haslach Austria. Today the group is one of the global players in the field of workshop machinery and equipment.
