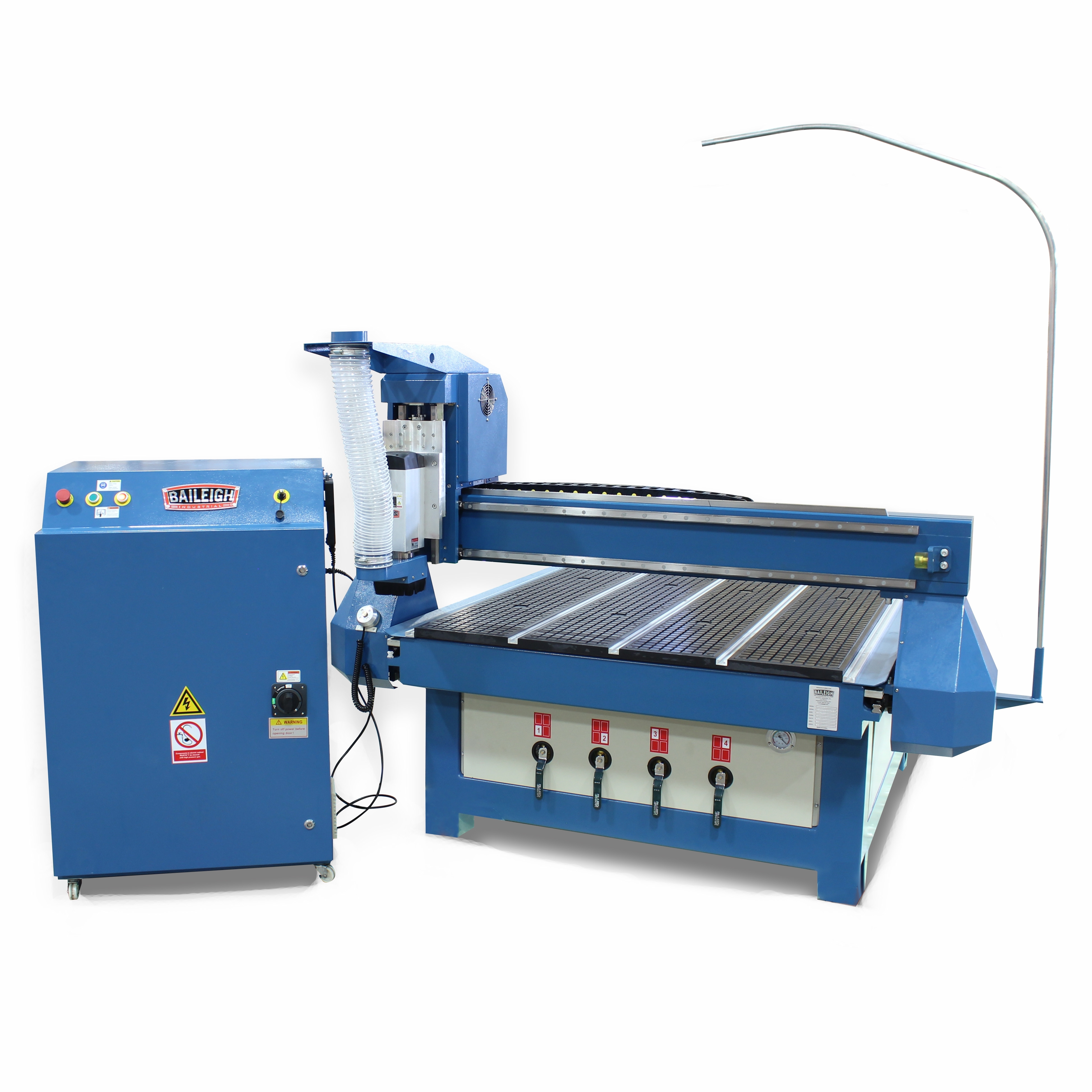

Baileigh WR84V CNC Router Table
Baileigh WR84V CNC Router Table
Availability / Currently ex stock / 2/3 weeks to site / Subject to no prior sales.
Highlights
With a welded steel frame, the WR-84V industrial 4x8 wood router is built to last. Unlike many competing tables,
this model ships fully assembled and comes with software, tooling, and a dust shroud.
- 4’ x 8’ table to fit common bulk industrial material sizes.
- Perfect for solid wood processing, making closet doors, furniture, signs, and much more.
- 0 to 18,000 rpm variable spindle speed range.
- 7.4 hp spindle has the power to cut hardwoods quickly and precisely.
- Spindle is air-cooled to prevent overheating, prolong the machine’s lifespan, keep it producing high-quality cuts.
- 15,000 mm per minute maximum engraving or travel speed.
- Solid steel gantry can tackle hardwoods at high speeds without flinching.
- Stepper motors with square rails ensure smooth movement along the X, Y, and Z axes.
- Use the handheld digital controller to move the spindle, adjust the speed, and go through your design.
- Comes standard with software that allows you to set up almost any kind of design. (Details below.)
- Upload your cut pattern to the table with a USB drive.
- Rack and pinion mechanism holds up over long periods of heavy use and allows for more fluid and precise movement than a ball and screw mechanism.
- 4 collets accept any standard tooling profiles with ⅛”, ¼”, 3/8", and ½” bit sizes.
- Includes 10 different tooling profiles.
- Steel T-clamps hold the material down on the table to reduce vibrations and prevent errors.
- Table is preplummed 4 vacuum zones, each with a separate valve and handle, ready to accept optional 7hp vacuum pump.
- Extremely rigid steel structure reduces vibrations and helps the table stay accurate for years.
- Dust shroud covers the spindle and vacuums out sawdust and wood chips while you’re cutting.
- Covered by a 1-year parts warranty.
- Technical support by phone:
BOBCAD-CAM EXPRESS DESIGN SOFTWARE (INCLUDED)
The WR-48 comes standard with BobCAD-Cam Express programming software.
You can design or plot out your project on any computer and load the table via a USB drive.
To learn more or download a free trial, contact Traxx by phone
Questions? Call us @ Traxx Industries on 0796 3851 455 and talk to a Baileigh expert.
Technical Details
| Item Number | WR-84V |
|---|---|
| Actual Working Area | 97" x 48" ( 2438 mm x 1318 mm) |
| Spindle | 7.4hp |
| Z Axis Stroke | 5.375" |
| Maximum Moving Speed (Inches Per Minute) | 590 |
| Maximum Engraving Speed (Inches Per Minute) | 590 |
| Reposition Accuracy | 0.0019 |
| Tool Diameters | ER32 |
| Power | 220V Single Phase |
| Length | 118" |
| Width | 78" |
| Height | 65" |
| Weight (lbs) | 2500 |
| Table Style | T-Slot with Vacuum Option |
| Notes | Table comes ready to accept an optional vacuum pump. Pump must be purchased separately. |
| AMP Draw | 35 at full load |
* specifications subject to change without notice.
Shipping
Shipping rates quoted include deliveryt o clients premises only. Offload and siting at point of use will be the responsibility of the client.
Please note
If this unit is temporarily out of stock at the European warehouse point then delivery reverts to a 16 week
delivery lead time from the Far East.
Optional items
1/ Vacuum Pump Extra/Subject to quote at time of order.
2 / Install and ½ day training for up to 4 people £ 800 + VAT @ 20%
( UK Mainland site).
Please note delivery cost quoted does not include offload and siting in the desired position in the clients factory
which is the responsibility of the client.
Please phone Traxx Industries Limited to discuss your application and vacuum pump requirement.
Phone no. 0796 3851 455
