DEWALT DWE7485X 240v Table saw - 210mm blade cw Leg stand DE7400

DEWALT DWE7485X 240v Table saw - 210mm blade cw Leg stand DE7400

Highlights

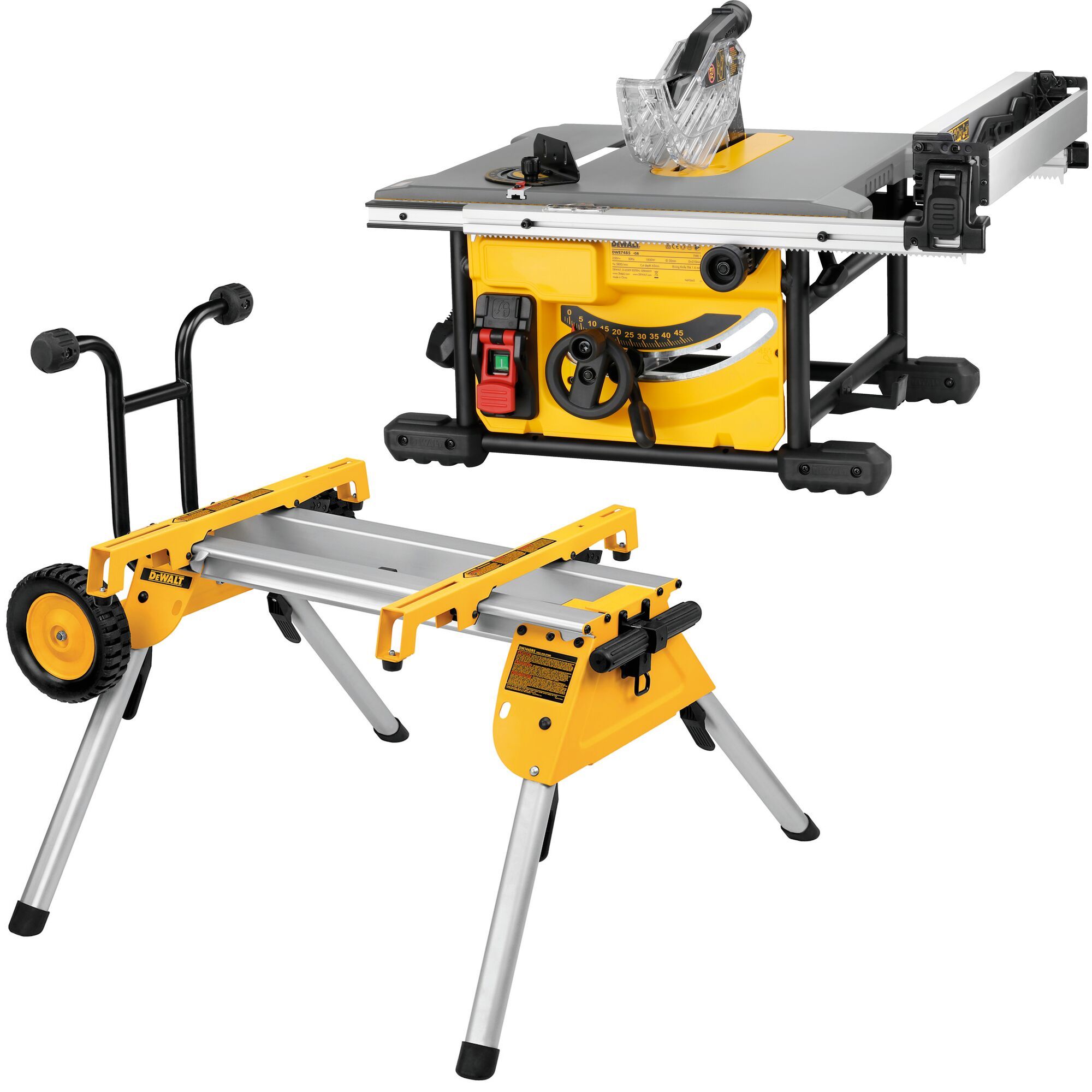

DeWalt DWE7485-LX 210mm 240V 1850W Compact Table Saw with DE7400-XJ Heavy Duty Rolling Saw Stand

This DeWalt kit consists of a DWE7485 240V Compact Table Saw and a DE7400 Table Saw Stand. The DWE7485 Table saw has a compact size for easy transportation and storage. Its high-powered tough 240v x 1850w motor allows extended durability, efficiency and power to cut all construction timbers on site. The DE7400 Stand has large Heavy-Duty wheels designed to easily roll over steps, kerbs, and jobsite debris. Lightweight aluminium construction, which improves portability.

Features & Specification:

DWE7485-LX 240V Compact Table Saw

• POWERFUL 1850W MOTOR: High performance in all applications
• LARGE RIP CAPACITY: 622mm rip capacity right of the blade, and 318mm left of the blade
• COMPACT DESIGN: 22kg weight and optimised footprint make this a super portable saw
• RACK & PINION FENCE: Front and rear fence lock, with a large, clear scale for an extremely accurate and easy-to-use saw
• STEEL ROLL CAGE: Protects against jobsite drops and impacts
• CAST TABLE TOP: Designed to ensure accuracy and precision
• SIMPLE BEVEL LOCK: Quick bevel lock with large scale for easy, accurate adjustments
• 3 YEAR GUARANTEE: Tool covered by extended warranty, subject to registration
• Blade Bore [Metric]: 30 mm
• Saw Blade Thickness [Metric]: 2.4 mm
• Table size [Metric]: 485 x 485 mm
• Product Width [Metric]: 605 mm
• No Load Speed (RPM): 5800
• Product Height [Metric]: 330 mm
• Product Weight [Metric]: 22 Kg
• Blade Diameter [Metric]: 210 mm
• Max. Depth of Cut at 45º [Metric]: 45 mm
• Max. Depth of Cut at 90º [Metric]: 65 mm
• Supplied in Storage Case Indicator: No
• Depth [Metric]: 605 mm
• Max. Ripping Capacity [Left] [Metric]: 318 mm
• Power Source: Corded
• Max. Ripping Capacity [Right] [Metric]: 622 mm
• Power Input: 1700 W
• Product Length [Metric]: 605 mm

DE7400-XJ Heavy Duty Rolling Saw Stand

• Large Heavy-Duty wheels designed to easily roll over steps, kerbs, and jobsite debris
• The retractable soft grip handle slides out, allowing the user to pull the saw behind them comfortably
• Lightweight aluminium construction, which improves the portability
• Stand design allows portability when the table saw is attached to the stand, which increases productivity
• Heavy-Duty kick stand allows the stand to balance upright for mobility and storage
• Folding legs with quick-release levers, which retract under the stand in a few seconds for easy and quick transport
• Product Depth: 900 mm
• Product Height: 565 mm
• Product Width: 950 mm
• Total Product Weight: 15.9 kg

What is included:

• 1 x DeWalt DWE7485-GB 210mm Compact Table Saw 1850W 240V
• 1 x DeWalt DE7400-XJ Heavy Duty Rolling Saw Stand
• 1 x 210mm saw blade
• 1 x Rip fence
• 1 x Mitre gauge
• 1 x Push stick
• 2 x Blade spanners
• 1 x Dust port reducer

Technical Details

Brand:	DeWalt
Model:	DWE7485-GB table saw with DE7400 rolling stand
Product type:	Compact table saw with stand
Voltage:	240V
Power input:	1850W
No load speed:	5800rpm
Blade diameter:	210mm
Blade bore:	30mm
Max rip capacity right of blade:	622mm
Max rip capacity left of blade:	318mm
Table size:	485mm x 485mm
Saw weight:	22kg
Saw dimensions (W x H x D):	605mm x 330mm x 605mm
Stand material:	Aluminium
Stand max load capacity:	68kg
Stand dimensions (W x H x D):	950mm x 565mm x 900mm
Total product weight with stand:	15.9kg (stand)
Power source:	Corded
Table construction:	Cast aluminium bed
Roll cage:	Steel roll cage frame
Dust extraction compatibility:	AIRLOCK compatible
Bevel capacity:	-3°
Power Supply:	Corded

Warranty Information

1 Year Standard Manufacturer Warranty

(Extendable to 3 Years With Registration)
