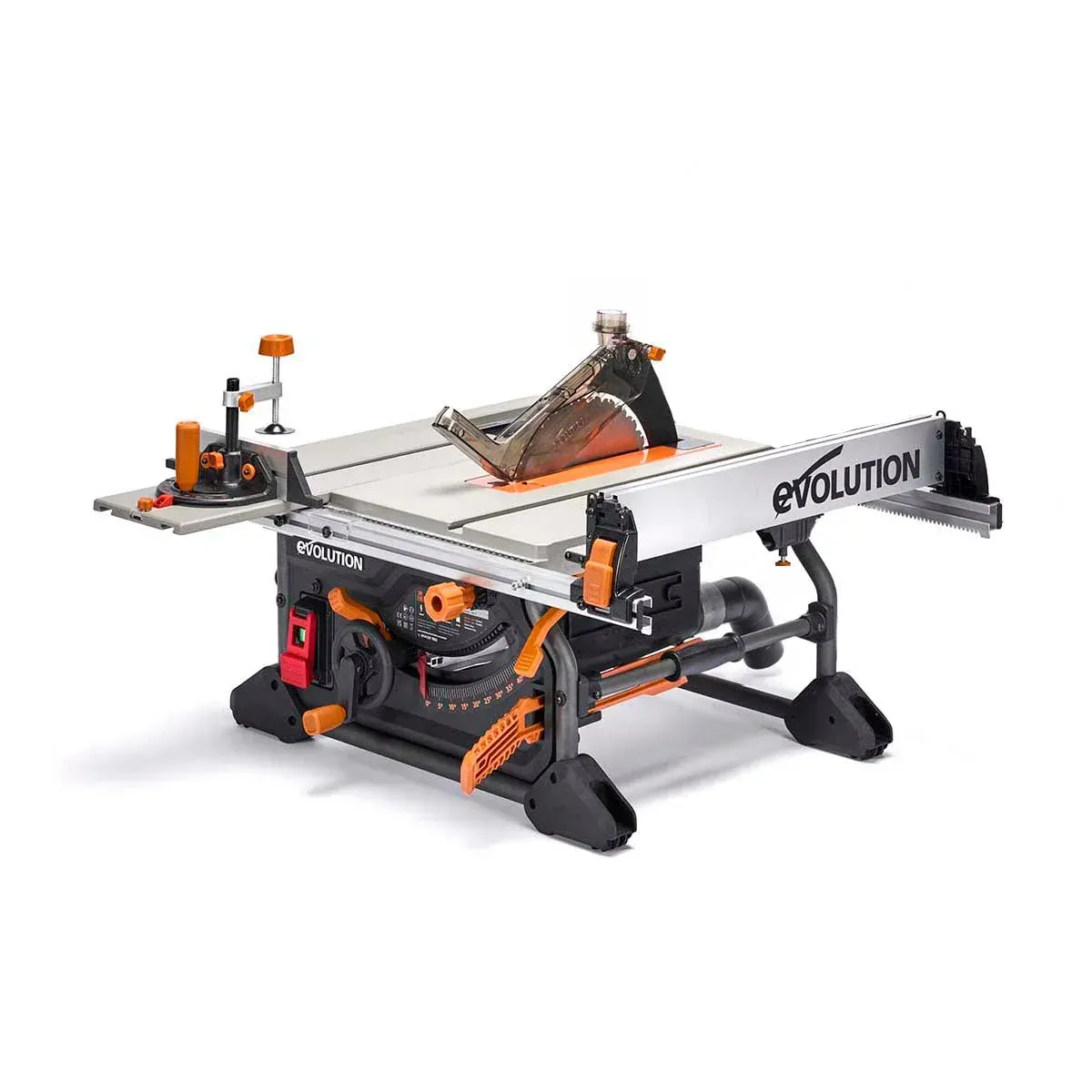

Evolution R255TBL (230V) Table Saw With 255mm Multi-Material Cutting Blade SKU: 119-0001
Evolution R255TBL (230V) Table Saw With 255mm Multi-Material Cutting Blade
SKU: 119-0001
Highlights
Evolution's R255TBL Portable Table Saw is the perfect upgrade to your existing Table Saw. If you're looking for improved performance, greater cutting accuracy, easier set-up, safer and quieter operation and want to achieve it all on a budget then the R255TBL with it's Double Rack and Pinion Fence and Integrated Mitre Sled is the obvious choice.
The R255TBL sets new standards for accuracy and reliability and it's ready to cut new and reclaimed wood, metal, plastics and more and is packed with features that are only usually available on much more expensive saws.
The R255TBL Table Saw is more accurate than the competition. It features a Dual Rack & Pinion Rip-Fence for accurate, repeatable cuts. A gear-driven Blade Height and Angle Adjustment Mechanism makes repeat cuts easy and accurate. Our patented Blade-to-Rip-Fence Parallelism Adjustment allows for perfectly aligned cuts in full-size sheets with no binding or kickback. The R255TBL also features a Metal Throat Plate with corner height adjustment as standard - there's no plastic here.,
The R255TBL is more versatile. The Integrated Mitre Sled uses an industry-standard channel profile for compatibility with 3rd party accessories, and our own Mitre Guide. It offers an 85mm cut depth at 90 degrees and 58mm at 45 degrees. It features a wider, thick, cast aluminium table top designed to excel at handling 8x4 sheets but still weighs less than the RAGE5-S. Add in improved dust extraction, Multi-material cutting ability, tool free set-up and adjustment and you have the most versatile Table Saw we've ever made.
This R255TBL Table Saw is more portable. Smaller and lighter than the RAGE5-S the R255TBL is mounted within a light, roll-cage chassis, with integral carry handles. It’s an easy one man carry without the wheeled stand, and superbly mobile on its large all-terrain wheels when you buy the matching stand, it easily passes straight through a standard width internal door (32") making it the perfect jobsite saw.
The R255TBL is safer. The more powerful 1,650w motor features thermal overload protection and a paddle style emergency stop. The transparent blade guard offers improved cut visibility, and the Quick Release Riving Knife features offset-angle and lateral adjustment for safer cutting. The new motor housing offers improved dust extraction, better access for cleaning, and blade swaps are easier than ever before, just pop out the Metal Throat plate .
The R255TBL 255mm Portable Table Saw is built to take on any home project or jobsite cutting task. It’s more powerful, accurate, safer, and quicker and easier to set-up than the RAGE5-S Table Saw that it replaces. It’s ready to deliver our 'one blade cuts all' multi-material technology as well as the accuracy and finish quality required for your woodwork projects.

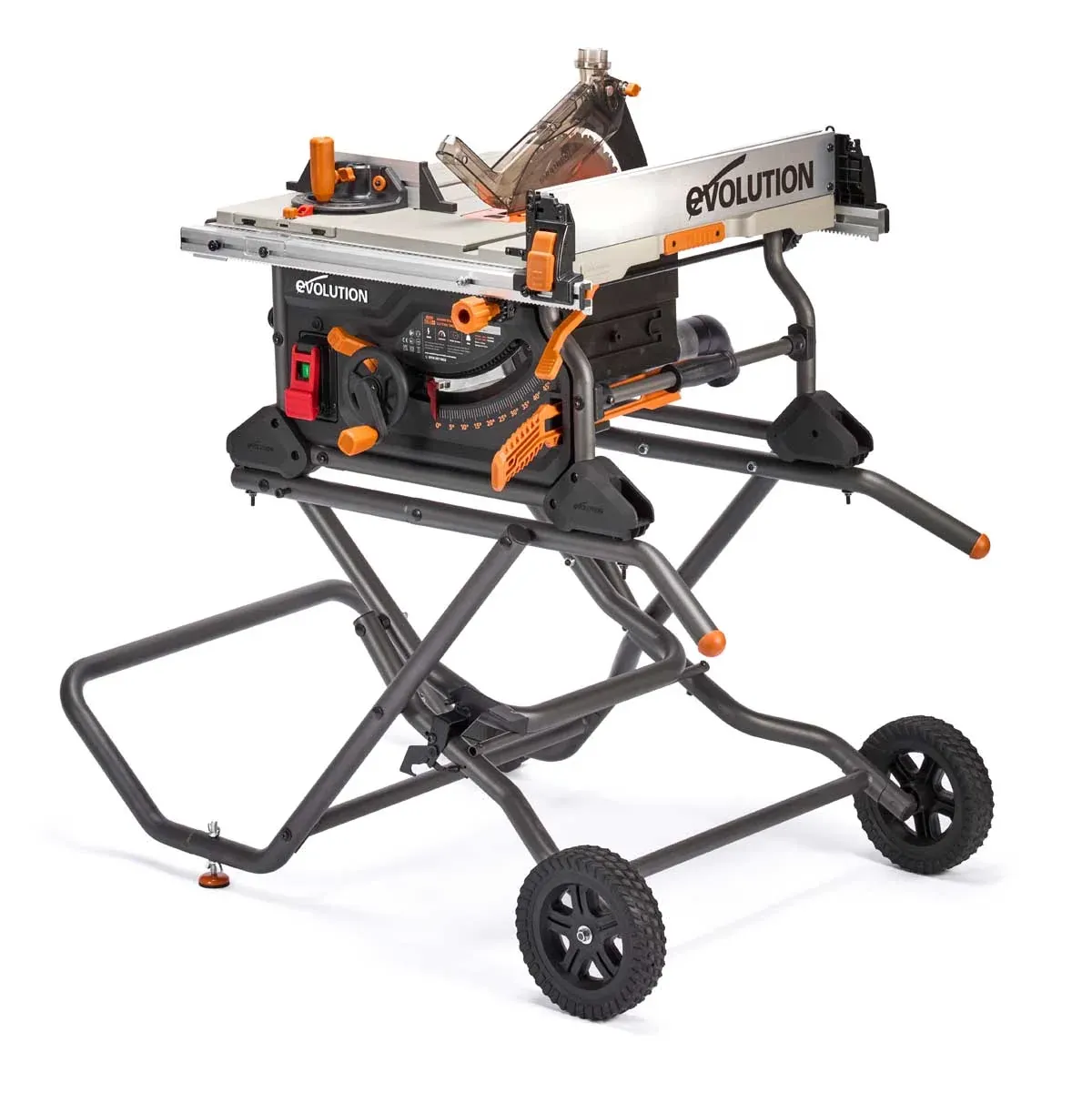

*The R255TBLX version comes equipped with the new tubular steel all-terrain wheeled support as standard. Fixed to the table with 4 bolts it gives you the flexibility to run your new table saw as a bench mount or stand mount unit and to swap between the two options in less than a minute.
Features
- More portable, powerful, accurate and easier to adjust and calibrate.
- Improved accuracy for every cut type and ease of set-up
- Dual Rack & pinion parallel fence for precision rip cuts.
- Pat pending blade-to-fence parallelism adjustment.
- Quick Release Riving Knife with 2-axis adjustment.
- Crosscut Sled Insert – industry standard accessory channel profile for 3rd party Mitre Guides
- Geared micro-adjustable bevel angle selector 45° Range (+ and - 2°)
- Metal roll cage chassis with integrated carry handles.
- Increased depth of cut 85mm at 90° and 58mm depth of cut at 45 degrees.
- New blade guard. easier adjustment and enhanced cut visibility & dust extraction.
- More compact and portable wheeled support – rolls through standard-width door.
- ADC Active Dust Collection. Improved dust extraction and release (all-new dust system)
- Intelligent Motor Overload Protection.
- Paddle Style Emergency Stop Switch provides increased user safety.
- Reduced pack and storage size.
- Multi-Material cutting technology. One saw, one blade, cuts all.*
- Powerful, 1,650W hi-torque motor
- 45° bevel tilt and +/-60° mitre guide covers common, compound cutting angles.
- Increased table-top size.
- 3m durable cable with the built-in storage cable holder.
- All tools and accessories stored on tool frame.
- 3 Year limited warranty.
- Multi-material cut capable, Japanese Tungsten-Carbide-Tipped (TCT) 255mm 24T blade included.
- Available with or without folding, wheeled accessory stand.
- UK Customer support & servicing
Technical Details
| Motor (240V 50Hz): | 1,650W |
| Speed No Load: | 2,500rpm |
| Max. Bevel (Left): | 45° (-2 to 47° with stop washers removed) |
| Blade Dia.: | 255mm |
| No. of Teeth: | 24 |
| Bore: | 25.4mm |
| Kerf: | 2mm |
| Max. Depth of Cut (0°): | 85mm |
| Max. Depth of Cut (45°): | 58mm |
| Mild Steel Plate (Max. Thickness): |
6mm |
| Rip Capacity - Right of the blade | 650mm |
| Rip Capacity - Left of the blade | 371mm |
| Riving Knife Thickness | 1.8mm |
| Product Dimensions: | (With Leg Assembly) 1050mm x 750mm x 940mm |
| Product Dimensions: | (Without Leg Assembly) 880 x 730 x 330mm |
| Max. Table Dimensions | 1200mm x 640mm |
| Min. Table Dimensions | 745mm x 640mm |
| Packaging Dimensions: | 750mm x 430mm x 740mm (119-0006) |
| Storage Dimensions: folded with stand | H 1110mm x D 760mm x W 850mm |
| Product Weight: | 21.2 kg |
| Packaged Weight: | 33.5 kg |
| Sound Pressure Level LPA: | 93,2dB(A) K:3dB(A) |
| Sound Power Level LWA: | 106,2dB(A) K=3 dB(A) |
Optional

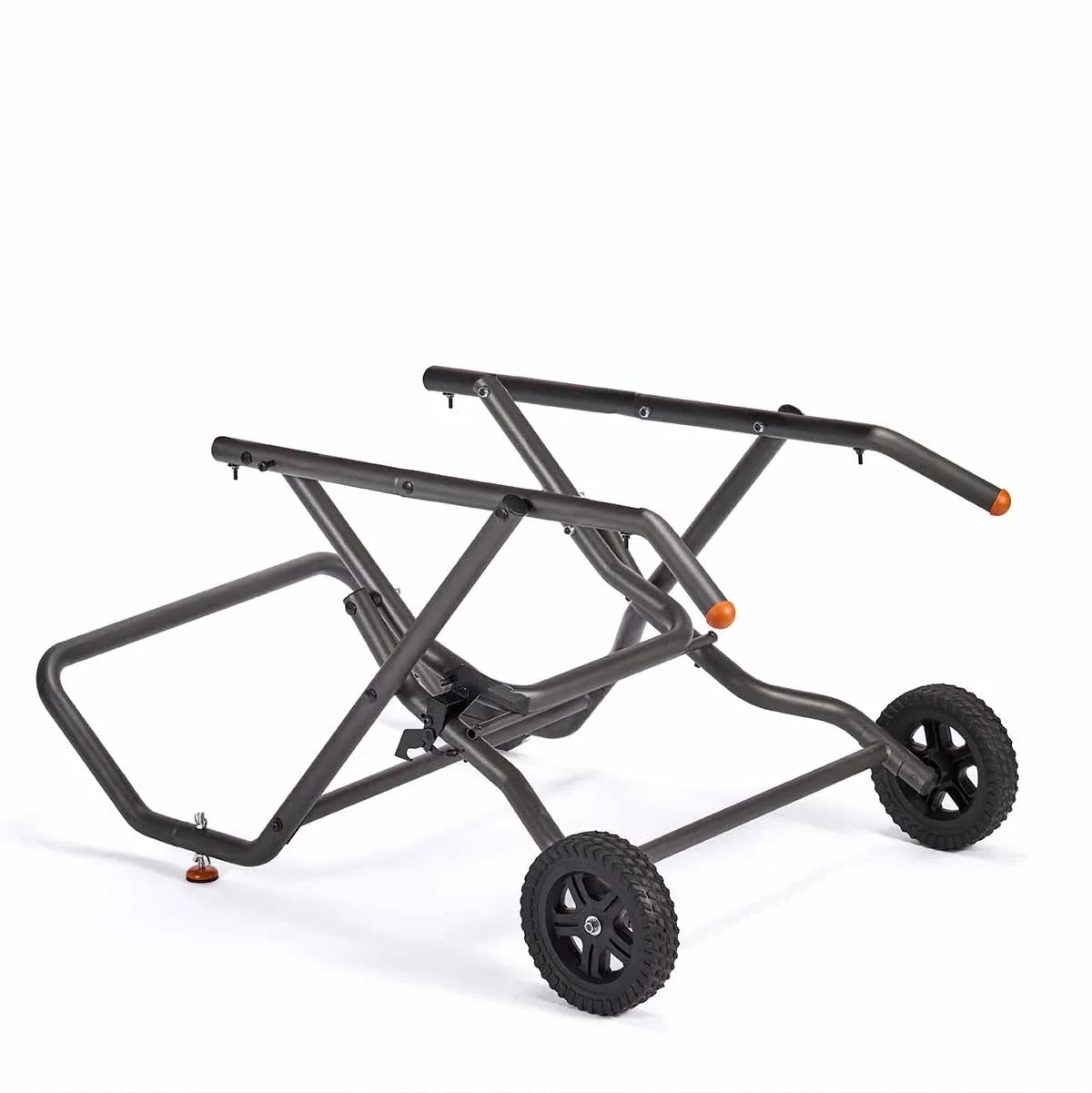

Evolution Compact Folding Wheeled Stand For R255TBL Table Saw
SKU: 119-0050
EAN/UPC: 05056583007771
- Folding Compact Wheeled Stand.
- Fits R255TBL & R255TBL+ Models.
- Large All-terrain Wheels.
- Easy To Assemble - Quick To Fit
Evolution Warranty
Summary
• All Evolution single circular blade saws and magnetic drills are covered with 3 year warranty. All other Evolution power tools are covered with 2 year warranty.
• Refurbished power tools by Evolution come with a 90 day warranty.
• This warranty does not cover blades, accessories, spare parts and discontinued models.
• Please keep your proof of purchase / delivery.
• If you purchase your Evoluton product from Traxx you must register your product warranty
with Evolution • The warranty becomes effective at the date of purchase (or the date of delivery if this is later).
• You must provide proof of delivery / purchase before any work can be carried out on your machine. Without this proof, any work carried out will be chargeable. Please keep your receipt or delivery note.
• All work will be carried out by Evolution.
• Any parts which are replaced will become the property of Evolution.
• The repair or replacement of your machine under warranty will not extend the period of warranty.
• Evolution Power Tools reserves the right to optionally repair or replace it with the same or equivalent item.
• This warranty statement provides benefits which are additional to and do not affect your statutory rights as a consumer.
