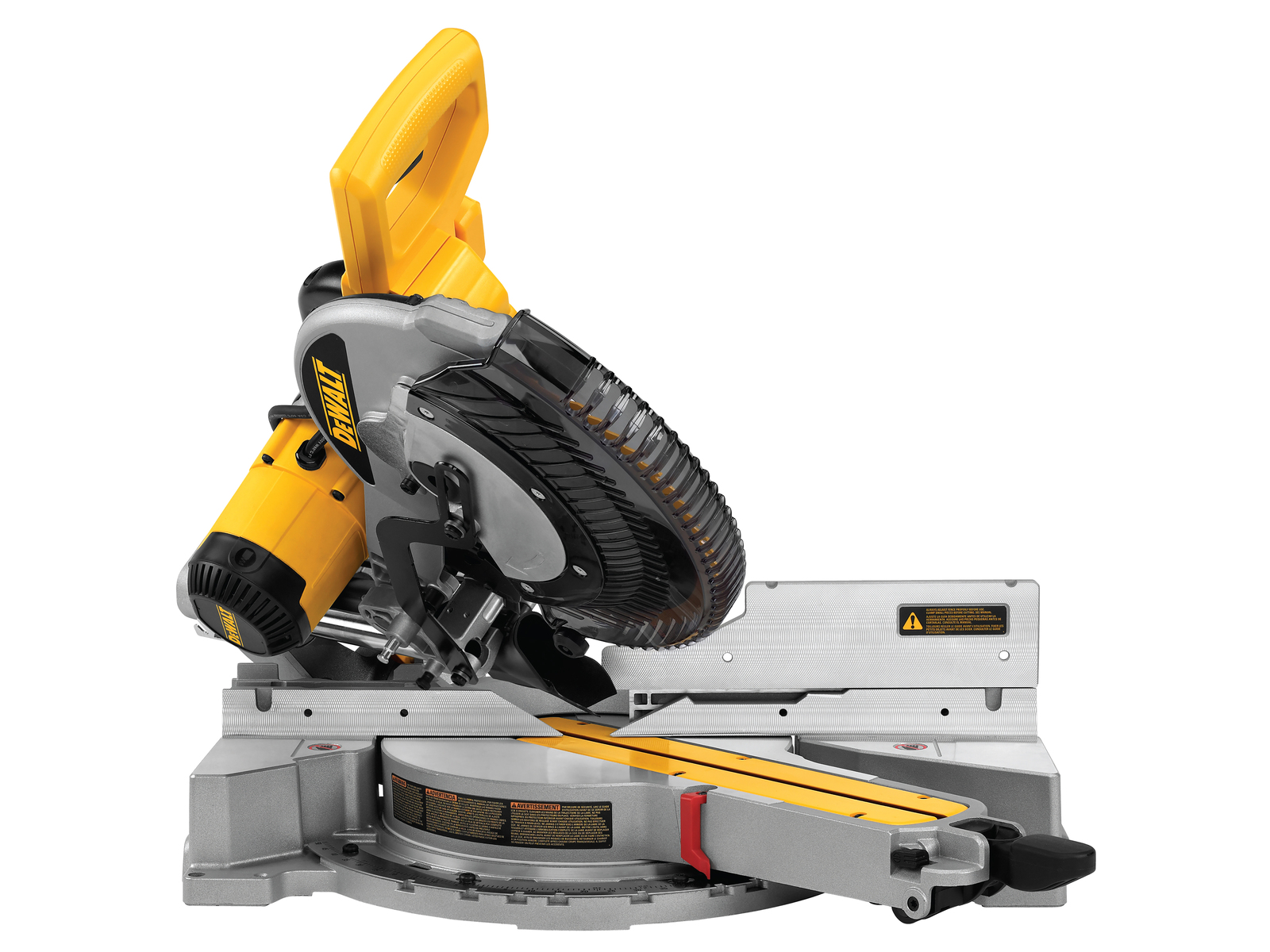

DEWALT DWS780 Slide mitre saw - 305mm blade (Optionally available 240v or 110v) ( Available with Leg Stand )

DEWALT DWS780 Slide mitre saw - 305mm blade

(Optionally available 240v or 110v) ( Available with Leg Stand )

DEWALT DWS780 110v Slide mitre saw - 305mm blade

Highlights

• Blade Dia.(mm): 305
• Cutting Capacity at 0° (mm): 410 x 110
• Motor Volts: 110
• Motor Watts: 1675
• Massive 110mm Depth of cut. With up to 410mm cross cut.
• 165mm depth of cut at the back fence for cutting skirting board stood upright.
• XPS LED Cross Line Positioning System. High Intensity LED light casts a shadow of blade that will indicate cut location. Never out of sync with blade always 100% accurate cut. Now 90% brighter.
• Oversized dust shoot for optimised dust extraction.
• V-Belt drive system providing ultimate durability when completing job site tough applications
• Stainless steel mitre detent plate for quick , accurate cut set up.
• Easy to read bevel scale with bevel presets allowing quick bevelling from one side to the other.

Technical Details

Blade Dia	305mm
Volts	110V
Max Depth of Cut	110mm
Max Cross Cut Capacity	303mm
Bevel Left/Right	Both
Slide Function	Yes
Watts	1675W
Packaged Weight	25kg

Optional

DEWALT DWS780 240V Slide mitre saw - 305mm blade

Optionally we are able to supply the DWS780 saw with an alternative 240v single phase voltage, typically used for workshop use.

• Powerful 1675W motor delivers high performance for demanding cuts
• 305mm blade with up to 303mm crosscut capacity
• XPS shadow line system ensures accurate blade alignment
• Double bevel capability for complex compound cuts
• Electronic speed control optimises cutting across different materials
• Dual sliding fence supports large workpieces with improved stability
• Grooving stop allows accurate rebates, trenches and notches
• Dust extraction compatible for a cleaner work area

The DeWalt DWS780-GB 305mm XPS Compound Slide Mitre Saw 1675W 240V is a professional-grade mitre saw engineered for precise crosscuts, mitres, and bevels in demanding carpentry and construction applications. Combining a powerful 1675W motor with a 305mm blade, it delivers outstanding cutting performance on large timbers and wide boards up to 110 x 303mm, making it ideal for framing, second fix, shopfitting, and interior trim work. The XPS shadow line cut indicator projects a clear blade line onto the workpiece, while dual bevel capability to 49° left and right and generous mitre range to 50° left and 60° right simplify complex compound cuts. Linear sliding rails with bronze guides, a large dual sliding fence, and electronic speed control all work together to provide smooth, accurate results across a variety of materials. Supplied with a high-quality 60-tooth blade, dust bag, material clamp, and blade spanner, this corded 240V mitre saw integrates seamlessly into any professional power tool setup.

DWS780-GB Features:

• Deliver powerful 1675W performance for fast, clean cuts through tough construction timbers and hardwoods.
• Maximize capacity with a 305mm blade and impressive 110mm x 303mm crosscut at 90° for large boards and framing.
• Use XPS shadow line cut indicator to align the blade precisely while illuminating the workpiece for accurate results.
• Adjust electronic speed control to match cutting speed to wood, composites, and other materials for a smoother finish.
• Work faster with cam action mitre lock allowing quick, repeatable angle settings from 0°-50° left and 0°-60° right.
• Rely on double bevel capacity of 49° left and right to make complex compound cuts without flipping the workpiece.
• Support wide stock on the large dual sliding fence and linear horizontal rails for stable, precise sliding cuts up to 345mm.
• Benefit from compact, 24.8kg design that offers big-saw capacity yet remains easy to transport between jobs.
• Improve site cleanliness with integrated dust collection port and dust bag directing debris away from the cut line.
• Fine-tune depth with the innovative grooving stop for accurate rebates, trenches, and notches in one setup.

Technical Details

Optional

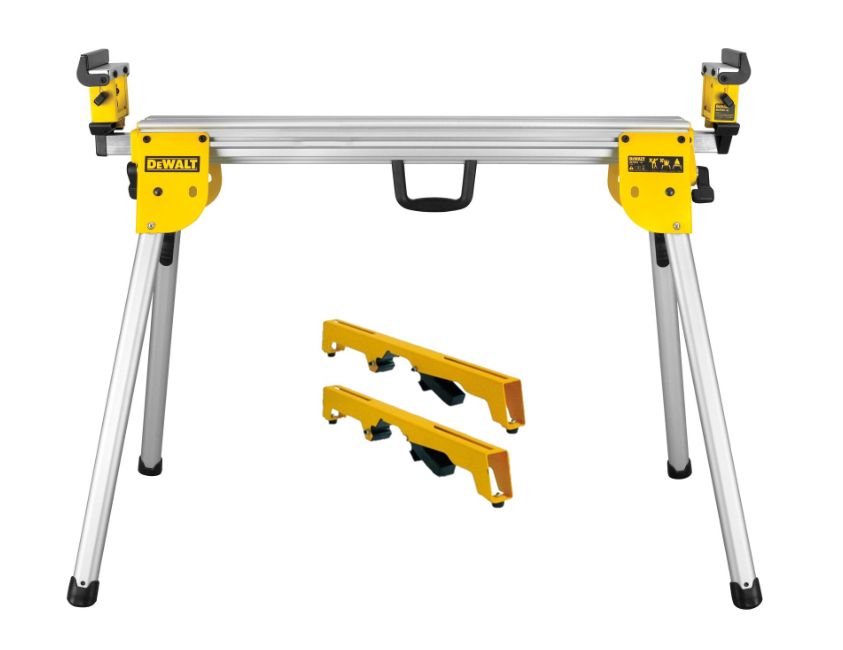

DEWALT DE7033 Leg stand

Compact Mitre Saw Stand with Mounting Brackets & Work Stops

• Universal stand compatible with DeWalt and most mitre saws
• Extends from 1.1m to 2.5m to support long workpieces
• 182kg load capacity for heavy-duty cutting applications
• Lightweight aluminium construction for easy transport
• Folding legs provide fast setup and compact storage
• Adjustable work stops improve accuracy on repetitive cuts
• Quick-release mounting brackets for fast saw installation
• Integrated carry handle for convenient transportation

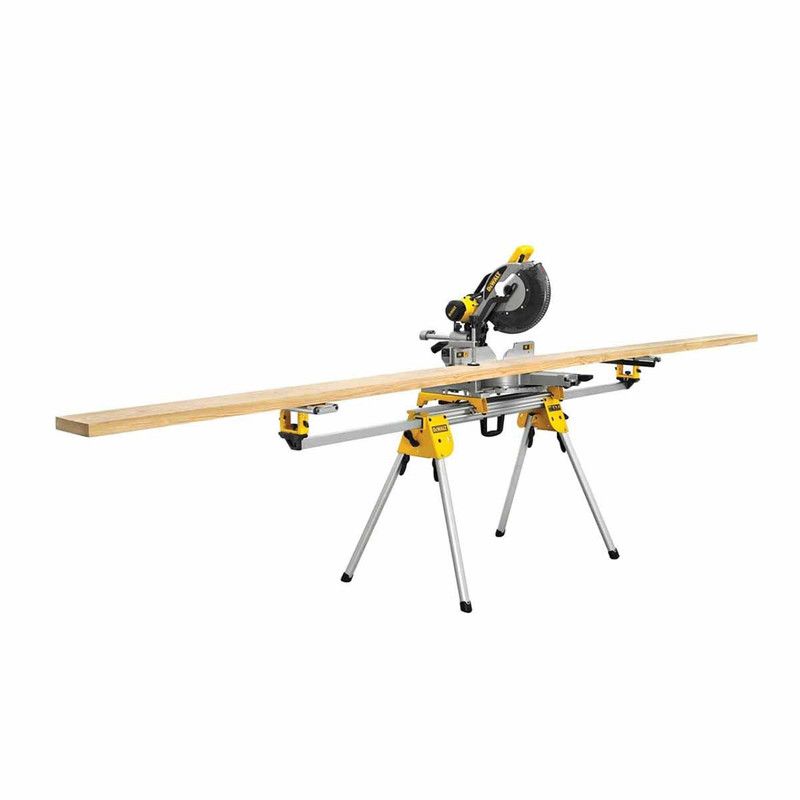

The DeWalt DE7033-XJ Compact Mitre Saw Stand with Mounting Brackets & Work Stops is a heavy-duty short beam workstation designed to give trade professionals a stable, portable platform for precise cutting. Built from robust yet lightweight aluminum, this stand weighs only 14 kg and folds quickly, making it ideal for moving between rooms, floors, and job sites. The compact 1.1 m beam extends to 2.5 m to support long timbers, sheet materials, and large workpieces, while a high 182 kg load capacity ensures dependable performance with demanding materials. Adjustable work supports and convertible work stops help you repeat cuts to exact lengths, boosting accuracy and productivity on framing, roofing, and interior fit-out tasks. Integral folding legs and an integrated carry handle streamline setup, breakdown, and transport. Compatible with all DeWalt mitre saws and supplied with dedicated mounting brackets and work stops, the DE7033-XJ is a versatile power tool accessory that turns your mitre saw into a fully featured jobsite workstation.

DE7033-XJ Features:

• Delivers outstanding flexibility for mitre saw cutting, allowing fast setup for a wide range of on-site applications.
• Accommodates all DeWalt mitre saws and most other brands, giving you a truly universal workstation across your fleet.
• Uses a lightweight aluminium beam and legs so the stand weighs only 14 kg, making it easy to carry between rooms and job sites.
• Extends from a compact 1.1 m closed length to 2.5 m open length to support long timbers and large workpieces with confidence.
• Supports up to 182 kg load capacity so it can handle heavy boards, framing lumber, and composite materials without flexing.
• Includes adjustable work stops that convert into end stops, speeding up repetitive cutting to consistent, accurate lengths.
• Features integral folding legs that snap into position, eliminating time-consuming assembly and improving productivity.
• Incorporates an integrated carry handle under the beam for balanced, one-handed transport and easier loading into vehicles.
• Supplied with robust mitre saw mounting brackets for quick, secure attachment and removal of the saw between tasks.
• Compact short-beam design reduces storage footprint while still providing full-length support when extended.

Technical Details

Brand:	DeWalt
Model number:	DE7033-XJ
Product type:	Compact mitre saw workstation
Closed length:	1.1 m
Open length:	2.5 m
Beam length range:	1.7 m to 2.5 m
Product height:	810 mm
Total product weight:	14 kg
Maximum load capacity:	182 kg
Material:	Aluminium
Compatible tools:	All DeWalt mitre saws
Included work supports:	2 x work supports/work stops
Included mounting brackets:	2 x mounting brackets

Warranty

1 Year Standard Warranty (Extendable to 3 Years With Registration)
