Stahlwerk Vector 1400 M SI CNC Vertical Machining Centre SI ( Part No. 181427) The perfect solution for machining very large and heavy workpieces
£138,663.00
In stock
Product Details

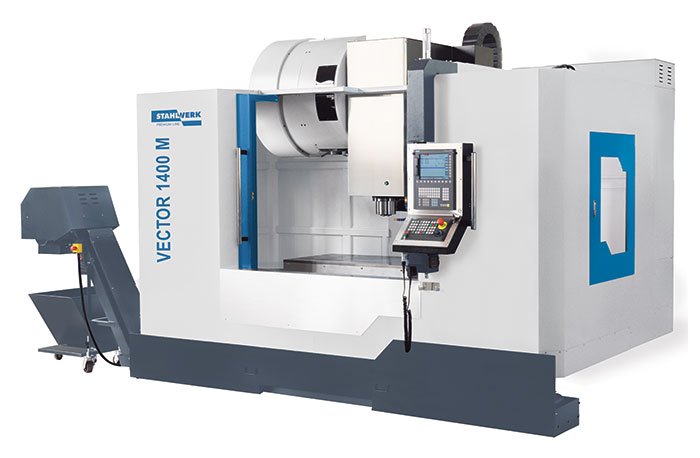

Stahlwerk Vector 1400 M SI CNC Vertical Machining Centre SI
( Part No. 181427)
The perfect solution for machining very large and heavy workpieces
Availability. Currently 3-4 months from receipt of order. Subject to no prior sales.
Highlights
The Vector 1300/1400 series is the perfect solution for machining very large and heavy workpieces. The innovative design of the machine base made of high-quality Meehanite casting with a low center of gravity, and the use of only the highest quality components guarantee the consistently high precision even in multi-shift production. Thanks to a wide range of accessories, the machining centers become a tailor-made complete solution for specific applications. KNUTH also offer automation solutions for this series, with which you can increase your productivity even more.
- Spindle on multiple bearings ensures minimal vibrations
- 30-bar CTS to ensure optimum machining quality
- Designed for multi-shift operation
- Many customization and automation possibilities
- 2-year standard warranty
Stahlwerk Vector 1400 M SI CNC Vertical Machining Centre
- The large VECTOR Series is perfectly equipped for large jobs and can be ordered with customized accessories to provide flexible solutions for constantly expanding requirements
- The extra-wide column base and large guide distances ensure the necessary rigidity for fast machining processes requiring high precision
- During the development of this series, modern FEM analysis tools were used for the simulation of countless load conditions in order to guarantee superior stability of the machine frame in real-world applications, which now exceeds all expectations for this class of machines
- All axes move on premium, fully enclosed linear roller guideways and precision ball screws and are driven by dynamic servo-motors
- The VECTOR features larger guideways that are equipped with additional guide carriages for even higher load capacities, more rigidity and higher speeds during heavy-duty machining operations
- Preloaded ball screws with larger and additional bearings ensure superior efficiency and longer life
- Main spindle runs on multiple bearings to ensure excellent absorption and dissipation of forces during machining
- The advanced design of our spindles ensure low heat accumulation under load
- Large pre-loaded bearings ensure radial stability during heavy-duty machining operations
- High-temperature lubricants ensure optimum lubrication at any operating temperature and a long tool life
- Clamping the tool between contact surfaces at the taper and workpiece flange ensures maximum hold of the tool in the spindle

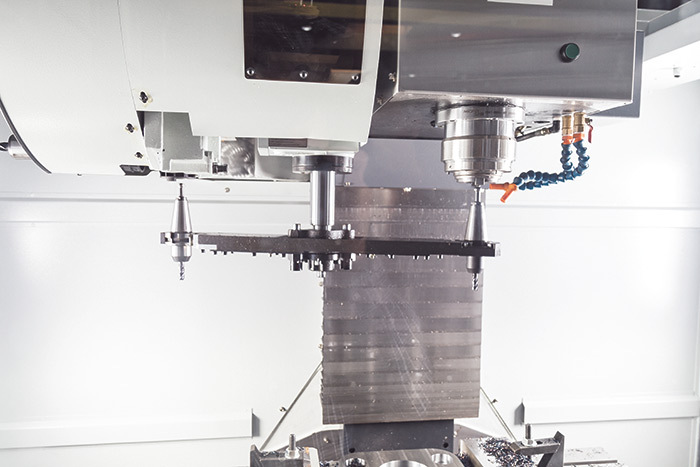

- The VECTOR is equipped with the best tool changer to allow full utilization of the machining center’s capacity
- With only 1.8 seconds tool changing time, the dual-arm gripper also is one of the fastest tool changers on the market
- The totally enclosed workspace features a large door and side doors for easy access, safety and cleanliness
- Electrical equipment is divided into separate control cabinets for high and low voltage systems, which results in a significant reduction of heat accumulation and noise
- An electronic hand-wheel simplifies machine set-up
- The automatic central lubrication system ensures proper lubrication of all lube points
Machine Design
Extra-rigidity at all the right places
Spindle
Tool Changer
Handling
Control
Siemens Sinurmerik 828D
- The top specialist for demanding milling operations
- Compact, robust, maintenance-free control panel-based CNC
- Comfortable program and parameter input via QWERTY keyboard
- 100 adjustable zero offsets
- Synchronous actions, and quick output of help functions
- Siemens Sinumerik 828 D Milling
- Maximum machining precision
- Intelligent kinematic transformations for machining of cylindrical parts, and for angled workpiece levels
- SINUMERIK MDynamics with the new Advanced Surface feature: for perfect part surfaces and shortest machining times in mold making applications
- Highlights & CNC performance data and functions Siemens Sinumerik 828 D Milling
- ShopMill: shortest programming time for single parts and small batch productions
- ProgramGUIDE: fastest machining time and maximum flexibility for large series productions
- Unique spectrum of technology cycles - from milling contours with residual material recognition to process measurements
- Animated Elements: unique operation and programming assistance with animated sequences
- Modern data transfer options via USB stick, CF card and network (Ethernet)
- Easy Message: maximum machine availability due to process monitoring per texting (SMS)
- SINUMERIK MDynamics package with Advanced Surface for mold making applications
- Jerk-limited acceleration
- Dynamic feed-forward control
- 4-axis simultaneous interpolation (X, Y, Z and rotary axis)
- Linear, circular and helical interpolation
- Tapping without compensating chuck, plus thread cutting
- Oriented spindle hold
- Toggle between inch and metric units
- FRAME concept for individual coordinate transformations, rotations, scaling and mirroring
Technical Details
| Working area | |
|---|---|
| Table dimensions | 1500 mm x 700 mm |
| Table load capacity | 1500 kg |
| Workpiece weight (max.) | 1500 kg |
| Spindle nose-to-table surface distance | 150 mm - 850 mm |
| Number of T-slots | 6 positions |
| T-slot (width x spacing) | 18 mm x 100 mm |
| Travels | |
|---|---|
| Travel X-axis | 1400 mm |
| Travel Y-axis | 720 mm |
| Travel Z-axis | 700 mm |
| Headstock | |
|---|---|
| Spindle speed | 10000 1/min |
| Spindle mount | SK 40 ISO 7388-1 (DIN 69871) |
| Rapid feed | |
|---|---|
| X-axis rapid feed | 24 m/min |
| Y-axis rapid feed | 24 m/min |
| Z-axis rapid feed | 24 m/min |
| Feed | |
|---|---|
| Work feed X-axis | 0,1 mm/min - 10 mm/min |
| Work feed Y-axis | 0,1 mm/min - 10 mm/min |
| Work feed Z-axis | 0,1 mm/min - 10 mm/min |
| Tooling | |
|---|---|
| Number of tool stations | 24 positions |
| Tool size Ø x L (max.) | 80 mm x 300 mm |
| Tool-changing time chip/chip | 3,9 sec |
| Tool-change time tool/tool | 1,8 sec |
| Accuracies | |
|---|---|
| Positioning accuracies | ± 0,005/ 0,0002" mm |
| Repeatabilities | ± 0,003 / ± 0,00012" mm |
| Drive capacity | |
|---|---|
| Main drive, continuous load | 17 kW |
| Motor rating X-axis | 5,5 kW |
| Motor rating Y-axis | 5,5 kW |
| Motor rating Z-axis | 5,5 kW |
| Control | |
|---|---|
| Control | Siemens |
| Measures and weights | |
|---|---|
| Weight | 9500 kg |
| Overall dimensions (length x width x height) | 3,8 m x 2,6 m x 3,3 m |
Standard Equipment
Siemens 828D control with Shopmill
Coolant through spindle 30 bar with double filter
24-station tool changer with dual-arm
ST 40 mount
Spindle oil cooler
Chain-type conveyor with chip container
Electronic hand-wheel
Oil skimmer
Automatic central lubrication
Coolant system flush gun
Chip wash system
Heat Exchanger for electric control cabinet
Telescoping axis cover
USB port
Work lamp
3-color signal lamp
CF card reader
Totally enclosed work space
Coolant system
Adjustable machine feet
Operating tools
Operator instructions
Options
Wide range of tooling options available
Renishaw OMP 40 Workpiece Measuring
SKU: 252820
Connection for 4th axis (wiring only and axis chart)
SKU: 253019
Siemens Function: P25: 3D Simulation
SKU: 253378
Siemens Function: P13: Residual Material Detection
SKU: 253379
Siemens Function: P22: Simultaneous Recording
SKU: 253380
Renishaw Tool Setter TS27R
SKU: 253386
Measuring Cycles
SKU: 253438
Renishaw OTS wireless tool setter (OTS)
SKU: 253598
Ø210mm 4th axis (4th axis, servo motor, driver, air brakes)(Si)
SKU: 253606
Ø250mm 4th axis (4th axis, servo motor, driver, air brakes)(Si)
SKU: 253607
preparation for Renishaw OMP40
SKU: 253613
manual tailstock ST-210T for rotary table for X.mill
SKU: 253619
manual 8'' chuck for rotary table for X.mill
SKU: 253623
Upgrade from 10.4” to 15” touch screen (for PPU260 or higher)
SKU: 253674
Renishaw OMP 60 workpiece measuring system (BT40)
SKU: 253681
200 mm diam. 4th & 5th axis for Vector 650/850/1000 (Si)
SKU: 253682
Spindle speed upgrade to 12000 rpm, belt-type
SKU: 253781
Top cover for Vector 1300-1600
SKU: 253783
Upgrade from 828D PPU260 to 840DSL IPC447E 10.4" for Vector
SKU: 253835
Upgrade for ATC from 24 to 30 tools (BT40) for Vector 1300-1600
SKU: 253843
SKU: 254179
SKU: 254180
SKU: 254181
Contact us via Email for price details
Operator Training
Operator training available in showroom subject to quotation
prior to delivery. Email us to outline your needs.
Shipping
Fully inclusive shipping rates covering transportation, import customs documentation, duties
quoted for inclusion at time of order for UK mainland sites. Northern Ireland destinations, Islands
and other remote sites should seek advice prior to order via email. Clients will be responsible for
their own site offload and siting at point of use.
Finance Availability
Looking to finance your equipment?
We have access to a variety of funding sources who will look sympathetically
at requests for funding finance.
These include leading merchant banks such as asset finance specialists Close Brothers and Lombard.
On an investment of this nature with a long delivery lead time we can also look at providing a staged payment schedule.
We will confirm this with you at time of order.
