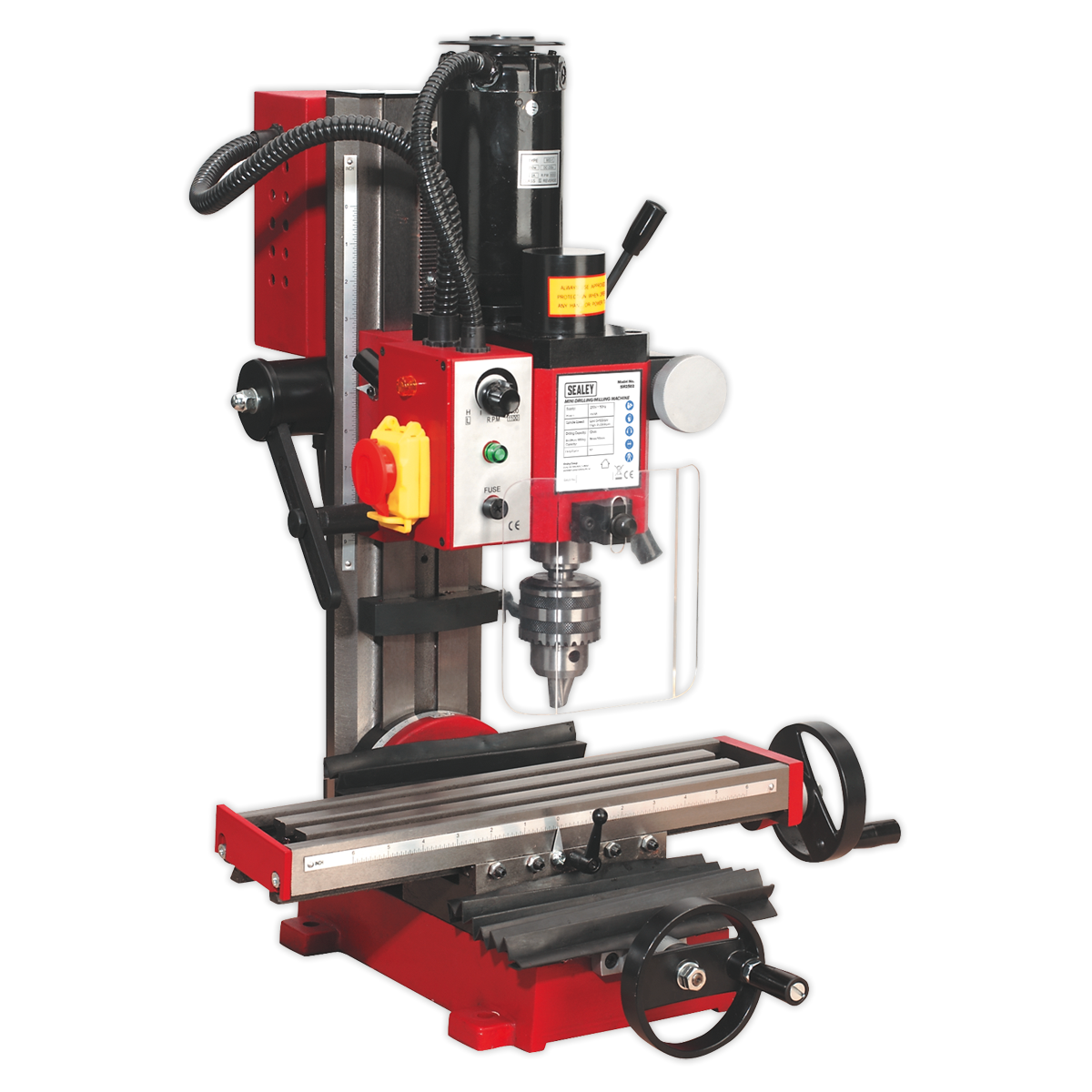

Sealey SM2502 Mini Drilling & Milling Machine
Sealey SM2502 Mini Drilling & Milling Machine
Highlights

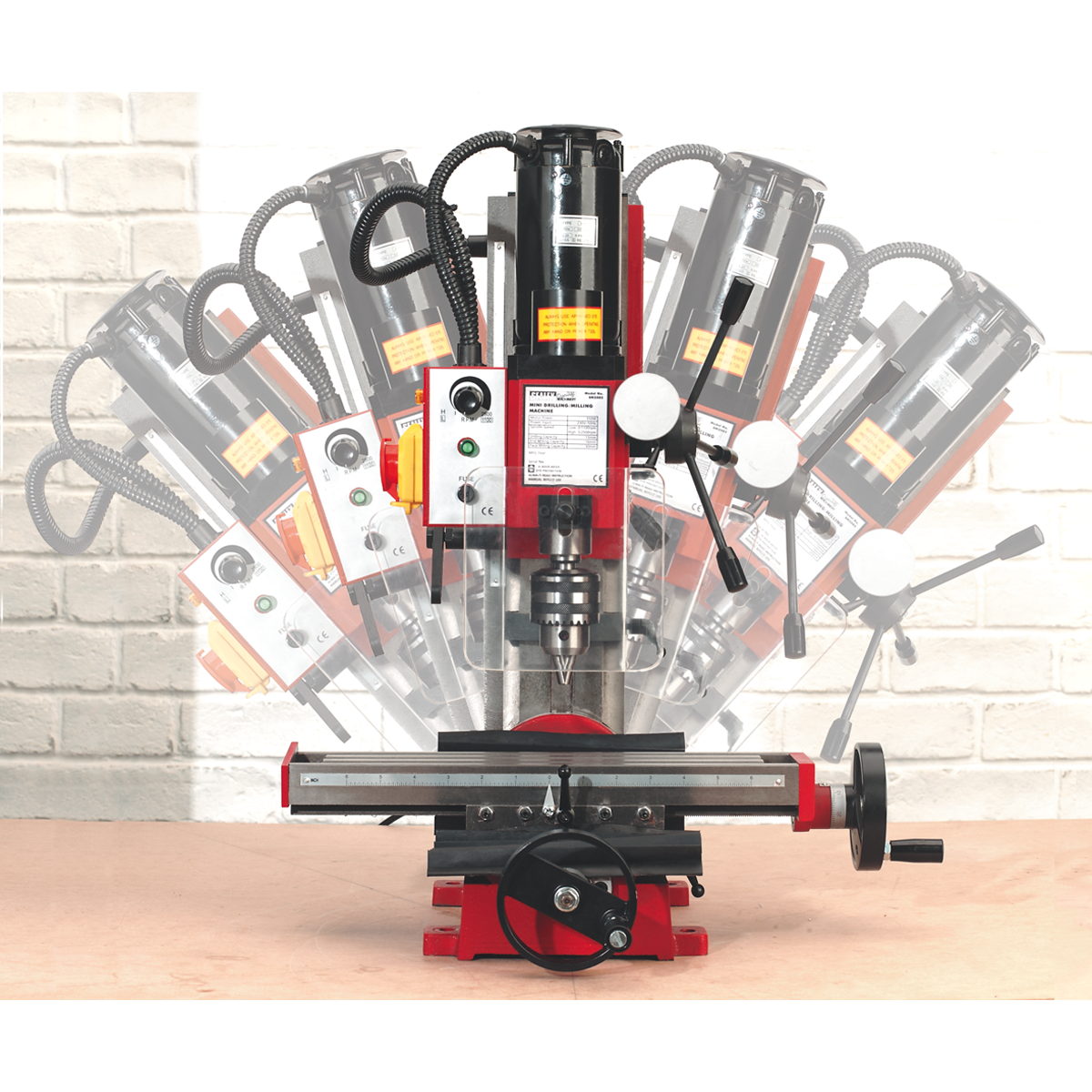

• Bench mounting mini drilling/milling machine with the flexibility to handle most materials. • Features include a 350W motor, variable speed drive, working table with T-slots to enable clamping of workpieces and metric graduated compound scales. • The machine also incorporates a tilting column which allows drilling/milling of workpiece at ±45° from vertical. • Supplied with 13mm chuck accessory kit for adjusting and setting. • An optional stand is available, order Model No. SM3002ST. • A comprehensive range of accessories also available.
Technical Details
| Cross Axis: | 100mm |
| Drilling Capacity (Chuck Size): | 13mm |
| End Mill Capacity: | 16mm |
| Face Mill Capacity: | 30mm |
| Headstock Travel: | 180mm |
| Longitudinal Axis: | 220mm |
| Motor Power: | 350W |
| Nett Weight: | 68kg |
| Spindle Nose Taper: | MT3 |
| Spindle Speed - High Range: | 0-2500rpm |
| Spindle Speed - Low Range: | 0-1100rpm |
| Spindle Tilt Angle: | ±45° |
| Supply: | 230V |
| T-Slot: | 12mm |
Optional Accessories
Sealey SM2503MCSET Mill Chuck Set MT2-M10 Ø3-10mm
One of a comprehensive range of high quality accessories for Model No. SM2503 mini lathe/drilling machine. • Mill Chuck Set MT2-M10 Ø3-10mm.
| Nett Weight: | 1.32kg |
| Description: | Mill Chuck Set MT2-M10 Ø3-10mm |
| Application(s): | |
| Lathe/Mill/Drill SM2503: | Yes |
| Lathe SM3002: | - |

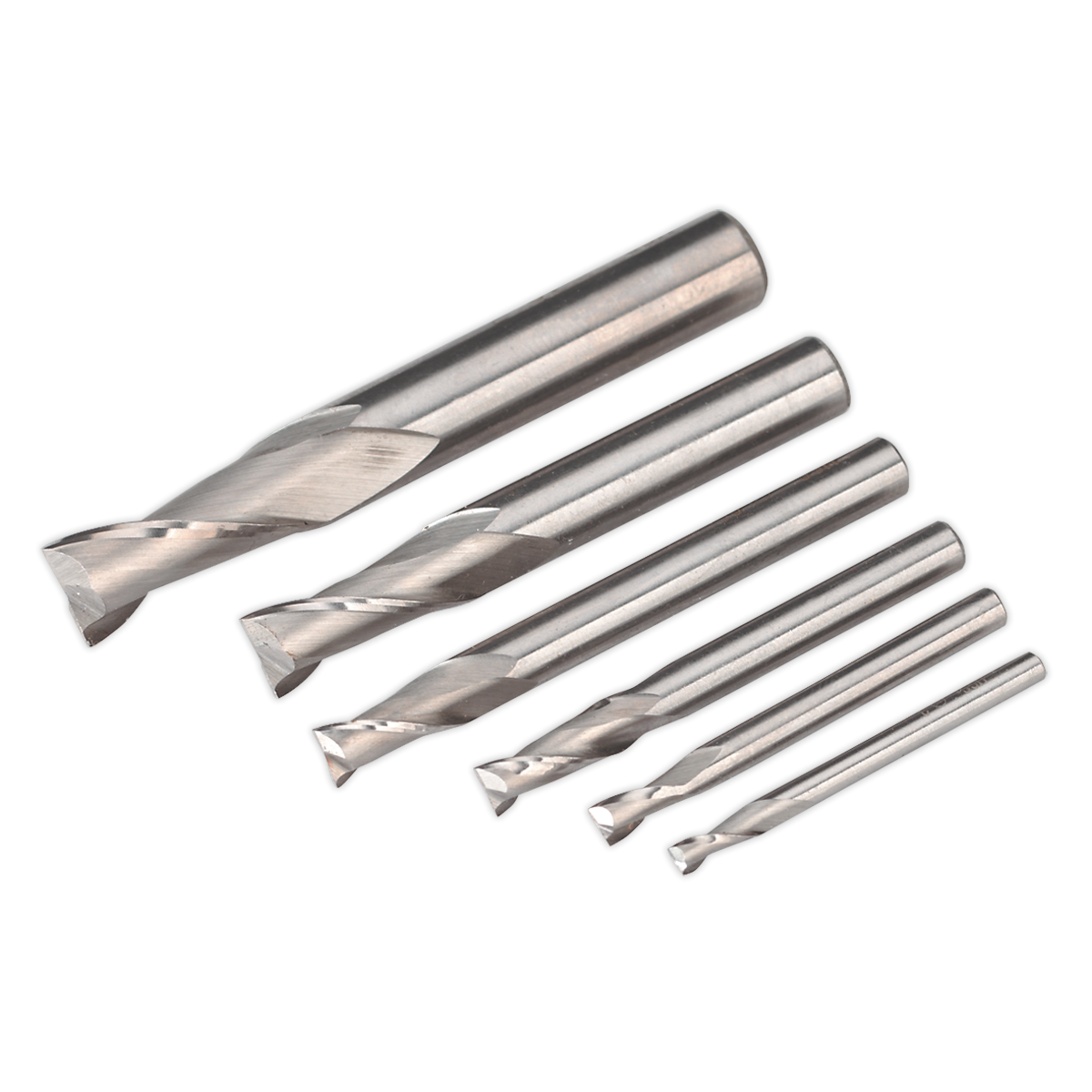

Sealey SM2503EMSET HSS End Mill Set MT2 Ø3-10mm
One of a comprehensive range of high quality accessories for Model No. SM2503 mini lathe/drilling machine. • HSS End Mill Set MT2 Ø3-10mm.
| Nett Weight: | 0.11kg |
| Description: | HSS End Mill Set Ø3-10mm |
| Application(s): | |
| Lathe/Mill/Drill SM2503: | Yes |
| Lathe SM3002: | - |
Sealey SM2503ICEM Indexable Carbide End Mill MT2-M10 Ø16mm
• One of a comprehensive range of high quality accessories for Model No. SM2503 mini lathe/drilling machine. • Indexable Carbide End Mill MT2-M10 Ø16mm.
| Nett Weight: | 0.07kg |
| Description: | Indexable Carbide End Mill MT2-M10 Ø16mm |
| Application(s): | |
| Lathe/Mill/Drill SM2503: | Yes |
| Lathe SM3002: | - |
Sealey SM2503QV Quick Vice 50mm
• One of a comprehensive range of high quality accessories for Model No. SM2503 Mini Lathe/Drilling Machine. • Quick Vice for Model No. SM2503.
| Nett Weight: | 0.81kg |
| Description: | Quick Vice 50mm |
| Application(s): | |
| Lathe/Mill/Drill SM2503: | Yes |
| Lathe SM3002: | - |

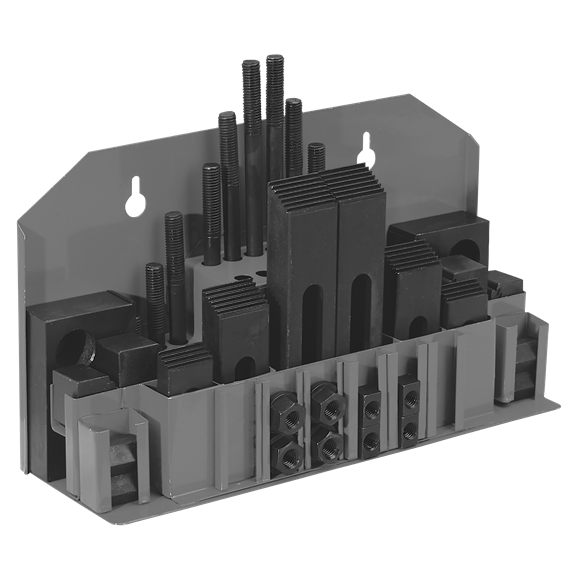

Sealey 42pc Clamping Kit Model No. SM2502CK
- One of a comprehensive range of high quality accessories for Model No. SM2502 mini drill/milling machine.
- Includes a large range of T-nuts, screws and clamps suitable for attachment to slots in milling table.
- Fits Sealey and other popular makes of drilling/milling machines.
Nett Weight:
6.72kg
Warranty
Sealey 12 months warranty
