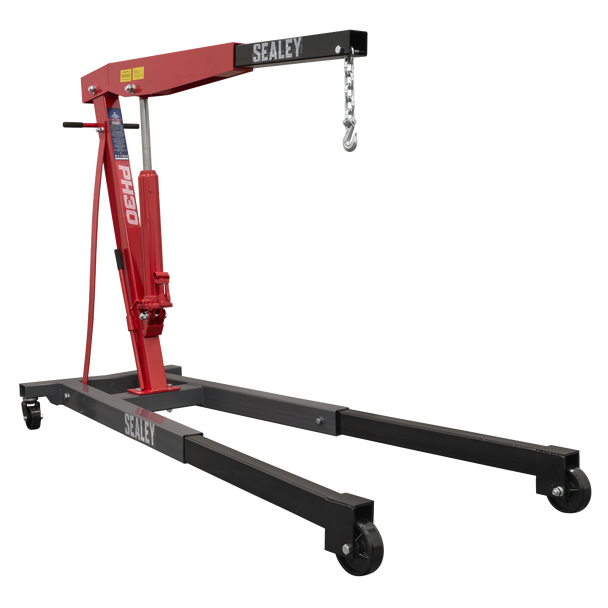

Sealey PH30 Fixed Frame Engine Crane with Extendable Legs 3 Tonne
Sealey PH30 Fixed Frame Engine Crane with Extendable Legs 3 Tonne

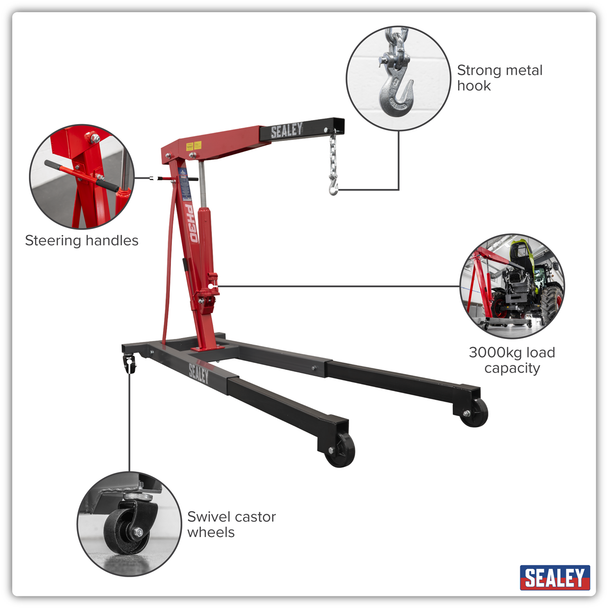

Highlights

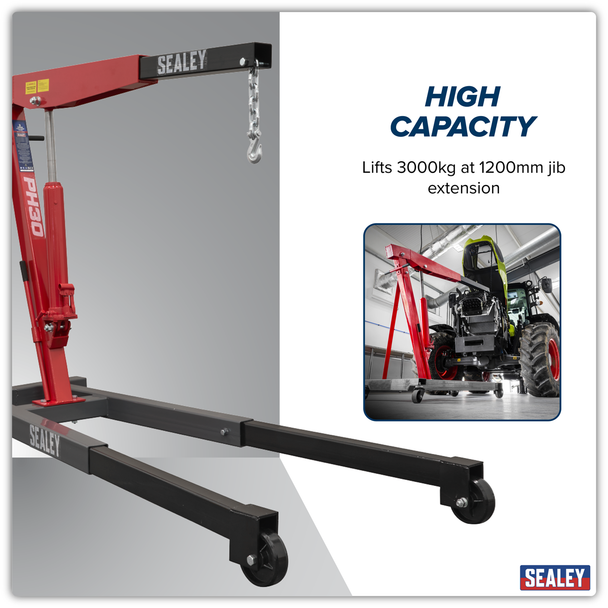

• HIGH CAPACITY - Lifts 3000kg at 1200mm jib extension.
• EASY MANOEUVRABILITY - Heavy-duty fixed front wheels and rear castors.

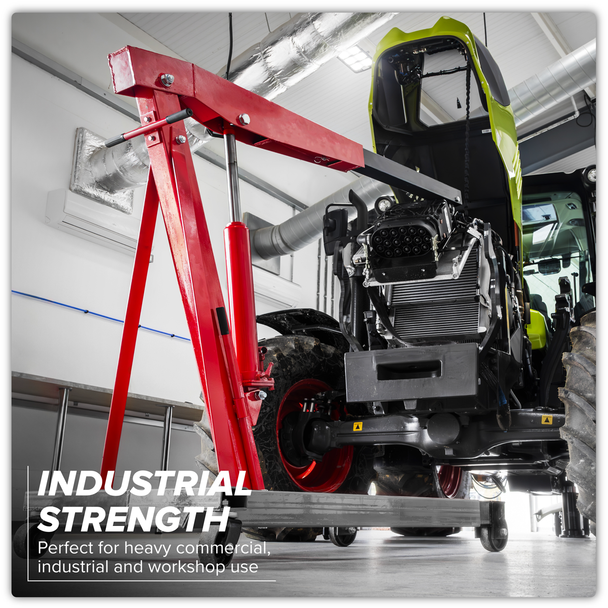

• INDUSTRIAL STRENGTH - Perfect for heavy commercial, industrial and workshop use.
• STABLE - Extendable legs for improved stability, particularly when operating at maximum jib extensions.
• SIMPLE ACCESS - Pump access from the side for safe handling of heavy loads.
• Delivered in knock-down form for reduced freight cost.
• This item is heavy. Extra assistance must be provided at the delivery point to help its safe delivery.
Technical Details
Specification
| Height Jib Down:
|
1610mm
|
| Height Legs Folded:
|
N/A
|
| Height of Frame:
|
195mm
|
| Length of Jib Position 1:
|
1200mm
|
| Length of Jib Position 2:
|
1400mm
|
| Length of Jib Position 3:
|
1610mm
|
| Length of Jib Position 4:
|
1820mm
|
| Length of Jib Position 5:
|
n/a
|
| Lifting Capacity in Position 1:
|
3000kg
|
| Lifting Capacity in Position 2:
|
2000kg
|
| Lifting Capacity in Position 3:
|
1500kg
|
| Lifting Capacity in Position 4:
|
1000kg
|
| Lifting Capacity in Position 5:
|
n/a
|
| Max. Lift Ht at Jib Position 1:
|
1880mm
|
| Max. Lift Ht at Jib Position 2:
|
1970mm
|
| Max. Lift Ht at Jib Position 3:
|
2010mm
|
| Max. Lift Ht at Jib Position 4:
|
2220mm
|
| Max. Lift Ht at Jib Position 5:
|
n/a
|
| Note:
|
*Legs Extended
|
| Rear Width:
|
780mm
|
| Nett Weight:
|
155kg
|
| Width Front Frame:
|
855mm*
|
| Width Inside Front Frame:
|
700mm*
|
| Barcode:
|
5054630451256
|
| Declaration of Conformity:
|
|
| Safety Data Sheet:
|
|
| Length Legs Extended:
|
950mm
|
| Parts Diagram:
|
|
| Instructions:
|
|
| Instructions:
|
Optional
Sealey LS501 Load Sling Adjuster with Ball-Bearings 680kg Capacity
Highlights
Handles and levels heavy, off-centre loads quickly and easily.
• Ball-bearing handle allows for a smooth and easy adjustment.
• Three adjustment holes accommodate different sized engines.
• Ideal for car, van, truck and marine engines.
• If used with cranes of capacity 680kg or more, the load must be restricted to 680kg maximum.
• Supplied with 4 x 275mm chains and 4 x L-shaped brackets with additional karabiner styled screw links.
Technical Details
| Sling Span:
|
340mm
|
| Nett Weight:
|
5.26 kg
|
| Barcode:
|
5051747785625
|
| Instructions:
|
|
| Parts Diagram:
|
|
| Declaration of Conformity:
|
Warranty
Sealey 1 year parts and labour warranty as standard.
