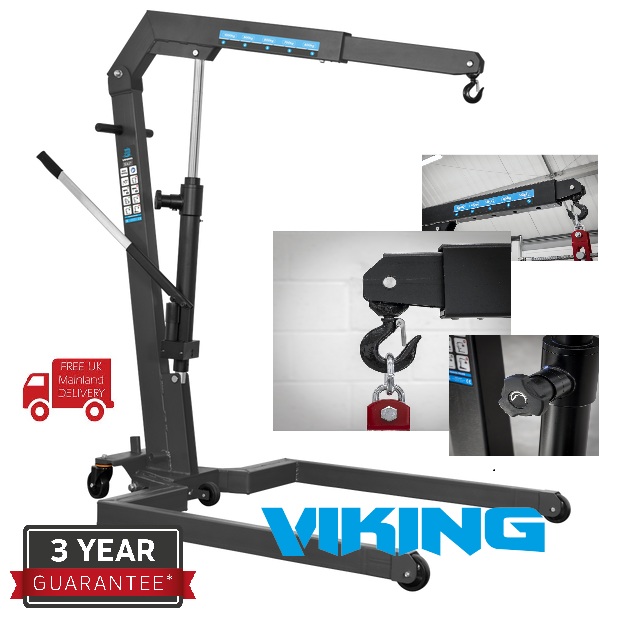

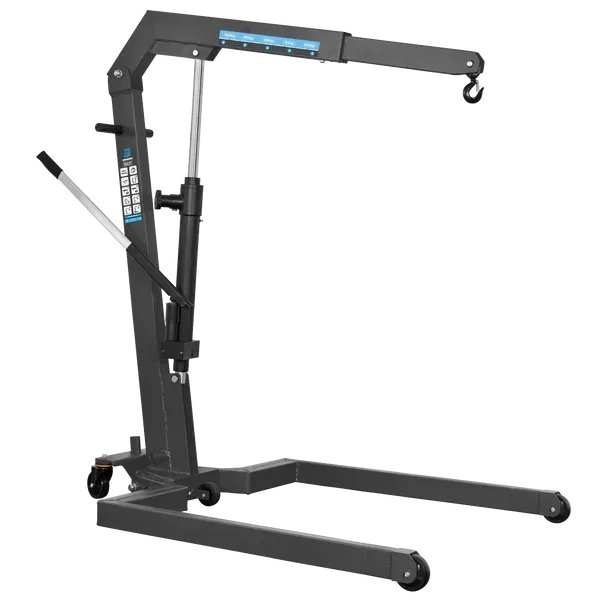

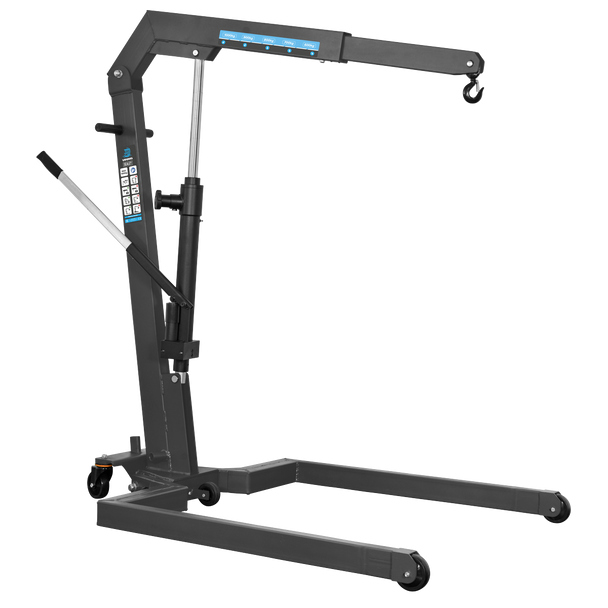

Viking PFC101S Industrial Engine Crane 1 Tonne
Viking PFC101S Industrial Engine Crane 1 Tonne
Highlights

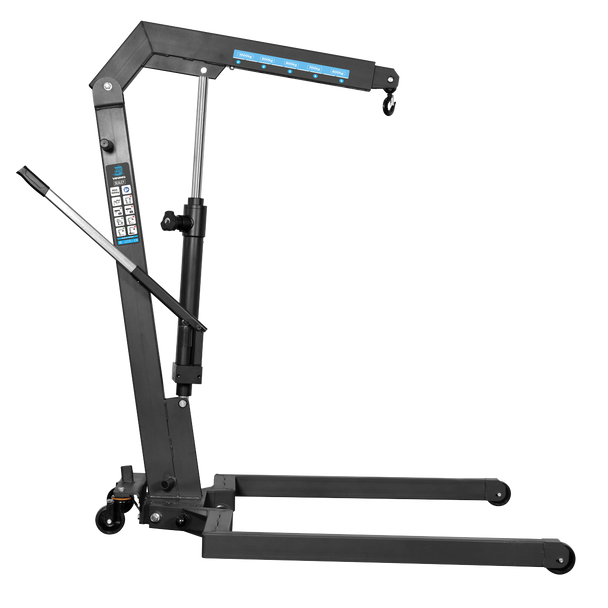

• FOLDING PARALLEL LEGS - The legs fold away for storage and transportation and extend parallel to fit around various obstructions like pallets, boxes, etc.
• SAFETY RELEASE - Hand operated dead man's control to prevent accidental lowering.
• CONTROLLABLE RELEASE - Manually controlled descent speed.
• FIVE POSITION JIB - The jib can be extended and locks in five positions between 960-1350mm.
• TURNING PUMP HANDLE - The hydraulic unit and handle rotates by 200° aiding use where space is limited.
• NON FLOOR MARKING WHEELS - Strong non-marking, nylon and fibreglass wheels front and rear. Rear castor wheels fitted with brakes. An additional wheel is also fitted for ease of movement when folded.
• 3 Year guarantee*.
• This item is heavy. Extra assistance must be provided at the delivery point to help its safe delivery.
Technical Details
| Height Jib Down:
|
n/a
|
| Height Legs Folded:
|
1550mm
|
| Height of Frame:
|
105mm
|
| Length Legs Extended:
|
n/a
|
| Length of Jib Position 1:
|
960mm
|
| Length of Jib Position 2:
|
1053mm
|
| Length of Jib Position 3:
|
1152mm
|
| Length of Jib Position 4:
|
1250mm
|
| Length of Jib Position 5:
|
1350mm
|
| Length:
|
1600mm
|
| Lifting Capacity in Position 1:
|
1000kg
|
| Lifting Capacity in Position 2:
|
900kg
|
| Lifting Capacity in Position 3:
|
800kg
|
| Lifting Capacity in Position 4:
|
700kg
|
| Lifting Capacity in Position 5:
|
600kg
|
| Max. Lift Ht at Jib Position 1:
|
2080mm
|
| Max. Lift Ht at Jib Position 2:
|
2140mm
|
| Max. Lift Ht at Jib Position 3:
|
2190mm
|
| Max. Lift Ht at Jib Position 4:
|
2250mm
|
| Max. Lift Ht at Jib Position 5:
|
2300mm
|
| Note:
|
n/a
|
| Rear Width:
|
390mm
|
| Nett Weight:
|
96kg
|
| Width Front Frame:
|
1129mm
|
| Width Inside Front Frame:
|
1025mm
|
| Barcode:
|
5054630400810
|
| Safety Data Sheet:
|
|
| Parts Diagram:
|
|
| Instructions:
|
|
| Declaration of Conformity:
|
Optional
Sealey LS501 Load Sling Adjuster with Ball-Bearings 680kg Capacity
Highlights
Handles and levels heavy, off-centre loads quickly and easily.
• Ball-bearing handle allows for a smooth and easy adjustment.
• Three adjustment holes accommodate different sized engines.
• Ideal for car, van, truck and marine engines.
• If used with cranes of capacity 680kg or more, the load must be restricted to 680kg maximum.
• Supplied with 4 x 275mm chains and 4 x L-shaped brackets with additional karabiner styled screw links.
Technical Details
| Sling Span:
|
340mm
|
| Nett Weight:
|
5.26 kg
|
| Barcode:
|
5051747785625
|
| Instructions:
|
|
| Parts Diagram:
|
|
| Declaration of Conformity:
|
Warranty
Sealey 3 year guarantee as standard
