Clarke CCL2250 2.25 Tonne Car Lift
Clarke CCL2250 2.25 Tonne Car Lift

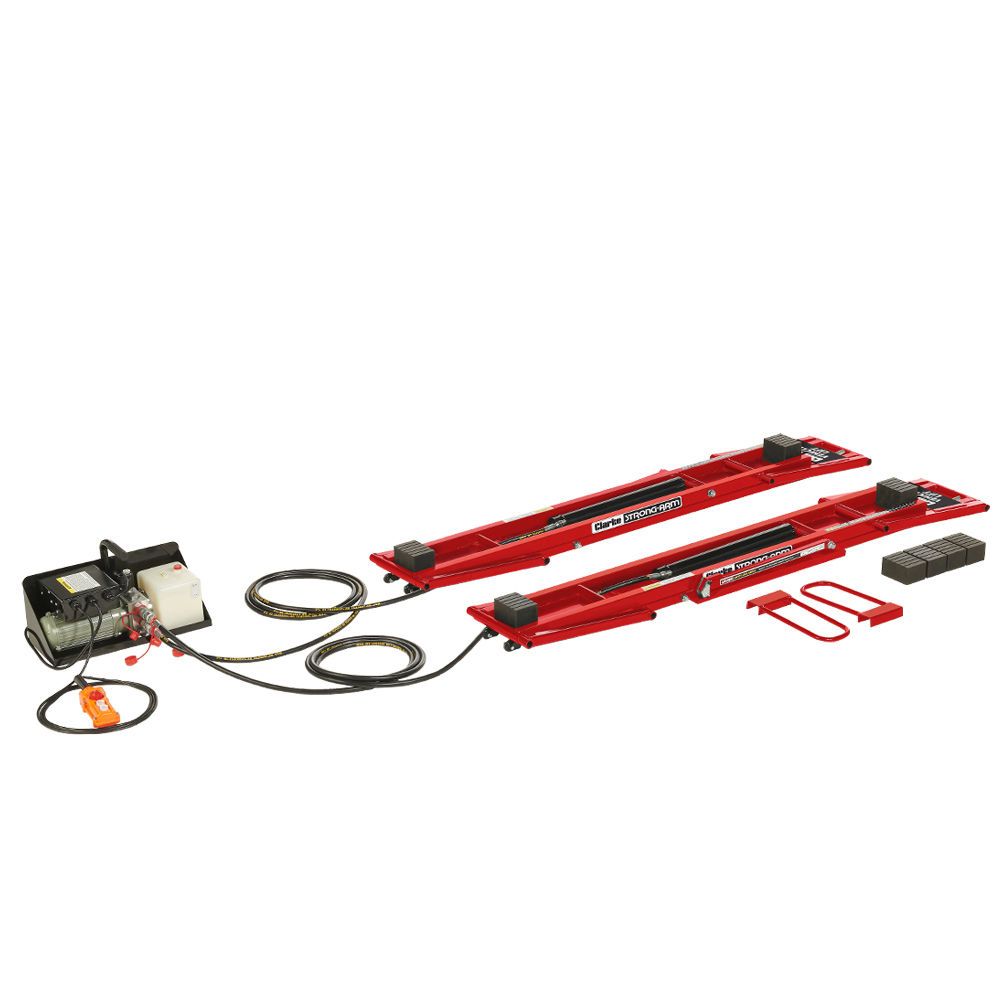

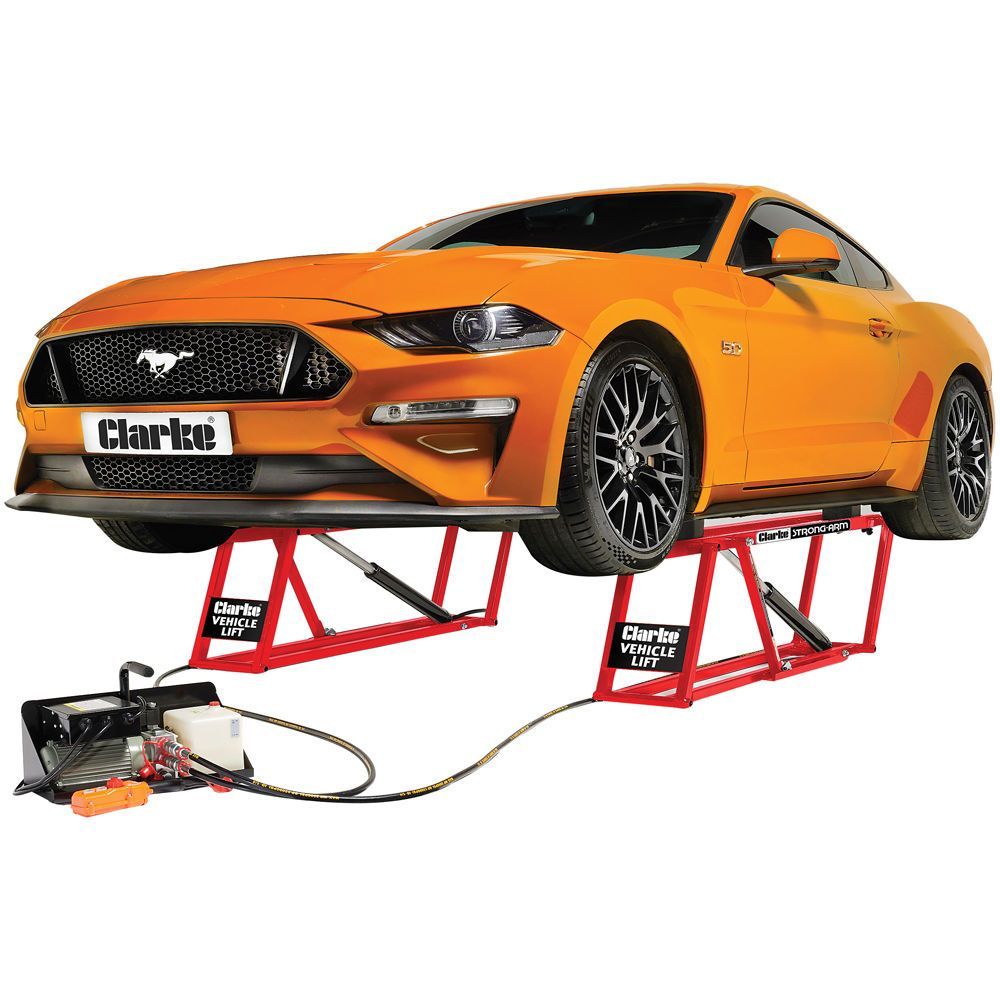

The CCL2250 2.25 Tonne Car Lift offers a solution for garages, workshops and racers to undertake various vehicle tasks such as tyre swaps, oil changes and many more without the need to use additional jacks or stands. With a solid steel welded frame and durable powder coated finish, this lift is designed in an open-centre style providing quick wheel-free convenience and clear access to the undercarriage of the car. The CCL2250 includes a corded remote control with simple lift and lower buttons with the additional feature of automatic safety locks which engage automatically as the car lift is raised.
*** Please Note: Hydraulic Oil not included. Clarke HP32 (5L - 000230125, 1L - 000230110) is a suitable specification if required and can be purchased separately. 3L minimum required. ***
- Please Note: Hydraulic Oil not included
- Suitable for most types of cars up to 2.25 Tonnes
- Automatic safety locks engage as the lift rises
- Hydraulic flow divider for precise, equal lifting
- Corded remote control
- Solid steel construction - durable powder coated finish
- Low-profile frames
- Lifting blocks
- Open centre design - clear access and wheel-free convenience
Technical Details
Model Number CCL2250
| Packaged Weight | 106kg |
Rated voltage 230V - 50Hz
Current 5.5A
Ingress protection rating IP55
Maximum Safe Load 2268 kg
Minimum Table Height 75 mm
Maximum Frame Height 434 mm
Maximum Lifting Height 440/470mm
Net lifter weight 36.5 kg
Net pump unit weight (excluding hoses) 19.6 kg
Table dimensions 1770 x 280 x 80mm
Operating temperature range -20oC - +50oC
Hydraulic fluid volume 2 L
Hydraulic fluid type ISO-15
Pump max working pressure 23Mpa/3335psi
Hydraulic hose length (each) 3810mm
Optional
Optionally available with
Highlights

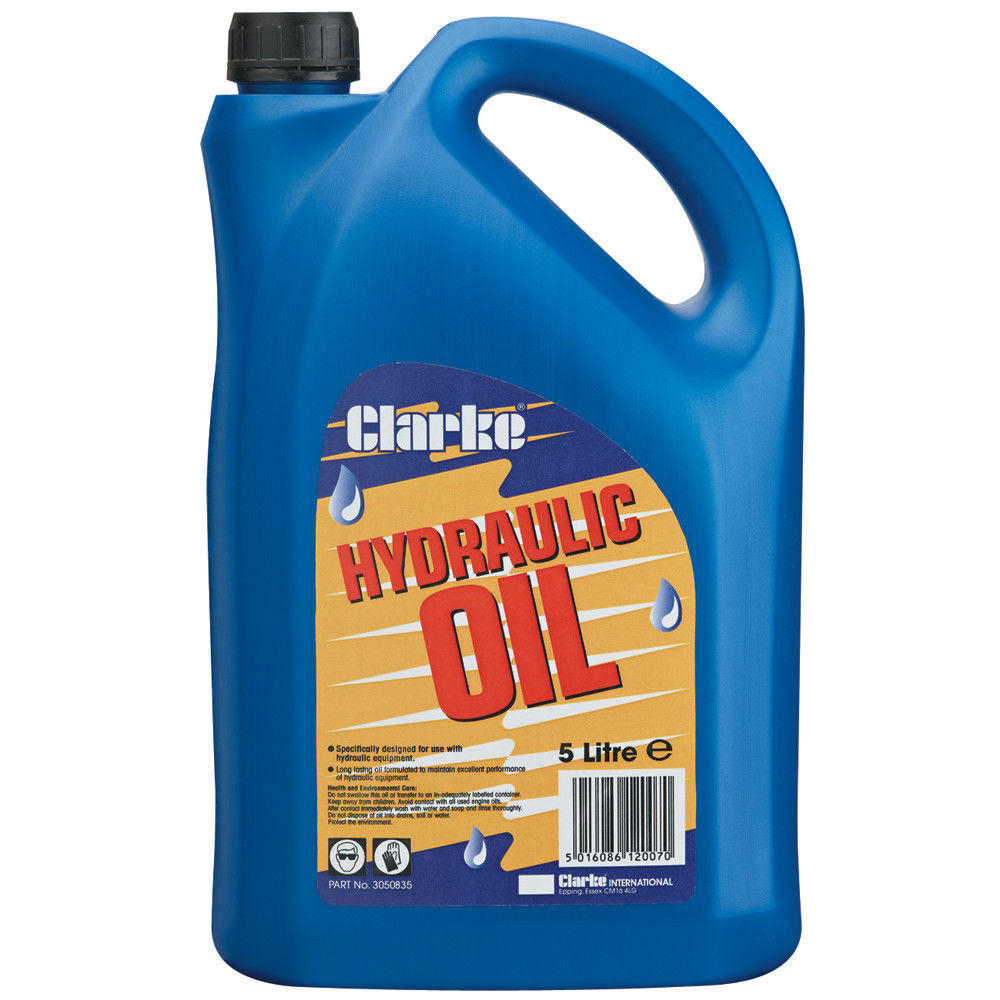

5 Litre HP 32 Hydraulic Oil - Ideal for use with all hydraulic equipment.
Technical Details
| Description | Hydraulic Oil |
| Size | 5Litres |
| Packaged Weight | 4.63kg |
Warranty
Clarke is a British based company whose products comply with British and European Standards and European safety and CE marking directives. Their products are supplied with a 1 year parts and labour warranty from date of purchase.
