Sealey Bottle & Trolley Jacks
Sealey Bottle & Trolley Jacks
Sealey produce a wide range of bottle and trolley jacks. H
ere are a few of the more popular models
which you can purchase from the Traxx Online E Store on the options list
All Available Ex Stock / Free UK Mainland Delivery
Highlights

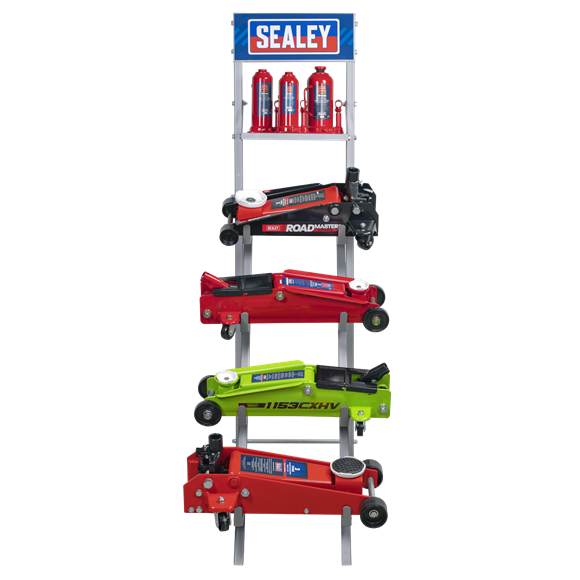

- Display Package includes :
- Model No. - Description
- 3290CX - Trolley Jack 3 Tonne
- 1153CX - Trolley Jack 3 Tonne Long Reach Heavy-Duty
- 1153CXHV - Trolley Jack 3 Tonne Long Reach Heavy-Duty Hi-Vis
- 3000CXD - Trolley Jack 3 Tonne Standard Chassis
- SJ5 - Bottle Jack 5 Tonne
- SJ10 - Bottle Jack 10 Tonne
- SJ15 - Bottle Jack 15 Tonne
- JS1 - Sealey Jack Stand
- You may also refer to the individual Model No. for full specification.
Product Summary
Optionally the jacks can be purchased as individual items.
Sealey 3 Tonne Rated Trolley Jacks
3290CX - Trolley Jack 3 Tonne
- VERSATILE LIFTING RANGE - Minimum saddle height 130mm, maximum saddle height 465mm.
- COMPACT AND LIGHTWEIGHT - Most compact and lightweight Pro Trolley Jack on the UK market, weighs only 28kg.
- LONG TWO PIECE HANDLE - Less effort for the operator.
- HEAVY-DUTY CASTORS AND LARGE SADDLE DESIGN - To ease positioning under the vehicle.
- IDEAL - For roadside or workshop use.
Capacity:3 Tonne
Consumable Parts: JP06 - Optional Rubber Jack Pad
Length: 572mm
Maximum Chassis Height: 152mm
Maximum Saddle Height: 465mm
Minimum Saddle Height: 130mm
Nett Weight: 28kg
Video Highlights
1153CX - Trolley Jack 3 Tonne Long Reach Heavy-Duty
- VERSATILE LIFTING RANGE - Minimum saddle height 140mm, maximum saddle height 432mm.
- LONG REACH - 625mm Long chassis length to negotiate deeper jacking points.
- OVERLOAD PROTECTION - For user safety.
- HEAVY-DUTY UNIT - One-piece hydraulic unit with rubber gripped one piece pumping handle.
- IDEAL FOR SERIOUS HOBBY OR VEHICLE RECOVERY USE - Engineered to a high standard, this high capacity, portable trolley jack will give years of service.
Capacity:3 Tonne
Consumable Parts: n/a
Length: 625mm
Maximum Chassis Height: 165mm
Maximum Saddle Height: 432mm
Minimum Saddle Height: 140mm
Nett Weight:19kg
1153CXHV - Trolley Jack 3 Tonne Long Reach Heavy-Duty Hi-Vis
- VERSATILE LIFTING RANGE - Minimum saddle height 140mm, maximum saddle height 432mm.
- LONG REACH - 625mm Long chassis length to negotiate deeper jacking points.
- OVERLOAD PROTECTION - For user safety.
- HEAVY-DUTY UNIT - One-piece hydraulic unit with rubber gripped one piece pumping handle.
- HIGH VISIBILITY - Supplied in high-visibility green for easy location and visual safety.
Capacity:3 Tonne
Consumable Parts:n/a
Length: 625mm
Maximum Chassis Height: 165mm
Maximum Saddle Height: 432mm
Minimum Saddle Height: 140mm
Nett Weight: 19kg
3000CXD - Trolley Jack 3 Tonne Standard Chassis
- VERSATILE LIFTING RANGE - Minimum saddle height 130mm, maximum saddle height 520mm.
- HEAVY-DUTY CASTORS AND EXTRA LARGE SADDLE DESIGN - Ease positioning under the vehicle.
- PROTECTIVE JACK HANDLE SLEEVE - To help prevent accidental damage to car bodywork when pumping the handle.
- FITTED WITH SAFETY OVERLOAD AND PUMP-THROUGH VALVE - Preventing the handle locking at maximum ram extension.
- SUITABLE FOR - Loaded vans up to 3.5 Tonne GVW
Capacity:3 Tonne
Consumable Parts:Replacement Rubber Jack Pad - JP19
Length: 659mm
Maximum Chassis Height: 172mm
Maximum Saddle Height: 520mm
Minimum Saddle Height: 130mm
Nett Weight: 35kg
Sealey Bottle Jacks
SJ5 - Bottle Jack 5 Tonne
- Base and reservoir machine welded for increased strength and reduced chance of leakage.
- Fitted with overload valve.
- Supplied with 2-piece handle.
Capacity:5 Tonne
Hydraulic Lift: 125mm
Maximum Height: 402mm
Minimum Height: 207mm
Nett Weight: 3.70kg
Screw Extension: 70mm

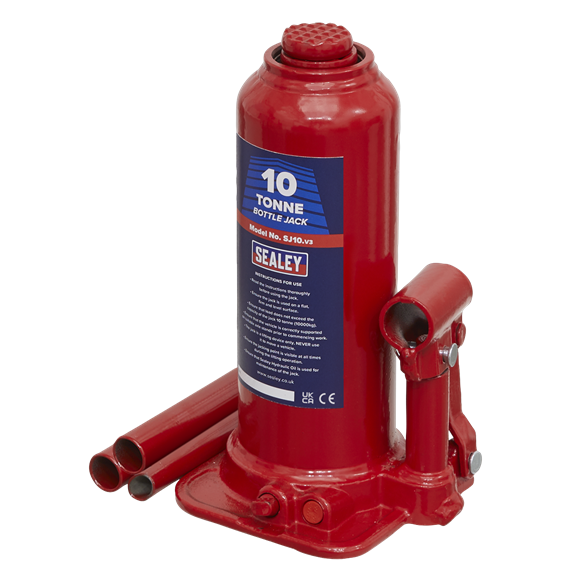

SJ10 - Bottle Jack 10 Tonne
- Base and reservoir machine welded for increased strength and reduced chance of leakage.
- Fitted with overload valve.
- Supplied with 2-piece handle.
Capacity:10 Tonne
Hydraulic Lift: 145mm
Maximum Height: 447mm
Minimum Height: 222mm
Nett Weight: 4.80kg
Screw Extension: 80mm

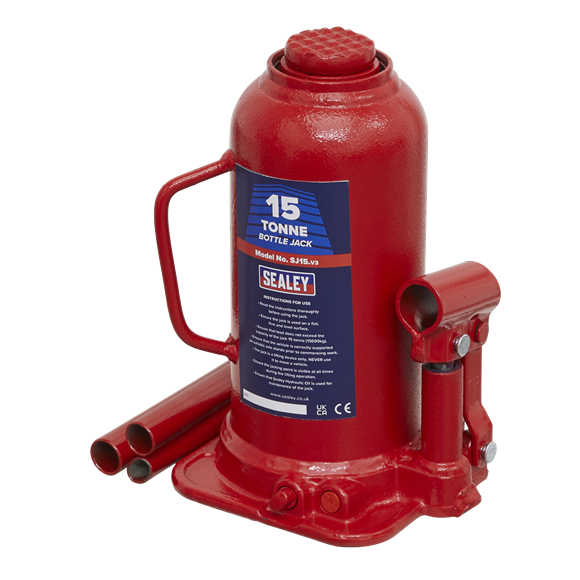

SJ15 - Bottle Jack 15 Tonne
- Base and reservoir machine welded for increased strength and reduced chance of leakage.
- Fitted with overload valve.
- Supplied with 2-piece handle.
- Fitted with carrying handle.
Capacity: 15 Tonne
Hydraulic Lift: 150mm
Maximum Height: 457mm
Minimum Height: 227mm
Nett Weight: 7kg
Screw Extension: 80mm
3 Tonne Jack Stand Deal Model No. JS1COMBO4
Sealey 3290CX Livery when delivered as part of the
3 Tonne Jack Stand Deal Model No. JS1COMBO4
Warranty
Sealey 12 months warranty
