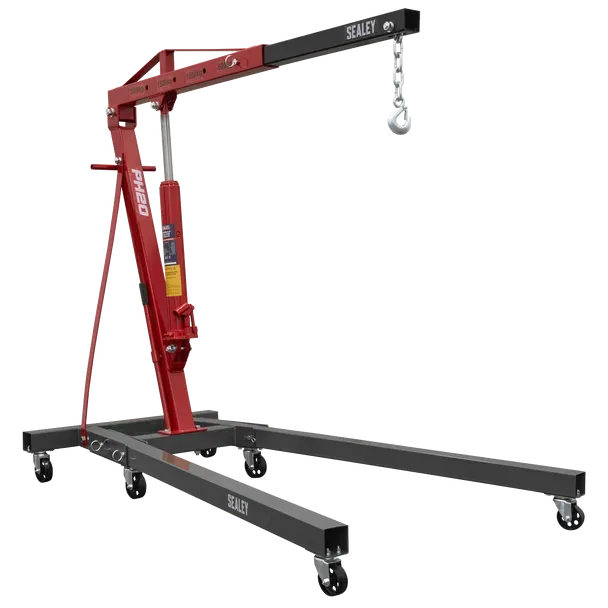

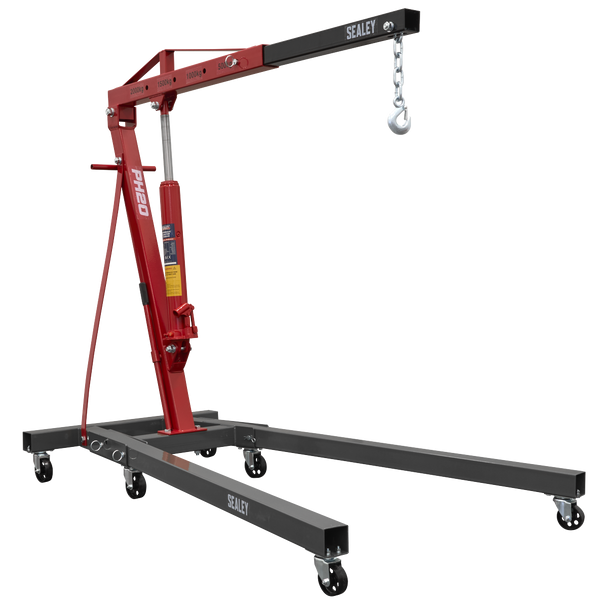

Sealey PH20 Folding Engine Crane 2 Tonne
Sealey PH20Folding Engine Crane 2 Tonne
Highlights
• HIGH CAPACITY - Lifts 2000kg at 860mm jib extension.
• EASY MANOEUVRABILITY - Six heavy-duty castor wheels.

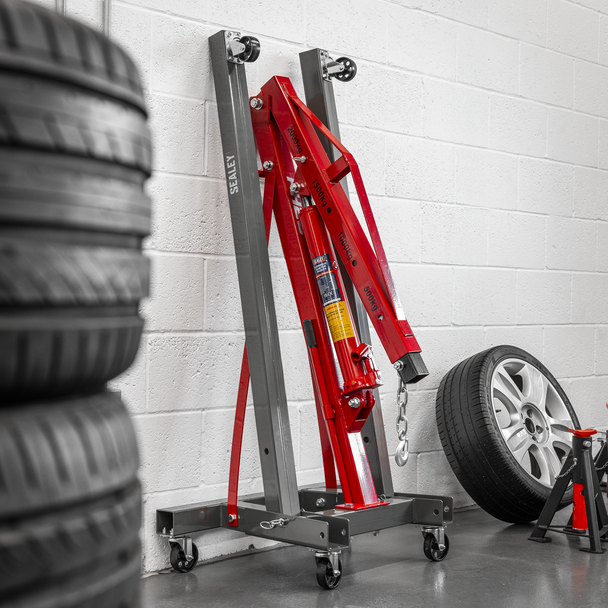

• SPACE SAVING - Folds for easy storage, freeing valuable workshop space when not in use.
• SIMPLE ACCESS - Pump access from the side for safe handling of heavy loads.
• Delivered in knock-down form for reduced freight cost.
• This item is heavy. Extra assistance must be provided at the delivery point to help its safe delivery.
Technical Details
| Height Jib Down:
|
1460mm
|
| Height Legs Folded:
|
1565mm
|
| Height of Frame:
|
185mm
|
| Length of Jib Position 1:
|
860mm
|
| Length of Jib Position 2:
|
1020mm
|
| Length of Jib Position 3:
|
1180mm
|
| Length of Jib Position 4:
|
1340mm
|
| Length:
|
1750mm
|
| Lifting Capacity in Position 1:
|
2000kg
|
| Lifting Capacity in Position 2:
|
1500kg
|
| Lifting Capacity in Position 3:
|
1000kg
|
| Lifting Capacity in Position 4:
|
500kg
|
| Max. Lift Ht at Jib Position 1:
|
1820mm
|
| Max. Lift Ht at Jib Position 2:
|
1940mm
|
| Max. Lift Ht at Jib Position 3:
|
2080mm
|
| Max. Lift Ht at Jib Position 4:
|
2210mm
|
| Rear Width:
|
850mm
|
| Nett Weight:
|
79.65kg
|
| Width Front Frame:
|
1055mm
|
| Width Inside Front Frame:
|
915mm
|
| Barcode:
|
5054630451836
|
| Parts Diagram:
|
|
| Declaration of Conformity:
|
|
| Safety Data Sheet:
|
|
| Instructions:
|
Optional
Sealey LS501 Load Sling Adjuster with Ball-Bearings 680kg Capacity
Highlights
Handles and levels heavy, off-centre loads quickly and easily.
• Ball-bearing handle allows for a smooth and easy adjustment.
• Three adjustment holes accommodate different sized engines.
• Ideal for car, van, truck and marine engines.
• If used with cranes of capacity 680kg or more, the load must be restricted to 680kg maximum.
• Supplied with 4 x 275mm chains and 4 x L-shaped brackets with additional karabiner styled screw links.
Technical Details
| Sling Span:
|
340mm
|
| Nett Weight:
|
5.26 kg
|
| Barcode:
|
5051747785625
|
| Instructions:
|
|
| Parts Diagram:
|
|
| Declaration of Conformity:
|
Warranty
Sealey 1 year parts and labour warranty as standard.
