Sealey MWH120I Handheld MMA/ARC Inverter Welder 120A
Sealey MWH120I Handheld MMA/ARC Inverter Welder 120A

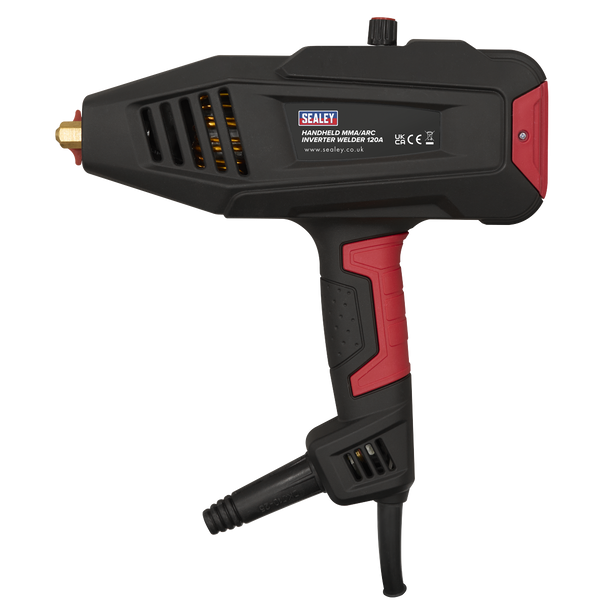

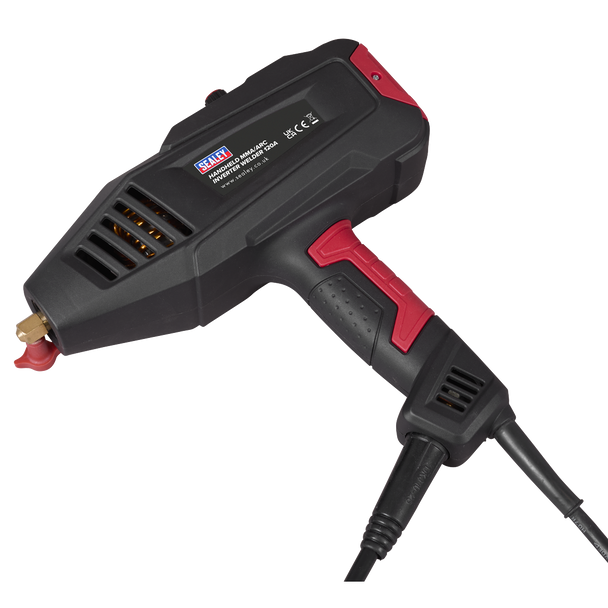

ONE HANDED OPERATION - Handheld Inverter MMA/ARC Welder is an ultra-compact and lightweight unit weighing just 1.3kg, ideal for use in tight areas where space is at a premium.
• ADJUSTABLE OUTPUT CURRENT - Adjustable output current ranging from 20-120A, with a swivel knob for precise current control which is visible on a clear LED screen.
• SUITABLE FOR RUTILE ELECTRODES - Unit can ARC/MMA weld rutile electrodes from Ø1.6mm up to Ø3.2mm.

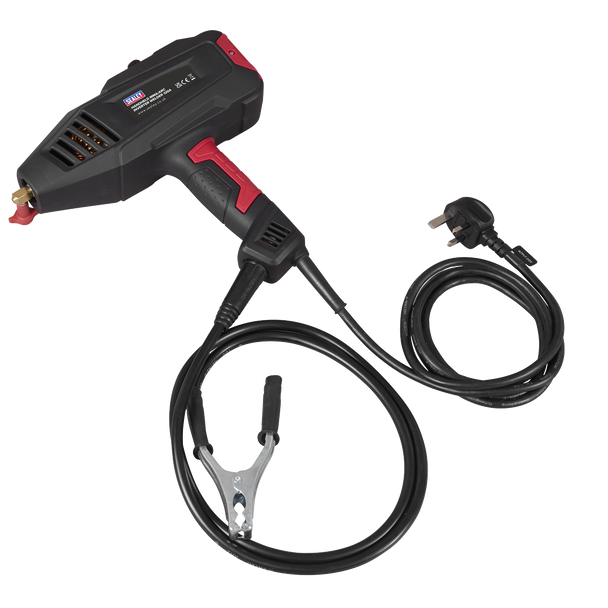

• SUPPLIED WITH - Supplied with a 1.5m earth clamp in a compact storage case offering increased portability for the mobile technician.
• SAFETY FEATURES - Featuring over current and overheat protection ensuring maximum performance and stability whilst keeping the user protected.
Technical Details
| Welding Current: | 20-120A |
| Duty Cycle: | 15% @ 120A |
| Absorbed Power: | 4.8kW |
| Electrode Capacity: | Ø1.6-3.2mm |
| Supply: | 230V 13A |
| Plug Type: | 3-Pin |
| Power Supply Cable Length: | 2m |
| IP Rating: | IP21 |
| Weight: | 2.5kg |
| Nett Weight:
|
2.5kg
|
| Barcode:
|
5054630593932
|
| Parts Diagram:
|
|
| Declaration of Conformity:
|
|
| Instructions:
|
Warranty
Sealey 1 year warranty as standard. Register online
