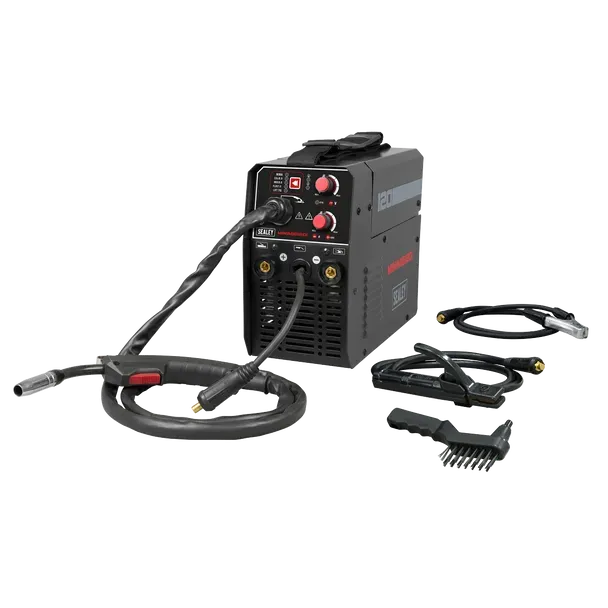

Sealey MINIMIG120 MIG/TIG & MMA (ARC/STICK) Inverter Welder
Sealey MINIMIG120 MIG/TIG & MMA (ARC/STICK) Inverter Welder
Highlights
• IGBT INVERTER TECHNOLOGY - IGBT Inverter fan-cooled DC power supply for MIG/TIG and MMA/ARC welding applications up to 120A.
• 3 IN 1 FUNCTION - Multi-functional welder combining MIG/TIG and MMA applications into a single compact unit, ideal for workshops, garages, bodyshops, and mobile technicians.
• HIGHLY PORTABLE - Ultra-compact unit, weighing only 6.9kg, features a carry strap for portability, allowing easy transport to job sites.
• FEATURING - Hot start, anti-stick, forced air cooling and thermal cut out protection.
• WELDING CAPABILITY - Unit can MIG weld using 1kg Ø0.8/0.9/1mm solid wire and Ø0.8/Ø0.9mm flux cored MIG wire, MMA/ARC weld Ø1.6 up to Ø3.2mm electrode.

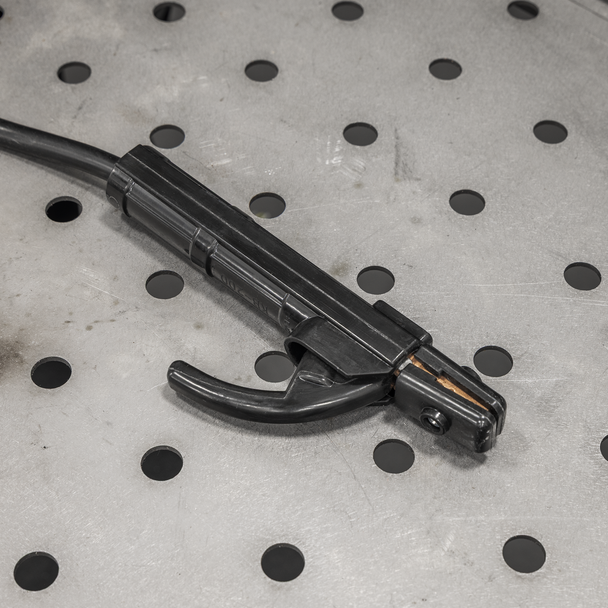

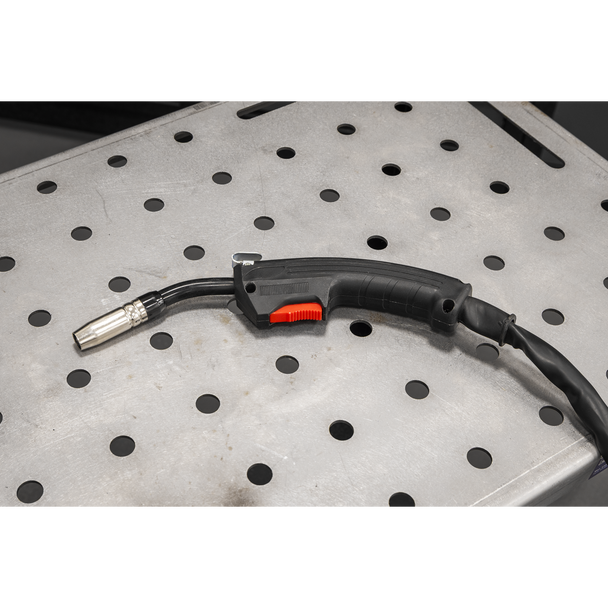

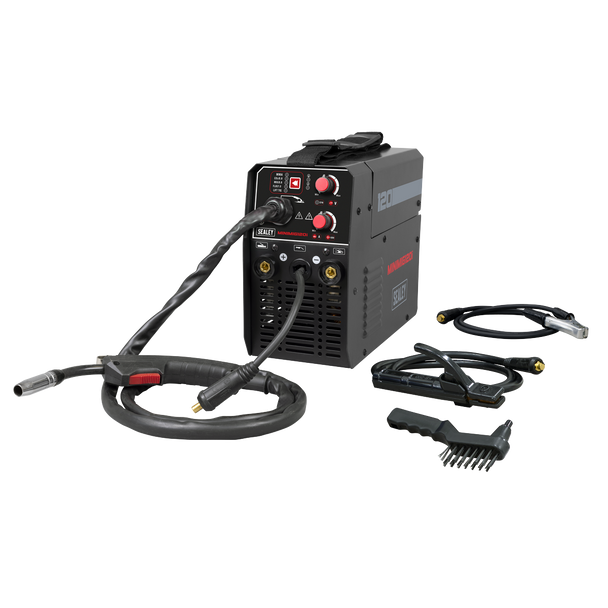

• SUPPLIED WITH - Supplied with fixed non-live MIG torch, 1.4m earth cable/clamp, 1.6m electrode holder.
• DUTY CYCLE – MIG - 60% @ 120A, TIG - 60% @ 120A, MMA/ARC - 60% @ 120A.
Technical Details
Specification
| Welding Current: | 10-120A |
| Duty Cycle MIG: | 60% @ 120A, 100% @ 76A |
| Duty Cycle MMA/ARC: | 60% @ 120A, 100% @ 76A |
| Duty Cycle TIG: | 60% @ 120A, 100% @ 76A |
| Wire Capacity: | 1kg Ø0.8/0.9/1.0mm solid wire and Ø0.8/Ø0.9mm flux cored MIG wire, |
| Electrode Capacity: | 1.6-3.2mm |
| Absorbed Power: | 4.4kW |
| Supply: | 230V 16A* |
| Insualtion Class: | H |
| IP Rating: | IP21S |
| Note* | To achieve maximum power a 16A supply may be required. |
| Nett Weight:
|
6.9kg
|
| Barcode:
|
5054630469633
|
| Parts Diagram:
|
|
| Declaration of Conformity:
|
|
| Instructions:
|
Warranty
Sealey 1 year guarantee as standard
