Knuth VHF 3.2 Universal Milling Machine (301411)
£23,496.27
In stock
Product Details

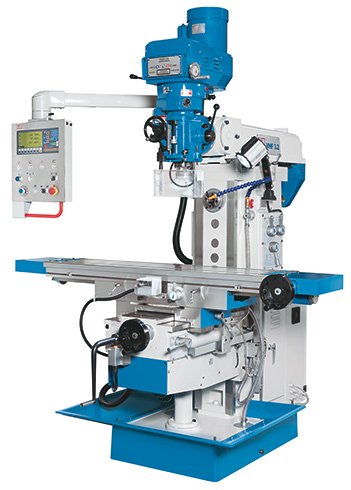

Knuth VHF 3.2 Universal Milling Machine (301411)
Highlights
The versatile universal milling machine complements the proven top model of the VHF series. The combination of horizontal spindle, swiveling vertical milling head and large clamping table, with an increased speed range and the infinitely variable servo feed, extend the wide range of applications of the VHF series. Together with the extensive equipment, this model is also ideally suited for milling in repair workshops as well as training and production departments.
- Swiveling cutter head with automated quill feed
- Horizontal spindle with its own drive
- Swiveling milling table
- Servo-motor for infinitely variable feed on all axes
- Extensive standard equipment
- Extremely rigid machine bed made of high-strength HT-200 cast-iron with heavy ribbing
- Quiet, precision-made headstock gears with hardened and ground gears

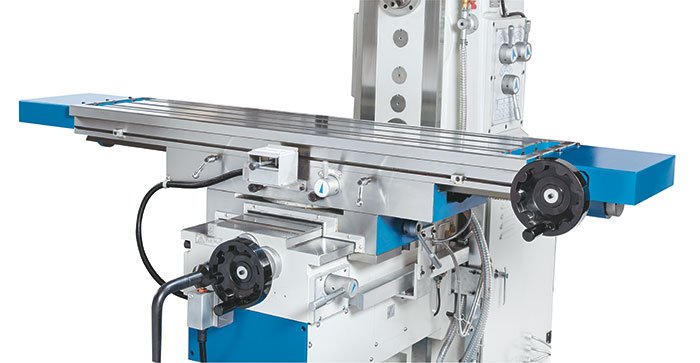

- The milling table features a large setup area and can be rotated in linear direction
- The cutter head quill features a 3-step automatic feed and automatic depth shut-off, but can also be moved manually

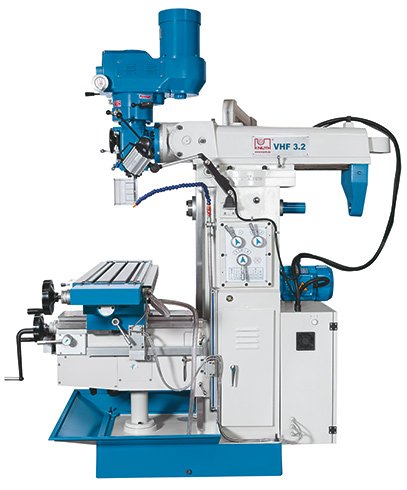

- For angular bores, the vertical cutter head swivels in two directions: r + l ±90°; tilt fwd + rev ±45°
- Spindle speed of vertical cutter head is infinitely variable over a wide speed range; an auxiliary gearbox ensures powerful torque
- Vertical and horizontal spindle each have their separate drive

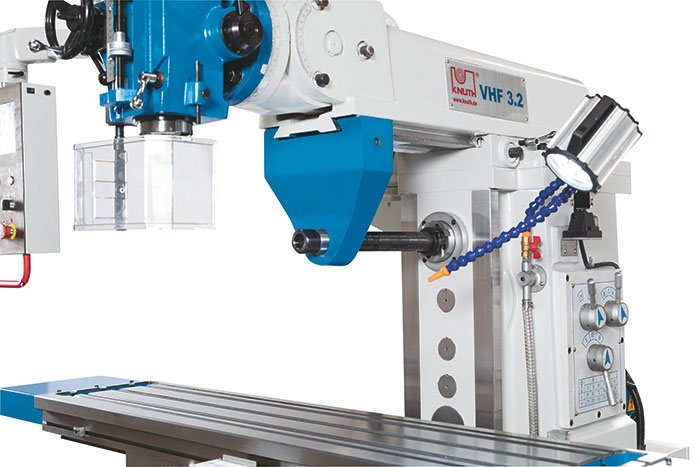

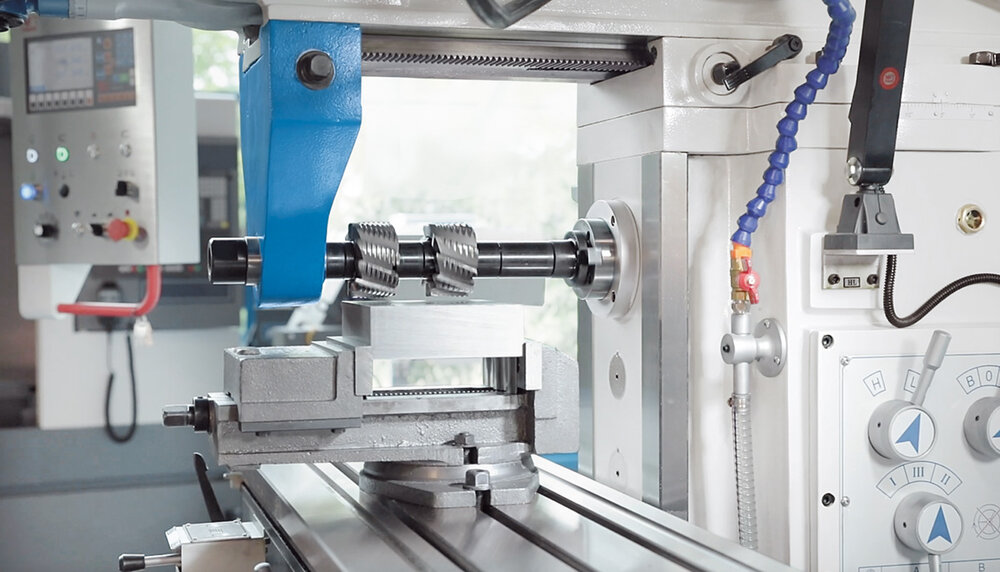

- Standard outer arbor support with bronze plain bearings accommodates long milling arbors in the horizontal spindle
- Powerful servo-motor allows infinite variation of feeds on all 3 axes
- Minimum downtime due to rapid positioning of work table and rapid feeds in all axes
- Control panel swivels for comfortable operation
- Coolant system and chip tray are included
Technical Details
| Working area | |
|---|---|
| Table set up area | 1370 mm x 320 mm |
| Table load capacity (max.) | 300 kg |
| Table swivel range r/l | 45 deg |
| Number of T-slots | 3 positions |
| T-slot (width x spacing) | 14 mm x 80 mm |
| Travels | |
|---|---|
| Travel X-axis | 1000 mm |
| Travel Y-axis | 360 mm |
| Travel Z-axis | 400 mm |
| Vertical milling head | |
|---|---|
| Spindle mount (vertical) | SK 40 DIN 2080 |
| Throat | 178 mm - 868 mm |
| Vertical spindle-to-table surface distance | 160 mm - 560 mm |
| Milling head swivel range | 90 deg |
| Cutter head tilt angle | 45 deg |
| Spindle speed (infinitely variable) (L) | 70 1/min - 450 1/min |
| Spindle speed (infinitely variable) (H) | 450 1/min - 3600 1/min |
| Rapid feed | |
|---|---|
| Rapid feed X-/ Y-axis | 1335 mm/min |
| Rapid feed Z-axis | 1000 mm/min |
| Horizontal milling heada | |
|---|---|
| Spindle speeds | 35 1/min - 1500 1/min |
| Spindle mount | SK 40 DIN 2080 |
| Horizontal spindle-to-table surface distance | 75 mm - 475 mm |
| Feed | |
|---|---|
| Feed speed X-axis | 30 mm/min - 830 mm/min |
| Feed speed Y-axis | 30 mm/min - 830 mm/min |
| Feed speed Z-axis | 23 mm/min - 625 mm/min |
| Drive capacity | |
|---|---|
| Main drive motor rating (vertical) | 3,7 kW |
| Main drive motor rating (horizontal) | 3 kW |
| Measures and weights | |
|---|---|
| Overall dimensions (length x width x height) | 1,9 m x 1,75 m x 2,35 m |
| Weight | 1950 kg |
