Knuth LabCenter 350 Advanced C-Frame Vertical CNC Centre (sku 181605)
£26,640.00
In stock
Product Details

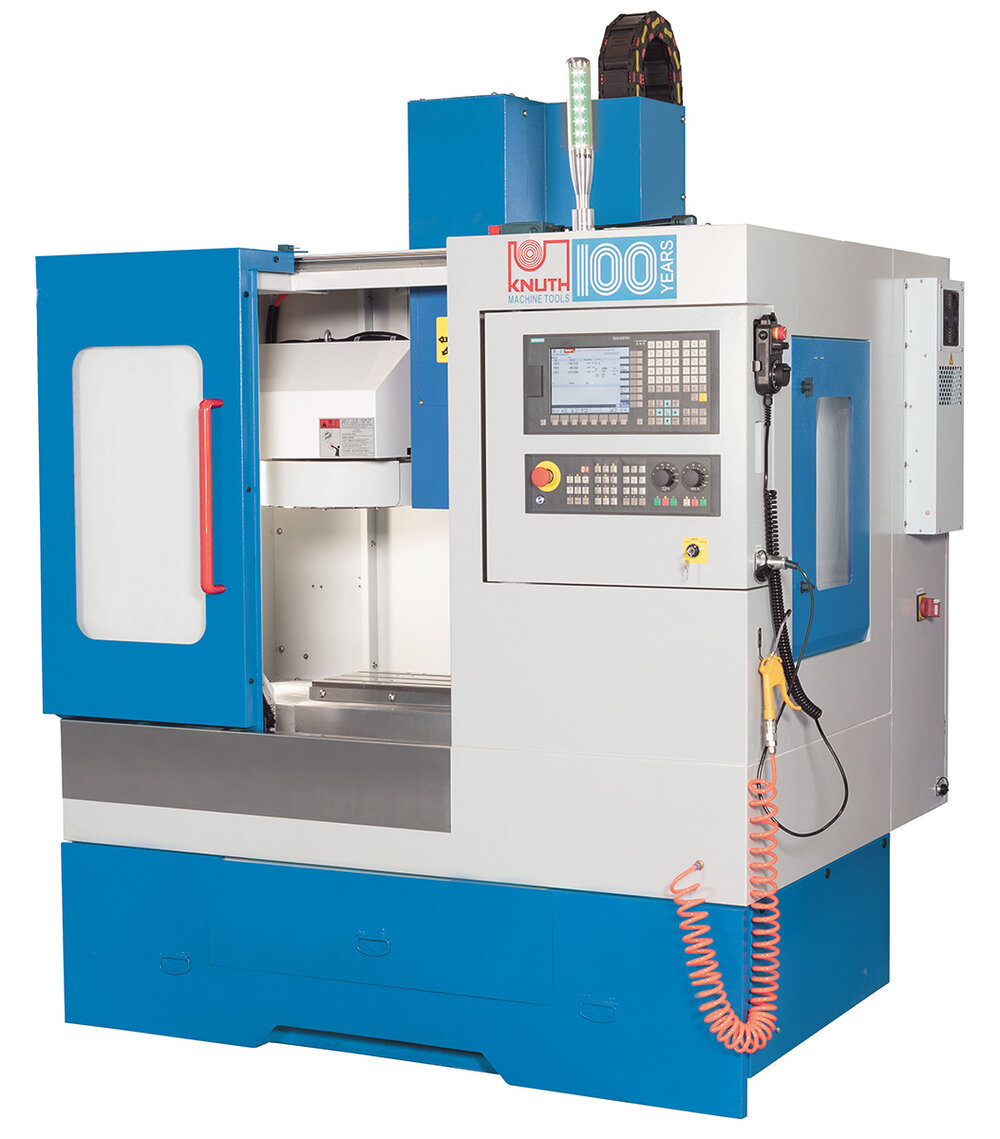

Knuth LabCenter 350 Advanced C-Frame Vertical CNC Centre
Availability 3/4 months delivery lead time
Highlights
The LabCenter 350 Advanced is a reliable, compact machining centre for CNC training, but also for production. This modern CNC machining centre has the functional scope of a large production machine, but is designed for lighter machining. The Siemens 808 control system offers simple, intuitive operation, making it ideal for those new to CNC applications. With its large tool changer, the LabCenter 350 Advanced enables practical training and efficient production of small series.
- Compact design with little space requirement
- High-quality components and complete equipment
- Powerful Siemens 808 control system
- Robust 12-position tool changer
Machine Design
- The cast iron machine frame forms the rigid and vibration-damping foundation of this compact machining centre
- The use of high-quality, generously dimensioned components guarantees permanently precise and reliable machining processes
- All axes move in precise linear guides that are reliably protected by solid covers
- Together with the ball screws, these guarantee the precision, dynamics and durability of a production machine
- In the Z-axis, weight equalisation ensures that fine and fast-reacting movements of the milling head are implemented precisely
- The machine table offers a large clamping surface and is designed for a table load of 100 kg
- The closed enclosure is easily accessible thanks to the sliding door at the front and windows on both sides
Main spindle and drives
- The SK 30 spindle holder enables a compact design and offers a large selection of tools
- The multiple bearing, belt-driven spindle unit enables spindle speeds of up to 6,000 rpm
Automatic Tool Changer
- The 12-position tool changer increases productivity, flexibility and safety during machining
- The horizontal design does not require additional grippers and is very robust
Equipment
- An electronic hand-wheel simplifies machine set-up
- An automatic central lubrication system reliably supplies all lubrication points and simplifies maintenance
- Electronics are protected within a fully enclosed control cabinet, and a powerful heat exchanger manages the temperature
- During set-up work a compressed air gun is immediately to hand for the operator

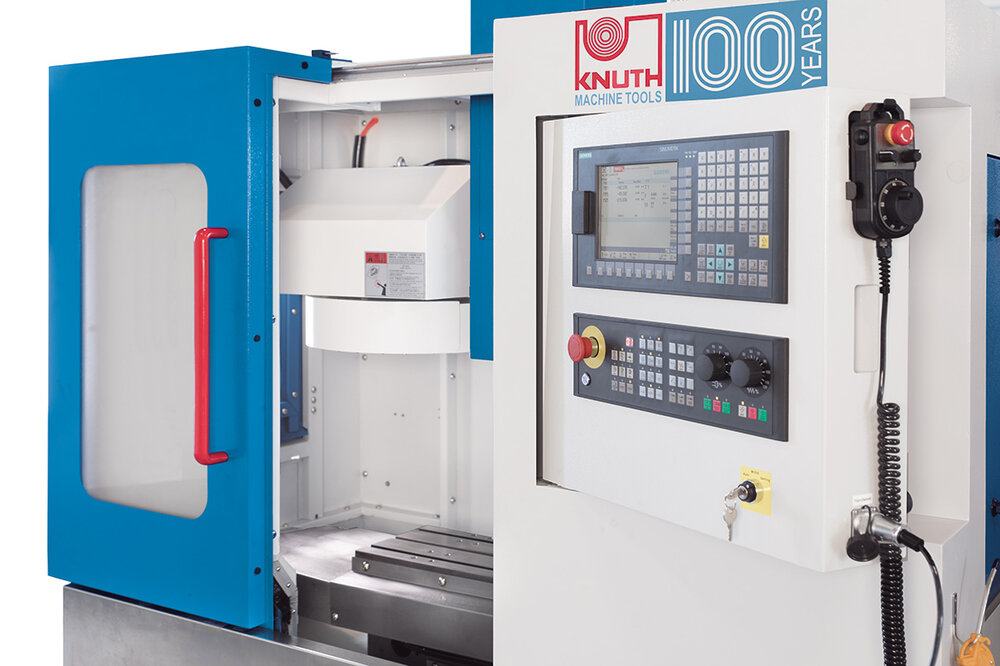

Control
- With the standardised SINUMERIK operating and programming philosophy, the SINUMERIK 808D ADVANCED is also a good choice for demanding milling operations
- This control system can also be used particularly effectively for training purposes
- The programming instructions are designed in such a way that the basics of CNC technology can also be taught in an easily understandable way
Technical Details
| Working area | |
|---|---|
| Table dimensions | 600 mm x 240 mm |
| Table load capacity | 100 kg |
| Spindle nose-to-table surface distance | 100 mm - 420 mm |
| Number of T-slots | 3 positions |
| Travels | |
|---|---|
| Travel X-axis | 350 mm |
| Travel Y-axis | 240 mm |
| Travel Z-axis | 400 mm |
| Headstock | |
|---|---|
| Spindle speed | 6000 1/min |
| Spindle mount | SK 30 |
| Feed | |
|---|---|
| Rapid feed | 6000 mm/min |
| Tooling | |
|---|---|
| Number of tool stations | 12 positions |
| Tool Ø | 60 (200) mm |
| Tool weight max. | 5 kg |
| Tool-change time tool/tool | 12 sec |
| Accuracies | |
|---|---|
| Repeatability | 0,015 mm |
| Positioning accuracy | 0,01 mm |
| Drive capacity | |
|---|---|
| Main drive, continuous load | 2,2 kW |
| Total power consumption | 6 kVA |
| Motor rating X-axis | 1 kW |
| Motor rating Z-axis | 1,75 kW |
| Motor rating Y-axis | 1 kW |
| Measures and weights | |
|---|---|
| Overall dimensions (length x width x height) | 1,75 m x 1,35 m x 2,2 m |
| Weight | 1260 kg |
The certificate holder's Management System
corresponds to standard ISO 9001:2015
