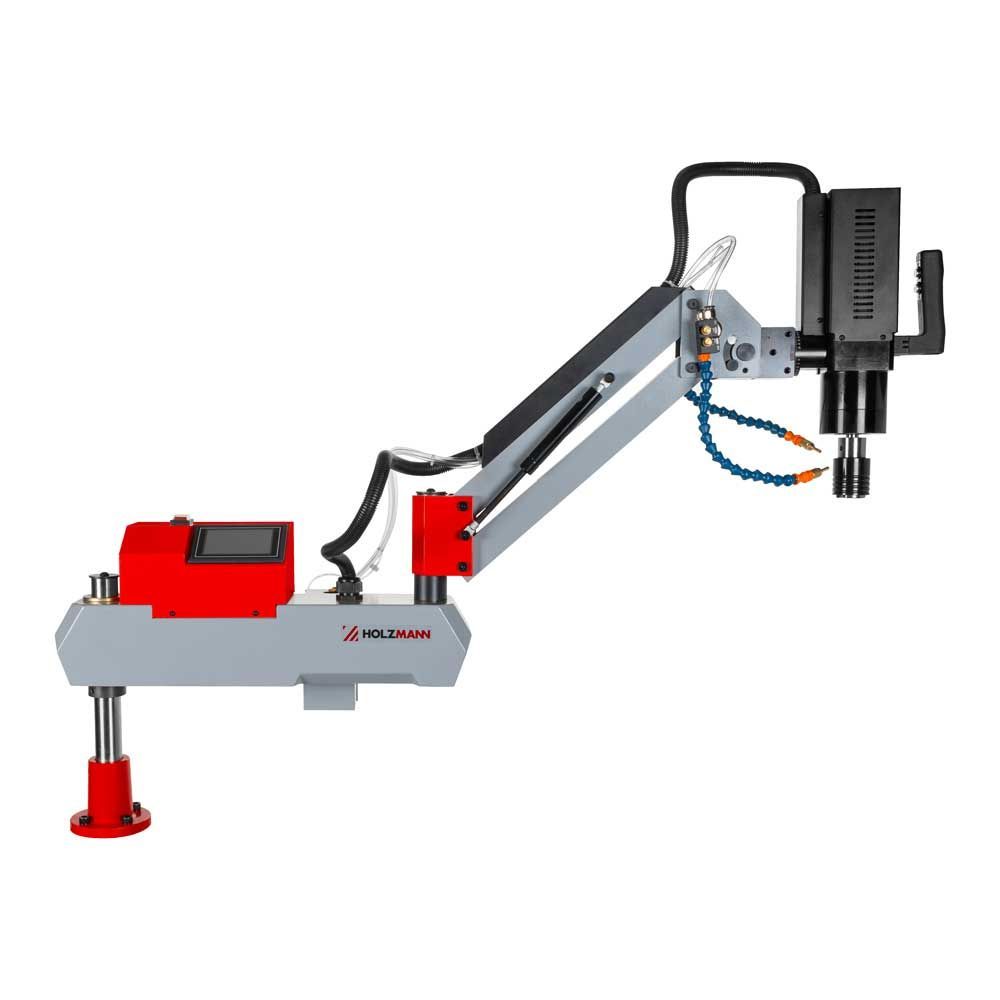

Holzmann GSM30E R30 230V Thread Cutting Machine (Optional accessories: Machine stand GMMS)
Holzmann GSM30E R30 230VThread Cutting Machine
Highlights
The HOLZMANN GSM30E R30 230V thread cutting machine with many helpful functions cuts threads (M3-M30) precisely and safely.
- Collet set with slip clutch
- Thread diameter range M3-M30 (steel); M3-M36 (aluminium)
- Touchscreen for operation (setting thread size, cutting depth,...)
- Selection of 2 cutting modes: Manual (forward/reverse can be activated manually); Automatic (after reaching the preselected thread depth, the reverse is automatically activated)
- Cutting head swivels 90°
- Cooling device (air-oil cooling) available, working pressure: 6-8 bar, oil quantity ~ 200ml
- Max. working range arm: 1100 mm, height adjustment max. 520 mm
Scope of delivery: incl. collet set (DIN371: M6, M8, M10 DIN376: M12, M14, M16, M18, M20, M24, M27, M30)
Optional accessories: Machine stand GMMS
Technical Details
Engine data
Motor power S1 in W 1200
Tension 230V / 50Hz
Speed in min-1 0-200
Volume and vibrations:
Sound pressure level in dB(A) <70
Weight
Gross weight in kg 54
Net weight in kg 46
Shipping dimensions
Packaging width in mm 730
Packaging length in mm 870
Packaging height in mm 230
General data
EAN Code 9120132140113
Optional Accessories:
Machine Stand GMMS
GSMMS Base frame for thread cutting machine
The HOLZMANN GSMMS base frame for thread cutting machine is suitable for our GSM16_R11_230V and GSM30_R30_230V
The HOLZMANN GSMMS base frame for thread cutting machine is suitable for our GSM16_R11_230V and GSM30_R30_230V
Highlights
- 4 swivel castors with brakes
- Storage option (2 doors)
- max. 200 kg load
- Work table height: 720 mm
- Mounting holes suitable for GSM16E_R11 and GSM30E_R30
- 4 swivel castors with brakes
- Storage option (2 doors)
- max. 200 kg load
- Work table height: 720 mm
- Mounting holes suitable for GSM16E_R11 and GSM30E_R30
Technical details
General dimensions
Installation dimensions in mm
800x500x750
Weight
Gross weight in kg
64
Net weight in kg
62
Shipping dimensions
Packaging width in mm
800
Packaging length in mm
500
Packaging height in mm
620
General data
EAN Code
9120132140120
The roots of Holzmann and Zipper reach back as far as 1886 to the foundation of a smithery in Haslach Austria. Today the group is one of the global players in the field of workshop machinery and equipment.
The roots of Holzmann and Zipper reach back as far as 1886 to the foundation of a smithery in Haslach Austria. Today the group is one of the global players in the field of workshop machinery and equipment.
