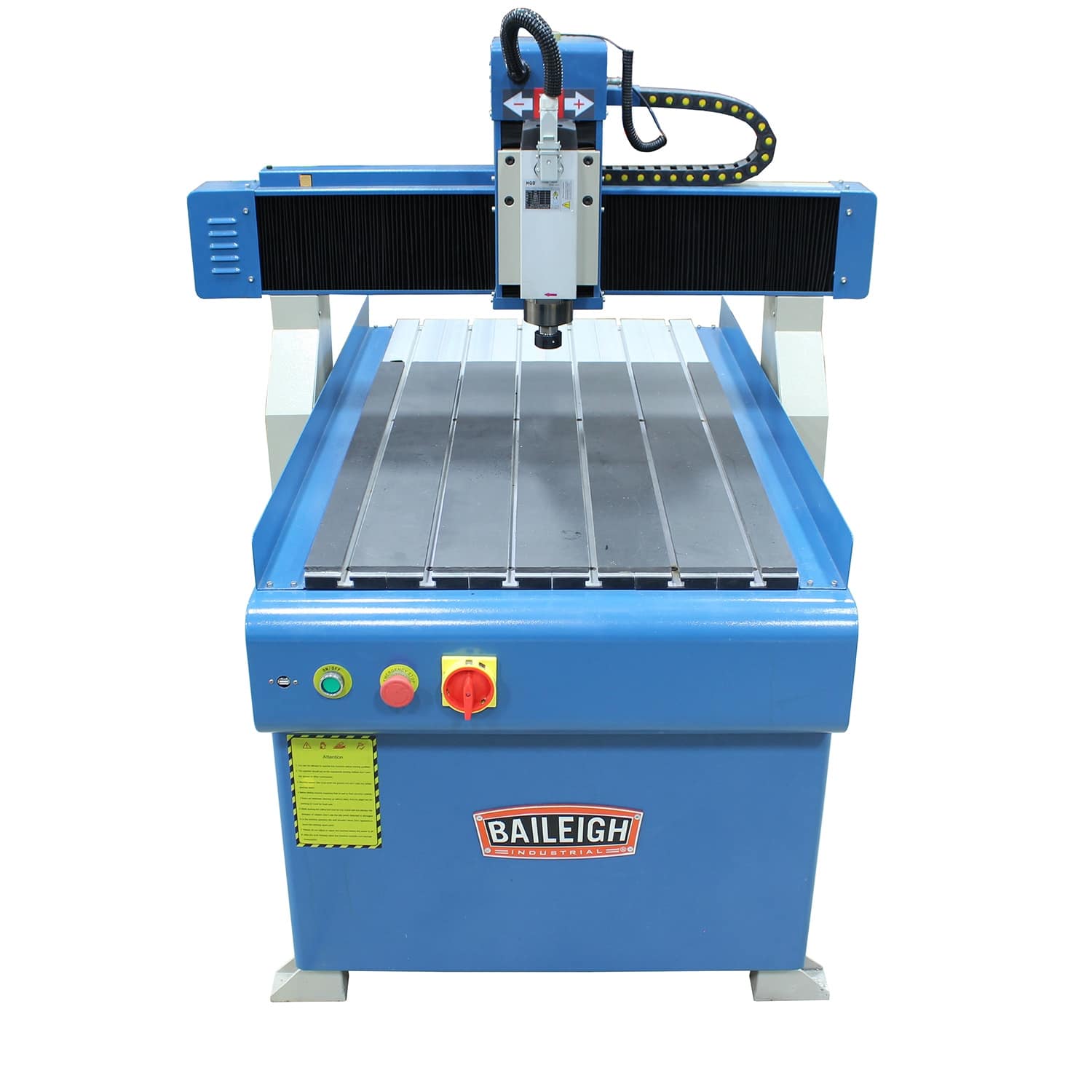

Baileigh CNC Router Table - WR32

The WR-32 CNC router table comes with software, tooling, and a dust shroud—often not included with competing tables that cost more. Built to last with a cast iron base, the metal router arrives fully assembled.

2’ x 3’ table.
Recommended for sign-makers, hobbyists, molding companies (plastic parts), research and development (R&D) shops, and industrial wood shops.
Powerful 4.75 hp spindle.
Up to 18,000 rpm variable spindle speed.
Runs on 220-volt single-phase power.
Upload your design file to the table via a USB drive, then use the convenient handheld controller to move the spindle.
Stepper motors move the spindle at a maximum speed of 6.5″ per second.
Ball screw X and Y axis movement for accurate positioning.
Square slideways clamp the material down and keep it in alignment.
4 collets choices,1/8”, 4mm, 6mm, and 1/2″ (1 each) in the ER25 style.
Comes standard with 15 starter router profiles.
Air-cooled spindle prolongs machine life and helps to maintain high cut quality down the road.
4 T-slotted clamps fit on the table to hold the material down for clean cuts.
Structurally strong extruded aluminum table won’t buckle under material weight or spindle pressure.
The table ships pre-built with correct alignment for a fast and simple set-up—just an hour or so to uncrate the table and get started with the software.
Rigid cast base and fully-welded steel frame reduce vibrations, so the table can cut correctly over decades of use.
Dust shroud fits over the spindle and vacuums sawdust off the table while you cut, keeping your shop neat.
Covered by a 1-year parts warranty.
