Siegmund Hydraulic Lift 2010 with System 28 Professional 750 Welding Table

Siegmund Hydraulic Lift 2010 with System 28 Professional 750 Welding Table

Highlights

As standard

• • System 28
  • Includes 2000 x 1000 mm Table
  • 4000 kg Load Capacity (excl. Table Weight)
  • Overall Height when Retracted: 330 mm
  • 1100 mm Lifting Range
  • Lifting Time 45 – 55 Seconds
  • Incl. Insulation Plates
  • 400 V
  • 2.2 kW

Siegmund Hydraulic Lift 2010, including System 28 Professional 2000 x 1000 mm Welding Table and insulation plates.

A heavy-lifting capacity of 4000 kg, combined with versatility and easy handling. The Siegmund hydraulic lift is ideal for lifting any large, heavy fabrication.

Safety and ergonomic design are key to the hydraulic platform. With a vertical movement range between 330 mm whilst retracted, and 1400 mm at maximum extension for the single-scissor platform. The exterior contact strip on all four sides provides a kill switch to protect against crushing whilst the scissors are lowered.

All Siegmund hydraulic lift platforms include a set of 30 mm thick insulation plates, protecting the electrics of the lifting platform from any interference from high amperage welders. A sturdy construction allows the base frame to be prepared for ground anchoring.

The hydraulic platform is powered by a 16 A CEE 3-phase supply with a standard 5 m cable. The simple-to-use hand button controller also has a 5 m long cable.

Technical Details

Optional Tool Sets & Accessories

Siegmund Welding Tables are available to order with a wide range of tool sets and accessories including clamps, vices, prisms, bolts, squares, stops, and supports

1/Siegmund System 28 Tool Set 1 (501 387)

• To Suit Siegmund System 28
• Tool Set 1
• Contains 32 Pieces
• Includes Clamps, Bolts, Stops etc.
• Free Protection and Cleaning Kit
• 4-283100

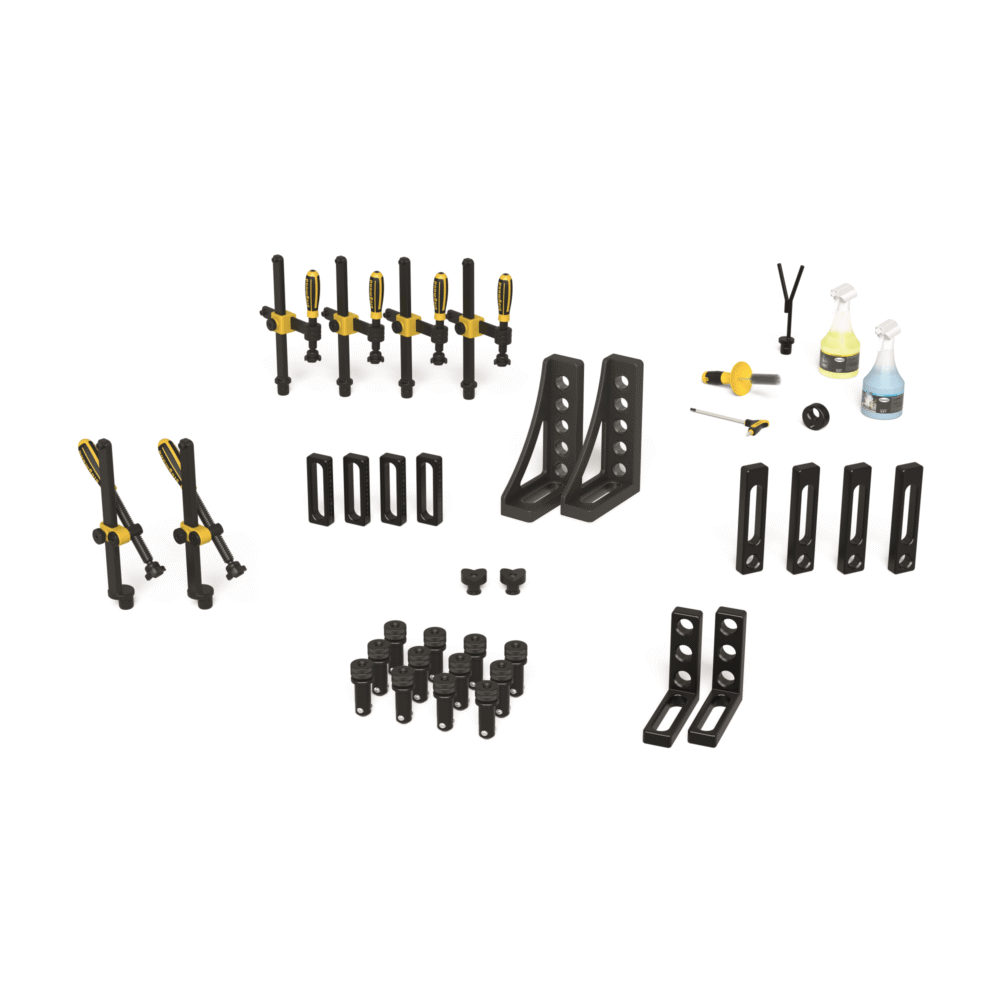

Tool Set 1 (4-283100) for the Siegmund System 28 range of welding tables.

Included in this set is an assortment of fundamental Siegmund clamps and tooling for those looking to get the most out of the heavy-duty capabilities of the system 28 welding tables.

Included in the System 28 Set 1 are:

• 4 nitrided clamps (280610.N)
• 2 nitrided rotational clamps (280630.N)
• 2 nitrided prisms (280648.1.N)
• 12 burnished bolts (280511)
• 4 (150mm) nitrided stops (280410.N)
• 4 (225mm) nitrided stops (280420.N)
• 2 (175mm) nitrided squares (280110.N)
• 2 (300mm) nitrided squares (280152.N)

Also included for free with the purchase of every tooling set is a collection of protective & cleaning accessories for the welding table.

2/Baileigh WJT - AK43 Welding Table Accessory Kit ( sku 1010427 )

Video of Jigs being used with Baileigh welding table type WJT 7938
