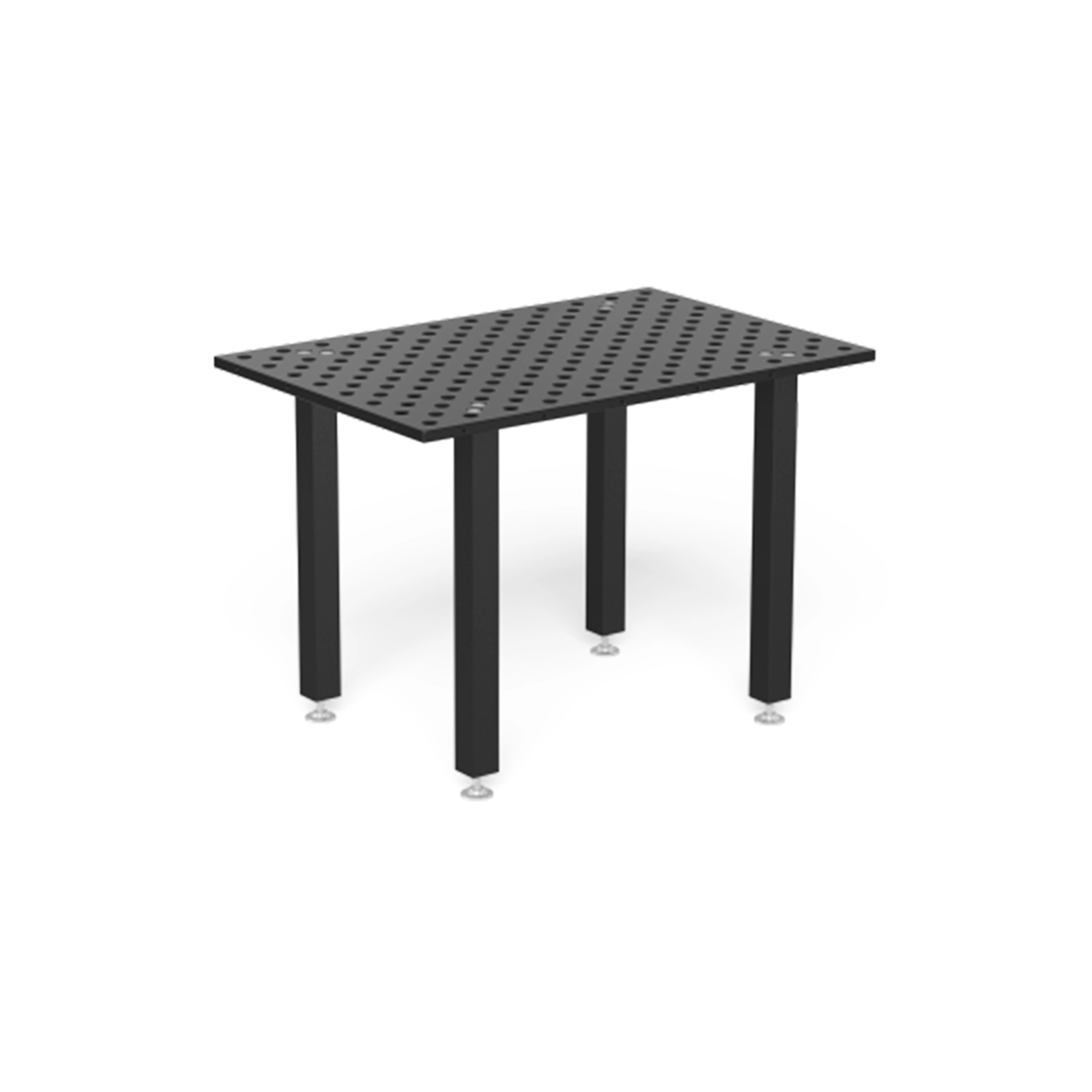

Siegmund System 28 Basic 8.7 Welding Table 1200x800x25
Siegmund System 28 Basic 8.7 Welding Table 1200x800x25
As standard
- 28mm Borehole
- Boreholes in a diagonal grid
- Size 1200 x 800 mm
- Plasma Nitration
- BAR Coating
- M12-thread on 4 sides every 200mm
- Modular
- 4-281025.XD7.T1
The Siegmund System 28 welding tables are the largest and most popular tables that Siegmund provide. Manufactured with the purpose of heavy-duty fabrication in mind, the 27mm thick reinforced steel work top is built to withstand the toughest tasks.
Ranging from the System 28 Basic for a more economical entry point into the system to the top of the range and bestselling Extreme 8.8 Plus. Made with wholly unique, through-hardened tool steel alloy known as Siegmund X8.
With each table having boreholes of 28mmØ across the work surface and side panels all the toolboxes, stops, clamps and accessories are compatible with the other welding tables in the System 28 range.
The boreholes on the work surface are in a 100 x 100 grid on the Basic & Professional 750 tables and a diagonal grid on the Basic 8.7, Extreme 8.7 & Extreme 8.8+ with 1mm scaling along the perimeter of the tables from the Professional 750 upwards.
All the welding tables in the System 28 range are available with or without plasma nitration but it is recommended to opt for nitration as it massively increases the lifespan of the table as well as the surface hardness, resistance to impacts, scratches, welding spatter and corrosion.
All System 28 welding tables are available with a diverse range of alternative legs. If you’d prefer legs on lockable castors for easier movement, legs with adjustable heights or floor mounted for maximum strength and stability.
Technical Details
| Siegmund System | |
|---|---|
| Size | |
| Siegmund Series |
Optional Tool Sets & Accessories
Siegmund Welding Tables are available to order with a wide range of tool sets and accessories including clamps, vices, prisms, bolts, squares, stops, and supports
1/Siegmund System 28 Tool Set 1 ( 501 387)
- To Suit Siegmund System 28
- Tool Set 1
- Contains 32 Pieces
- Includes Clamps, Bolts, Stops etc.
- Free Protection and Cleaning Kit
- 4-283100
Tool Set 1 (4-283100) for the Siegmund System 28 range of welding tables.
Included in this set is an assortment of fundamental Siegmund clamps and tooling for those looking to get the most out of the heavy-duty capabilities of the system 28 welding tables.
Included in the System 28 Set 1 are:
- 4 nitrided clamps (280610.N)
- 2 nitrided rotational clamps (280630.N)
- 2 nitrided prisms (280648.1.N)
- 12 burnished bolts (280511)
- 4 (150mm) nitrided stops (280410.N)
- 4 (225mm) nitrided stops (280420.N)
- 2 (175mm) nitrided squares (280110.N)
- 2 (300mm) nitrided squares (280152.N)
Also included for free with the purchase of every tooling set is a collection of protective & cleaning accessories for the welding table.
2/Baileigh WJT - AK43 Welding Table Accessory Kit ( sku 1010427 )
Video of Jigs being used with Baileigh welding table type WJT 7938
Highlights
WJT - AK43 Welding Table Accessory Kit ( sku 1010427 )
Description
The WJT-AK43 43 Piece Welding Jig Table Accessory Kit is the perfect starter set for the Baileigh Industrial line of welding tables.
We also offer the WJT-AK43 43 Piece Welding Jig table Accessory Kit for use with our Siegmund range of Welding tables as both types of
welding tables feature a standard 28 mm jig hole so both types of table are suitable for use with these popular jigs which
are so useful for building up assemblies prior to welding up fabrications on the tables we supply.
Below is a list of the included tooling:
Specifications
| Item Number | WJT-AK43 |
|---|---|
| Shipping Weight | 100lbs |
| Shipping Dimensions (Inches) | 24x24x24 |
* specifications subject to change without notice.
