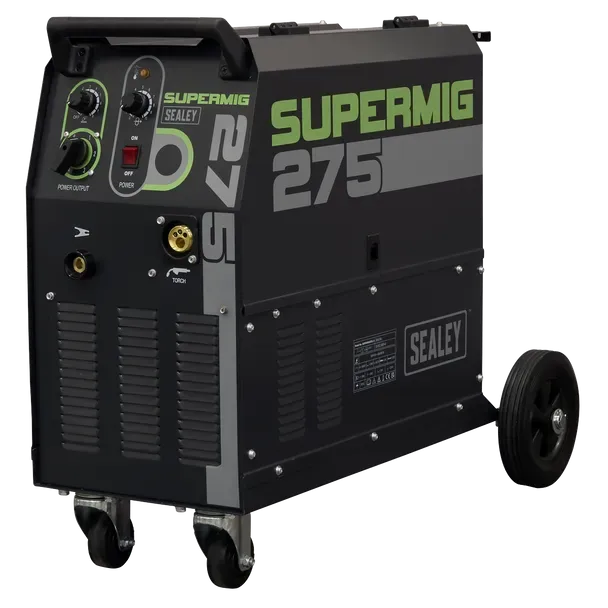

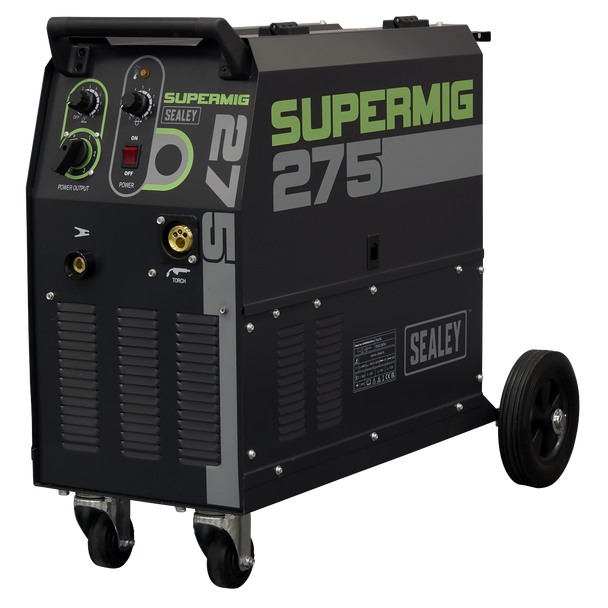

Sealey SUPERMIG275 Professional MIG Welder with Binzel® Euro Torch 270A 230V
Sealey SUPERMIG275 Professional MIG Welder with Binzel® Euro Torch 270A 230V
Highlights
• SEALEY SUPERMIG® - Compact, gas/gasless welder with 270A maximum performance.
• HIGH OUTPUT TRANSFORMER – Heavy-duty high output transformer, with 40-270A welding current.
• FORCED AIR COOLING – To maximise duty cycle performance.
• BOTH GAS/GASLESS OPERATION – Unit is supplied set up in gas mode but can easily be switched to gasless mode by a simple change of polarity. Use in gasless mode will require spool of flux cored wire.
• EURO NON-LIVE TORCH – Supplied with 3m Binzel® non-live Euro torch reducing accidental arcing and is comfortable in the hand, ensuring a steadier weld bead.
• ACCESSORIES INCLUDED – Includes industrial gas regulator 2.4m earth cable with clamp, 0.6mm contact tip, 1.0mm contact tip, 1.4m gas hose, hose clamp (x2).
• 3 YEAR GUARANTEE*.
Technical Details
| Welding Current: | 40-270A |
| Wire Capcity | 5-15kg |
| Duty Cycle: | 100% @ 112A, 60% @ 146A, 20% @ 255A |
| Cooling System: | Forced Air |
| Spot Welding Timer: | Yes |
| Gas Type: | CO2, Argon, CO2/Argon Mix |
| Torch: | 3m Euro Non-Live - BINZEL® MB25 |
| Supply: | 230-55A |
| Absorbed Power: | 12.6kW |
| Case Size: | Extra-Large |
| Plug Type: | Bare Wire |
| Nett Weight:
|
62.2kg
|
| Barcode:
|
5054630429170
|
| Parts Diagram:
|
|
| Declaration of Conformity:
|
Supplied with Torch: 3m Euro Non-Live - BINZEL® MB25
Optional Accessories for this Welder
Cylindrical Nozzle MB25/36 Pack of 2 Model No. MIG915
Contact Tip 0.8mm MB25/36 Pack of 5 Model No. MIG917
Contact Tip 1mm MB25/36 Pack of 5 Model No. MIG918
Contact Tip 1.2mm MB25/36 Pack of 5 Model No. MIG919
Diffuser Adaptor MB25/36 Pack of 2 Model No. MIG913
Nozzle Spring MB25/36 Pack of 2 Model No. MIG914
MIG Torch with 3m Euro Connection MB25 Model No. MIG/N325
Warranty
Sealey 3 year guarantee as standard
