Knuth HP 15 Single Column C Frame Workshop Press ( Part No. 130042 ) Compact machine is ideally suited for pressing, straightening, and bending, but can also be used for press-fitting and extracting
+3

Knuth HP 15 Single Column C Frame Workshop Press ( Part No. 130042 ) Compact machine is ideally suited for pressing, straightening, and bending, but can also be used for press-fitting and extracting

130042
£2,527.00
In stock
1
Product Details

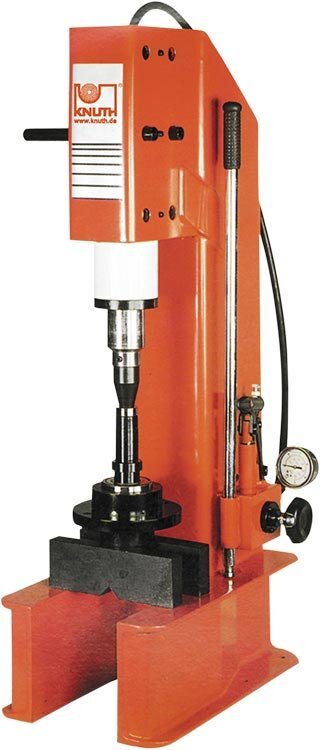

Knuth HP 15 Single Column C Frame Workshop Press

( Part No. 130042 )

Compact machine is ideally suited for pressing, straightening, and bending, but can also be used for press-fitting and extracting

Ex stock availability. Weeks lead time to site. Subject to no. prior sales.






Highlights

Single-column presses or C-frame presses are used in a wide range of metal, rubber, and plastic machining applications. This compact machine is ideally suited for pressing, straightening, and bending, but can also be used for press-fitting and extracting shafts and bearings. The robust hydraulic cylinder is height-adjustable and includes a pressure gauge. Piston retracts automatically.

  • Compact design
  • Pressure gauge
  • Adjustable hydraulic cylinder
  • V-blocks
  • Very sturdy and torsionally rigid construction
  • Infinitely variable pressure

Technical Details


WORKING AREA
Pressure force 15 t
Operating pressure (max.) 294 bar
Table dimensions 300 mm x 300 mm
Piston bore 80 mm
Ram-to-table surface distance 500 mm

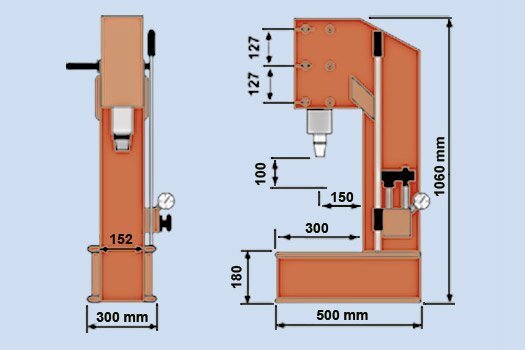

MEASURES AND WEIGHTS
Height 1060 mm
Weight 145 kg
