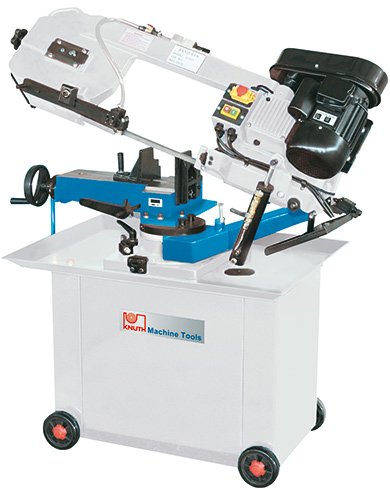

Knuth B 200 S Semi -Auto Bandsaw SKU : 102752
Knuth B 200 S Semi -Auto Bandsaw SKU : 102752
Highlights
The band saw of the B S series is the entry-level model of the classic horizontal band saws and ideal for workshops and one-off production. Thanks to the swiveling saw frame, the machine can make mitre cuts of up to 45 degrees. The saw frame feed is infinitely variable via a hydraulic valve and can also be readjusted during processing. The compact band saw has a low-maintenance and robust drive via V-belt and is equipped with a quick-release device and a coolant device.
- Saw frame swivels 45° on both sides

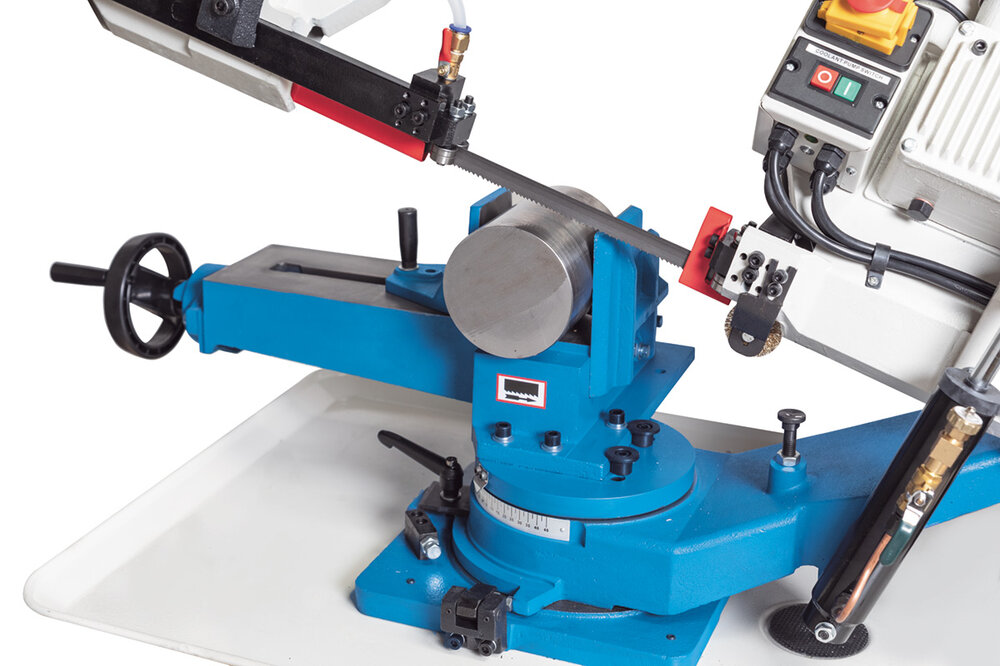

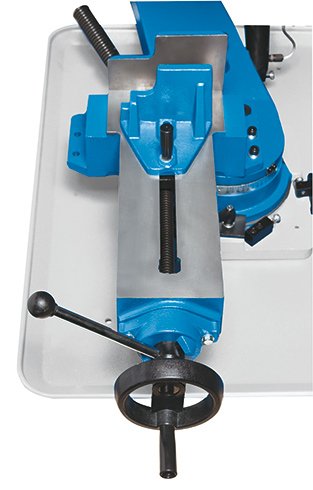

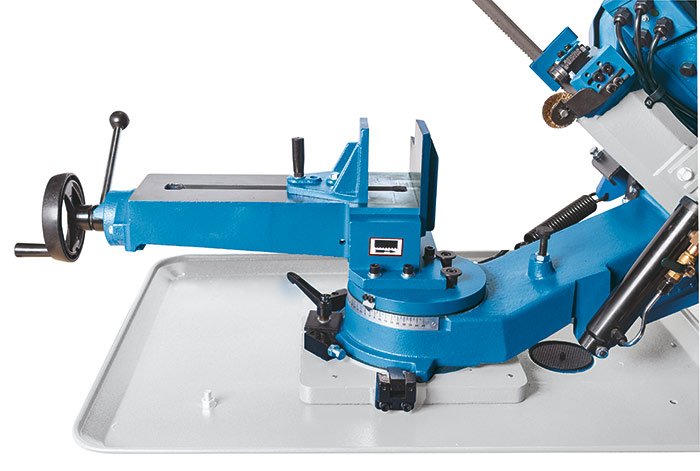

- 45° swiveling vise for mitre cutting
- Compact design
- Hydraulic cylinder-adjustable saw frame feed

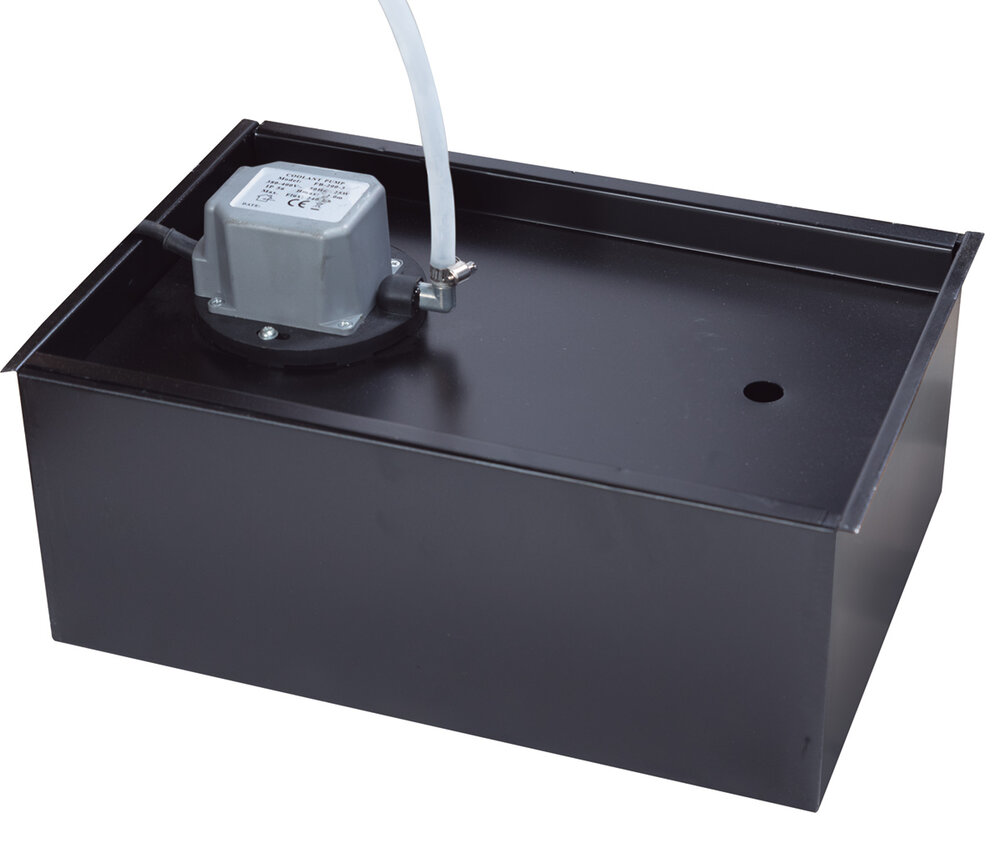

- Coolant unit in machine base
Product Details
- Saw frame swivelling on both sides - allowing angular cuts to 45°
- Coolant system is included
- Thin saw blade for reduced material removal
- Exact cuts - rigid construction prevents belt track deviations
- Quiet, low-vibration operation
- A hydraulic cylinder controls the support pressure infinitely from 0 to maximum pressure
Technical Details
| Cutting Capacities | |
|---|---|
| Cutting capacity 0° (round) | 205 mm |
| Cutting capacity 0° (square) | 205 mm |
| Cutting capacity 0° (flat) (length x width) | 205 mm x 215 mm |
| Cutting capacity 45° (round) L | 143 mm |
| Cutting capacity 45° (flat) L (length x width) | 143 mm x 115 mm |
| Belt speed | 24 / 41 / 61 / 82 m/min |
| Drive capacity | |
|---|---|
| Motor rating main drive | 1,1 kW |
| Measures and weights | |
|---|---|
| Blade dimensions | 2360 mm x 20 mm x 0,9 mm |
| Overall dimensions (length x width x height) | 1,23 m x 0,65 m x 1,32 m |
| Weight | 190 kg |
Standard Equipment
Operator Training
Operator training available in showroom subject to quotation
prior to delivery. Email us to outline your needs.
Shipping
Fully inclusive shipping rates covering transportation, import customs documentation, duties
quoted for inclusion at time of order for UK mainland sites. Northern Ireland destinations, Islands
and other remote sites should seek advice prior to order via email. Clients will be responsible for
their own site offload and siting at point of use.
European & Other Worldwide Clients.
Email for current shipping rates prior to order.
Finance Availability
Looking to finance your equipment?
We have access to a variety of funding sources who will look sympathetically
at requests for funding finance.
These include leading merchant banks such as asset finance specialists Close Brothers and Lombard.
The financial services division of Siemens will consider HP on the investment. Subject to Status.
On an investment of this nature with a long delivery lead time we can also look at providing a staged payment schedule.
We will confirm this with you at time of order.
