Knuth ABS 320 PLC Automatic Straight Bandsaw ( Sku 152759)
£15,606.00
In stock
Product Details

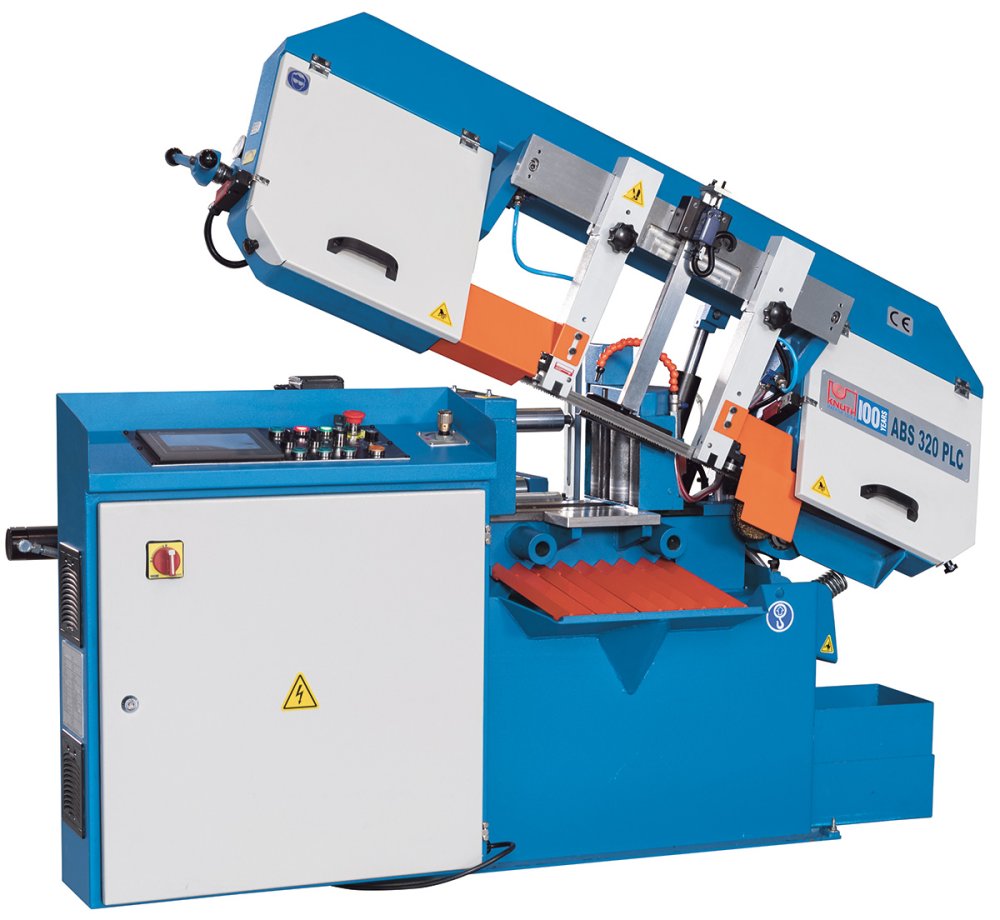

Knuth ABS 320 PLC Automatic Straight Bandsaw
( Sku 152759)
A robust fully automated band saw designed for maximum reliability.
Ex stock availability. 1/2 Weeks to site. Subject to no prior sales.
Highlights
The ABS 320 PLC is a robust fully automated band saw designed for maximum reliability. The automatic feed is driven via rolls in the clamping jaws. Operation is simple, and the touchscreen guides the operator through the machine setup.
- Touchscreen for automatic feed
- Hydraulic workpiece clamping
- Bundling vise
- Infinitely variable cutting speeds
Product Details
- The ABS 320 PLC is a fully automated horizontal band saw, which is ideally suited for single cut and series production of solid materials, tubes, and profiles

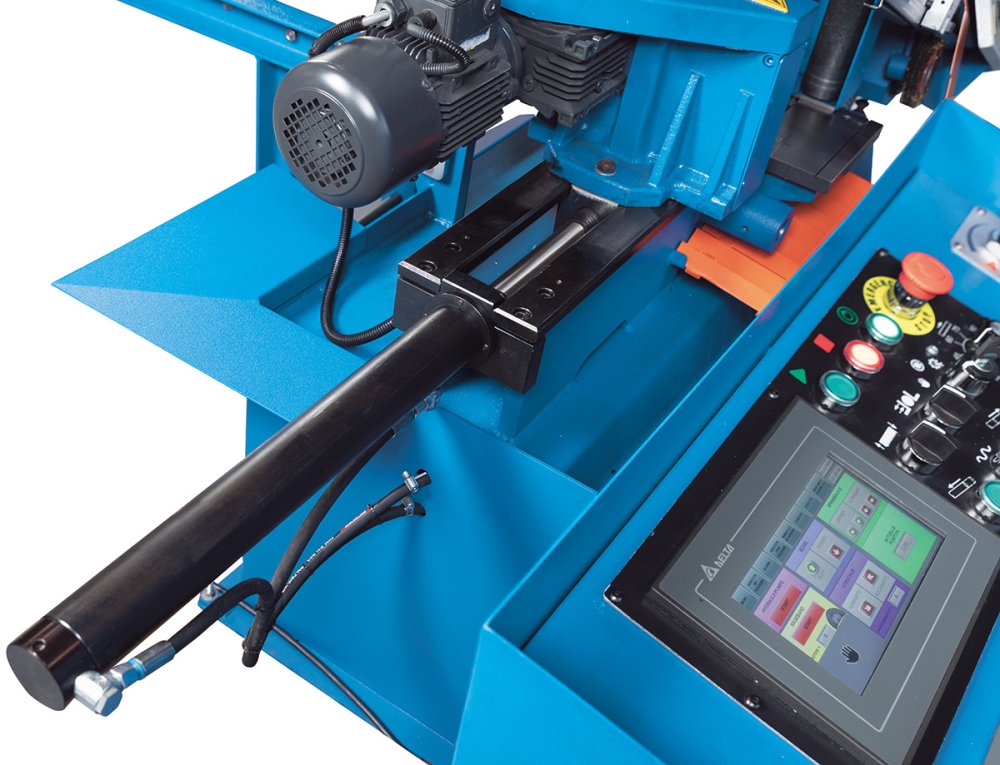

- The automatic workpiece feed is very precise and driven via vise-integrated motorized rollers

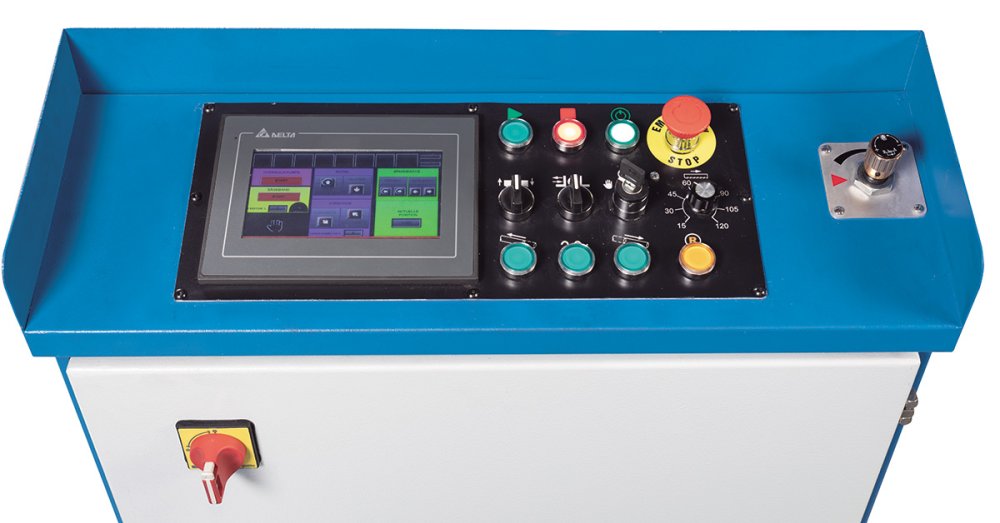

- The robust and user-friendly touchscreen is used to enter the desired cut lengths, which then are produced in a fully automatic operation
- The torsionally rigid saw frame provides excellent stability and vibration-damping characteristics

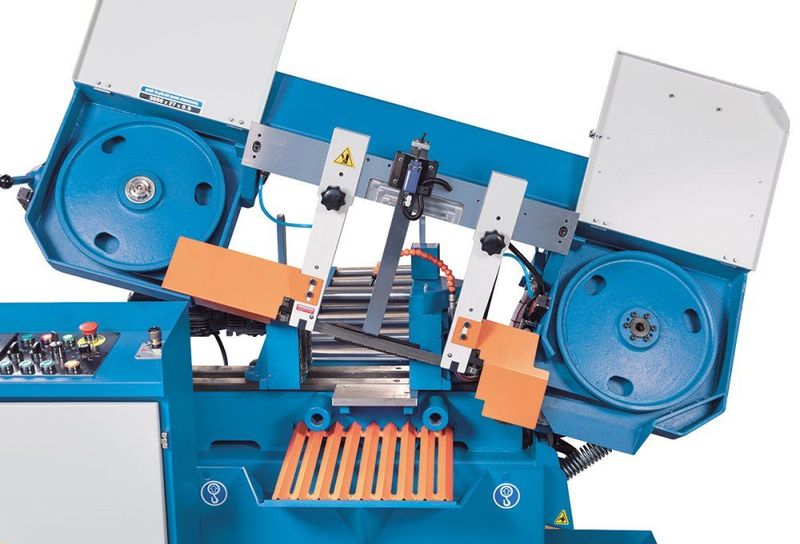

- Large drive wheels and idlers extend the saw blade life

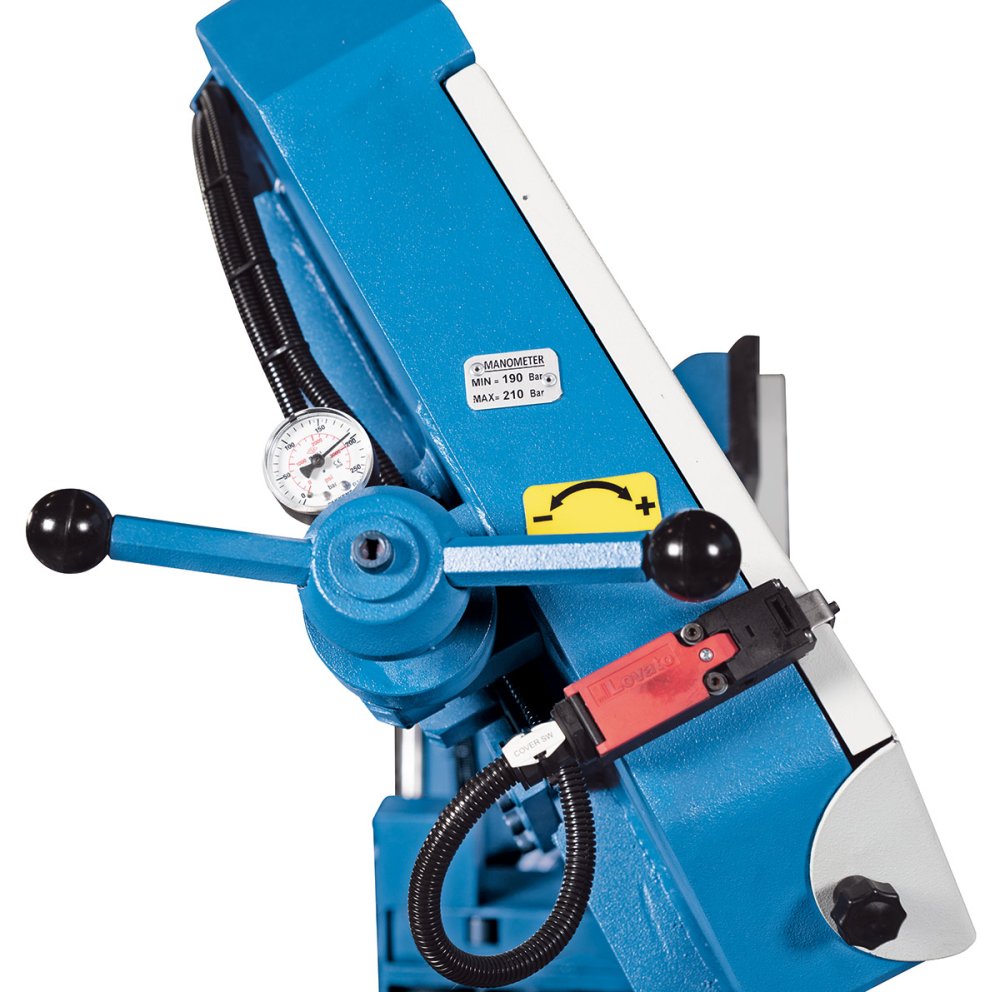

- The saw blade tension can be precisely adjusted via a pressure gauge that is integrated in the clamping mechanism

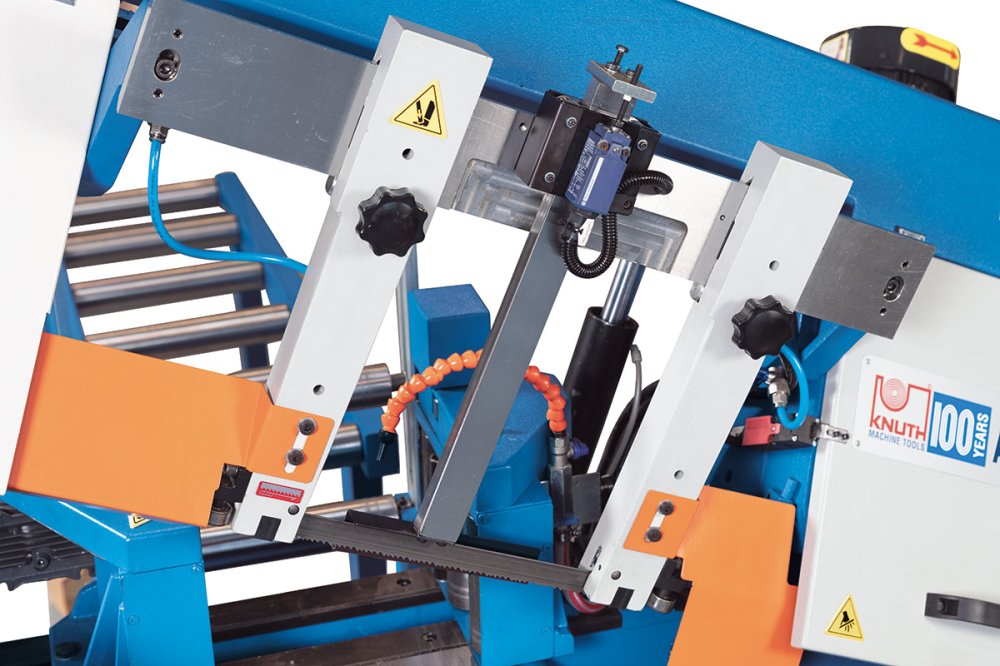

- Rigid high-precision carbide saw blade guides ensure excellent vertical angular accuracy of the cut
- The reliable hydraulic unit provides the drive power for saw frame stroke and workpiece clamping
- Saw blade feed via micro-adjustable hydraulic valve

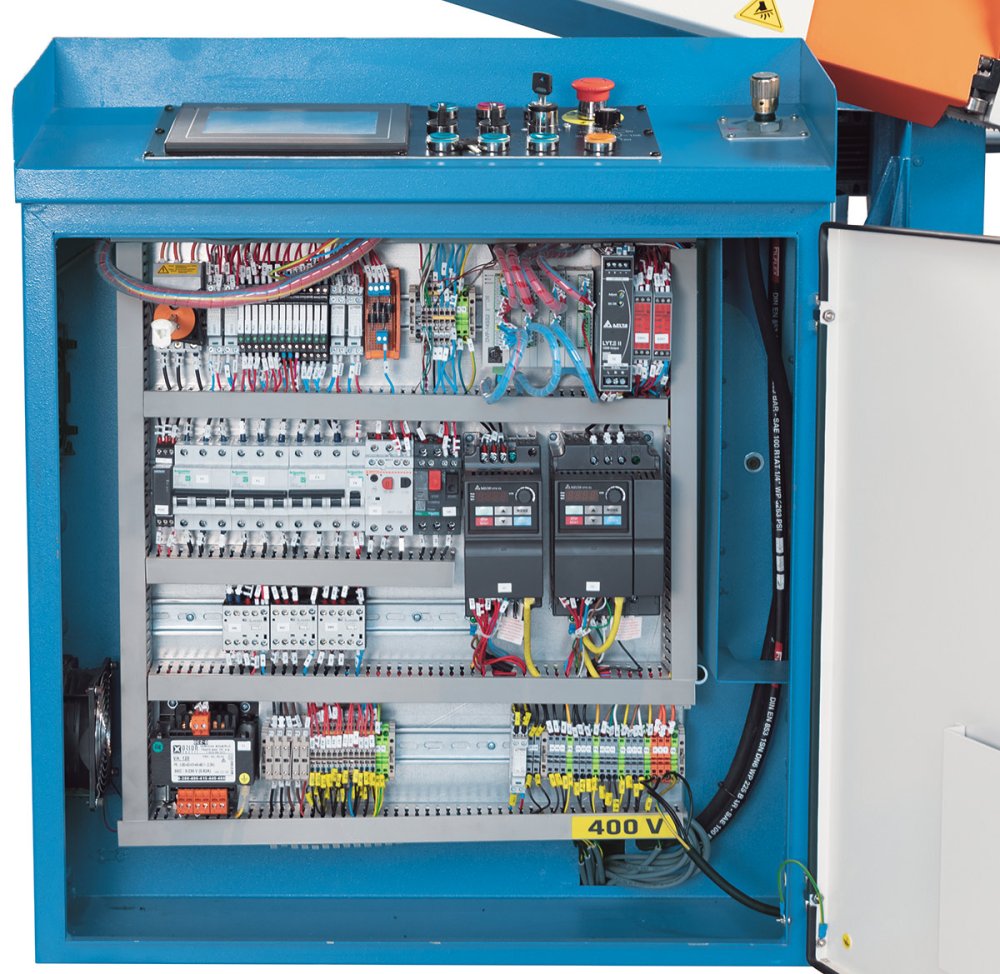

- All switches and controls are arranged centrally on an operator panel at the control cabinet
- Unnecessary down-times are reduced by an optically controlled change-over from rapid feed to work feed
- The extensive standard equipment package includes an integrated band breakage control, a high-performance coolant system, and a bundling vise
- The extensive optional accessories includes everything from motor-driven roller conveyors to Minimal Quantity Lubrication (MQL)
Technical Details
| Cutting Capacities | |
|---|---|
| Cutting capacity 0° (round) | 320 mm |
| Cutting capacity 0° (square) | 300 mm |
| Cutting capacity 0° (flat) (length x width) | 320 mm x 300 mm |
| Cutting speed | 20 m/min - 100 m/min |
| Working height | 640 mm |
| Drive capacity | |
|---|---|
| Motor rating main drive | 1,5 kW |
| Motor rating hydraulic pump | 0,37 kW |
| Motor rating coolant pump | 0,12 kW |
| Motor rating feed | 0,25 kW |
| Measures and weights | |
|---|---|
| Blade dimensions | 3660 mm x 27 mm x 0,9 mm |
| Overall dimensions (length x width x height) | 1,9 m x 0,85 m x 1,3 m |
| Weight | 765 kg |
Standard Equipment
SPS-control with touch-screen
Hydraulic part clamping
Bundle vise
Mechanical saw blade tensioning with hydraulic pressure gauge
Optical height adjustment
Automatic band break control

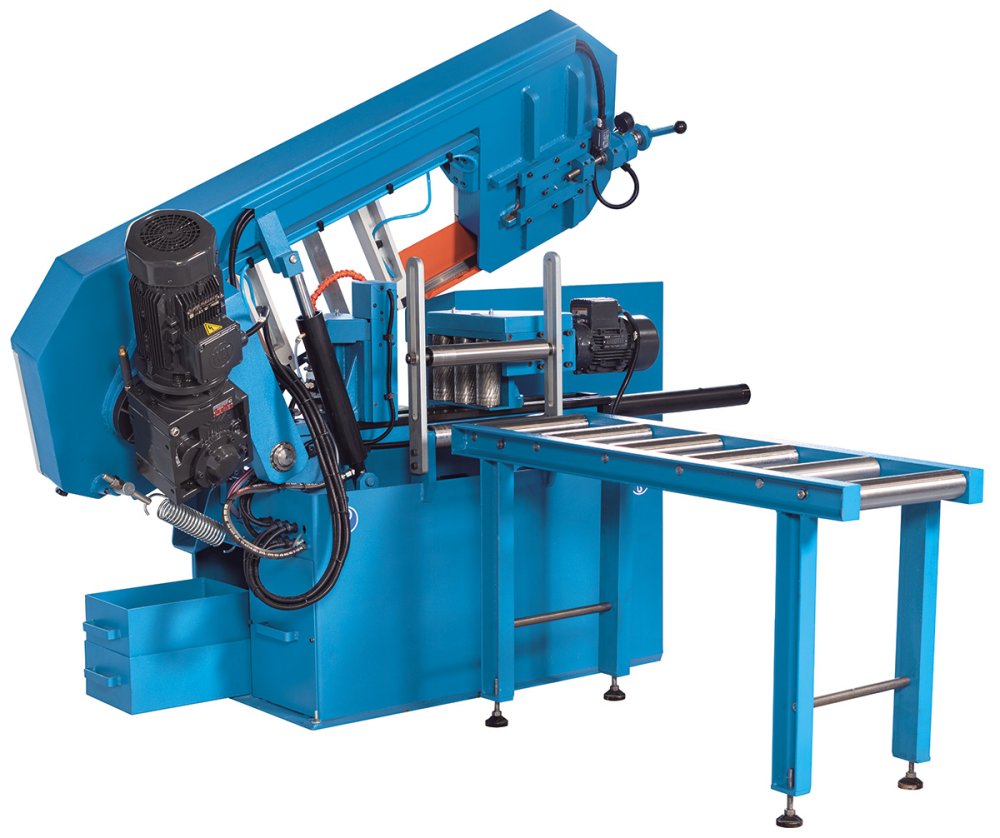

Feed roller table 1,2 m
Coolant system
Saw-band
Saw blade cleaner brush
Operating tools
Operator instructions
Optional Equipment
Optional equipment available for this machine
3 meter roller table
SKU: 251888
chip conveyor
SKU: 251889
Hydraulic saw blade tensioning
SKU: 253894
Micro spray cooling system
SKU: 253851
Laser pointer
SKU: 253753
Contact us for price and availability details
Finance Availability
Looking to finance your equipment?
We have access to a variety of funding sources who will look sympathetically
at requests for funding finance.
These include leading merchant banks such as asset finance specialists Close Brothers and Lombard.
The financial services division of Siemens will consider HP on the investment. Subject to Status.
On an investment of this nature with a long delivery lead time we can also look at providing a staged payment schedule.
We will confirm this with you at time of order.
