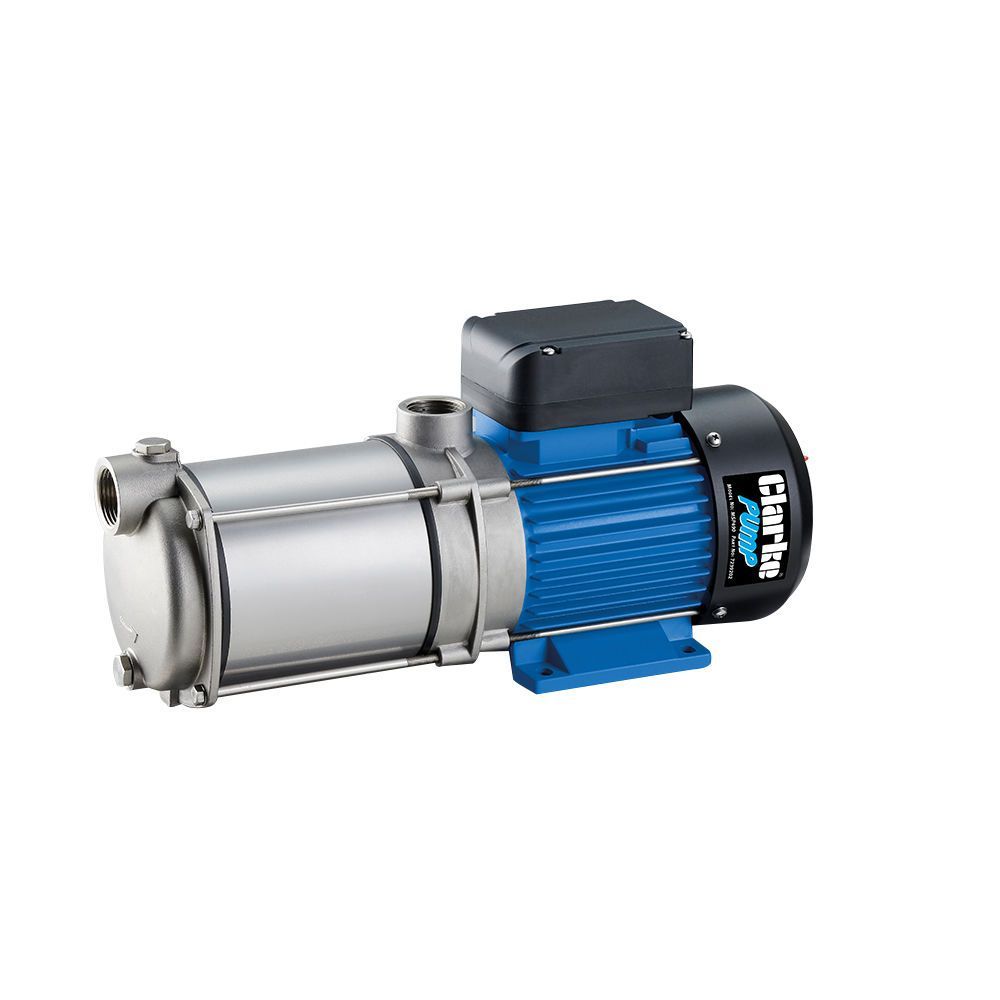

Clarke MSP Series Stainless Steel Booster Pump
Clarke MSP Series Stainless Steel Booster Pump
Highlights
Clarke MSP series pumps are powerful multi-stage booster pumps that deliver impressive flows, ranging from 90L/min up to a maximum 120 litres per minute water flow in the largest model. The range of pumps are ideal for boosting or maintaining mains water pressure in homes, offices and workshops .
The premium construction of these robust and hardworking pumps is WRAS approved, which makes them suitable for use with drinking water supplies, whilst the pumps stainless steel impellor ensures that the impellor is rust and corrosion resistant, providing the benefit of a long service life. The thermal protector built in to the pump guarantees safety, cutting out the pump when it becomes overloaded, preventing damage to the unit, system and the surroundings.
- Suitable for cold clean water and drinking water supplies
- WRAS Approved preventing contamination of water supply
Booster Pump Range Summary
Clarke MSP 490 Stainless Steel Multi Stage Booster Pump 90 Lpm 43 m head ( Sku.no. 7239202 )
Clarke MSP 590 Stainless Steel Multi Stage Booster Pump 90 Lpm 53 m head ( Sku.no. 7239203 )
Clarke MSP 690 Stainless Steel Multi Stage Booster Pump 90 Lpm 64 m head ( Sku.no. 7239204 )
Clarke MSP 4120 Stainless Steel Multi Stage Booster Pump 120 Lpm 48 m head ( Sku.no. 7239205 )
Clarke MSP 5120 Stainless Steel Multi Stage Booster Pump 120 Lpm 57 m head ( Sku.no. 7239206 )
Clarke MSP 6120 Stainless Steel Multi Stage Booster Pump 120 Lpm 72 m head ( Sku.no. 7239207 )
Booster Pump Model
MSP 490 Booster Pump
Clarke MSP 490 Stainless Steel Multi Stage Booster Pump 90 Lpm 43 m head ( Sku.no. 7239202 )
The Clarke MSP490 is a powerful 850W multi-stage booster pump that delivers an impressive 90L/min making this pump ideal for boosting or maintaining mains water pressure in homes, offices and workshops up to a pressure of 4.3bars.
The premium construction of this robust and hardworking pump is WRAS approved, which makes it suitable for use with drinking water supplies, whilst the pumps stainless steel impellor ensures that the impellor is rust and corrosion resistant, providing the benefit of a long service life. The thermal protector built in to the pump guarantees safety, cutting out the pump when it becomes overloaded, preventing damage to the unit, system and the surroundings
- Maximum Head: 43m
- Maximum Delivery: 90L/min
- Operating Pressure: 4.3bar
- Suitable for cold clean water and drinking water supplies
- WRAS Approved preventing contamination of water supply
- Inlet/Outlet Size: 1"
Technical specification
| Outlet Diameter | 1" |
| Max Head | 43m |
| Volts | 230V |
| Max Flow | 90L/min |
| Use | Booster Pump |
| Watts | 850W |
| Pressure (Bar) | 4.3 |
| Packaged Weight | 12.5kg |
MSP 590 Booster Pump
Clarke MSP 590 Stainless Steel Multi Stage Booster Pump 90 Lpm 53 m head ( Sku.no. 7239203 )
The Clarke MSP590 is a powerful 1050W multi-stage booster pump that delivers an impressive 90L/min making this pump ideal for boosting or maintaining mains water pressure in homes, offices and workshops up to a pressure of 5.3bars.
The premium construction of this robust and hardworking pump is WRAS approved, which makes it suitable for use with drinking water supplies, whilst the pumps stainless steel impellor ensures that the impellor is rust and corrosion resistant, providing the benefit of a long service life. The thermal protector built in to the pump guarantees safety, cutting out the pump when it becomes overloaded, preventing damage to the unit, system and the surroundings.
- Maximum Head: 53m
- Maximum Delivery: 90L/min
- Operating Pressure: 5.3bar
- Suitable for cold clean water and drinking water supplies
- WRAS Approved preventing contamination of water supply
- Inlet/Outlet Size: 1"
Technical specification
| Outlet Diameter | 1" |
| Max Head | 53m |
| Volts | 230V |
| Max Flow | 90L/min |
| Use | Booster Pump |
| Watts | 1050W |
| Pressure (Bar) | 5.3 |
| Packaged Weight | 13.5kg |
MSP 690 Booster Pump
Clarke MSP 690 Stainless Steel Multi Stage Booster Pump 90 Lpm 64 m head ( Sku.no. 7239204 )
The Clarke MSP690 is a powerful 1300W multi-stage booster pump that delivers an impressive 90L/min making this pump ideal for boosting or maintaining mains water pressure in homes, offices and workshops up to a pressure of 6.4bars.
The premium construction of this robust and hardworking pump is WRAS approved, which makes it suitable for use with drinking water supplies, whilst the pumps stainless steel impellor ensures that the impellor is rust and corrosion resistant, providing the benefit of a long service life. The thermal protector built in to the pump guarantees safety, cutting out the pump when it becomes overloaded, preventing damage to the unit, system and the surroundings.
- Maximum Head: 64m
- Maximum Delivery: 90L/min
- Operating Pressure: 6.4bar
- Suitable for cold clean water and drinking water supplies
- WRAS Approved preventing contamination of water supply
- Inlet/Outlet Size: 1"
Technical specification
| Outlet Diameter | 1" |
| Max Head | 64m |
| Volts | 230V |
| Max Flow | 90L/min |
| Use | Booster Pump |
| Watts | 1300W |
| Pressure (Bar) | 6.4 |
| Packaged Weight | 17.6kg |
MSP 4120 Booster Pump
Clarke MSP 4120 Stainless Steel Multi Stage Booster Pump 120 Lpm 48 m head ( Sku.no. 7239205 )
The Clarke MSP4120 is a powerful 1000W multi-stage booster pump that delivers an impressive 90L/min making this pump ideal for boosting or maintaining mains water pressure in homes, offices and workshops up to a pressure of 4.5bars.
The premium construction of this robust and hardworking pump is WRAS approved, which makes it suitable for use with drinking water supplies, whilst the pumps stainless steel impellor ensures that the impellor is rust and corrosion resistant, providing the benefit of a long service life. The thermal protector built in to the pump guarantees safety, cutting out the pump when it becomes overloaded, preventing damage to the unit, system and the surroundings.
- Maximum Head: 48m
- Maximum Delivery: 120L/min
- Operating Pressure: 4.5bar
- Suitable for cold clean water and drinking water supplies
- WRAS Approved preventing contamination of water supply
- Inet Size: 1.25"
- Outlet Size: 1"
- Self Priming
Technical specification
| Outlet Diameter | 1" |
| Max Head | 48m |
| Volts | 230V |
| Max Flow | 120L/min |
| Use | Booster Pump |
| Watts | 1000W |
| Pressure (Bar) | 4.5 |
| Packaged Weight | 12.8kg |
MSP 5120 Booster Pump
Clarke MSP 5120 Stainless Steel Multi Stage Booster Pump 120 Lpm 57 m head ( Sku.no. 7239206 )
The Clarke MSP4120 is a powerful 1300W multi-stage booster pump that delivers an impressive 90L/min making this pump ideal for boosting or maintaining mains water pressure in homes, offices and workshops up to a pressure of 5.7 bars.
The premium construction of this robust and hardworking pump is WRAS approved, which makes it suitable for use with drinking water supplies, whilst the pumps stainless steel impellor ensures that the impellor is rust and corrosion resistant, providing the benefit of a long service life. The thermal protector built in to the pump guarantees safety, cutting out the pump when it becomes overloaded, preventing damage to the unit, system and the surroundings.
- Maximum Head: 57m
- Maximum Delivery: 120L/min
- Operating Pressure: 5.7bar
- Suitable for cold clean water and drinking water supplies
- WRAS Approved preventing contamination of water supply
- InletSize: 1.25"
- Outlet Size: 1"
- Self Priming
Technical specification
| Outlet Diameter | 1" |
| Max Head | 57m |
| Volts | 230V |
| Max Flow | 120L/min |
| Use | Booster Pump |
| Watts | 1300W |
| Pressure (Bar) | 5.7 |
| Packaged Weight | 17.2kg |
MSP 6120 Booster Pump
Clarke MSP 6120 Stainless Steel Multi Stage Booster Pump 120 Lpm 72 m head ( Sku.no. 7239207 )
The Clarke MSP6120 is a powerful 1500W multi-stage booster pump that delivers an impressive 90L/min making this pump ideal for boosting or maintaining mains water pressure in homes, offices and workshops up to a pressure of 6.9 bars.
The premium construction of this robust and hardworking pump is WRAS approved, which makes it suitable for use with drinking water supplies, whilst the pumps stainless steel impellor ensures that the impellor is rust and corrosion resistant, providing the benefit of a long service life. The thermal protector built in to the pump guarantees safety, cutting out the pump when it becomes overloaded, preventing damage to the unit, system and the surroundings.
- Maximum Head: 69 m
- Maximum Delivery: 120L/min
- Operating Pressure: 6.9 bar
- Suitable for cold clean water and drinking water supplies
- WRAS Approved preventing contamination of water supply
- Outlet Size: 1"
- Inlet Size: 1.25"
- Self Priming
Technical specification
| Outlet Diameter | 1" |
| Max Head | 72m |
| Volts | 230V |
| Max Flow | 120L/min |
| Use | Booster Pump |
| Watts | 1500W |
| Pressure (Bar) | 6.9 |
| Packaged Weight | 18.7kg |
Warranty
Clarke is a British based company whose products comply with British and European Standards and European safety and CE marking directives. Their products are supplied with a 1 year parts and labour warranty from date of purchase.
