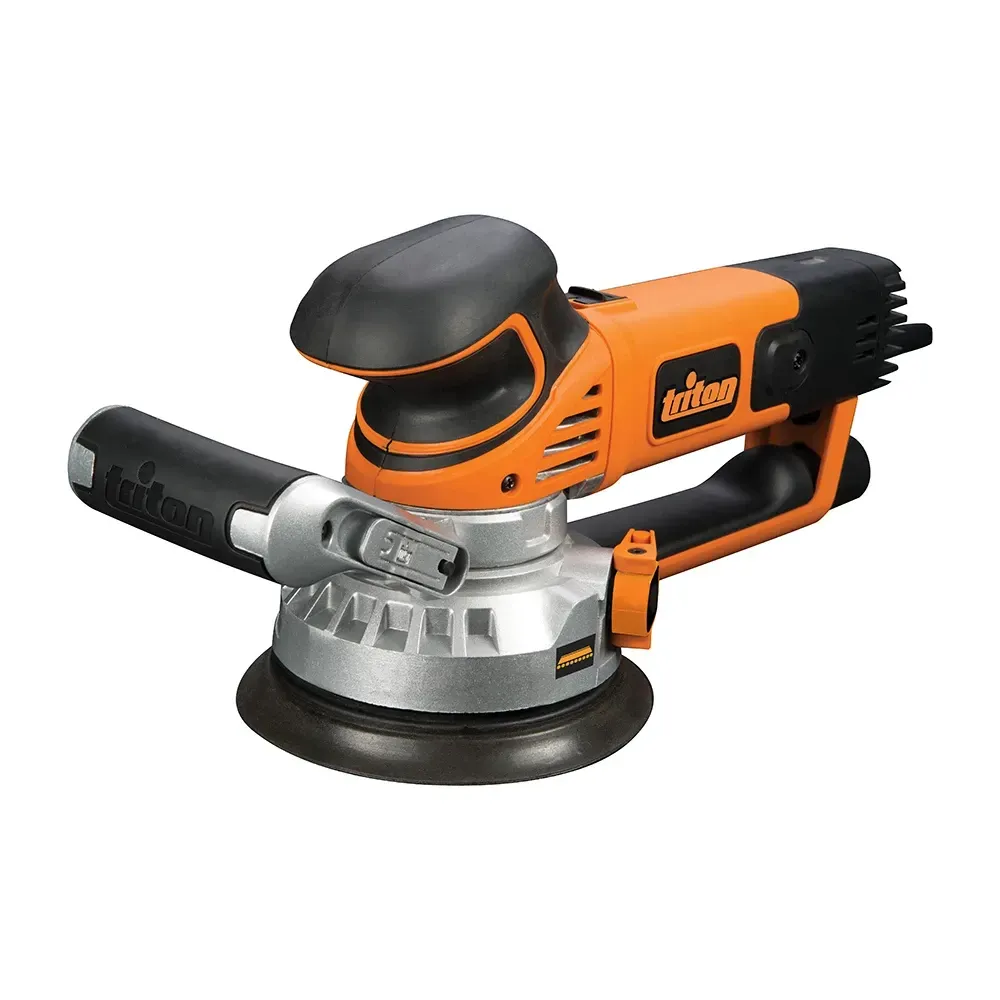

Triton 500W Geared Eccentric Orbital Sander TGEOS
Triton 500W Geared Eccentric Orbital Sander TGEOS

Highlights
Triton 500W Geared Eccentric Orbital Sander
- Powerful 500W motor provides ample power for the most demanding sanding and polishing tasks
- Dual orbit sanding action with free-run mode for fine sanding, and geared fixed orbit mode for fast material removal and buffing
- Vacuum dust extraction port for increased operator safety and clean work areas
Product Features
- Powerful 500W motor provides ample power for the most demanding sanding and polishing tasks
- Dual orbit sanding action with free-run mode for fine sanding, and geared fixed orbit mode for fast material removal and buffing
- Vacuum dust extraction port for increased operator safety and clean work areas
- Constant speed under load ensures maximum control at all times
- Variable speed control and backing pad braking system adapt to a variety of materials and prevent workpiece damage
- Rubber over-moulded grip offers increased support, safety & control of the tool
- Adjustable auxiliary handle adapts the tool to the job and matches operator preference
- Soft case, 12 sanding discs with various grit and 2 x spare carbon brushes for convenient storage, different sanding applications and extended service life
Technical Details
Powerful 500W dual-mode sander with 150mm and 125mm dia backing pads. Features variable speed and electronic speed maintenance under load. Vacuum dust extraction port for effective dust removal. Quick selection of free-run or fixed orbit mode, for fast and accurate control over material removal and surface finish. Backing pad braking system prevents workpiece damage. Swivelling auxiliary handle and vibration-reducing rubber over-moulded grips for increased user comfort and safety. Includes soft carry case, 12 x sanding discs and 1 x spare carbon brushes.
Additional Product Data
| Power | 500W |
| No Load Speed | 2500 - 6250min-1 |
| Sanding Pad Dia | 150mm & 125mm |
| Paper Attachment | Hook & Loop |
| Dust port dimensions | Inner 27mm, outer 31mm |
| Weight | 3.1kg |
| What's in the Box | 1 x TGEOS 500W Geared Eccentric Orbital Sander 1 x Hook & Loop Backing Pad 150mm (6”) 1 x Hook & Loop Backing Pad 125mm (5”) 12 x Sanding Discs 4 x 80G, 4 x 100G & 4 x 240G 1 x Hex Key 1 x Pair of Carbon Brushes 1 x Soft Carry Case |
Packaged Product Information
| Dimensions (m) | 0.45 (L) x 0.23 (W) x 0.21 (H) |
| Weight (kg) | 4.81 |



To activate the extended 3 year guarantee you must register the product at www.tritontools.com within 30 days of purchase. Should you not wish to register, a standard 30 day guarantee period will apply.
This guarantee, and the guarantee period, begins on the date of retail purchase as detailed on your sales receipt.
