Sealey SACV52775B 270L Vertical Belt Drive Air Compressor with Cast Cylinders 7.5hp 2-Stage

Name: Sealey SACV52775B 270L Vertical Belt Drive Air Compressor with Cast Cylinders 7.5hp 2-Stage https://www.traxxengineeringsupplies.co.uk/home/Sealey-SACV52775B-270L-Vertical-Belt-Drive-Air-Compressor-with-Cast-Cylinders-7-5hp-2-Stage-p865778592
SKU: SACV52775B
Price: 2749.99 GBP
Availability: InStock

Store / Garage Equipment, Storage & Power Products. / Compressors , Air Tools, Sand/Grit Blasting etc

£2,749.99

On Sale

was ~~£3,099.95~~ Save 11%

In stock

Product Details

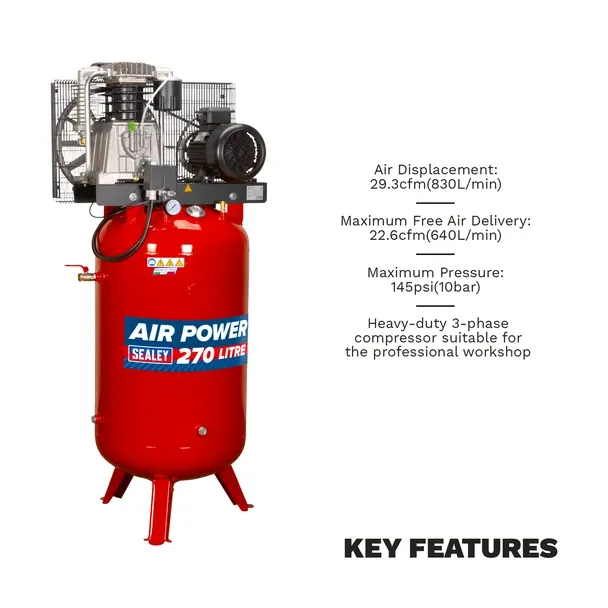

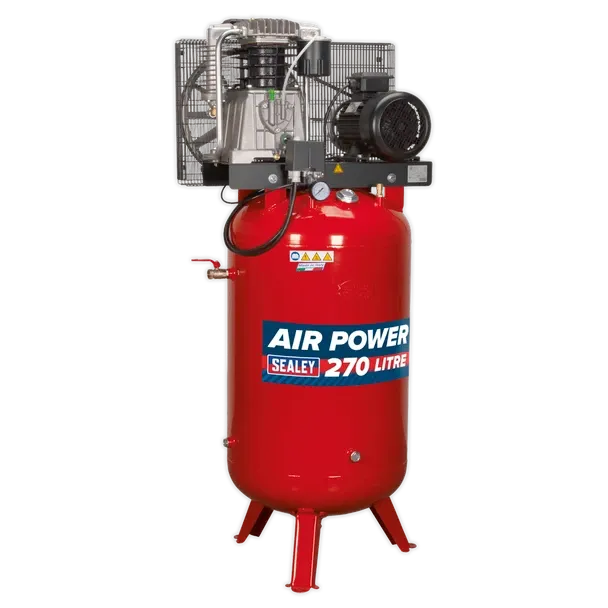

Sealey SACV52775B 270L Vertical Belt Drive Air Compressor with Cast Cylinders 7.5hp 2-Stage

Highlights

• Air Displacement: 29.3cfm(830L/min).

• Maximum Free Air Delivery: 22.6cfm(640L/min).

• Maximum Pressure: 145psi(10bar).

• Heavy-duty 3-phase compressor suitable for the professional workshop.

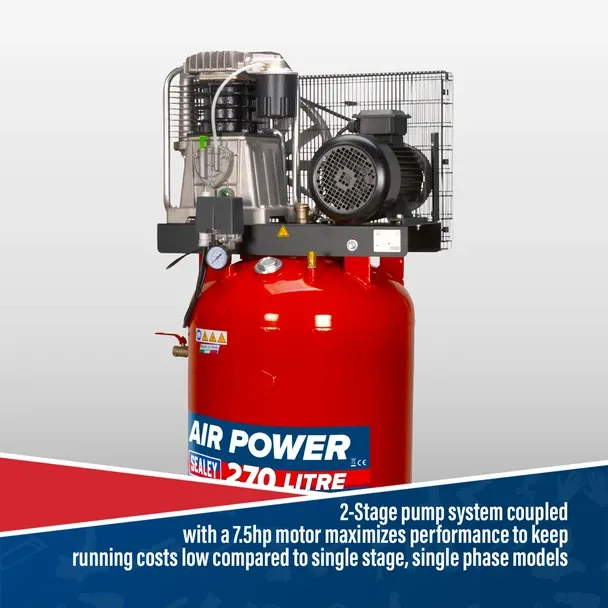

• 2-Stage pump system coupled with a 7.5hp motor maximizes performance to keep running costs low compared to single stage, single phase models.

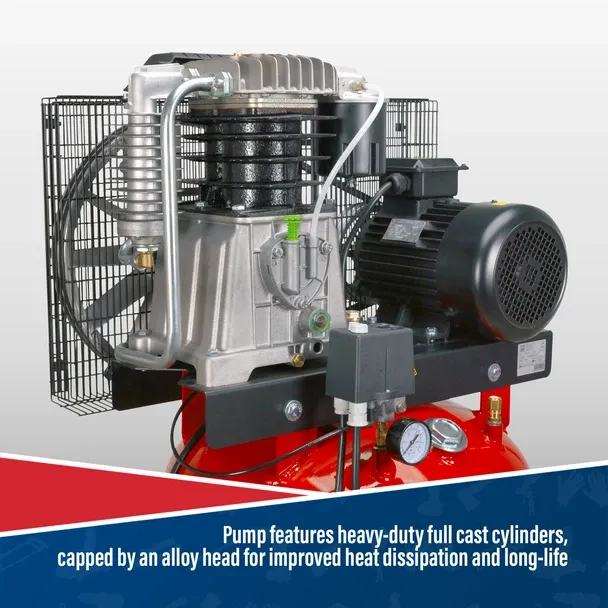

• Pump features heavy-duty full cast cylinders, capped by an alloy head for improved heat dissipation and long-life.

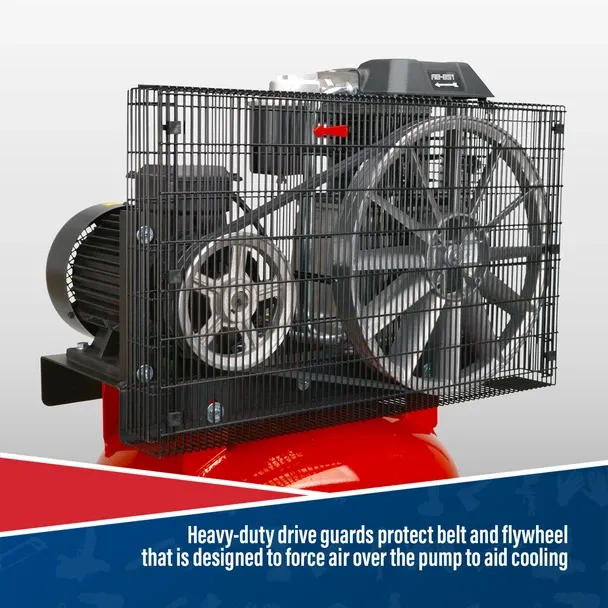

• Heavy-duty drive guards protect belt and flywheel that is designed to force air over the pump to aid cooling.

• This item is heavy. Extra assistance must be provided at the delivery point to help its safe delivery.

Technical Details

Air Displacement cfm(L/min):

29.3(830)

Maximum Free Air Delivery cfm(L/min):

22.6(640)

Maximum Pressure:

145psi(10bar)

Minimum Rated Supply:

32A

Motor Output:

7.5hp

Oil Capacity:

1.57L

Outlet:

3/4"BSP Female Tap

Phase:

3ph

Receiver Capacity:

270L

Size (W x D x H):

1200 x 800 x 2100mm

Speed:

1280rpm

Supply:

400V/32A

Nett Weight:

164kg

Barcode:

5051747982154

Declaration of Conformity:

Safety Data Sheet:

Parts Diagram:

Instructions:

Warranty

Sealey one year warranty as standard
