MAKITA DHR202Z 18v 3 function hammer - SDS plus (Body only)

MAKITA DHR202Z 18v 3 function hammer - SDS plus (Body only)

Highlights

Product Description

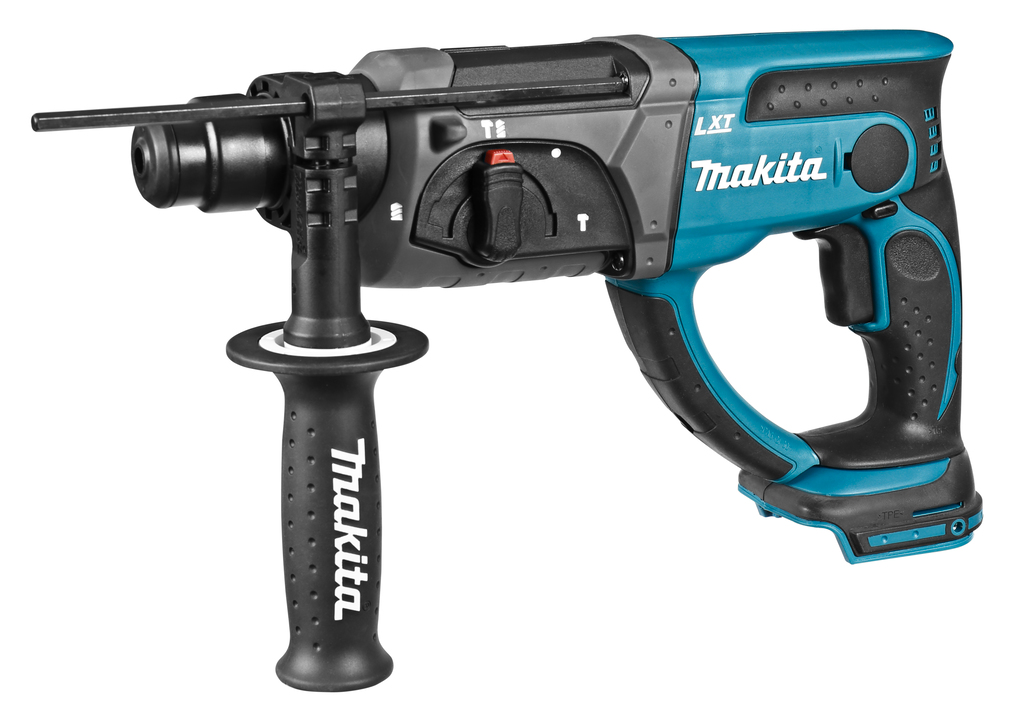

Makita DHR202Z LXT 18V 20mm 3-Mode SDS+ Rotary Hammer (Body Only)

The Makita DHR202Z LXT 18V 20mm 3-Mode SDS+ Rotary Hammer (Body Only) is a cordless SDS-Plus hammer drill designed for fast, controlled drilling and chiselling in concrete, masonry, wood and steel. Ideal for professional trades working on construction, refurbishment and installation tasks, it combines the convenience of the Makita 18V LXT platform with the performance expected from a dedicated rotary hammer. Delivering up to 2.0J of impact energy, 0-4,000 blows per minute and a no-load speed of up to 1,100rpm, it offers efficient drilling with an optimum range of 4-12mm in concrete and a maximum capacity of 20mm. The three-mode selector lets you choose between rotary only, rotary hammer and hammer only, while the 360° rotating chisel with 40 locking positions supports versatile chasing and light breaking work. A variable speed trigger with reverse, torque limiter and battery protection circuit help maintain control and protect the tool, and the soft-grip handle, side handle and LED job light with afterglow support comfortable, accurate working. Supplied as a bare unit with side handle and depth stop, it is compatible with Makita 18V LXT Li-Ion batteries and chargers.

DHR202Z Features:

• Makita DHR202Z LXT 18V 20mm 3-Mode SDS+ Rotary Hammer delivers cordless freedom for drilling and chiselling across concrete, masonry, wood and steel in the SDS+ hammer drill category.
• Three-mode operation (rotation only, hammering with rotation, hammering only) allows you to switch quickly between drilling, hammer drilling and chiselling to suit the task.
• Impact energy up to 2.0J and up to 4,000 blows per minute provide efficient material removal and fast drilling progress on site.
• Variable speed trigger with reverse and up to 1,100rpm no-load speed offers precise hole starting and controlled drilling in a range of materials.
• One-touch sliding SDS-Plus chuck enables rapid bit changes, helping to maximise productivity when swapping between drill and chisel accessories.
• 360° rotating chisel with 40 locking positions gives flexible working angles for chasing, channel cutting and light breaking work.
• Compact, lightweight LXT design with soft-grip handle and side handle improves balance and comfort during extended professional use.
• Built-in LED job light with afterglow improves visibility in darker areas, helping you work accurately in poorly lit spaces.
• Battery protection and torque limiter systems help protect the tool, battery and user if the bit jams or the pack is overloaded.
• Part of the Makita 18V LXT platform, allowing the rotary hammer to share batteries with other Makita cordless power tools to streamline your kit.

Technical Details

Brand:	Makita
Model:	DHR202Z
Product type:	18V LXT SDS-Plus rotary hammer
Power supply:	Cordless
Battery chemistry:	Li-Ion
Battery platform:	18V LXT
Nominal battery voltage:	18 V
Impact energy:	2.0 J
Impact rate:	0 - 4,000 bpm
No load speed:	0 - 1,100 rpm
Max drilling capacity in concrete:	20 mm
Max drilling capacity in wood:	26 mm
Max drilling capacity in steel:	13 mm
Optimum drilling range in concrete:	4 - 12 mm
Drilling diameter with TCT core bit:	54 mm
Operation modes:	Rotary only, hammering with rotation, hammering only
Chuck type:	SDS-Plus
Tool weight with battery:	3.2 - 4.0 kg
Tool weight without battery:	2.9 kg
Overall length:	358 mm
Product dimensions (L x W x H):	358 x 84 x 259 mm
Sound power level LWA:	99 dB(A)
Sound pressure level LpA:	91 dB(A)
Noise uncertainty K factor:	3 dB(A)
Vibration level hammer drilling into concrete:	14.5 m/s²
Vibration level chiselling:	11 - 14.1 m/s²
Vibration drilling:	3 m/s²
Switch type:	Variable speed trigger with reverse
Motor type:	Brushed 4 pole motor
Included accessories:	Side handle and depth stop
