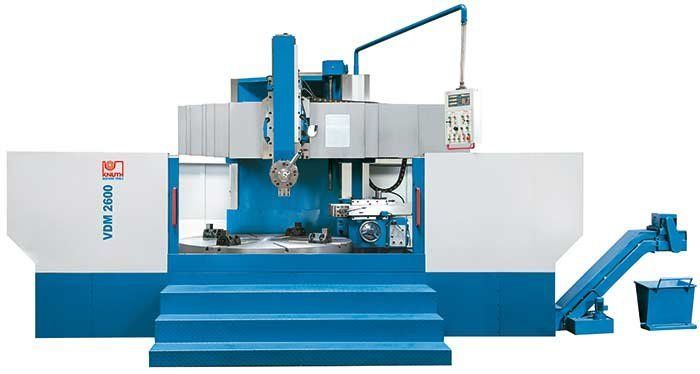

Knuth VDM 2600 S Conventional Vertical Lathe ( SKU : 301396)
Knuth VDM 2600 S Conventional Vertical Lathe ( SKU : 301396)
Delivery lead time 6 months typical
The VDM series of vertical lathes offers modern, conventional solutions for machining large workpiece diameters and heavy workpiece weights. Their design enables particularly easy and safe loading and unloading. The feed drive is a high-torque servo motor and a powerful hydraulic system clamps the crossbeam. The main drive provides high torque for heavy machining and a side support is available for machining the outer contour. The standard mounted 3-axis position indicator ensures precision.
- Optimum assembly with crane and forklift
- Infinitely variable feed control via servo motor
- Long, sturdy vertical boom
- Side support with boom and independent feed
- Reduction gear drive for high torque
Product Detail
Knuth VDM 2600 S Conventional Vertical Lathe ( SKU : 301396)
- Infinitely variable feed control via servo-motor
- Optimum tooling and easy access for cranes and forklift trucks
- Heavy-duty column with wide, hardened guideways
- Hydraulic clamping of cross traverse
- Rigid guide construction ensures maximum rigidity and accuracy of the vertical boom
- Spindle runs in a high-precision two-row roller bearing and is adjustable
- Reduction gear drive ensures high torque and a speed range of 10 - 315 rpm
- Servo motor technology ensures powerful, infinitely variable feed of the vertical boom
Technical Detail
| Working area | |
|---|---|
| Rotating diameter (max.) | 2600 mm |
| Turning diameter of upper tool holder | 2600 mm |
| Turning diameter of side tool holder | 2300 mm |
| Machining height (max.) | 1500 mm |
| Swivel range of upper tool holder | ± 30° |
| Workpiece length (max.) | 1500 mm |
| Workpiece weight (max.) | 10000 kg |
| Travels | |
|---|---|
| Travel X1 axis, upper support | 1300 mm |
| Travel Z1 axis , upper support | 1000 mm |
| Travel W-axis, traverse | 1100 mm |
| Travel X2 axis, side support | 730 mm |
| Travel Z2 axis, side support | 1180 mm |
| Headstock | |
|---|---|
| Speed range | 1,4 1/min - 45 1/min |
| Spindle torque (max.) | 32000 Nm |
| Rotary table diameter | 2300 mm |
| Rapid feed | |
|---|---|
| Rapid feed of upper support | 1800 mm/min |
| Rapid feed of side support | 1800 mm/min |
| Feed | |
|---|---|
| Feed speed X-axis | 0,8 mm/min - 86 mm/min |
| Feed speed Z-axis | 0,8 mm/min - 86 mm/min |
| Feed speed W-axis | 440 mm/min |
| Tooling | |
|---|---|
| Tool holder | 30 mm x 40 mm |
| Tool weight max. | 50 kg |
| Drive capacity | |
|---|---|
| Motor rating main drive | 37 kW |
| Motor rating X-axis | 4,7 kW |
| Motor rating Z-axis | 4,7 kW |
| Measures and weights | |
|---|---|
| Overall dimensions (length x width x height) | 7,9 m x 5,3 m x 5,4 m |
| Weight | 27500 kg |
Standard Equipment
Knuth Pedigree
Knuth offers a long pedigree of continued success in vertical turning machines tool products.
Operator Training
Operator training available in showroom subject to quotation
prior to delivery. Email us to outline your needs.
Shipping
Fully inclusive shipping rates covering transportation, import customs documentation, duties
quoted for inclusion at time of order for UK mainland sites. Northern Ireland destinations, Islands
and other remote sites should seek advice prior to order via email. Clients will be responsible for
their own site offload and siting at point of use.
Finance Availability
Looking to finance your equipment?
We have access to a variety of funding sources who will look sympathetically
at requests for funding finance.
These include leading merchant banks such as asset finance specialists Close Brothers and Lombard.
The financial services division of Siemens will consider HP on the investment. Subject to Status.
On an investment of this nature with a long delivery lead time we can also look at providing a staged payment schedule.
We will confirm this with you at time of order.
