Holzmann CTF69ATC-230V * CNC Table Milling Machine ATC / Table Router.

Store / Woodworking Machinery , Fixings & Power Tools / CNC Routers, Lasers, Hand Routers , Tables & Tooling

£11,999.99

Price incl. VAT (20%) £2,000.00

In stock

Product Details

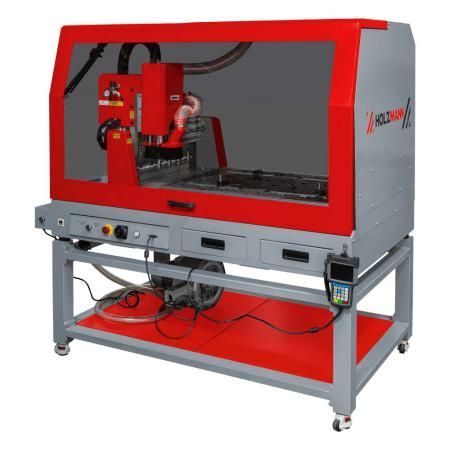

Holzmann CTF69ATC- 230V * CNC Table Milling Machine ATC / Table Router.

Highlights

HOLZMANN CTF69ATC_230V CNC Table router with base frame, enclosure, vacuum table, and automatic tool changer (5 positions ATC)

The HOLZMANN CTF69ATC_230V is a CNC table router machine designed for machining wood and plastic workpieces.

It is equipped with a base frame and an enclosed housing and can be used in workshops with limited space.

The vacuum pump allows workpieces to be secured to the table. The water-cooled spindle and the automatic tool changer with 5 positions enable its use for various machining steps.

max. cutter shank diameter: ½" (12.7 mm) ER20
travel ranges X/Y/Z axes
- x-axis: 1100 mm
- y-axis: 610 mm
- z-axis: 140 mm
repeatability: +/- 0.1 mm
max. cutter diameter: Ø75 mm
with 1500 W vacuum pump (vacuum for workpiece clamping)
water-cooled spindle

Included in delivery: 5 x ISO20 ER20 tool holders (without collets); base frame incl. casters, 4 clamping clamps, vacuum pump

Technical Details

motor data motor power s1 in W 2500 | 1500

voltage 230 V / 50 Hz

measurements

dust collector port in mm Ø 100

total dimensions in mm 1780 x 1140 x 1965

technical specification

milling adapter max. 1/2"

milling spindle speed in min-1 0 - 24000

travel X-axis in mm 1100

travel Y-axis in mm 610

travel Z-axis in mm 140

max. milling diameter in mm 75

volume level and vibration

sound power level in dB(A) 93

sound pressure level in dB(A) 82

weight

gross weight in kg 570

net weight in kg 470

packaging

packaging width in mm 1.150

packaging length in mm 2.160

packaging height in mm 1.338

general data

EAN code 9120132141646

The roots of Holzmann and Zipper reach back as far as 1886 to the foundation of a smithery in Haslach Austria. Today the group is one of the global players in the field of workshop machinery and equipment.
