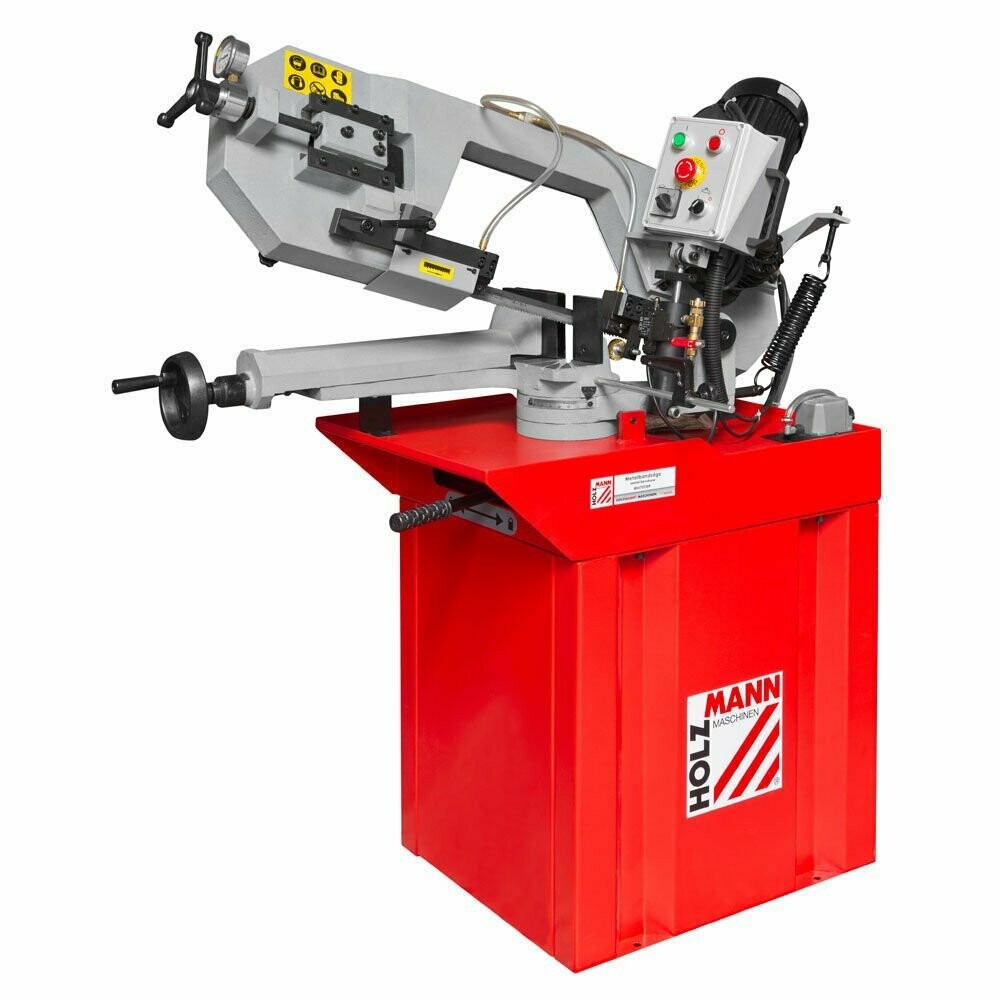

Holzmann BS275TOP Metal Bandsaw ( Model Options 230v/415v )

Holzmann BS275TOP Metal Bandsaw ( Model Options 230v/415v)

High quality, rugged metal bandsaw for mitre cuts

Highlights

• saw blade dimension: 2480x27x0,9mm
• high value, precise metal band saw with rugged cast iron setup
• saw frame swivels up to 60°enabling mitre cuts
• adjustable 5-point ball bearing blade guide ensuring maximal cutting accuracy, automatic end stop
• rugged cast iron vice featuring quick release lever and workpiece limit stop
• fully adjustable saw frame downfeed via hydraulic cylinder valve
• a solid machine setup with especially torsion resistant saw frame ensures vibration free run and optimal cutting results
• manometer enables precise adjustment of blade tension

included in delivery: saw blade, stand, workpiece limit stop, automatic shutoff device, coolant device, manometer

• Technical Details
• Motor power S1 in W 1.1 kW 230V / 50Hz
  Swivel range 0 ° -60 °
  Cutting performance around Ø 90 ° in mm 225
  Cutting performance around Ø 45 ° in mm 160
  Cutting capacity around Ø 60 ° in mm 100
  Cutting performance LxH 90 ° in mm 200 x 200
  Cutting performance LxH 45 ° in mm 160 x 160
  Cutting performance LxH 60 ° in mm 100 x 100
  Saw band in mm 2480 x 270 x 0.9 mm
  Saw band speed in m / min 75
  Net weight in kg 195
•

Optional

The BS275TOP Metal Bandsaw is also available as a 400v 3 phase machine at a similiar price for clients who prefere this option.
