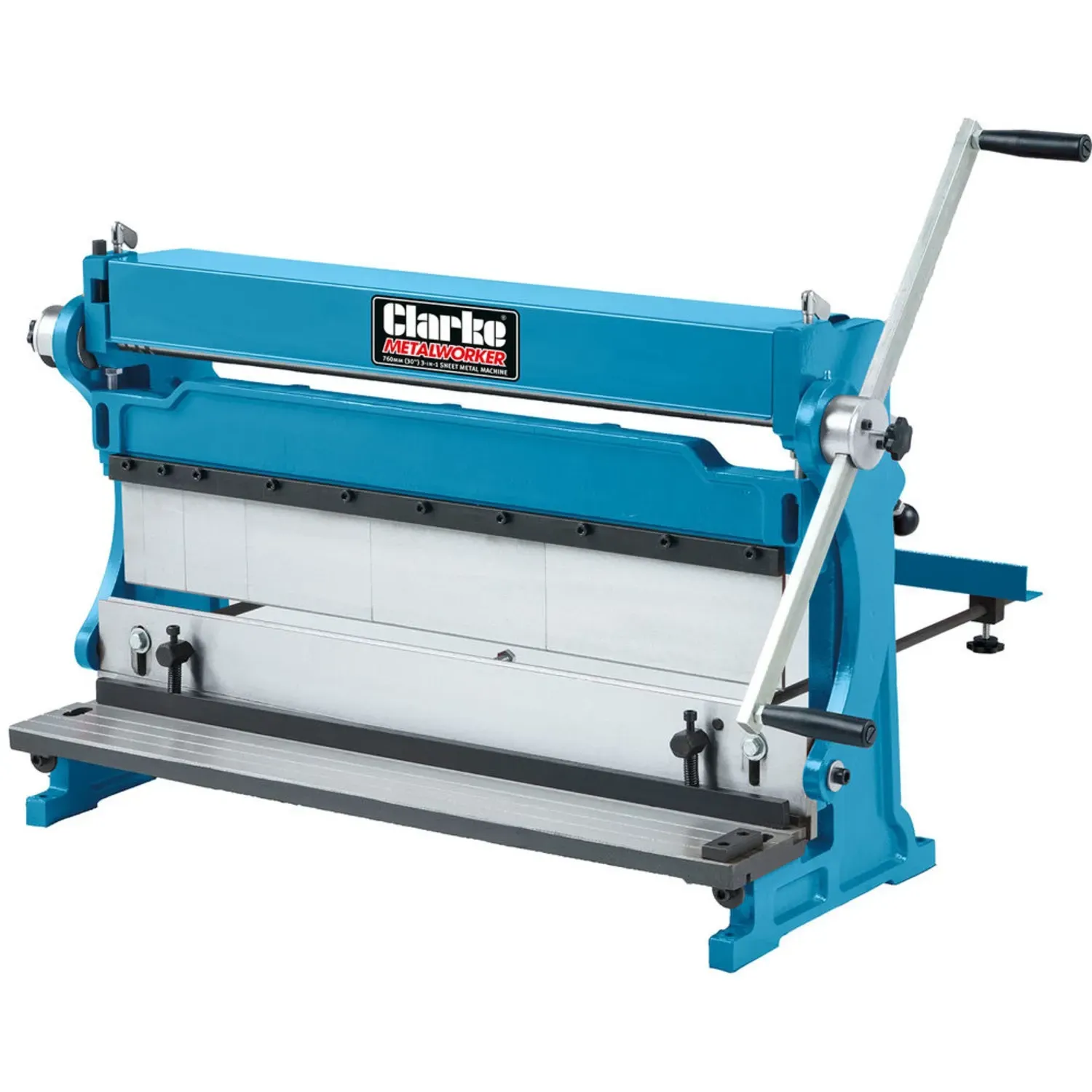

Clarke SBR760B 3 In 1 Sheet Metal Machine (760mm)
Clarke SBR760B 3 In 1 Sheet Metal Machine (760mm)
Highlights
The Clarke 3 in 1 Universal 760mm Sheet Metal Machine is a versatile machine that can be used for cutting, folding and rolling sheet metal and is integral to any fabricator or machinist.
Made from cast steel, this robust sheet metal machine offers the capability to work mild steel up to 1mm in thickness and aluminium up to 1.2mm thickness, with a maximum width of 760mm. The machine can be adapted to suit the users needs, owing to grooves in the rollers, with diameters of Ø2.5mm, 3mm, 4mm, 5mm, 5.5mm and 6mm, for bending rods. The distance and angle of the rollers can be adjusted to create various curves, cylinders and cones.
The Clarke 3 in 1 Universal 760mm Sheet Metal Machine also provides the ability to create pans with a maximum lip of 1" and can brake (bend) sheets up to a maximum angle of 90°.
- Bends, slip rolls and shears mild steel sheet up to 1mm
- Aluminium sheet up to 1.2mm thickness with maximum width of 760mm
- Rollers have grooves with diameters of Ø2.5, 3, 4, 5, 5.5 and 6mm for bending rods
- Handle can be attached to either left or right-hand side
- Segmented press brake tooling for box and pan folding
- Hardened and ground reversible shear blades
- Front squaring block
- Adjustable rear back stops
- Max bending angle 90
Technical Details
| Max steel width | 760 |
| Max Steel Thickness | 1mm |
| Packaged Weight | 142kg |
Warranty
Clarke is a British based company whose products comply with British and European Standards and European safety and CE marking directives. Their products are supplied with a 1 year parts and labour warranty from date of purchase.
