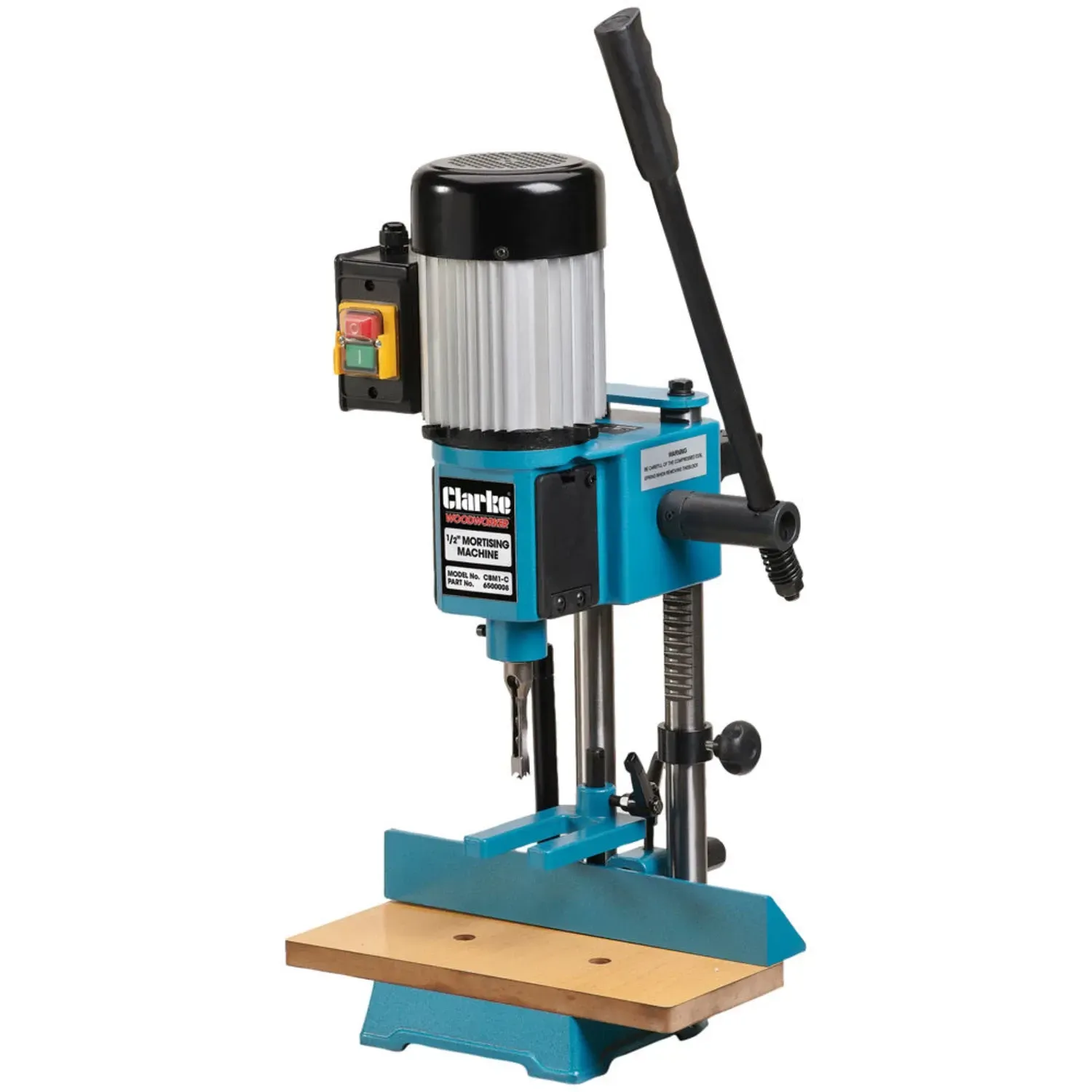

Clarke CBM-1C Mortising Machine
Clarke CBM-1C - Mortising Machine
Highlights
Ideal for the serious DIY woodworker, craftsman & woodworking enthusiast, this machine creates deep square recesses accurately, consistently and simply. at a stroke, it removes the otherwise long process of marking up and producing correctly proportioned, straight sided hand cut mortise every time.
- 230v (370W), 1ph motor
- Max. chuck capacity 13mm
- Max. mortice chisel stroke length 76mm
- Cuts mortices up to 95mm deep
- Workpiece table with material clamp (90mm clamping capacity)
- Supplied with 10mm (3/8") chisel & bit and a useful tool rack
- Robust cast iron base & column ensures stability & accuracy.
Technical Details
Motor . 230VAC 50Hz 1Ph
Power Rating . 370 Watts (1/2HP)
Speed .. 1500RPM
Fuse Rating . 13 Amps
Chuck Capacity. 13mm (1/2”) ‘
Hold Down’ Capacity .. 90mm
Max. Thickness. 95mm Max.
Chisel Stroke .. 76mm
Table Size .. 150x340mm
Base Size. 255x200mm
Overall Dimensions - D x W x H 338x342x290mm
Net Weight . 27.5kg
Optional
The following Morticing Chisels and Bits are available from Traxx Industries.
Mortice Width Bit Shank Size
Part No.
1. 6mm (1/4”) . 5mm.....6500025
3. 13mm (1/2”) .. 9mm.....6500027
4. 16mm (5/8”) 13mm ...6500028
Warranty
Clarke is a British based company whose products comply with British and European Standards and European safety and CE marking directives. Their products are supplied with a 1 year parts and labour warranty from date of purchase.
