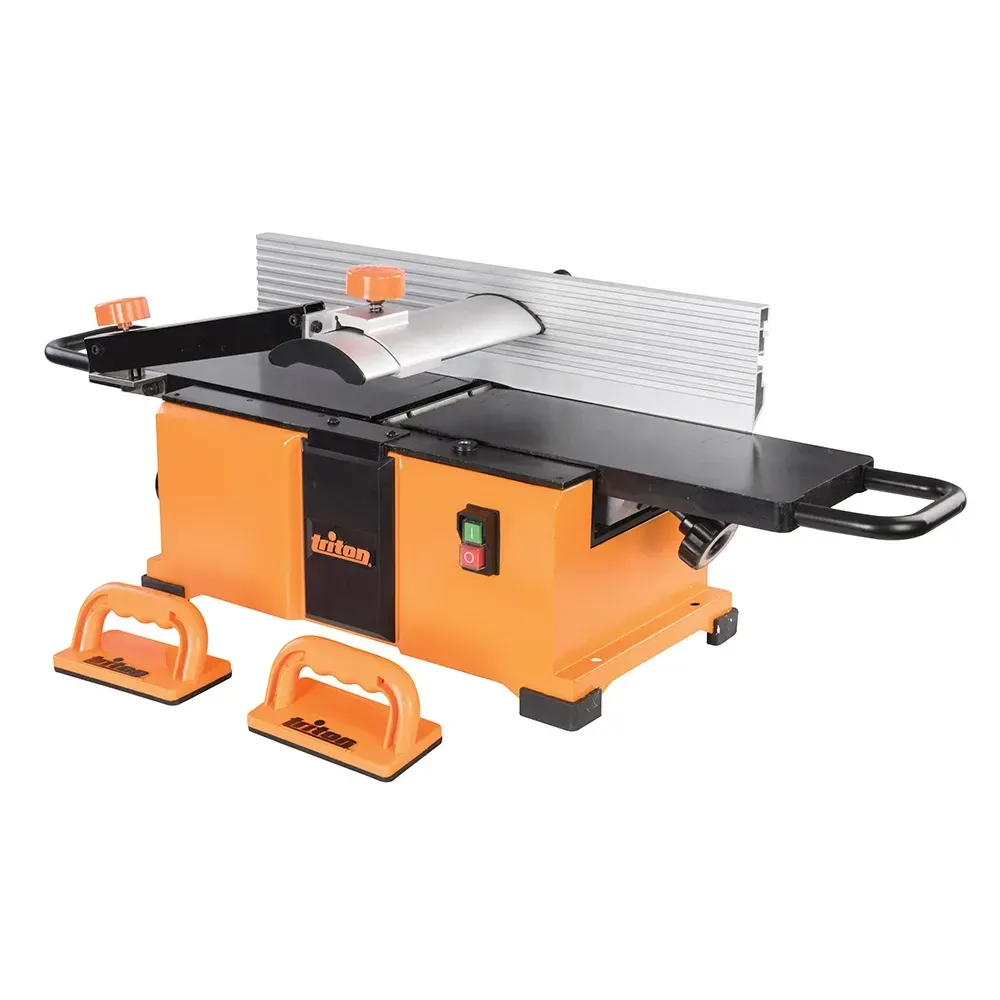

Triton TSPL152 1100W Surface Planer 152mm
Triton TSPL152 1100W Surface Planer 152mm
Highlights
Powerful 1100W surface planer for smooth planing of wood and plastic surfaces. Large 152mm planing width with 771 x 250mm table surface. Dual-bladed cutting block removes material at 16,000cpm with a maximum depth of cut in a single pass at 3.2mm. Extruded aluminium fence tilts 45 - 135° with preset stops. Includes guide fence, blade drum guard, push stick, 2 x push blocks, hex spanner and 2 x hex keys.
Product Features
- Easy, accurate setting of cutting depth to a maximum pass of 3.2mm
- Bench mounting holes allow the base to be securely fixed in a workshop
- Dust extraction port connects to external dust extractors for a safer and cleaner work environment
- Large infeed and outfeed tables provide support for longer workpieces
- Circuit breaker for electrical safety
- Dual blade cutting block for fast material removal and finer finish for jointing
- Extruded aluminium fence tilts 45 - 135° for versatile and accurate planing
- Push stick and push blocks promote safer working with more control over workpiece
- Blade guard drum reduces chance of kickback
Technical Details
- Product Height: 380mm
- Product Length: 965mm
- Product Width: 505mm
- Power: 1100W
- No Load Speed: 8000min-1
- Max Planing Depth: 3.2mm
- Max Planing Width: 152mm
- Table Size: 771 x 250mm
- Dust Port Dimensions: Inner 50mm, outer 60mm
Additional Product Data
| Power | 1100W |
| No Load Speed | 8000min-1 |
| Max Planing Depth | 3.2mm |
| Max Planing Width | 152mm |
| Table Size | 771 x 250mm |
| Dust Port Dimensions | Inner 50mm, outer 60mm |
| What's in the Box | 1 x TSPL152 1100W Surface Planer 152mm 2 x Handles 1 x Blade Guard 1 x Blade Guard Arm 2 x Push Blocks 1 x Push Stick 1 x Guide Fence 1 x Guide Fence Attachment Kit 1 x Double End Wrench (10mm & 12mm) 1 x Hex Spanner 1 x Instruction Manual |
Packaged Product Information
| Dimensions (m) | 0.96 (L) x 0.31 (W) x 0.40 (H) |
| Weight (kg) | 25.40 |
Warranty
To activate the extended 3 year guarantee you must register the product at www.tritontools.com within 30 days of purchase. Should you not wish to register, a standard 30 day guarantee period will apply.
This guarantee, and the guarantee period, begins on the date of retail purchase as detailed on your sales receipt.
