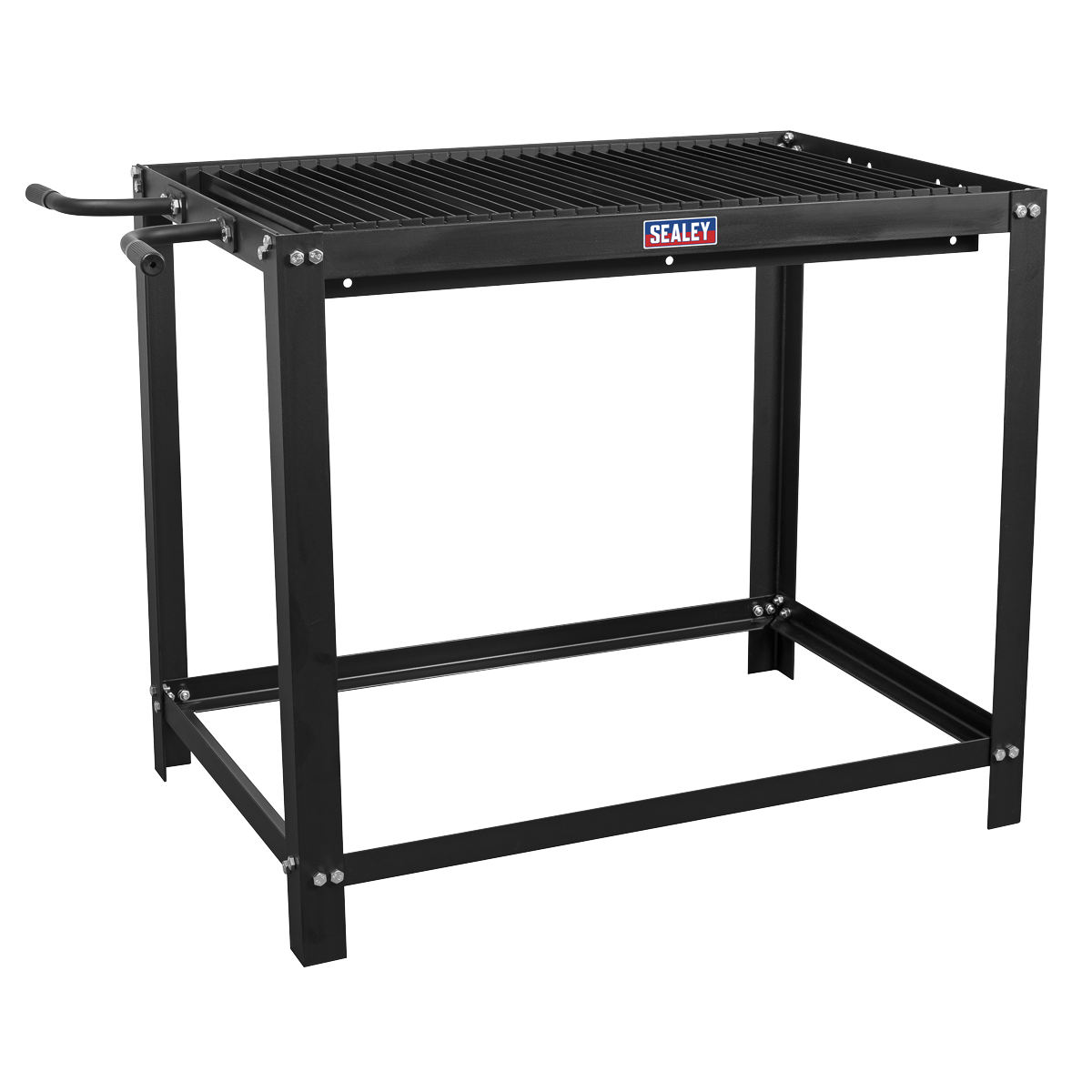

Sealey PCT1 Plasma Cutting Table Workbench ( Optionally available with Sealey Plasma Cutter )
Sealey PCT1 Plasma Cutting Table
Workbench
Highlights
• Mild steel plasma cutting table/workbench.
• 32 Replaceable cutting slats, order Model No. PCT1RS for a pack of 10 replacements.
• Removable side handles/cable tidy hanging hooks.
• Supplied flat-packed for easy self-assembly using hand tools (not included).
• Supports weight capacity of 113kg.
• Overall Dimensions (W x D x H): 1065 x 600 x 812mm.
Technical Details
| Nett Weight: | 34kg |
| Replacement Parts: | PCT1RS - Replacement Slats (Pack of 10) |
| Overall Dimensions (W x D): | 1065 x 600mm |
| Bench Dimensions (W x D): | 920 x 600mm |
| Height Range: | N/A |
| Height: | 812mm |
Optional
1/ Sealey PP40E 40A Plasma Cutter Inverter
Highlights
• INVERTER TECHNOLOGY - Inverter power supply fitted with plasma cutter control circuitry.
• DIGITAL SCREEN - Features digital amp display, gas regulator and two LEDs on the front panel indicating overload and mains power.
• ACCESSORIES SUPPLIED- Supplied with a 4m plasma torch, 1.4m earth cable, 2m power cable.
• SUITABLE FOR VARIOUS METALS - Ideal for cutting steel, stainless steel, galvanized steel, aluminium, copper and brass.
• LARGE CUTTING CAPACITY - Max. Cutting Thickness: 12mm.
Technical Detail
| Nett Weight: | 8.6kg |
| Power Output: | 20-40A |
| Duty Cycle: | 60% - 40A 100% - 30A |
| Maximum Cutting Thickness: | 12mm |
| Air Requirements: | 250lts/min |
| Working Pressure: | 43.5-58psi |
| Supply: | 230V |
| Absorbed Power: | 6.2KW |
| Insulation: | H |
| IP Rating: | IP21S |
| Weight: | 9.2kg |
| Note: | *To achieve maximum power a 32A supply may be required. |
Spares for this torch can be ordered as mainline items detailed below
PP40E.E- Electrode Short Low Power for PP40PLUS - Pack of 5
PP40E.N- Nozzle for PP40PLUS - Pack of 5
PP40E.D- Diffuser for PP40PLUS - Pack of 5
PP40E.SC- Torch Safety Cap for PP40PLUS - Pack of 2
2/ Sealey SAC1503B Air Compressor 50L Belt Drive 3hp with Cast Cylinders & Wheels
The Sealey SAC1503B Air Compressor is a suitable air compressor to work with the Sealey PP40E 40A Plasma Cutter Inverter as the plasma cutter requires 250 l/min
air displacement and the capacity of the Sealey Air Compressor type SAC1503B is 380 l/min as shown below.
Highlights
• Air Displacement: 13.4cfm(380L/min).
• Maximum Free Air Delivery: 8.8cfm(249L/min).
• Maximum Pressure: 145psi(10bar).
• Suitable for the professional workshop, these units are fitted with a genuine 3hp motor.
• Twin capacitors and a centrifugal switch aid trouble-free start-up on a 13A supply.
• Pumps feature a heavy-duty full cast cylinders, capped by alloy heads for improved heat dissipation and long-life.
• Heavy-duty drive guards protect belt and flywheel that is designed to force air over the pump to aid cooling.
• Supplied with full CE certification, test certificates and operating/maintenance manual.
Technical Details
| Air Displacement cfm(L/min): | 13.4(380) |
| Maximum Free Air Delivery cfm(L/min): | 8.8(249) |
| Maximum Pressure: | 145psi(10bar) |
| Minimum Rated Supply: | 13A |
| Motor Output: | 3hp |
| Nett Weight: | 50kg |
| Oil Capacity: | 0.45L |
| Outlet: | Quick Release Coupling |
| Phase: | 1ph |
| Receiver Capacity: | 50L |
| Size (W x D x H): | 1020 x 390 x 740mm |
| Speed: | 1630rpm |
| Supply: | 230V/13A |

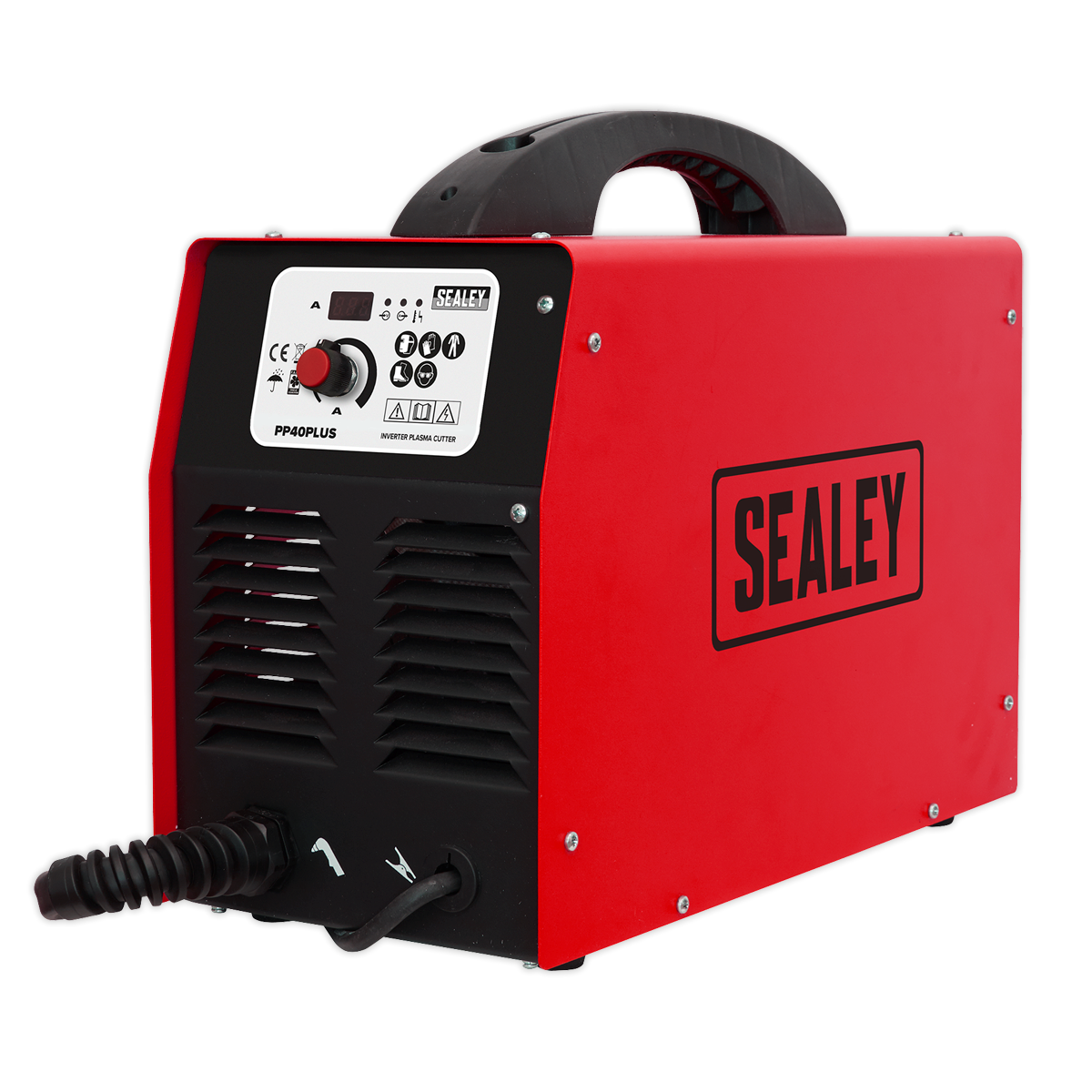

3/ Sealey PP40PLUS Plasma Inverter 40A with Compressor
The Sealey PP40PLUS Plasma Inverter 40A with Compressor is also an option worth considering as this plasma inverter has a built in compressor.
This may be particularly suitable when working in remote locations away from the workshop.
Highlights
• Features an integral compressor yet weighs only 18.5kg.
• Inverter power supply fitted with plasma cutter control circuitry
. • With built-in 4m plasma torch, earth cable and 4m gas hose.
• Features LED display to show the current output and dial adjustment from 15-40A.
• Three indication lights show voltage input, amps output and thermal overload
. • Uses air to strike arc making it suitable for use near electrical equipment
. • Ideal for cutting steel, stainless, galvanized steel, aluminium, copper and brass.
• 230V Supply.
Technical Details
| Nett Weight: | 18.5kg |
| Power Output: | 15-40A |
| Duty Cycle: | 20% @ 40A 30% @ 35A , 60% @ 25A |
| Maximum Cutting Thickness: | 10mm |
| Air Requirements: | Integral Compressor |
| Air Pressure: | n/a |
| Absorbed Power: | 6.9kW |
| Supply: | 230V* |
| Insulation: | F |
| Protection: | IP21S |
| Nett Weight: | 18.5kg |
| Accessories*: | Yes |
| Replacement Consumables: | |
| Electrode, Short (Pack of 5): | PP40PLUS.E (x5) |
| Electrode, Long (Pack Qty): | |
| Nozzle, Short (Pack of 5): | PP40PLUS.N (x5) |
| Diffuser (Pack of 5): | PP40PLUS.D (x5) |
| Safety Cap (Pack of 2): | PP40PLUS.SC (x2) |
| Note: | *To achieve maximum power a 32A supply may be required. |

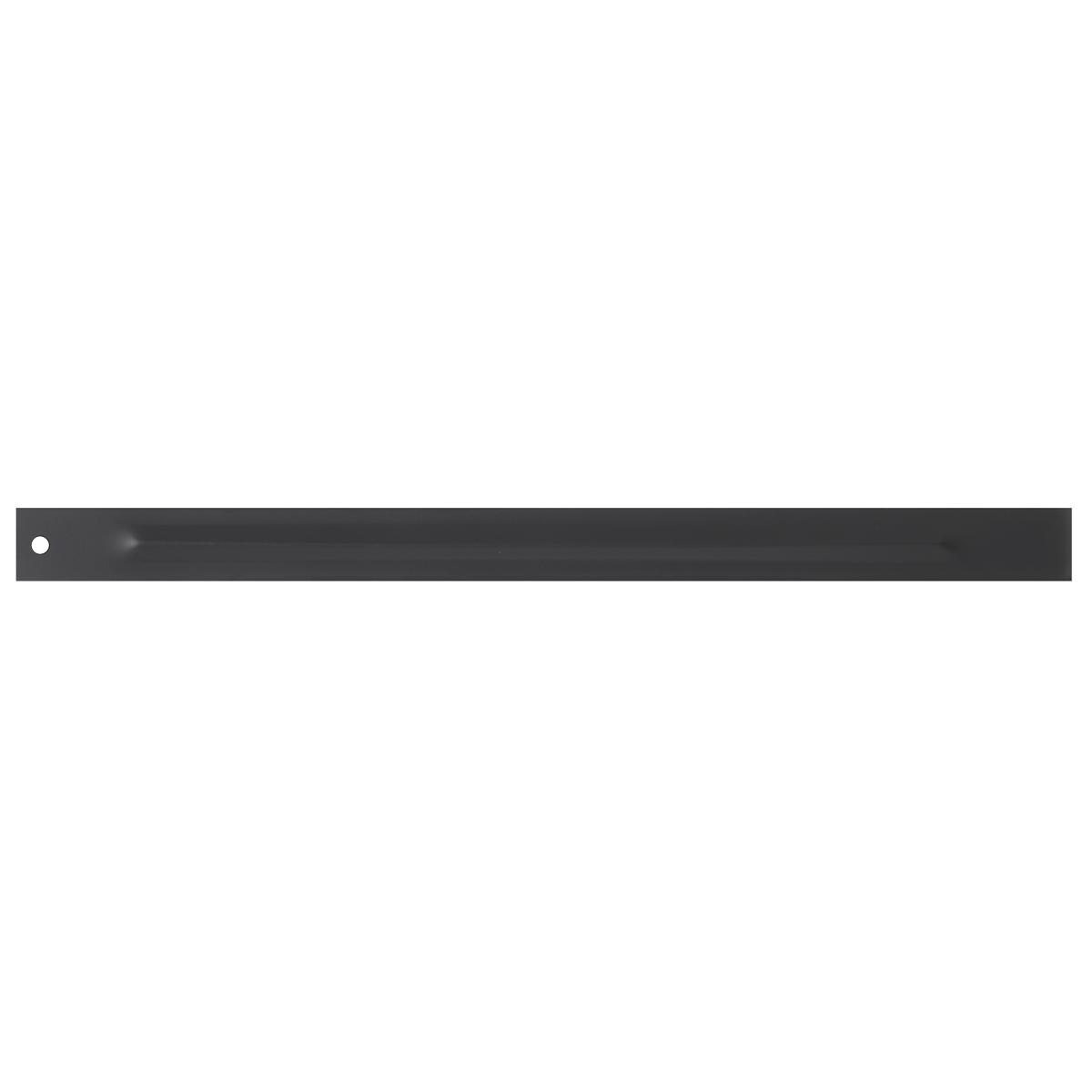

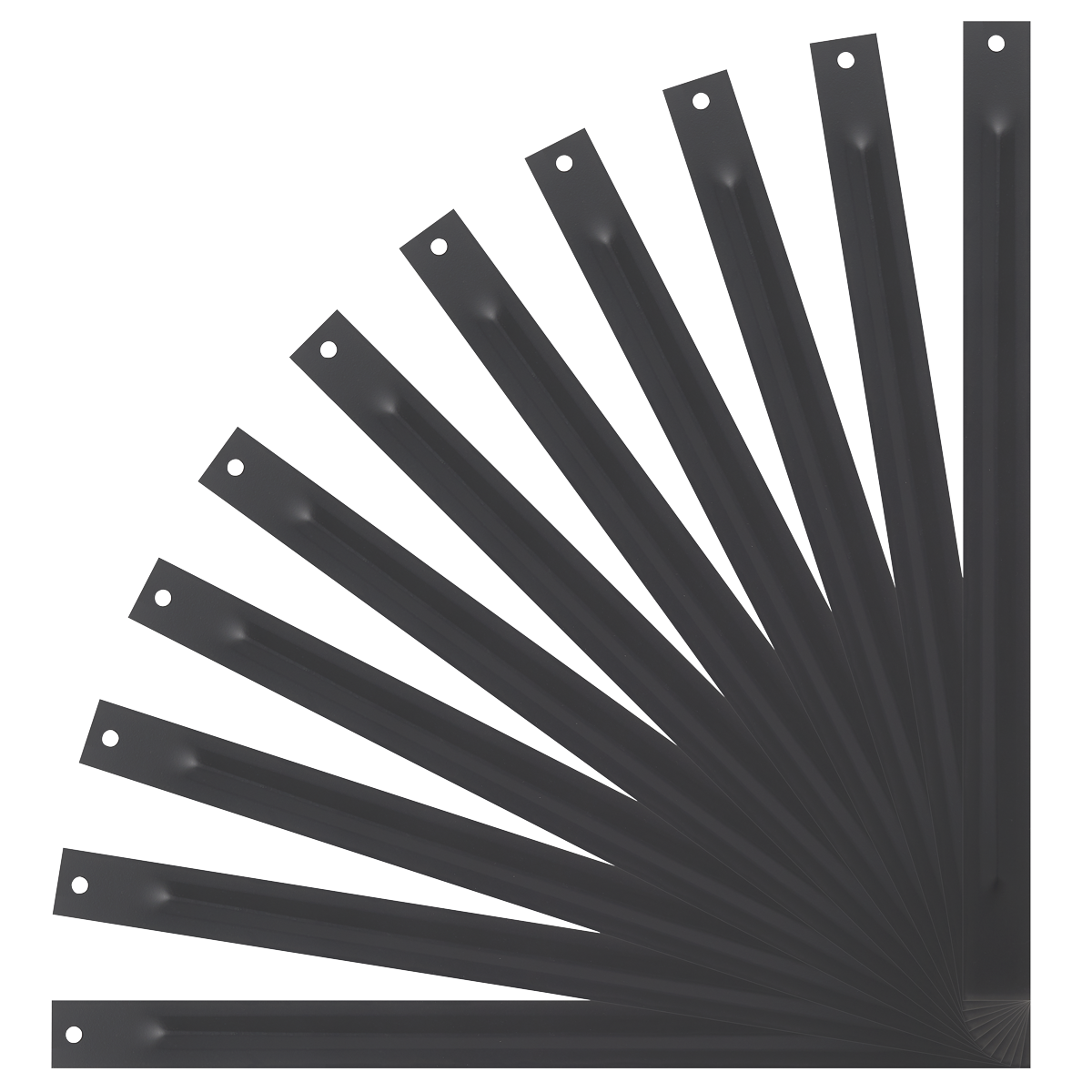

4/Replaceable cutting slats, Model No. PCT1RS for a pack of 10 replacements.
• Mild steel replacement slats for Model No. PCT1 Plasma Cutting Table/Workbench. • Supplied in pack of 10. • Dimensions per slat (W x D x H): 40 x 570 x 3mm.
| Nett Weight: | 2.72kg |
Warranty
Sealey 1 year guarantee as standard
