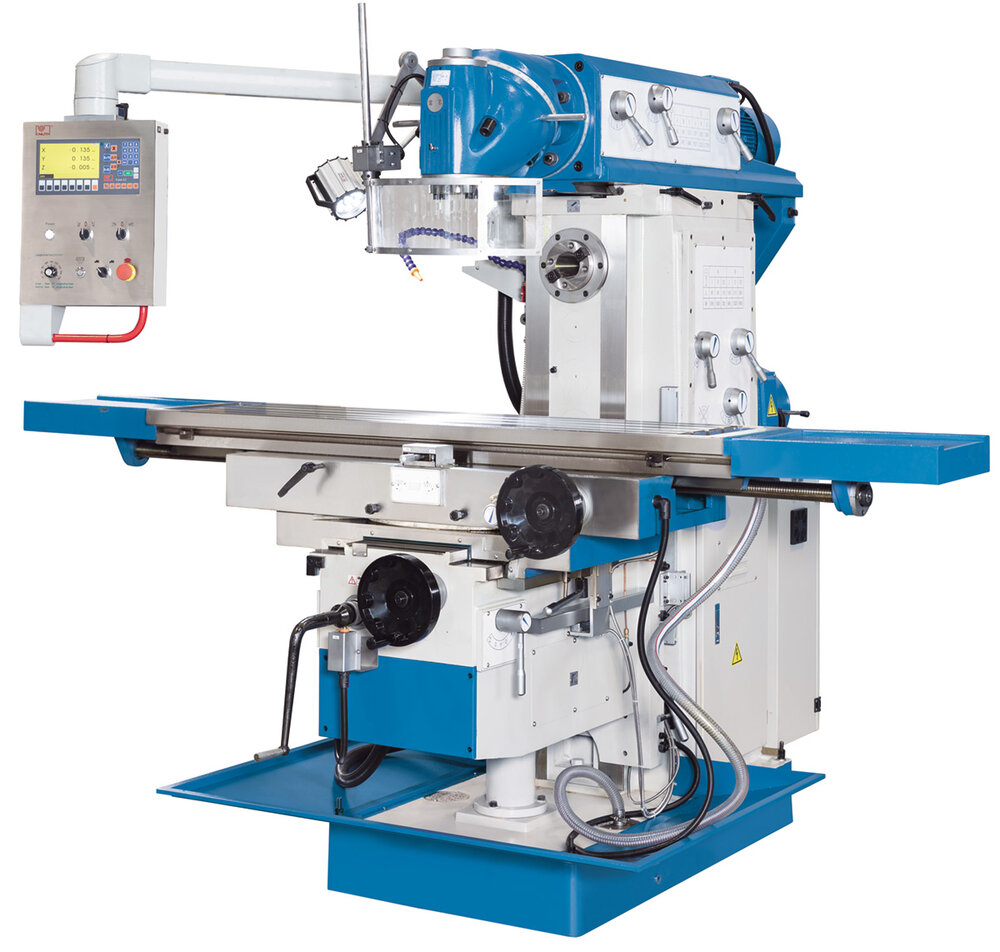

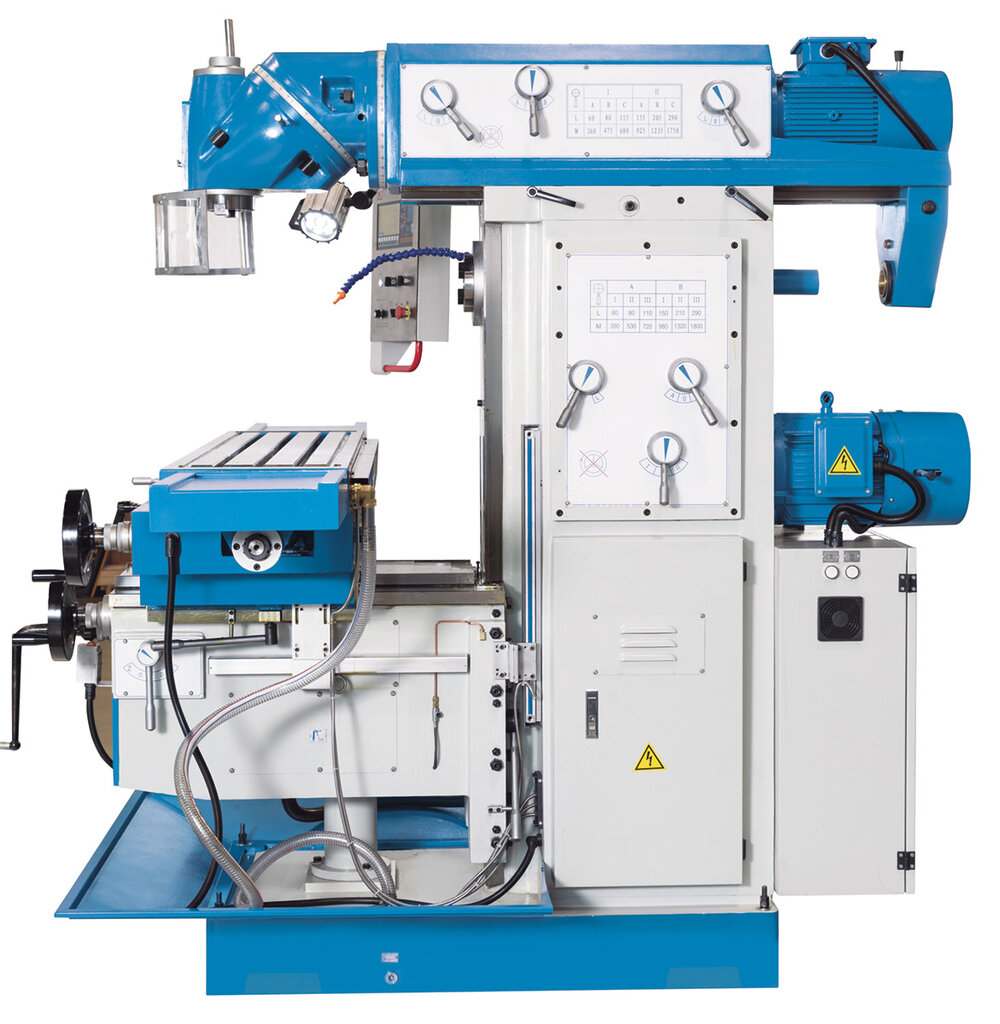

This universal milling machine is the biggest model from UWF series and stands out with its rigid construction, large working area, and extended travels on all axes. Designed as a versatile solution, it can easily handle large workpieces and is packed with features like universal milling head, swiveling table, horizontal axis which greatly increases its range of application.
- Universal cutter head swivels on 2 levels
- Horizontal milling spindle with its own drive
- Swiveling milling table
- Servo-feed on all axes with rapid feed
- Extensive standard equipment
Product Details

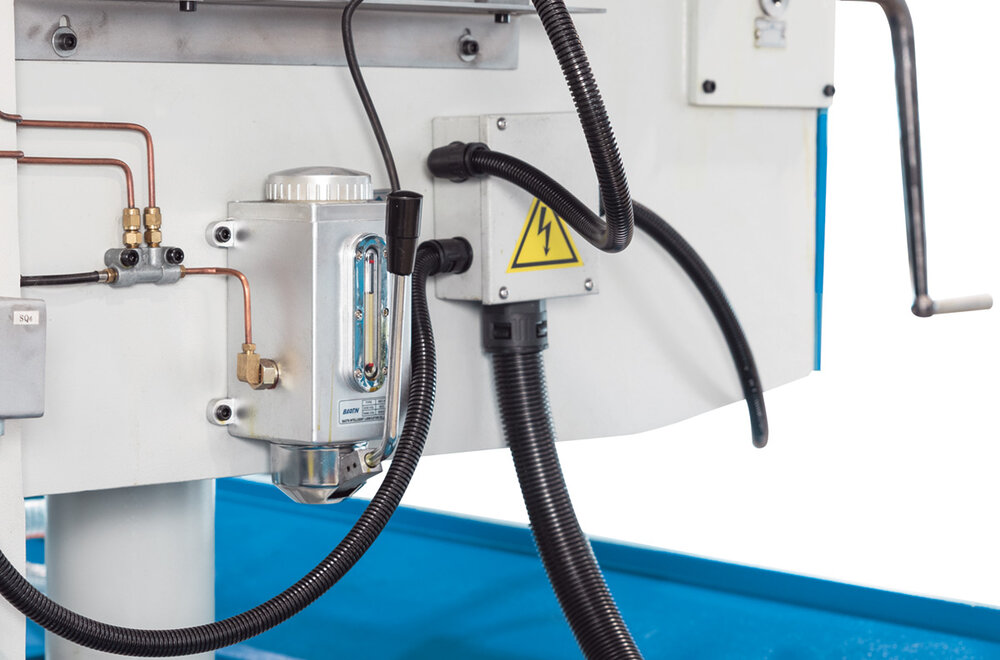

- Precision-ground guideways with hardened surfaces for long-term accuracy and wear-resistance
- The milling table features a large setup area, long X-axis travel, and it can be horizontally swiveled up to 45°
- Quiet, precision-made headstock gears with hardened and ground gears
- The universal cutter head swivels on 2 planes, allowing virtually any spatial angle setting

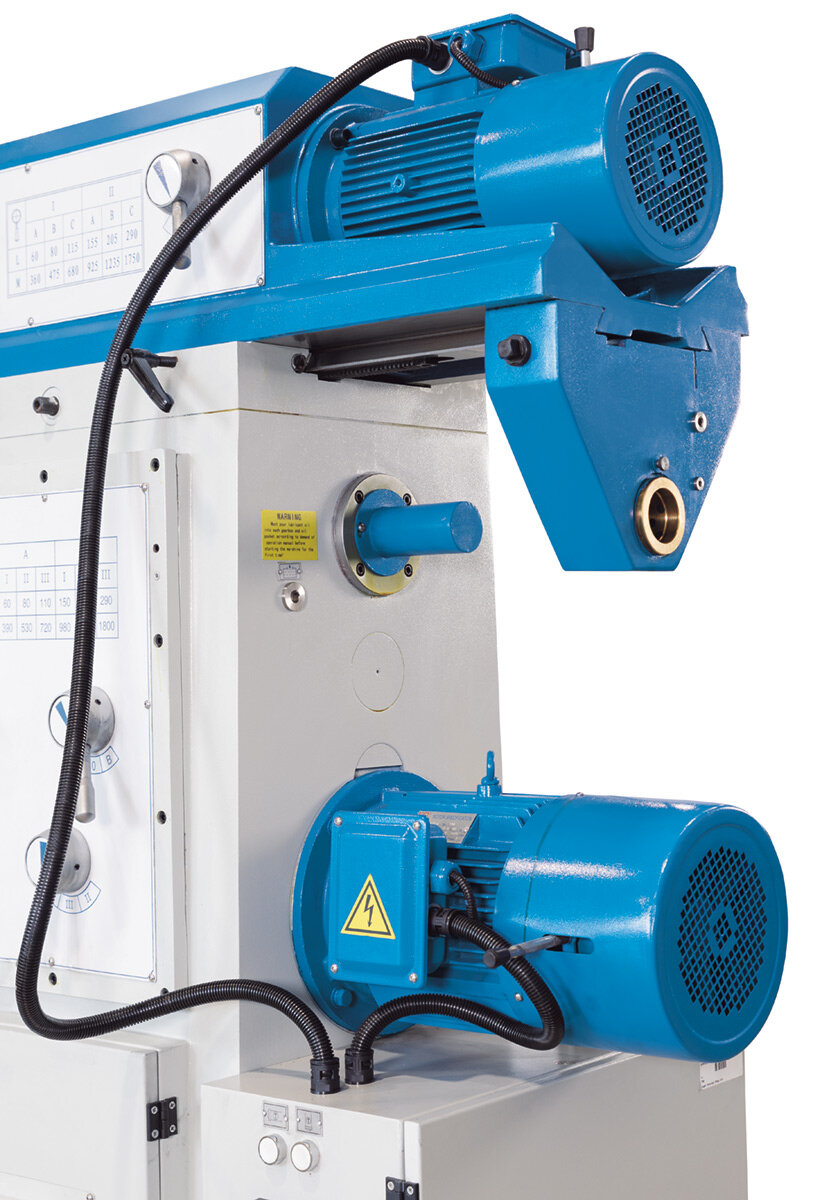

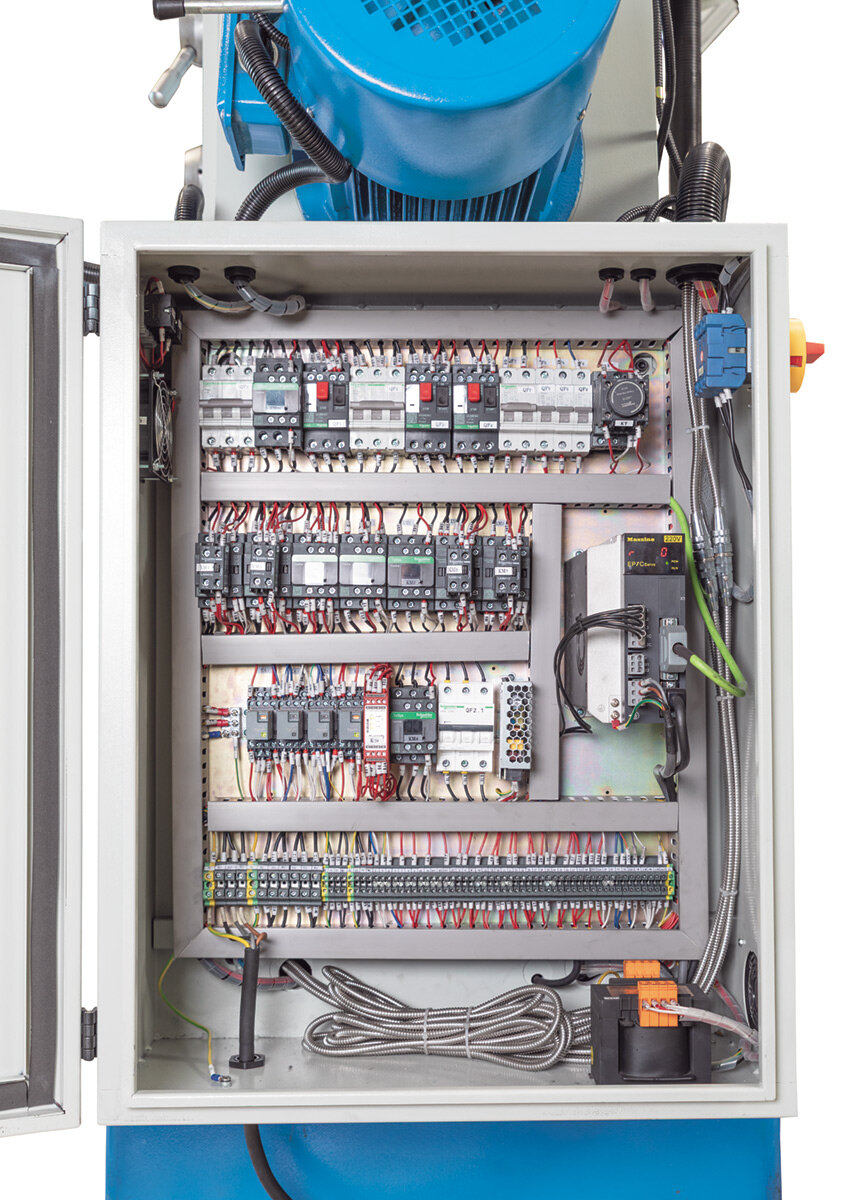

- Vertical and horizontal spindles each have a separate drive with gearbox for maximum machining power
- Standard outer arbor support with bronze plain bearings accommodates long milling arbors in the horizontal spindle
- Powerful axis servo-motors allow infinite adjustment of feeds on all 3 axes
- Minimum downtime due to rapid positioning of work table and rapid feeds in all axes

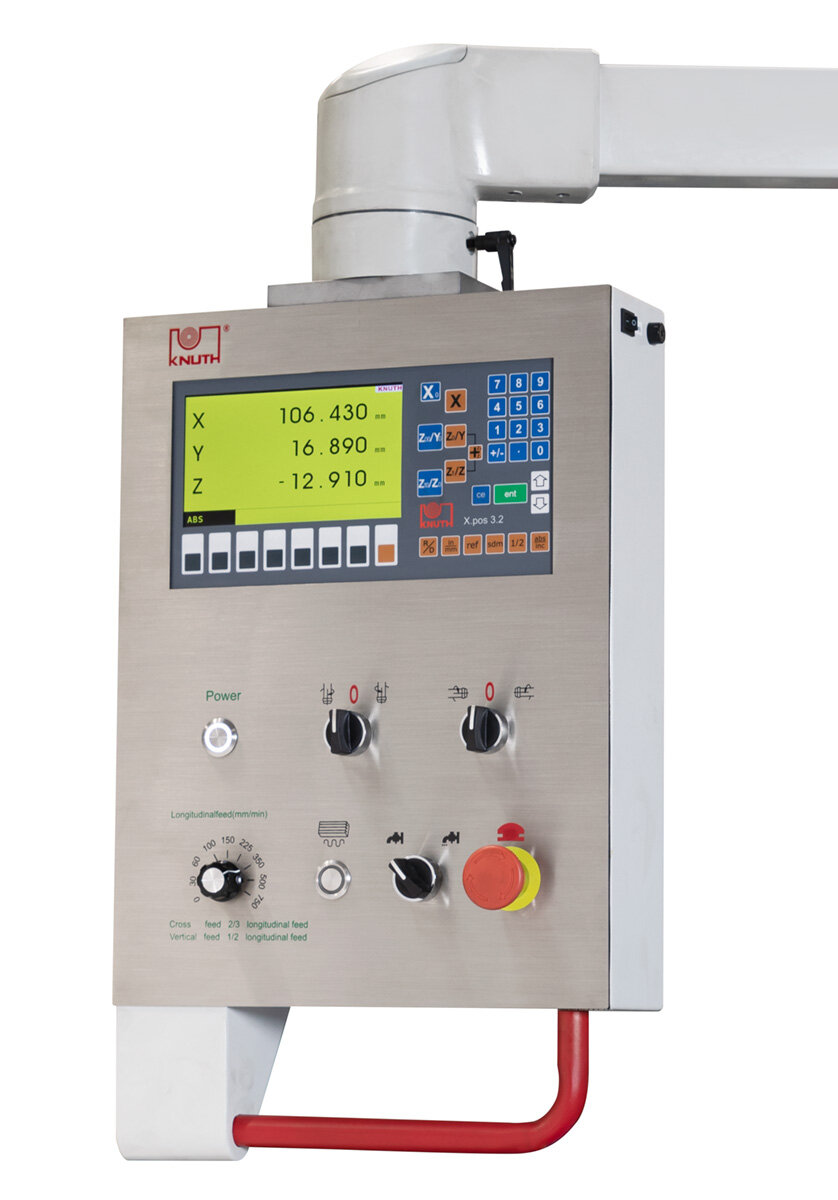

- Swiveling control panel with integrated position indicator for maximum operator comfort

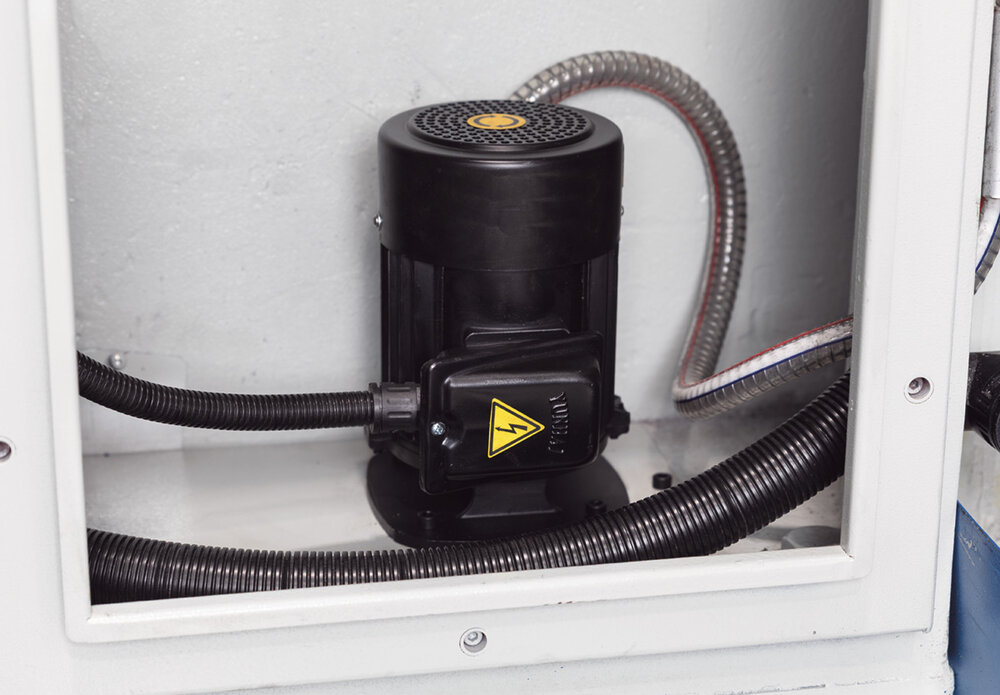

- Coolant system and chip tray are included
3-axis position indicator
- More accuracy
- Lower error rate
- Increased productivity
- Resulting in valuable time savings
- For increased productivity
- Easy to read display
- Operator-specific features
- Convenient keyboard layout
- Resolution: 0.01/ 0.005 mm
- Default coordinates
- Axis position is maintained when display is turned off
- Hole circle pattern calculation
- Calculator function
- Storage for 10 tools
- Radius / diameter toggle
- Mm/inch conversion
- Easy expansion and maintenance-free operation
Technical Details
| Working area | |
|---|---|
| Table dimensions | 1600 mm x 360 mm |
| Table load capacity (max.) | 500 kg |
| Number of T-slots | 3 positions |
| T-slot (width x spacing) | 18 mm x 80 mm |
| Travels | |
|---|---|
| Travel X-axis | 1300 mm |
| Travel Y-axis | 300 mm |
| Travel Z-axis | 400 mm |
| Milling Head | |
|---|---|
| Speed range | 60 1/min - 1750 1/min |
| Spindle mount | SK 50 DIN 2080 |
| Swivel angle | 360° |
| Upper beam travel | 550 mm |
| Spindle center-to-table distance | 190 mm - 590 mm |
| Rapid feed | |
|---|---|
| Rapid feed X-axis | 1200 mm/min |
| Rapid feed Y-axis | 800 mm/min |
| Rapid feed Z-axis | 600 mm/min |
| Horizontal Milling Spindle | |
|---|---|
| Spindle speed (horizontal) | 60 1/min - 1800 1/min |
| Spindle mount | SK 50 DIN 2080 |
| Horizontal spindle-to-table surface distance | 20 mm - 420 mm |
| Spindle axis-to-top beam distance | 200 mm |
| Feed | |
|---|---|
| Feed speed X-axis | 30 mm/min - 750 mm/min |
| Feed speed Y-axis | 20 mm/min - 500 mm/min |
| Feed speed Z-axis | 15 mm/min - 375 mm/min |
| Drive capacity | |
|---|---|
| Motor rating horizontal spindle | 5,5 kW |
| Motor rating vertical spindle | 4 kW |
| Measures and weights | |
|---|---|
| Overall dimensions (length x width x height) | 2,52 m x 2,1 m x 2 m |
| Weight | 2950 kg |
